Gravis ULTRASOUND PnP
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HYN412-0066-AA
ramRAM size
512KB8MB
dimDimensions
209 mm (width) x 107mm (length)
chip Chips and specs
-> Audio
AMD AM78C201 (InterWave Audio)
-> ROM
Macronix IW78C21M1 (Wavetable ROM)
tag Also known as
  • Gravis ULTRASOUND PnP PRO
  • Unknown GUS PnP
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
notes Notes

The PRO version of this card has 512KB of on board memory
16MB memory is only possible with a 72-pin SIMM RAM adapter

Last updated 2025-12-09T20:01:20Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Note
EEPROM data + writing tool
File
Logs
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-09
File
Logs

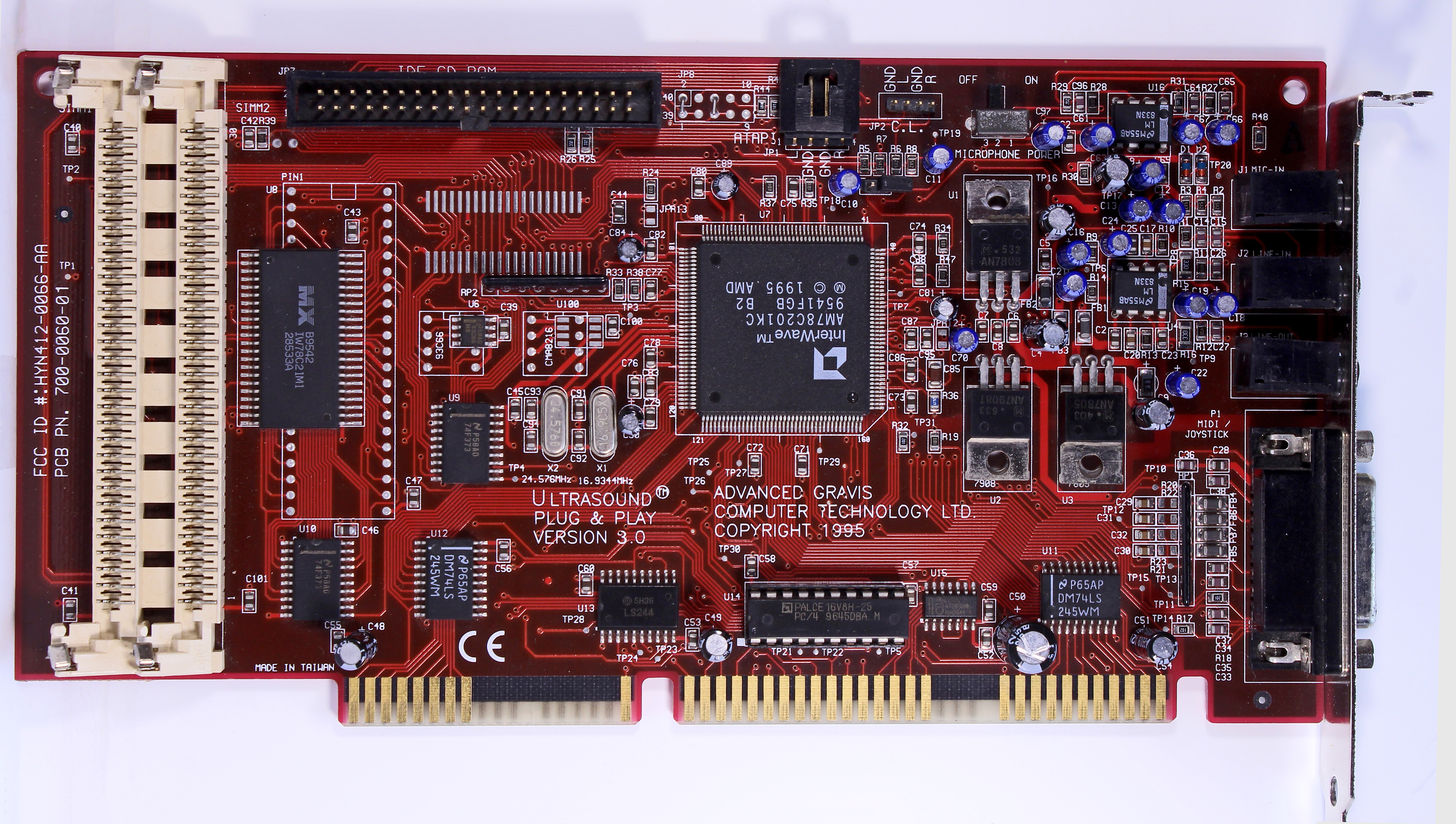

image1 Image 1 of 7 (TMg)

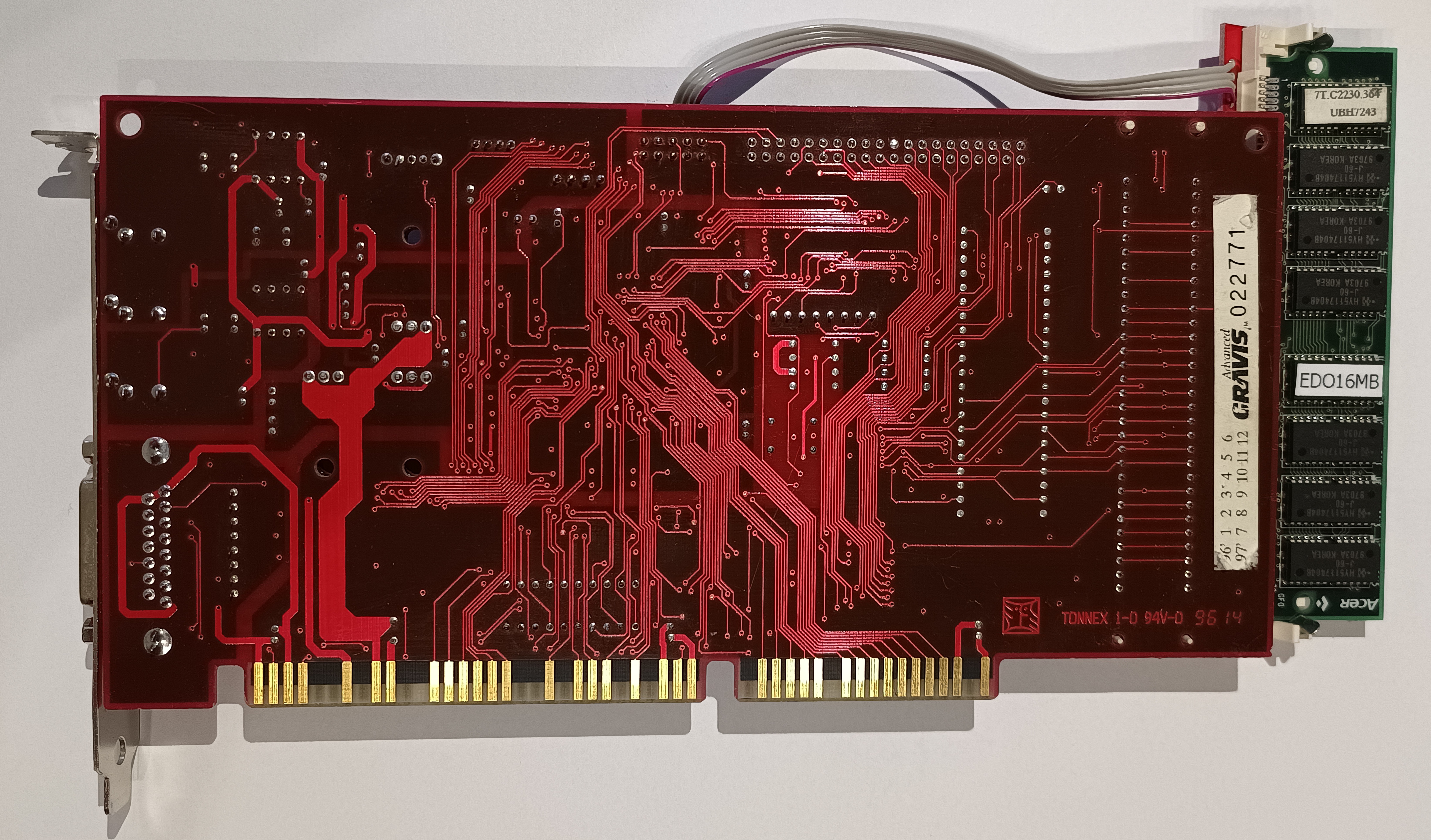

image2 Image 2 of 7 (Ltning)

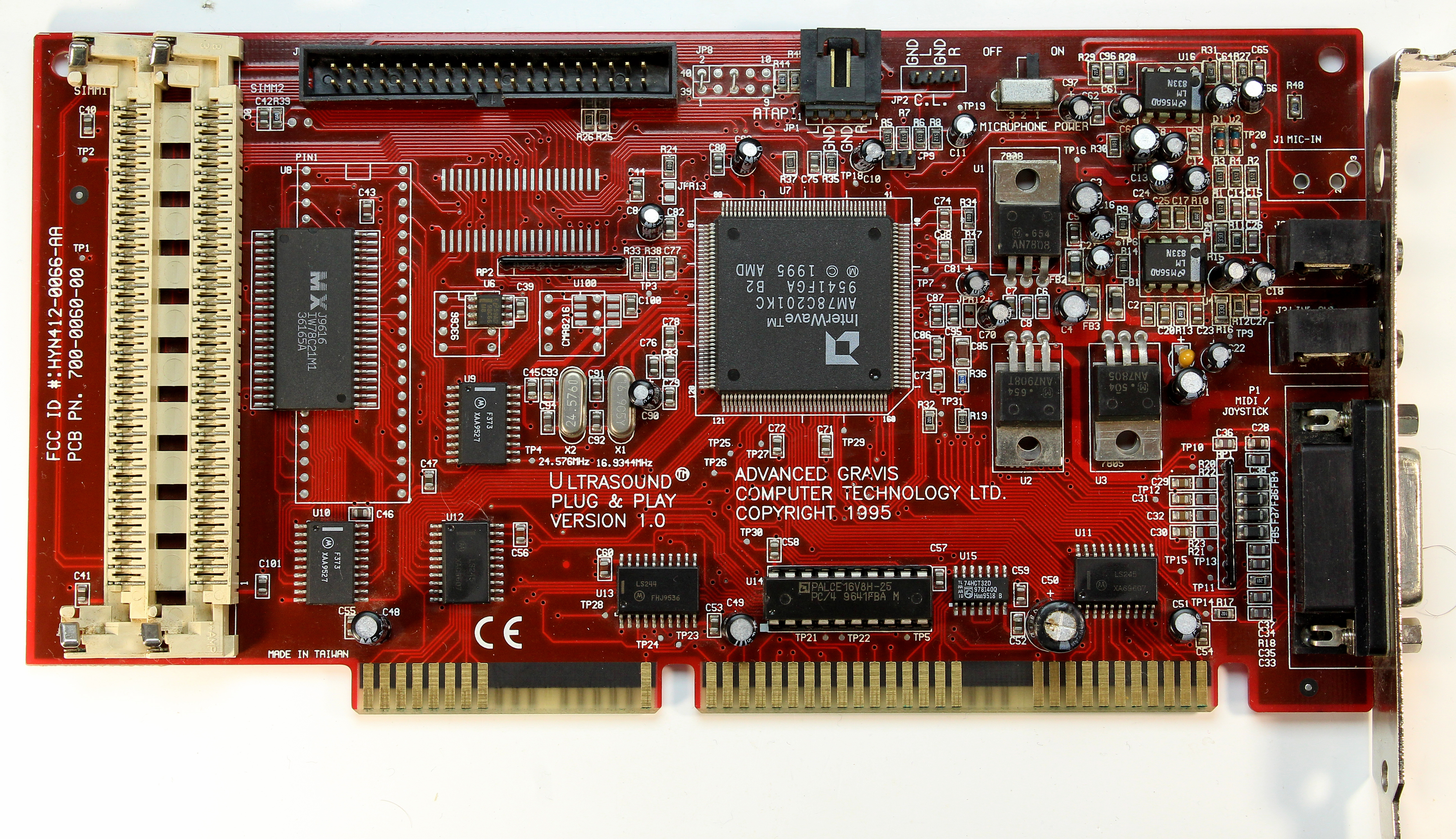

image3 Image 3 of 7 (Helen_Croft)

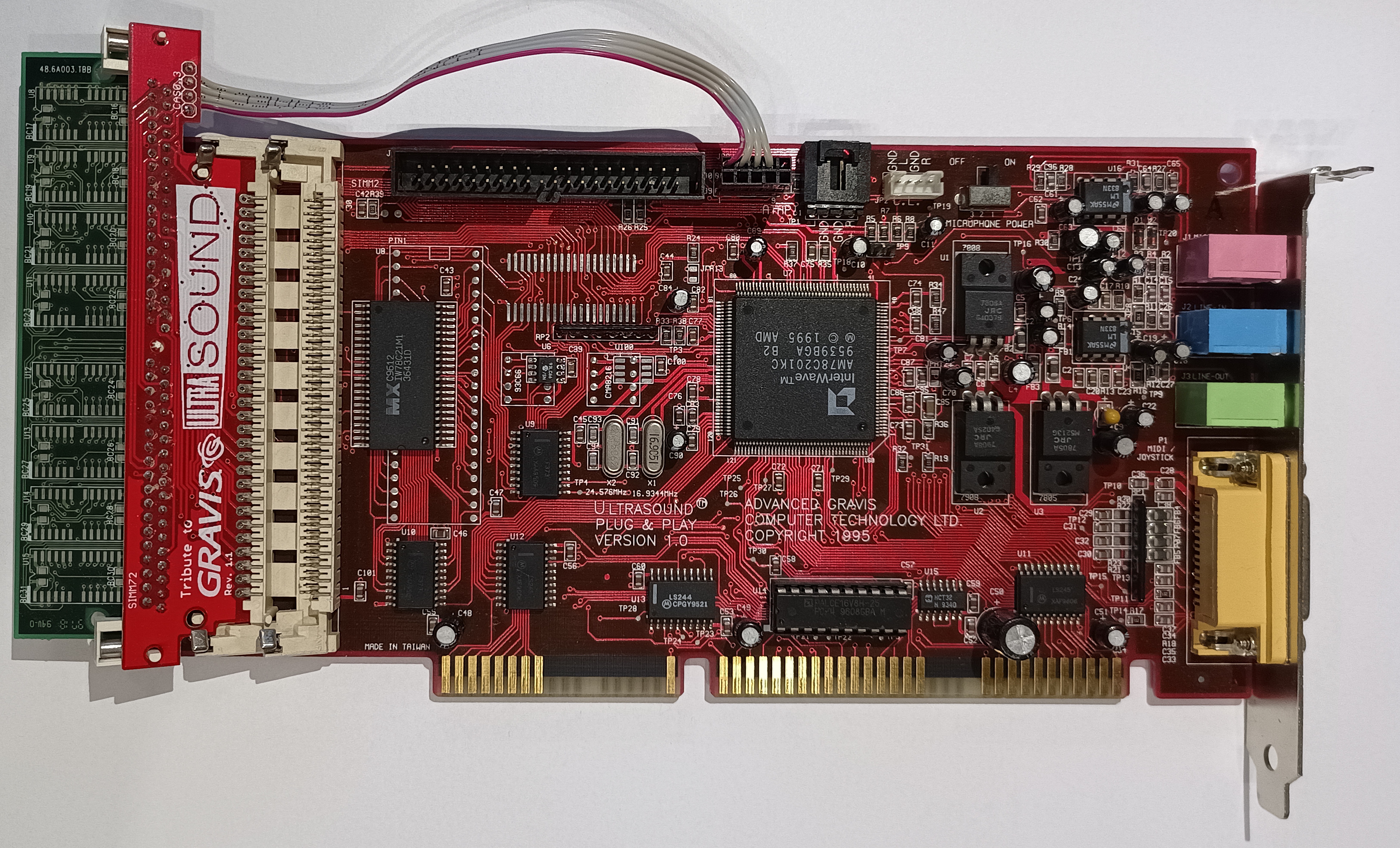

image4 Image 4 of 7 (limsup)

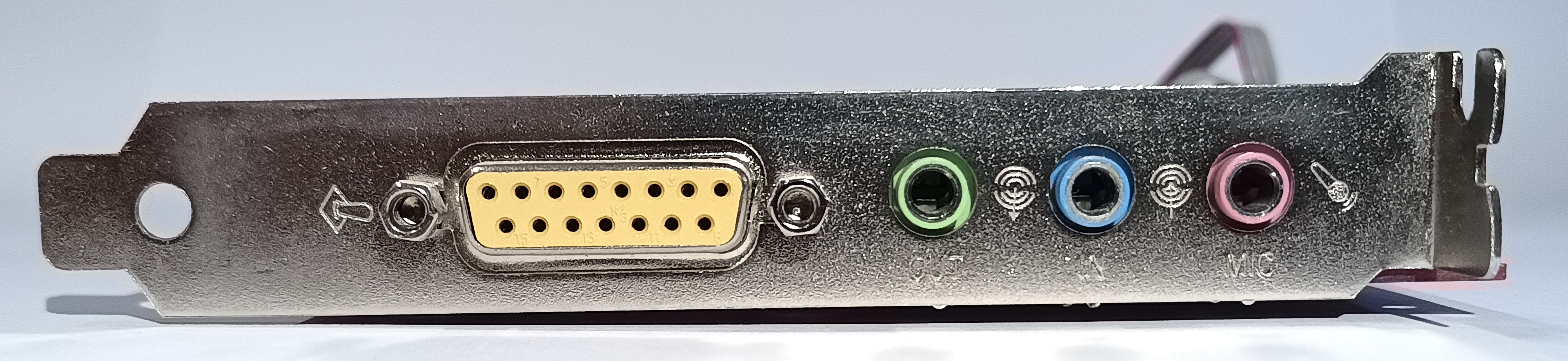

image5 Image 5 of 7 (Helen_Croft)
image6 Image 6 of 7 (limsup)
image7 Image 7 of 7 (Helen_Croft)
