Gravis ULTRASOUND MAX V1.8
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HYN412-0043-AA
ramRAM size
512KB1MB
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) Gravis GF1D2 Gravis GF1 Toshiba TA8217P (2x2W Audio Power Amplifier)
MTL
Card Type Sound card
I/O Options Amplifier out, CD-ROM audio (3), CD-ROM interface (3), game/MIDI port, line in, line out, microphone in
Maximum DRAM 1MB
Chipset Controller Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-08T02:23:35Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.11
OS support
MS-DOS
Arch
x86
Size
7.8MB
Filename
Name
Version
0.31a
OS support
OS/2 1.x
Arch
x86
Size
86.6KB
Filename
Name
Version
1.1
OS support
Windows 9x
Arch
x86
Size
721.2KB
Filename
Name
Version
1.2 beta
OS support
Windows 9x
Arch
x86
Size
722.5KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
1997-07-07
File
Logs

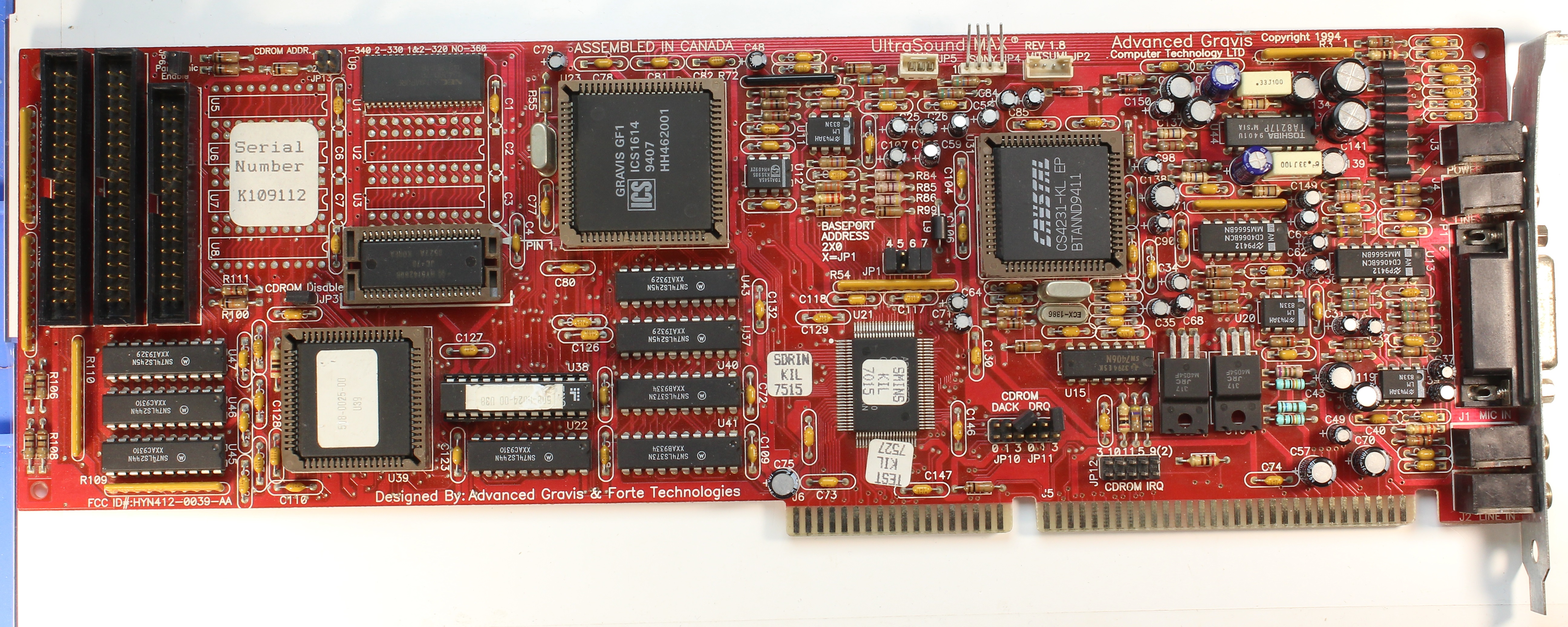

image1 Image 1 of 2 (limsup)

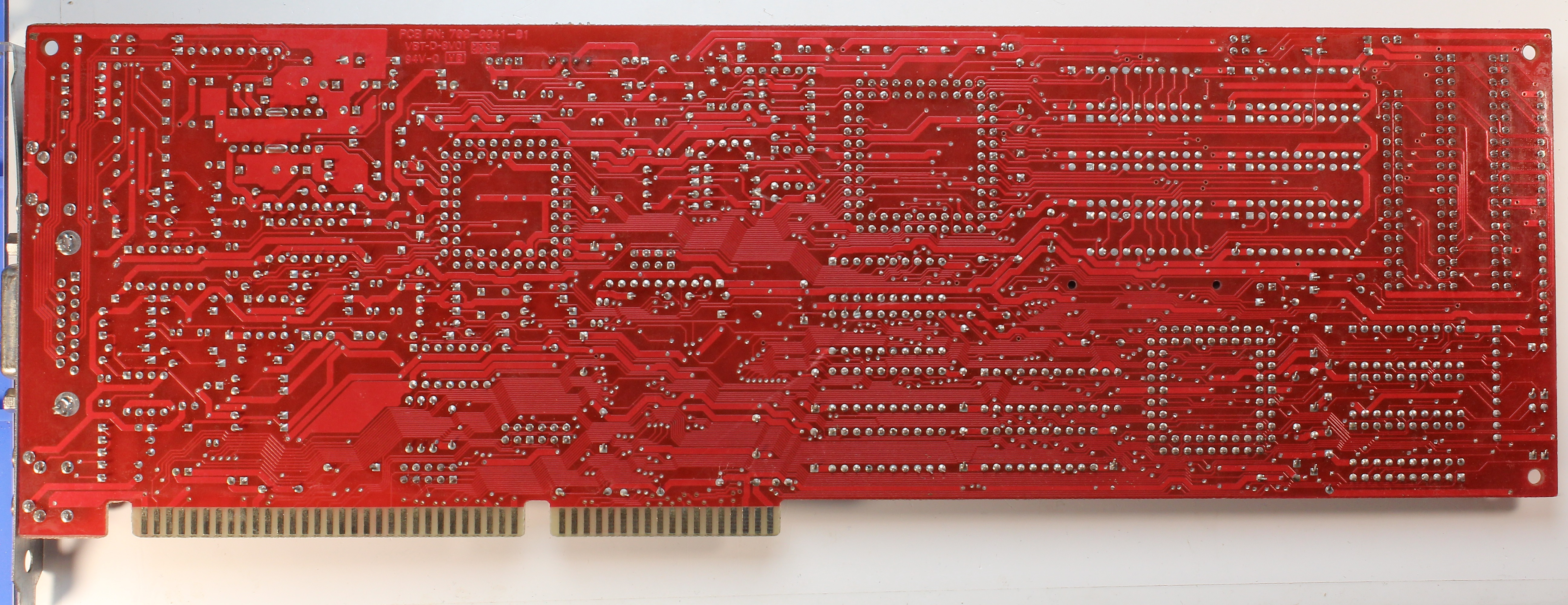

image2 Image 2 of 2 (limsup)
