Gainward / CARDEX GeForce 9800GT 512MB DDR3
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
datePCI ID
0414 0605 0614 0601
ramRAM type
DDR3
ramRAM size
512MB
chip Chips and specs
-> Video
Nvidia GeForce 9800 GT (G92)
tag Also known as
  • Palit XNE/9800TXT352-PM8592
portintI/O ports
2x
  • DVI-I
1x
  • 7-pin Mini-DIN
1x
  • 2x13 PCB edge fingers
powerPower connectors
1x
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-10-21T17:37:12Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
62.92.63.00.GP
Note
File
Logs
drv No drivers available
doc No card documents available

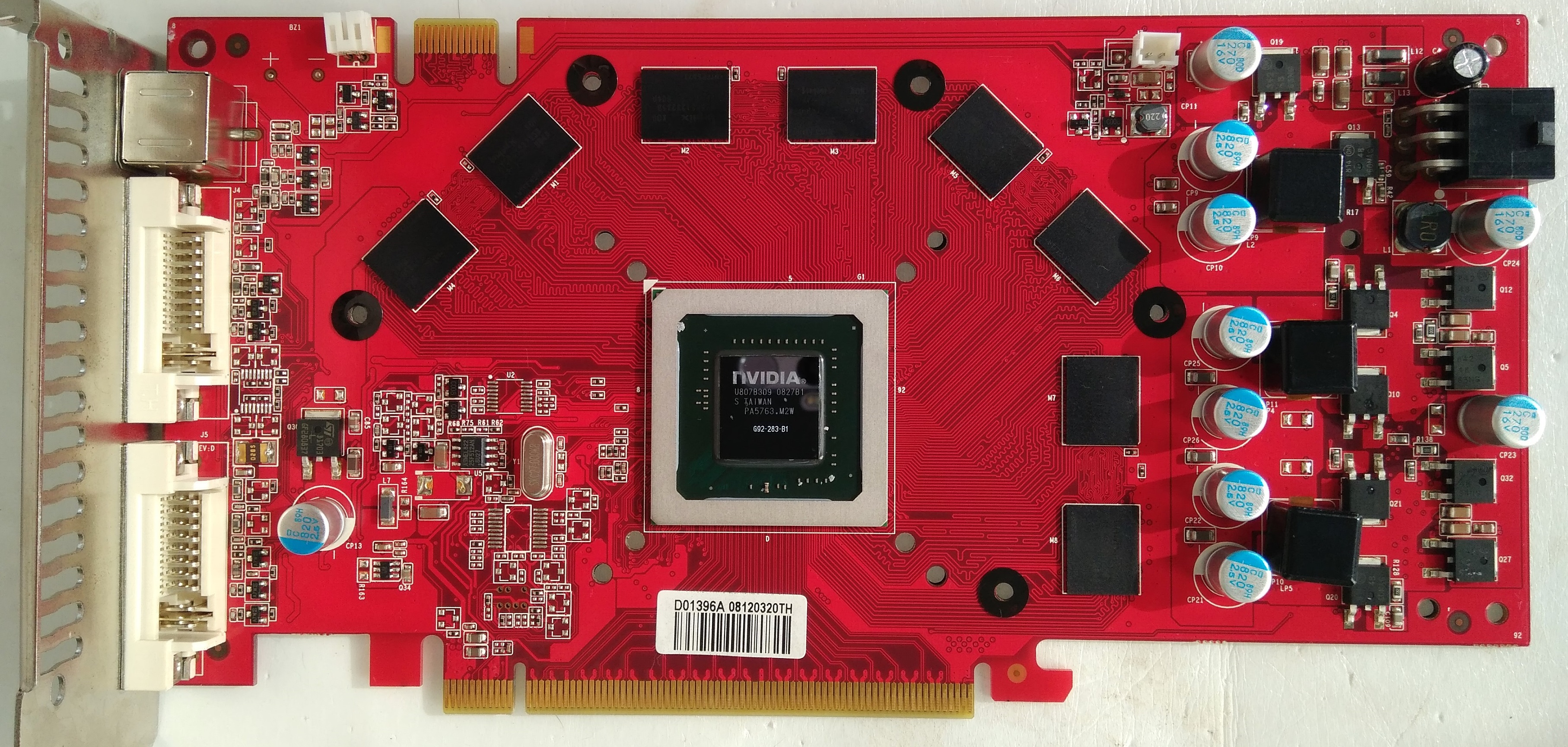

image1 Image 1 of 3 (Karbist)

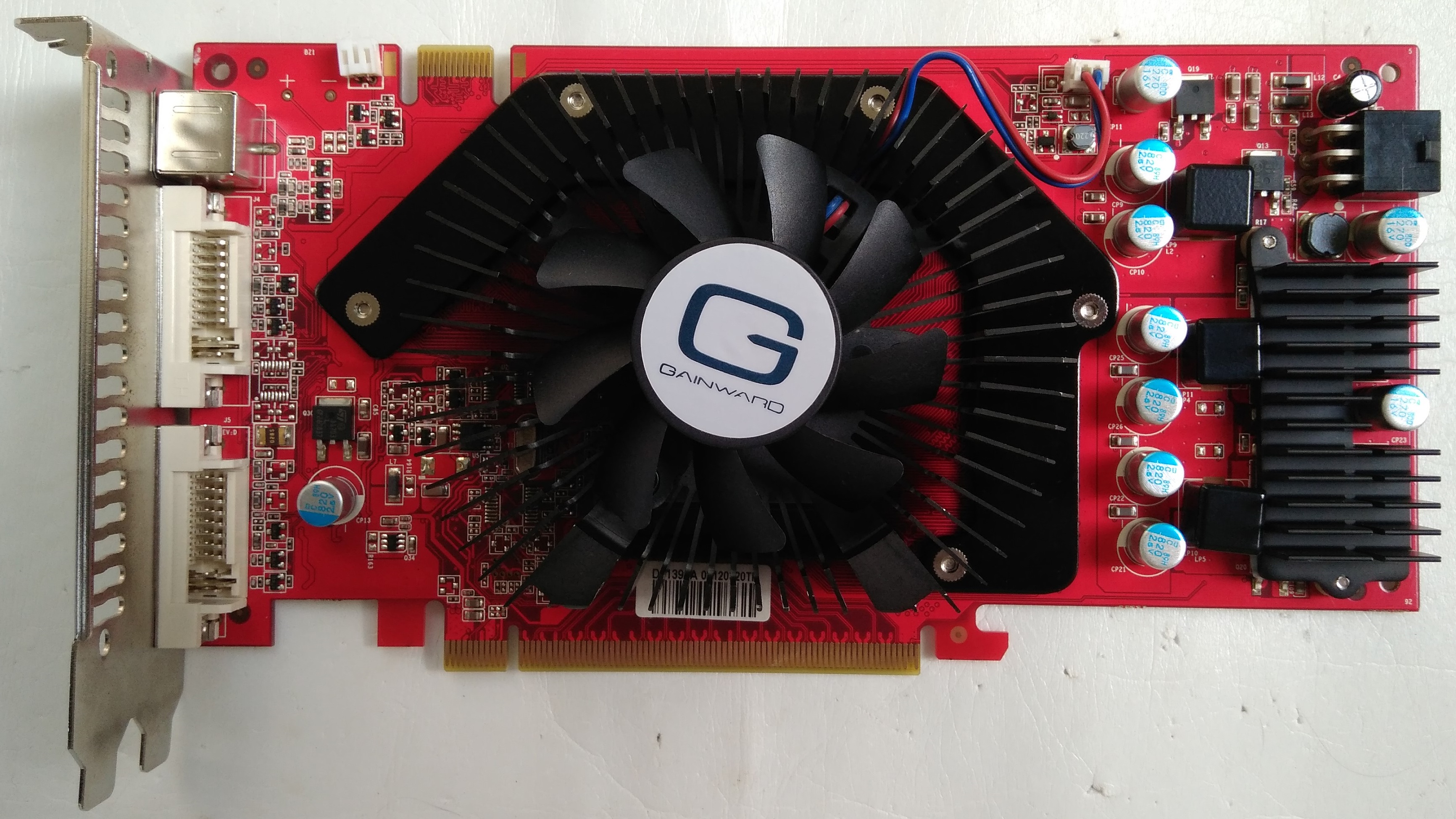

image2 Image 2 of 3 (Karbist)

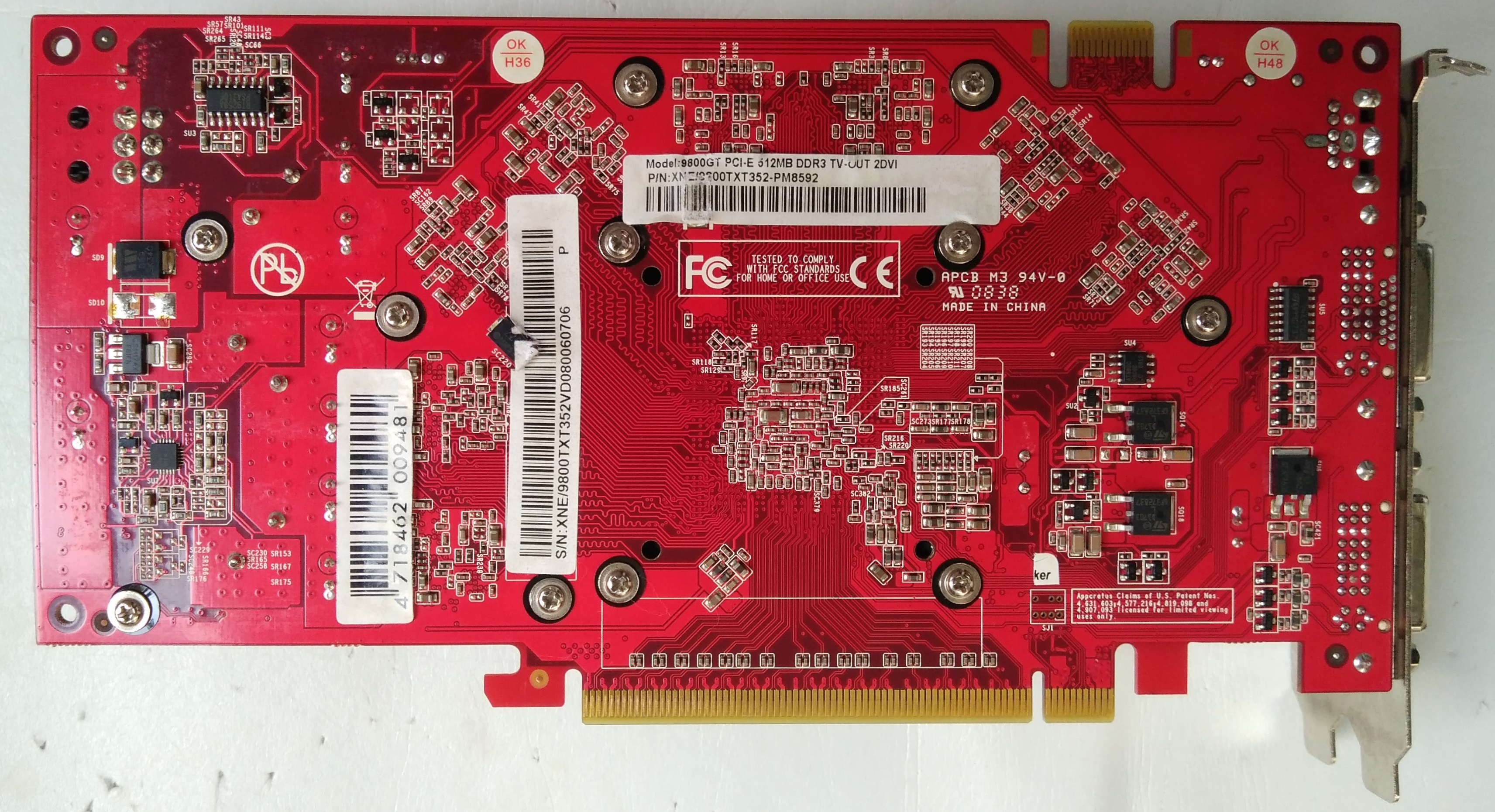

image3 Image 3 of 3 (Karbist)
