Gainward / CARDEX 9503-22
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
5631
ramRAM type
EDO
ramRAM size
4MB
chip Chips and specs
-> Video
S3 86C325 (ViRGE)
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set Cirrus Logic
Maximum Video Memory 4MB DRAM (EDO)
Video Types Supported XVGA
Highest Resolution Supported 1024 x 768
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header, VESA Feature Connector, VESA Local Peripheral Bus (LPB) 8-bit Extension
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-12-13T12:48:19Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
1.00-10 (08/02/96)
Note
File
Logs
Version
1.00-05 (03/18/96)
Note
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996-07
File
Logs

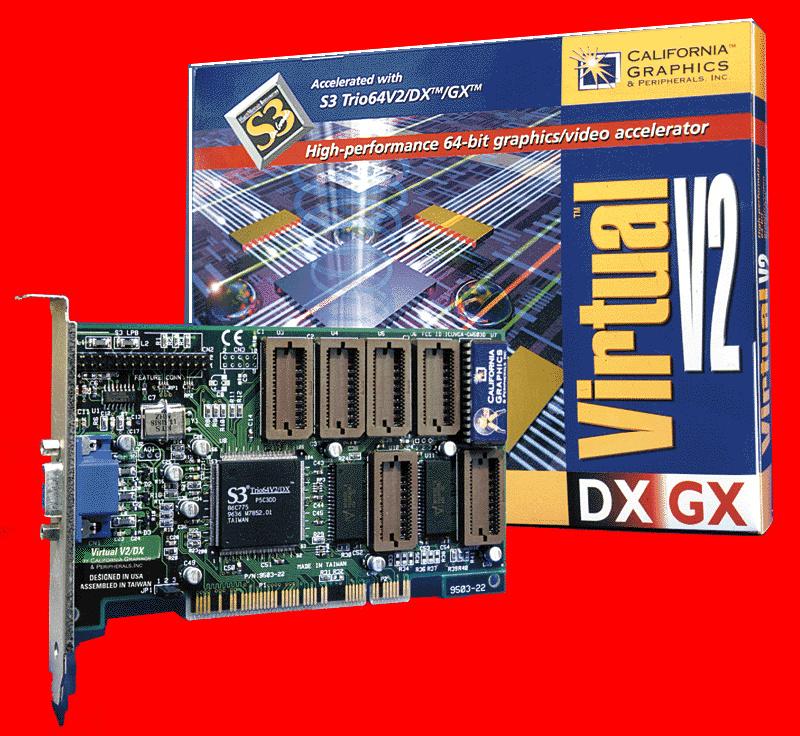

image1 Image 1 of 3 (California Graphics)

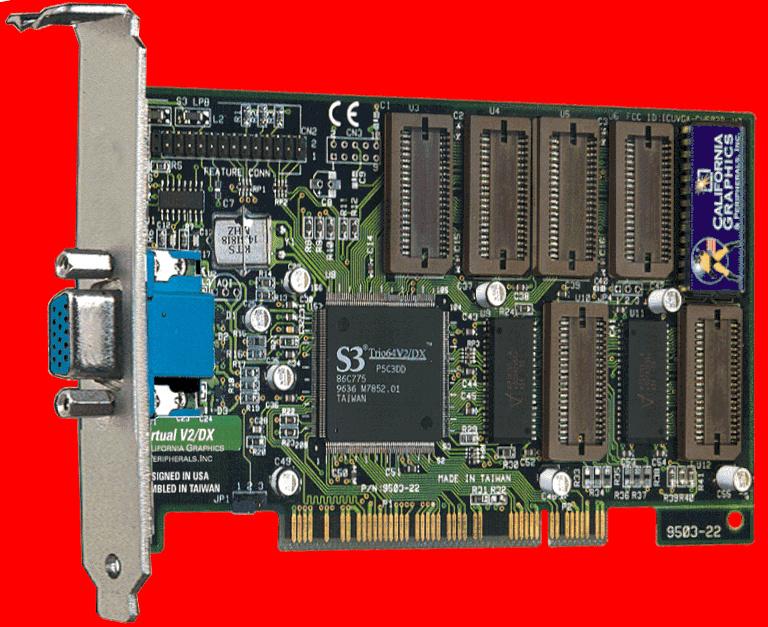

image2 Image 2 of 3 (California Graphics)

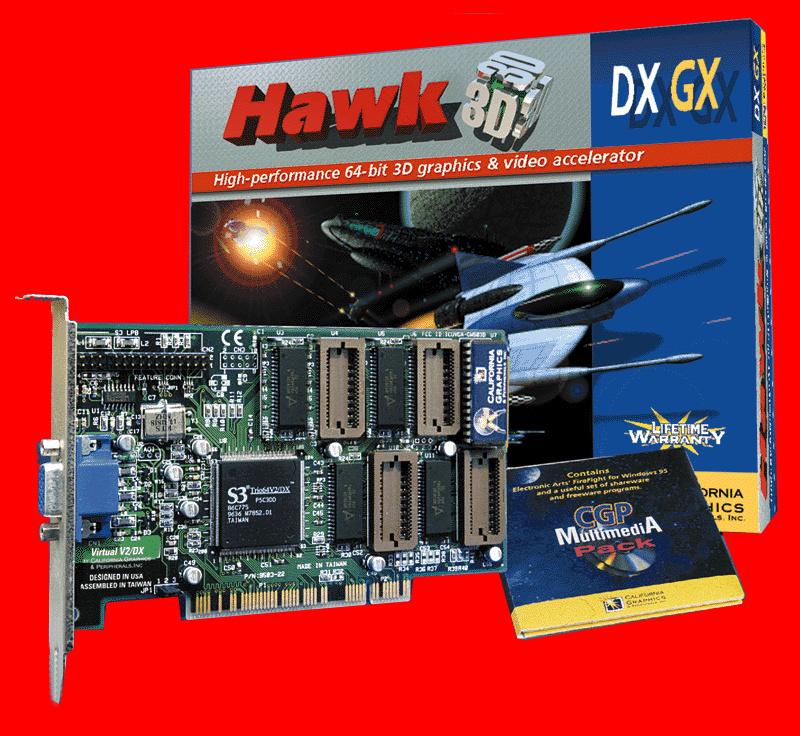

image3 Image 3 of 3 (California Graphics)
