Future Domain TMC-1680 SOLDER MOUNT VER.
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
National Semiconductor DP8473 (Floppy Controller)
-> SCSI ctrl.
Future Domain 18C50 (SCSI-2 Microchannel Controller)
tag Also known as
  • IBM 92F0330 (no floppy, relabeled to TMC-1660)
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
1x
Last updated 2025-05-28T18:13:05Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
v3.61
Note
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs

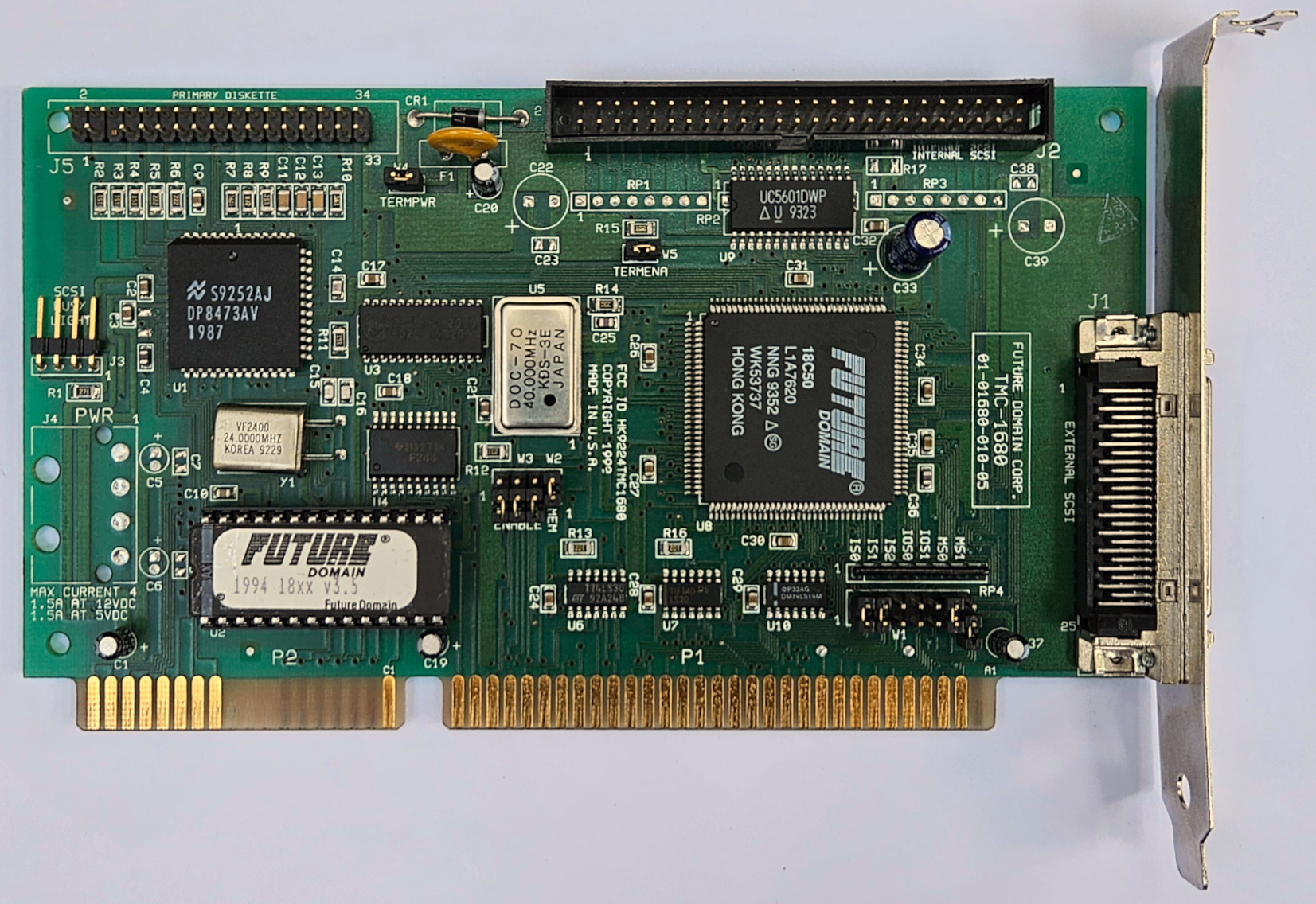

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2 (pshipkov)
