Future Domain IDE-16011
Logs
Interface
Signaling
PCI IDEmpty
Chips and specs
-> Chipset part
| MTL | |
|---|---|
| Data Bus | 16-bit ISA |
| Card Size | Half height, half length |
| Hard Drives Supported | Two EIDE devices |
| Floppy Drives Supported | None |
I/O ports
1x
- 1x4 2.50mm pin header
1x
- 2x20 2.54mm pin header
1x
- RCA Jack
Power connectorsEmpty
Last updated 2025-05-13T19:25:22Z
No BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.3
OS support
MS-DOS
NetWare Server 3
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
549KB
Filename
No card documents available

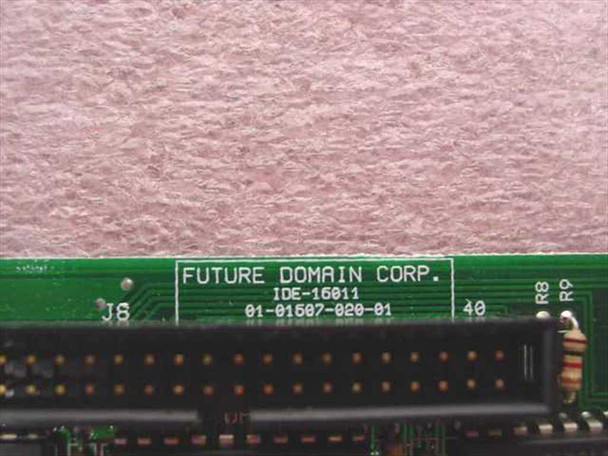

Image 1 of 4 (andysarcade)

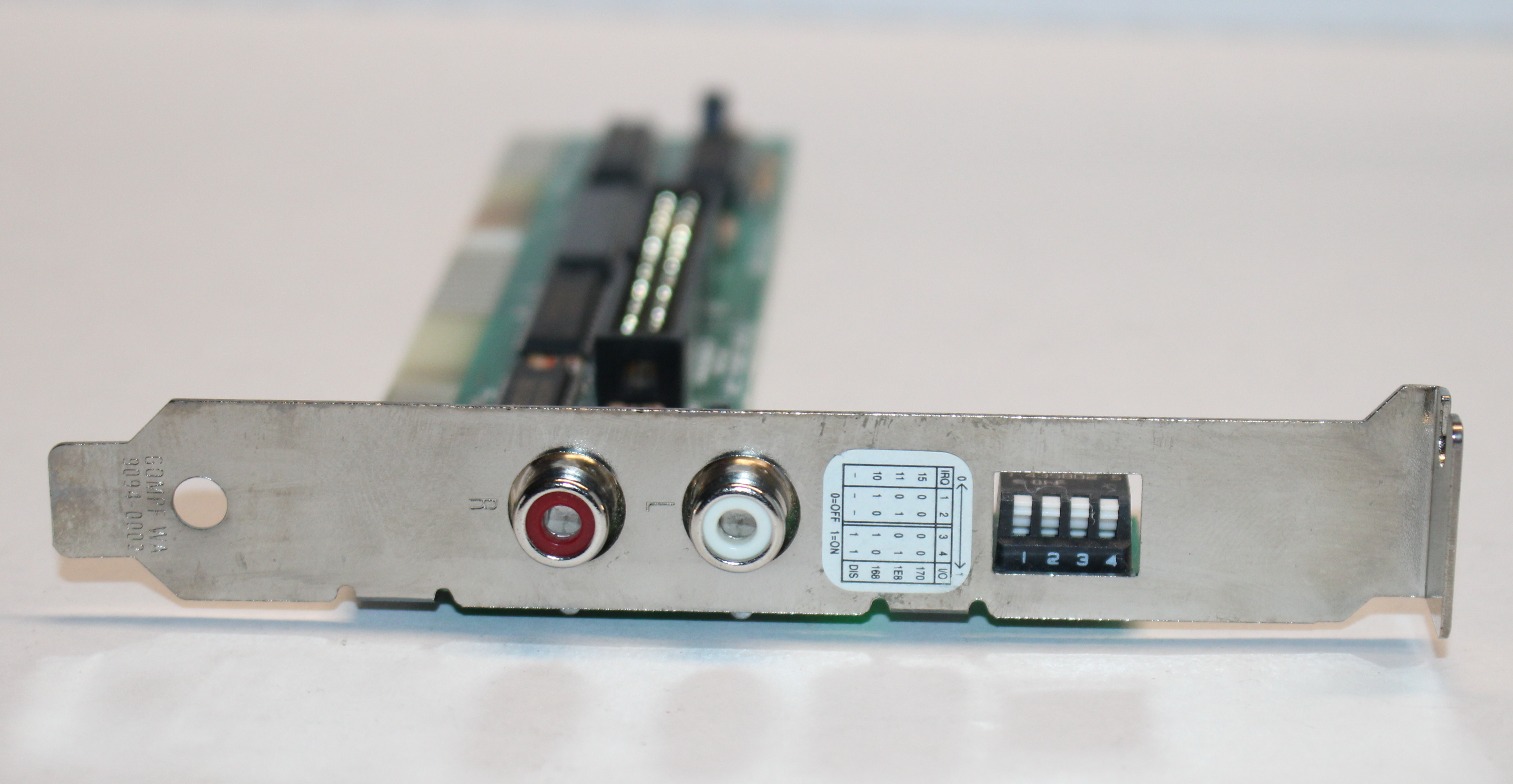

Image 2 of 4 (andysarcade)

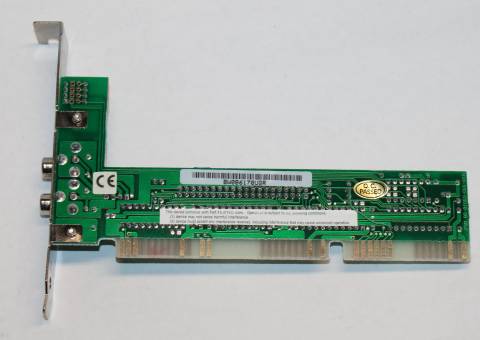

Image 3 of 4 (recycledgoods)

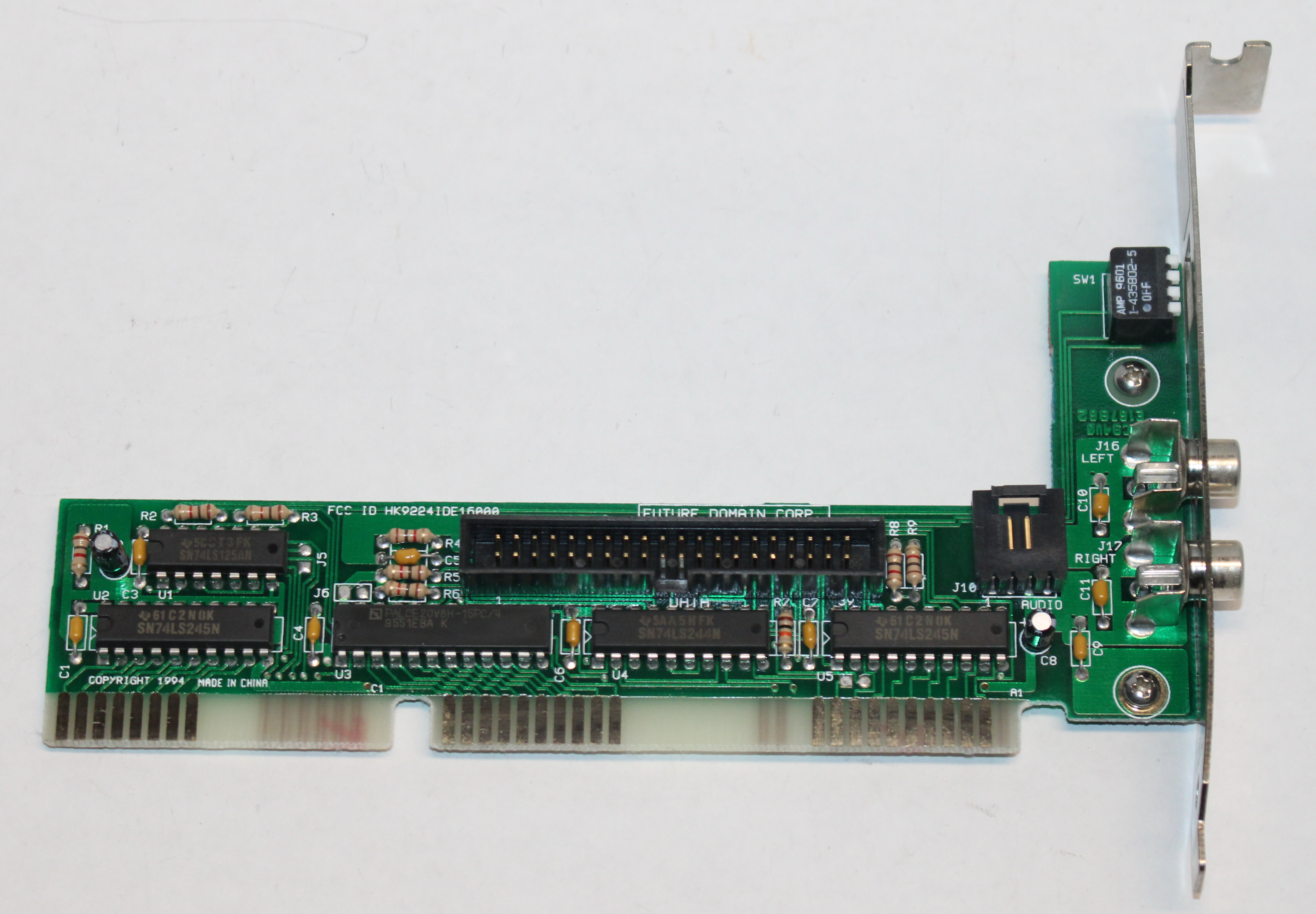

Image 4 of 4 (andysarcade)
