Formosa Industrial SC4236
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
KWX-SC4236-37
chip Chips and specs
-> Audio
Crystal CS4236-KQ (multiple brand) LM386 (Audio Power Amplifier)
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15, Game port, MIDI
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
notes Notes

JP1:
1-3,2-4 Line Out
3-5,4-6 Speaker Out

Last updated 2025-07-29T08:50:37Z
biosc No BIOS files available
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

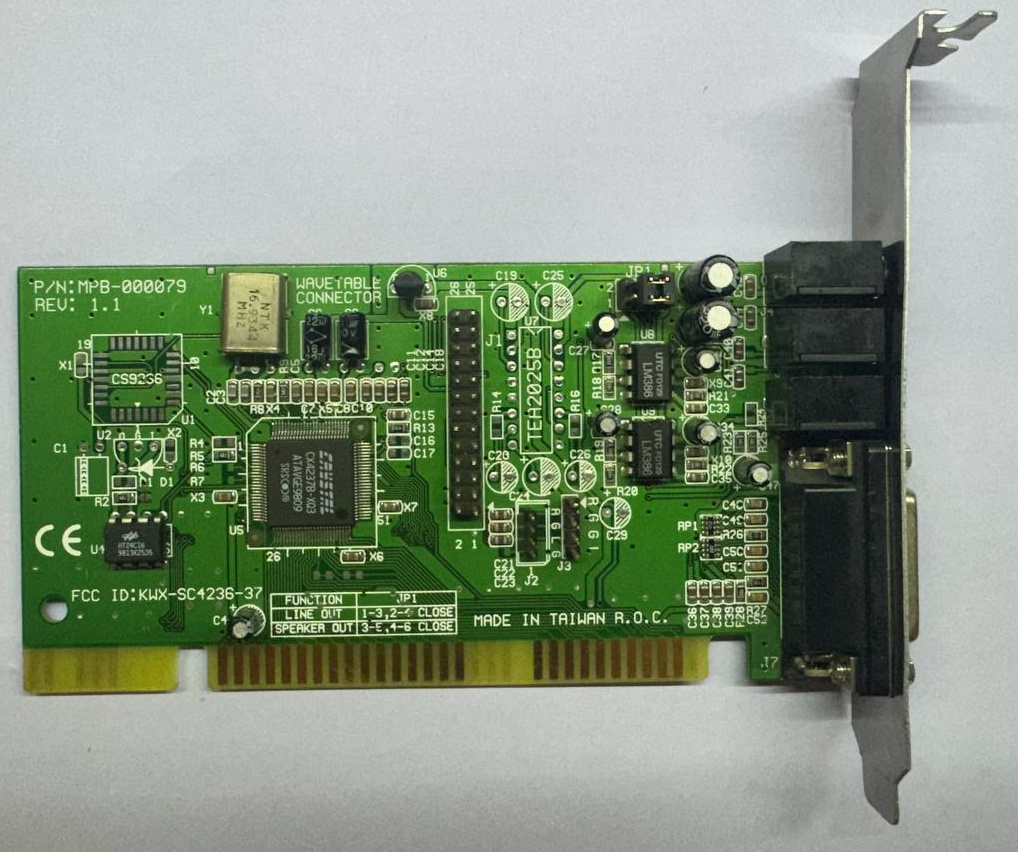

image1 Image 1 of 4 (evasive)

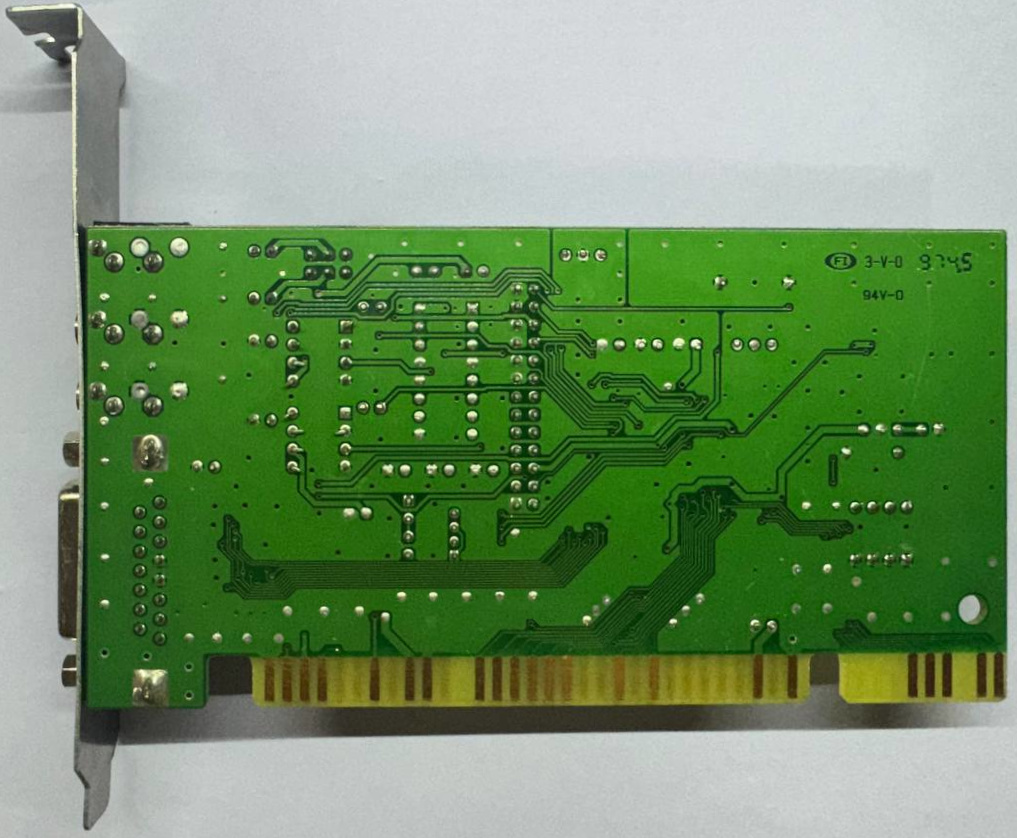

image2 Image 2 of 4 (Maksim Varentsov)

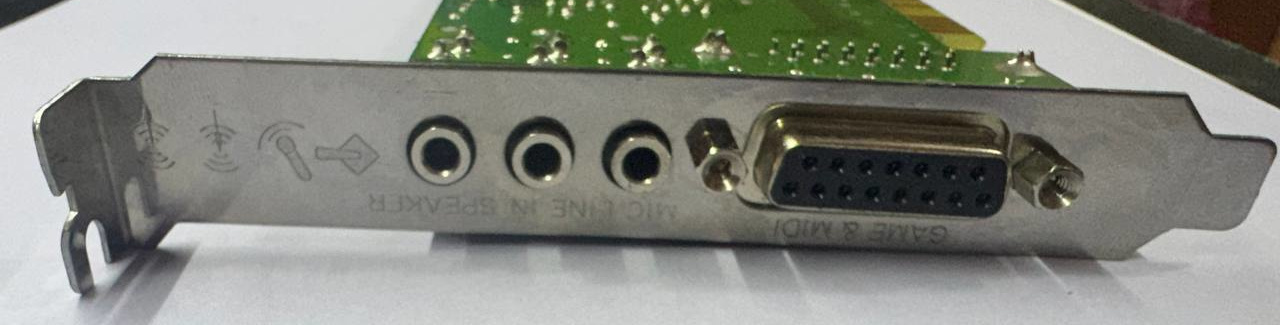

image3 Image 3 of 4 (Maksim Varentsov)
image4 Image 4 of 4 (Maksim Varentsov)
