Formosa Industrial SC3000/SC-3000
Logs
Interface
Signaling
PCI ID
0111
Chips and specs
-> Audio
Also known as
- Formosa Industrial SC3000 (MX)
- Formosa Industrial MPB-000138
- Formosa Industrial SC3000L / SC3000/L (LX)
- Diamond SC3000
- SIIG, INC. SC3000
- KYE (Genius) Mad Dog Value 5.1 (LX)
- KYE (Genius) Mad Dog SC3000 (MX)

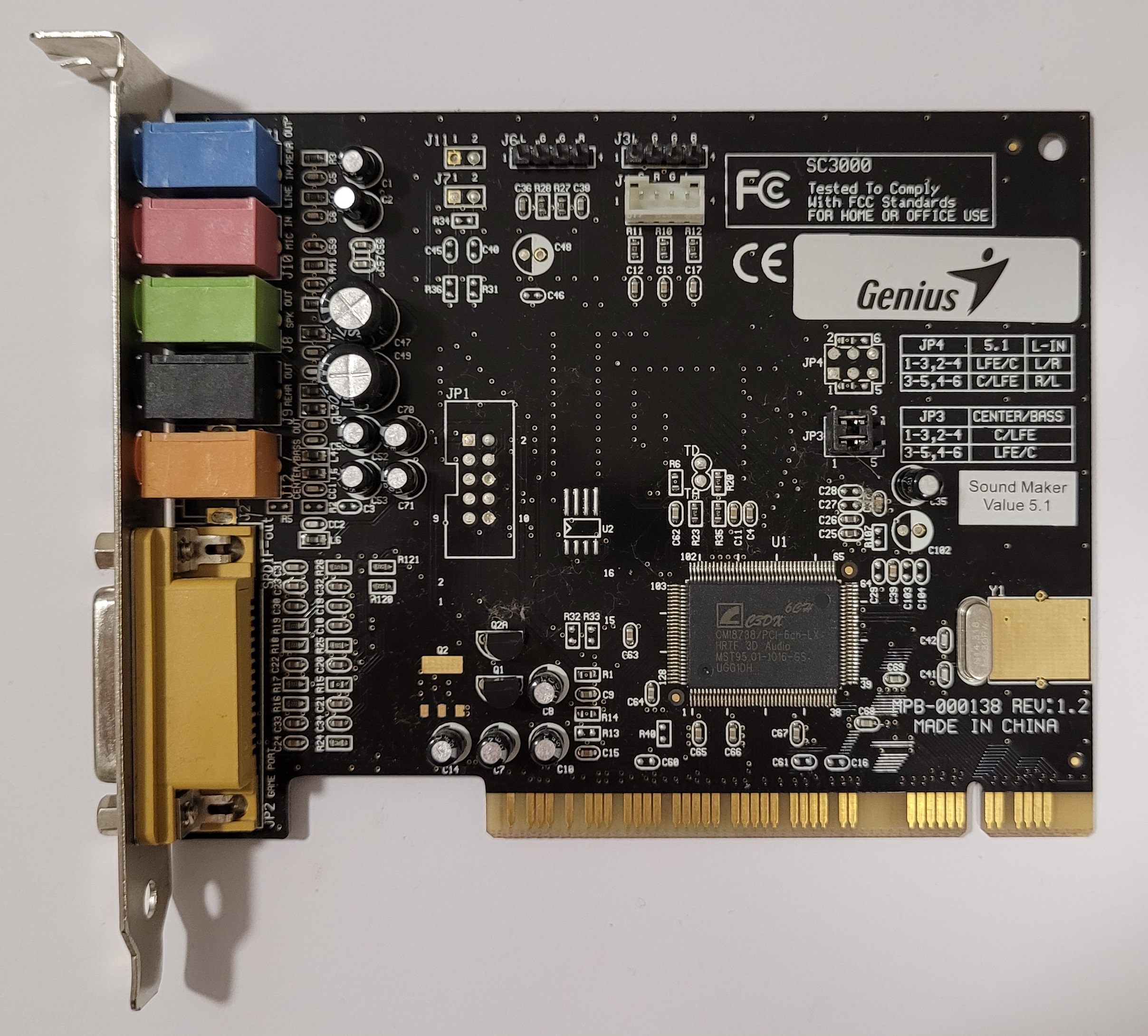

- KYE (Genius) Sound Maker Value 5.1 (LX)

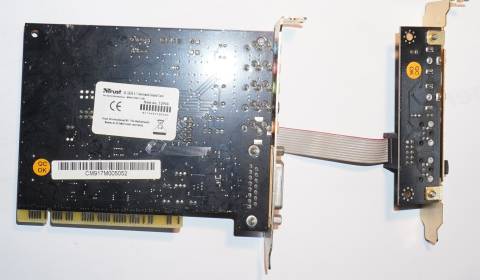

- Trust SC3000

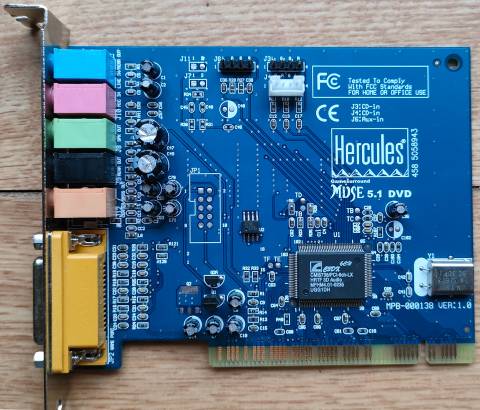

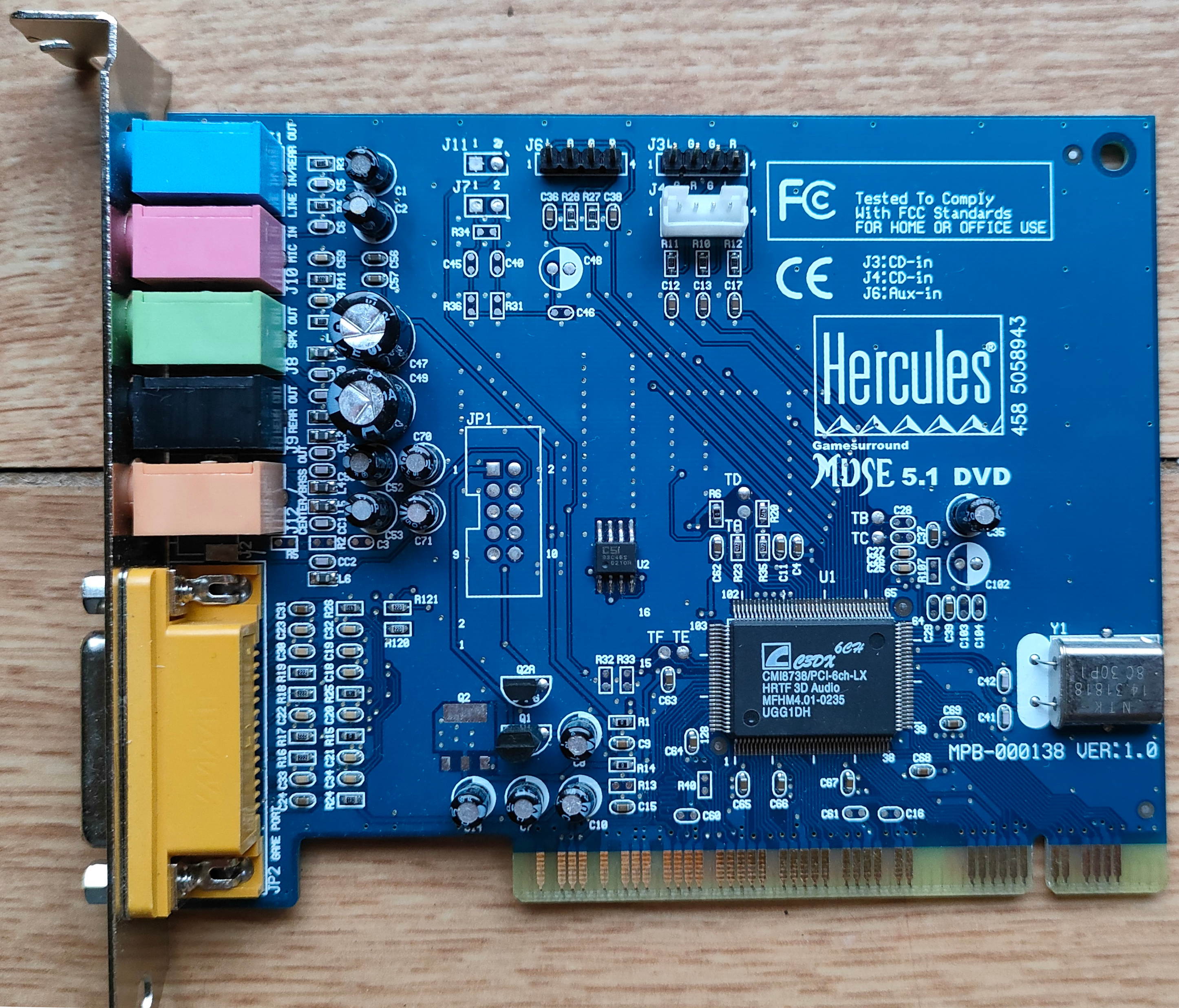

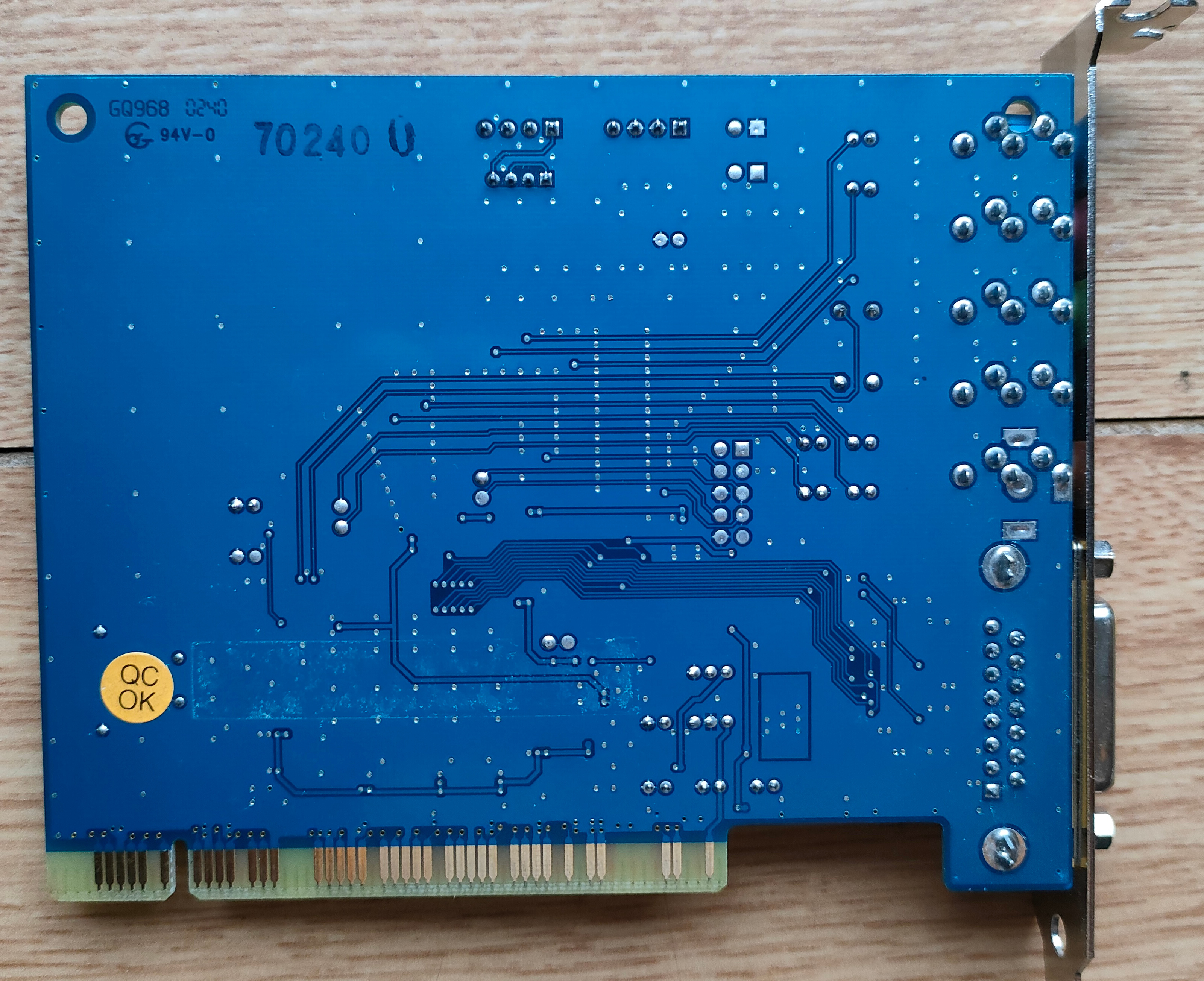

- Hercules Gamesurround Muse 5.1 DVD

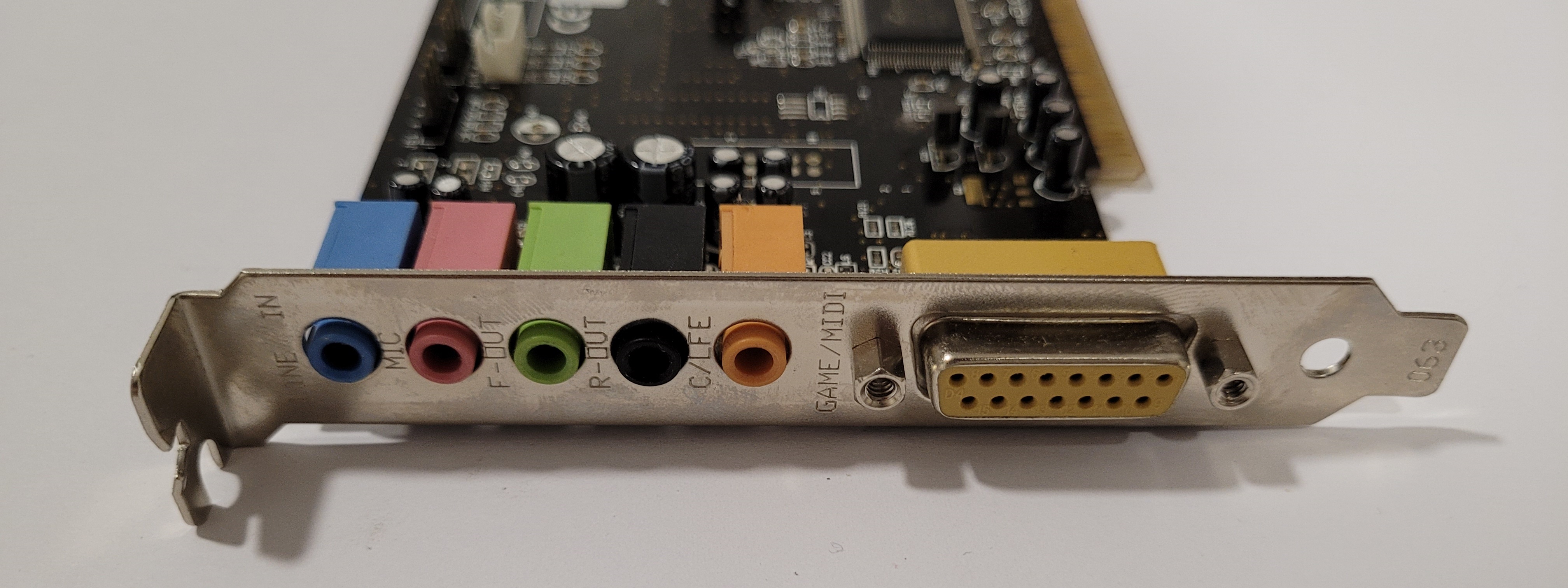

I/O ports
2x
- 3.5mm TRS jack
3x
- 3.5mm TRS jack
2x
- 1x4 2.54mm pin header
1x
- 1x4 2.50mm pin header
1x
- DA-15
1x
- 2x1 2.54mm pin header
1x
- RCA Jack
1x
- TOSLink
1x
- 1x2 2.54mm pin header
1x
- RCA Jack
1x
- TOSLink
Power connectorsEmpty
Notes

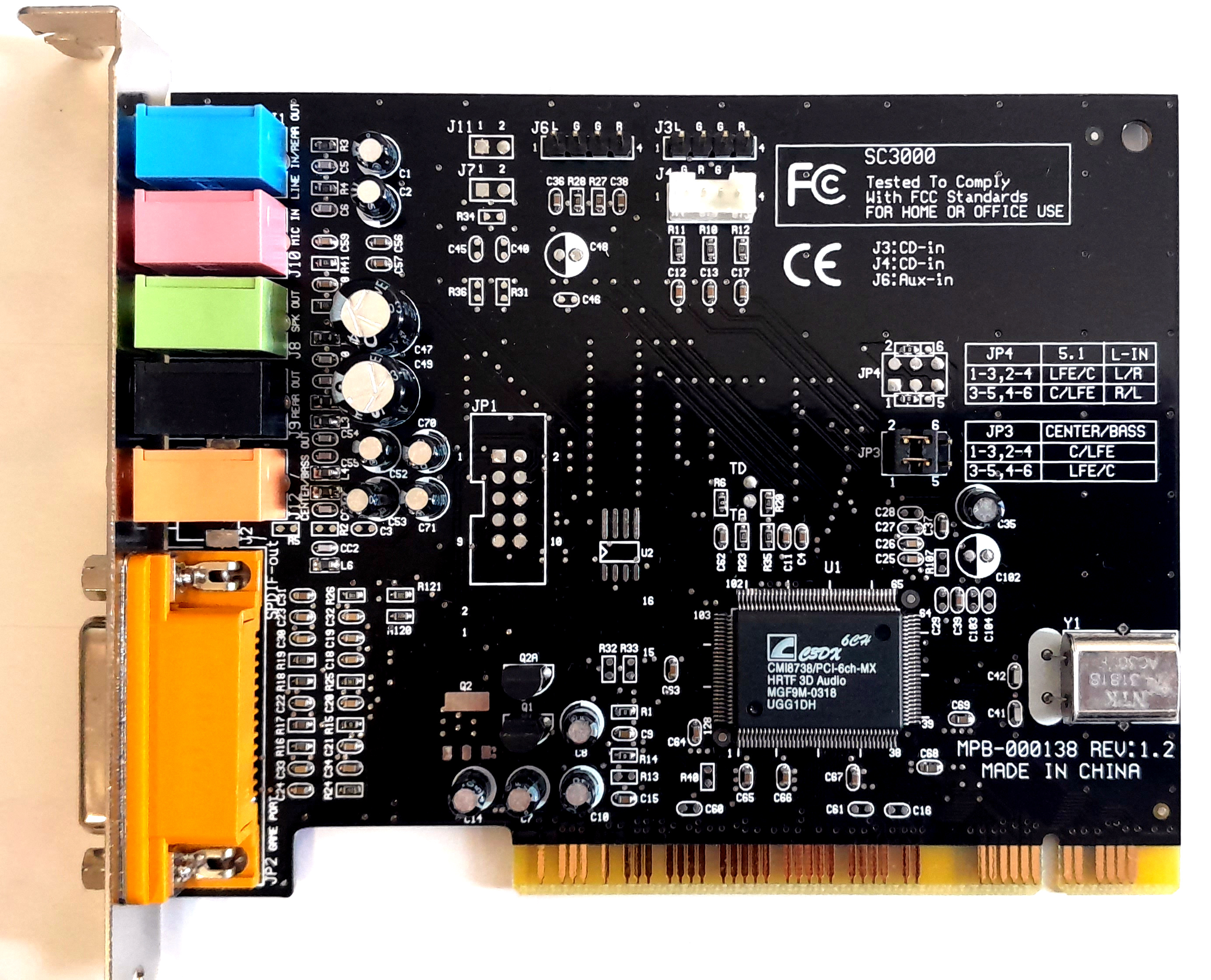

Uses CMI8738/PCI-6ch-MX or CMI8738/PCI-6ch-LX Audio Chip
Last updated 2025-06-01T08:37:15Z
No BIOS files available
10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000
Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Version
OS support
Arch
Size
Filename
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 10 (Elke Wehmer)
Image 2 of 10 (sylver_rez)
Image 3 of 10 (Yargoro)
Image 4 of 10 (Wolt1x)
Image 5 of 10 (Elke Wehmer)
Image 6 of 10 (sylver_rez)
Image 7 of 10 (Yargoro)
Image 8 of 10 (Wolt1x)
Image 9 of 10 (Wolt1x)
Image 10 of 10 (Elke Wehmer)
