FIC VGA-864-P
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
88C0 88C1 88C2 88C3
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> RAMDAC
S3 86C716 (SDAC)
-> Video
S3 86C864 (Vision864)
MTL
Category Video
Memory Type DRAM
Data Bus Type PCI
Video Processor S3 Vision 864
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1600 x 1200
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-02T15:27:24Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 3 (Microhouse)

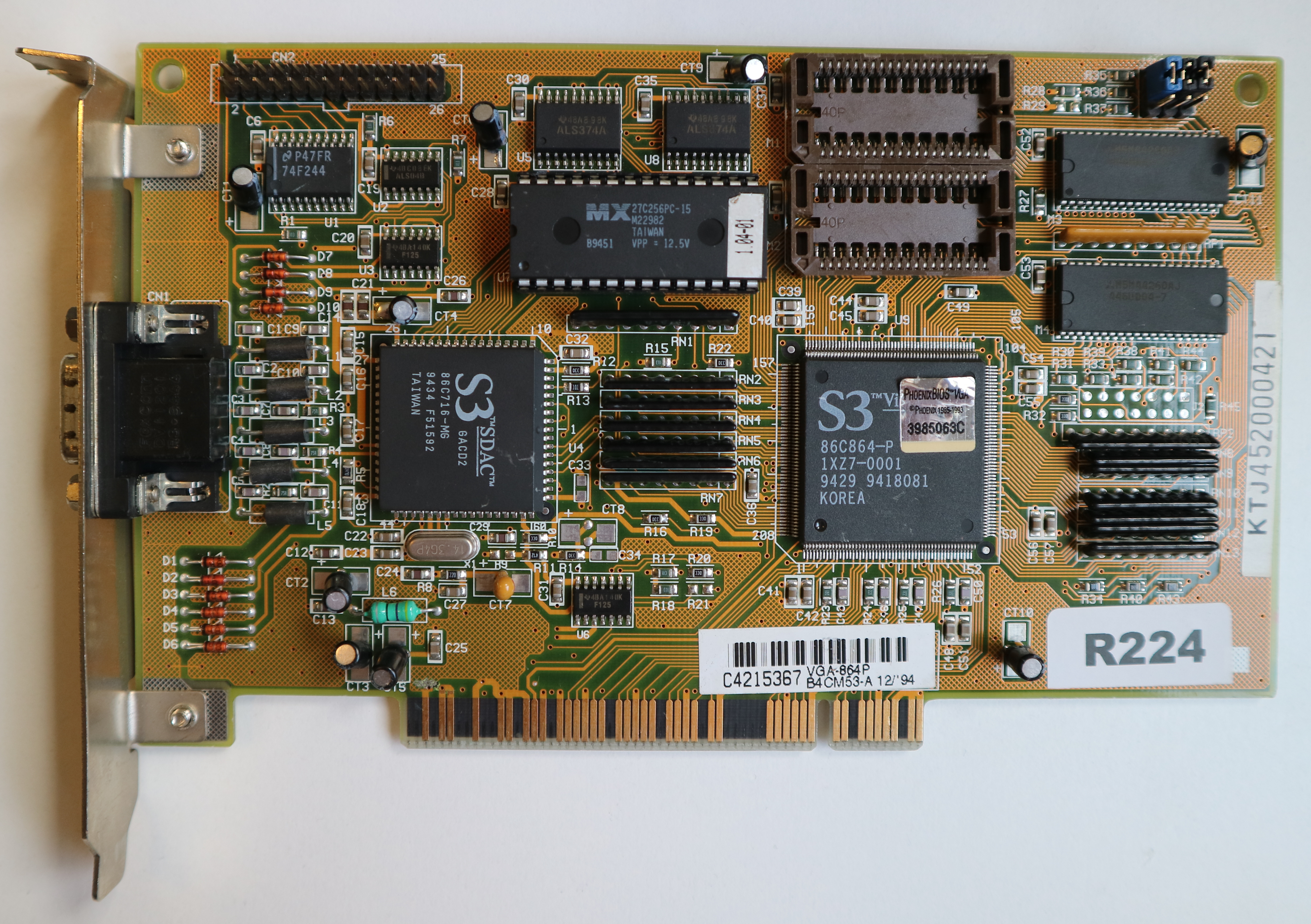

image2 Image 2 of 3 (Martes)

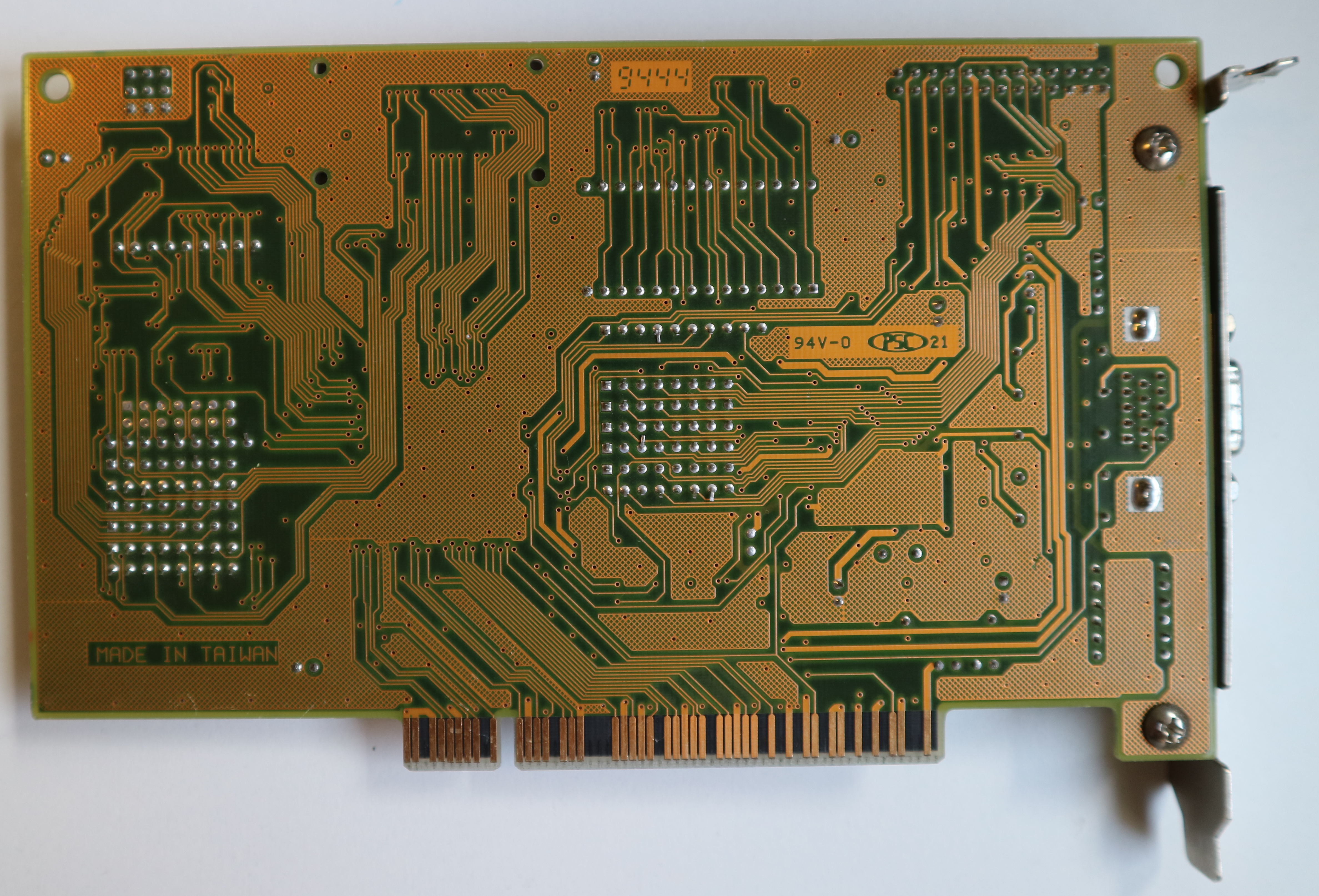

image3 Image 3 of 3 (Martes)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
