EVGA GeForce GTX 280
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
dimSlot height
2
datePCI ID
05E1 05F1
ramRAM type
GDDR3
ramRAM size
1GB
dimDimensions
267mm (length) x 111mm (height)
chip Chips and specs
-> Video
Nvidia GeForce GTX 280 (GT200)
tag Also known as
portintI/O ports
2x
  • DVI-I
1x
  • 7-pin Mini-DIN
powerPower connectors
1x
1x
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2026-01-08T18:11:29Z
biosc No BIOS files available
drv No drivers available
doc 3 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs

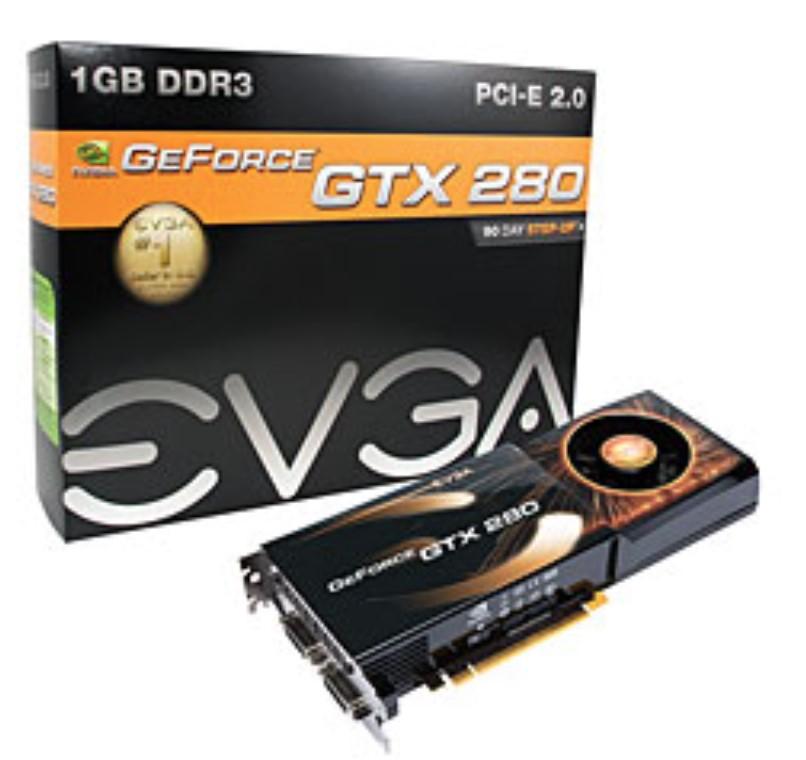

image1 Image 1 of 1 (EVGA)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
