EVGA GeForce GTX 260 HC16 896MB
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 2.0
dimSlot height
2
datePCI ID
05E2 05EA 05F2
ramRAM type
GDDR3
ramRAM size
896MB
chip Chips and specs
-> Video
Nvidia GeForce GTX 260 (192 Cores) (GT200)
tag Also known as
  • EVGA 896-P3-1269-AR
  • EVGA GeForce GTX 260 HC16 Clear Top 896MB
  • EVGA 896-P3-1269-A1
portintI/O ports
2x
  • DVI-I
1x
  • 7-pin Mini-DIN
2x
  • 2x13 PCB edge fingers
powerPower connectors
2x
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2026-01-10T12:30:39Z
biosc No BIOS files available
drv No drivers available
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
image1 Image 1 of 2 (EVGA)

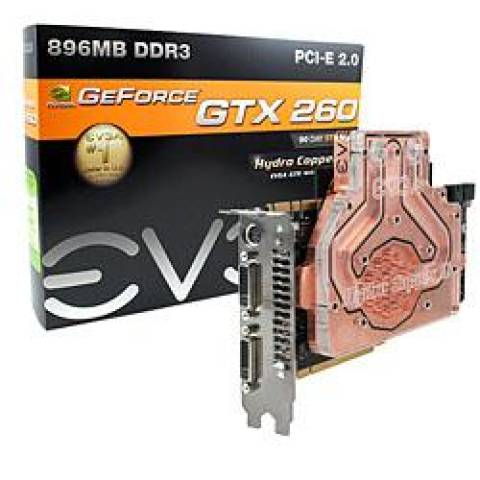

image2 Image 2 of 2 (EVGA)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
