EVGA e-GeForce 8800 GTX
Logs
Interface
Signaling
Slot height
PCI ID
0190
0191
RAM type GDDR3
RAM size
768MB
Dimensions
267mm (length)
x 111mm (height)
Chips and specs
-> Video
| Memory Configuration (Board Specific) | |
|---|---|
| Memory Size | 768 MB |
| Memory Type | DDR3 |
| Memory Bandwidth | 84.4 GB/s |
| Memory Bus Width | 384 bit |
| Board Design | |
|---|---|
| Length | 267 mm |
| Slot Width | Dual-slot |
| Board Number | P355 SKU 0 |
| Release Information | |
|---|---|
| Release Date | Dec 4th, 2006 |
| Production Status | EOL |
| Product Generation | GeForce 8 |
| Clock Speeds (Board Specific) | |
|---|---|
| GPU Clock | 575 MHz |
| Memory Clock | 900 MHz |
| Shader Clock | 1350 MHz |
| Multi-GPU | |
|---|---|
| SLI | 2-way |
| Power and Thermal | |
|---|---|
| Thermal Design Power TDP | 155 W |
Also known as
I/O ports
Power connectors
2x
No card specific known issues
- Bumpgate
These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.
On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).
You can see a very detailed explanation of this issue by RIP Felix on YouTube
Last updated 2026-01-08T07:13:22Z
1 card BIOS file available
Version
Note
File
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86-64
Size
48.1MB
Filename
Name
Version
175.19
OS support
Windows XP/2k3
Arch
x86
Size
36.9MB
Filename
1 card document available
Release date
File
Logs

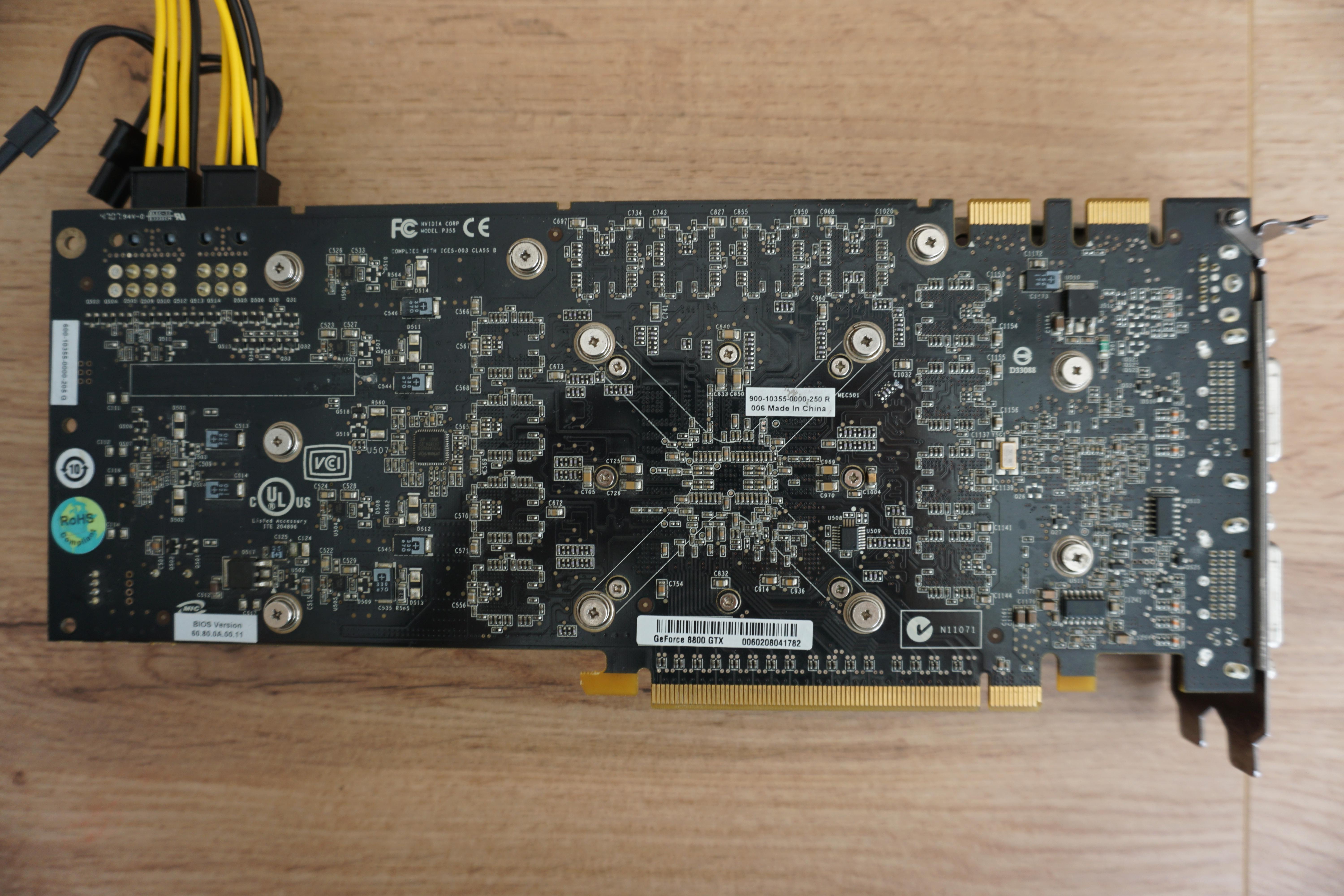

Image 1 of 3 (buhher2k)

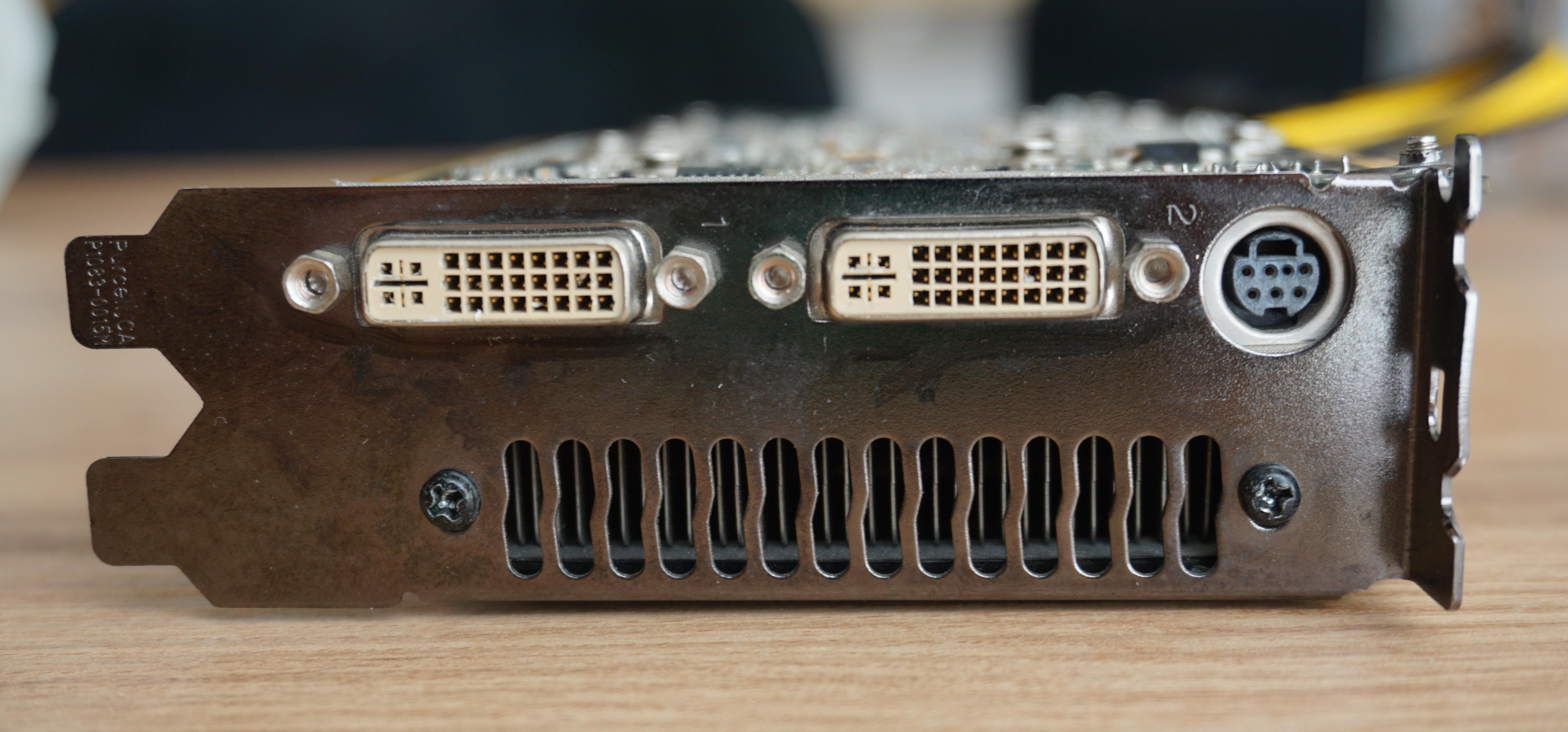

Image 2 of 3 (buhher2k)

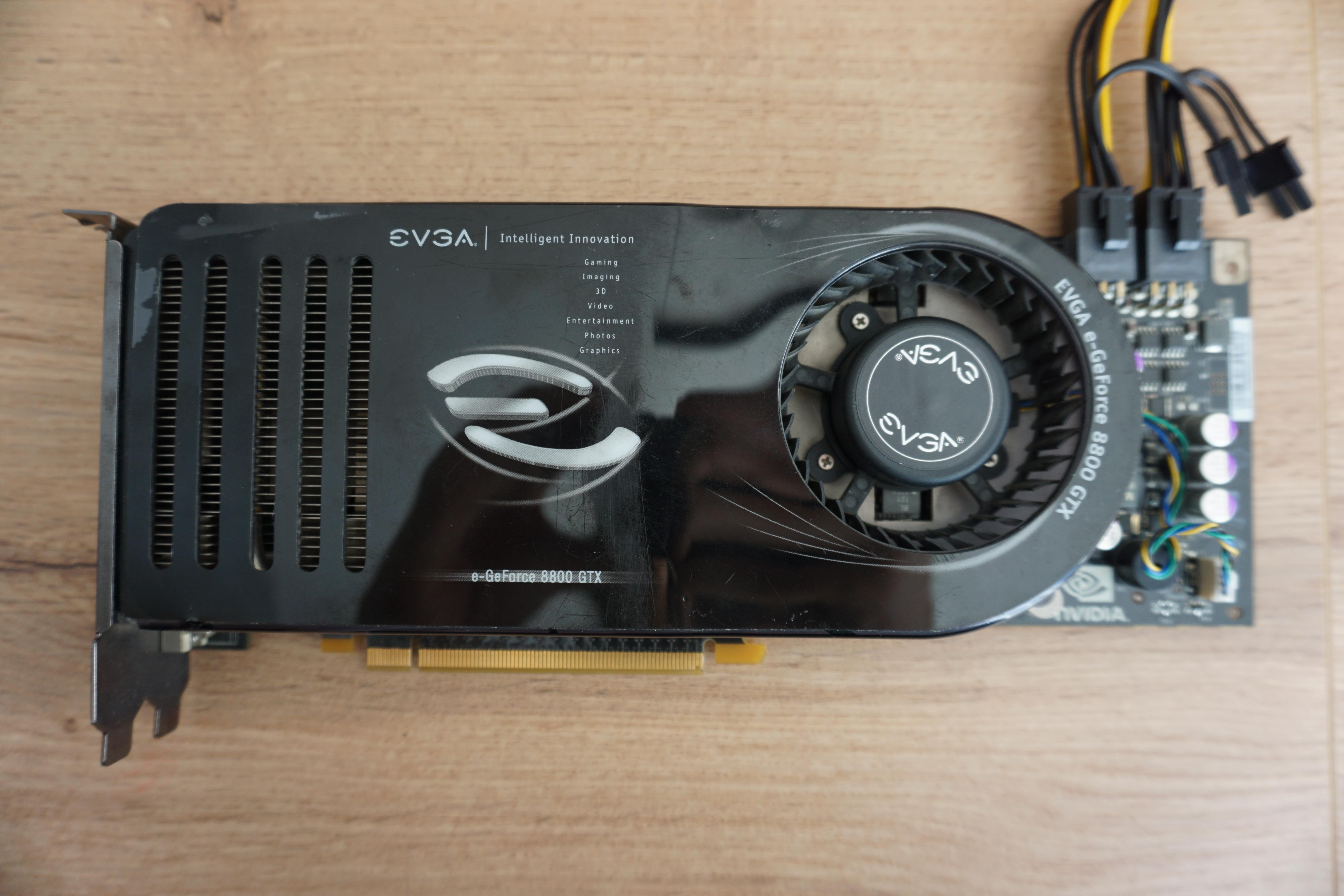

Image 3 of 3 (buhher2k)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
