EPoX/ProNiX EP-USB66
Logs
typeType
USB controller IDE controller RAID controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0004
dimDimensions
140 mm (width) x 95mm (length)
chip Chips and specs
-> RAID ctrl.
HighPoint HPT366
-> USB ctrl.
Texas Instruments TUSB2046 (4 port USB 1.1 hub)
portintI/O ports
2x
  • 2x20 2.54mm pin header
4x
  • USB-A
1x
  • USB-B
powerPower connectors
Empty
notes Notes

The USB ports are just a USB hub and needs an extrnal connection to the computer using the USB-B port

Last updated 2024-08-23T21:24:36Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.344
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
137.6KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999-08-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2017-06
File
Logs

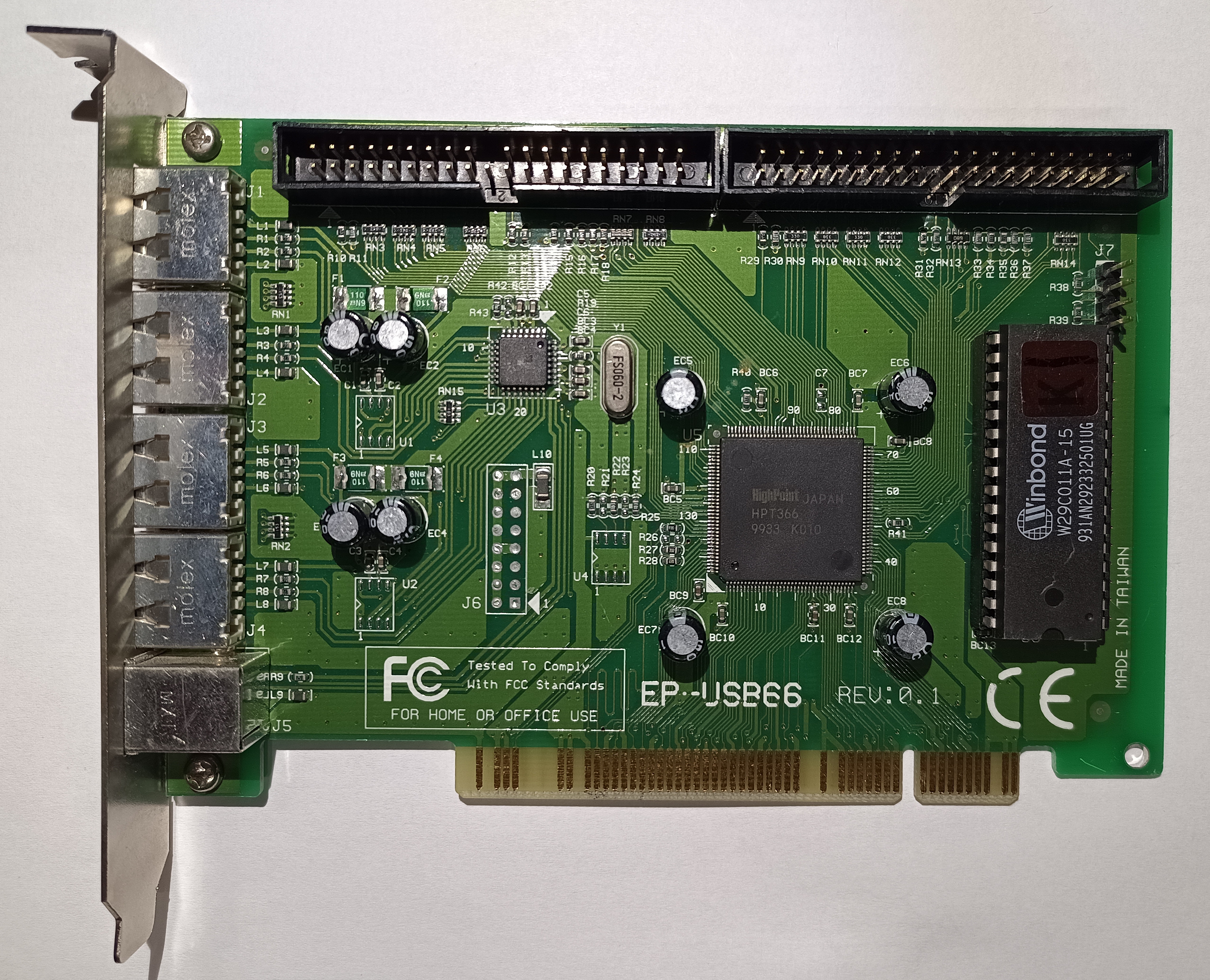

image1 Image 1 of 3 (Helen_Croft)

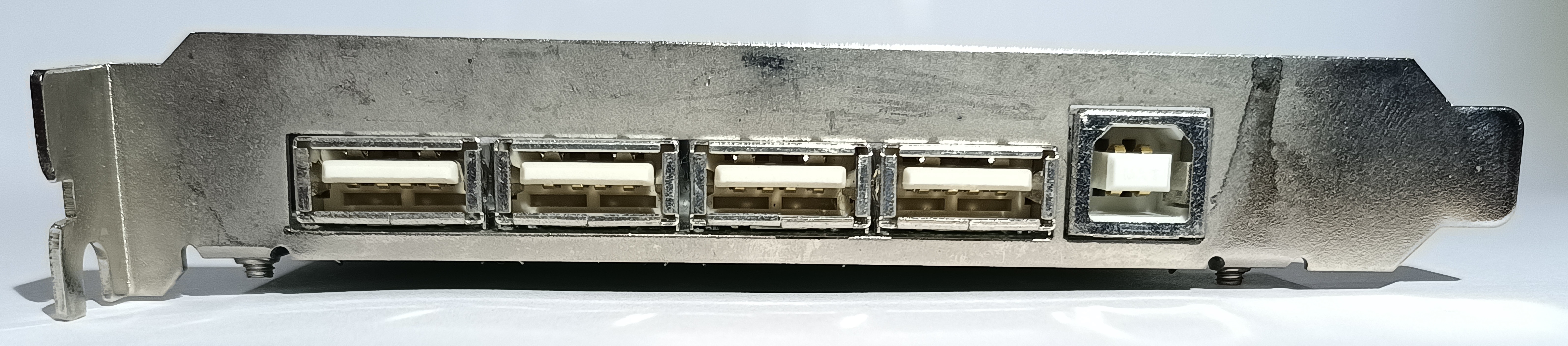

image2 Image 2 of 3 (Helen_Croft)

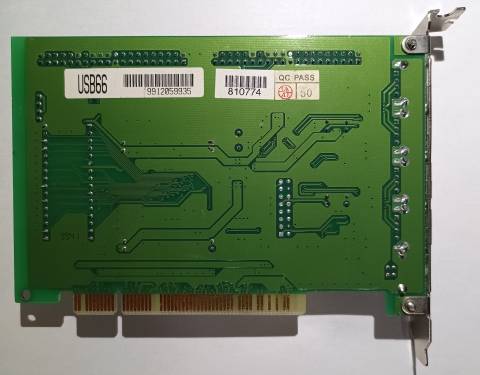

image3 Image 3 of 3 (Helen_Croft)
