EON / Lung Hwa SK803
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DXLSK803
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) Philips TDA1517 (2x6W Audio Power Amplifier) Yamaha YAC512 (2-Channel Floating DAC) OPTi 82C924 Yamaha YMF262 (OPL3)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Audio in (2), audio out (2), CD-ROM audio (3), CD-ROM interface, game/MIDI port, microphone in (2), volume, wavetable
Maximum Onboard Memory None
Floppy drives supported None
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-02T12:12:05Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.0
OS support
OS/2 Warp 4.x
Arch
x86
Size
340.8KB
Filename
Name
Version
1.03
OS support
Windows 3.1x
Arch
x86
Size
1.2MB
Filename
Name
Version
1.1D
OS support
Windows 9x
Arch
x86
Size
1.1MB
Filename
Name
Version
1.03
OS support
Windows NT 4.0
Arch
x86
Size
97.2KB
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
840.1KB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
85.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

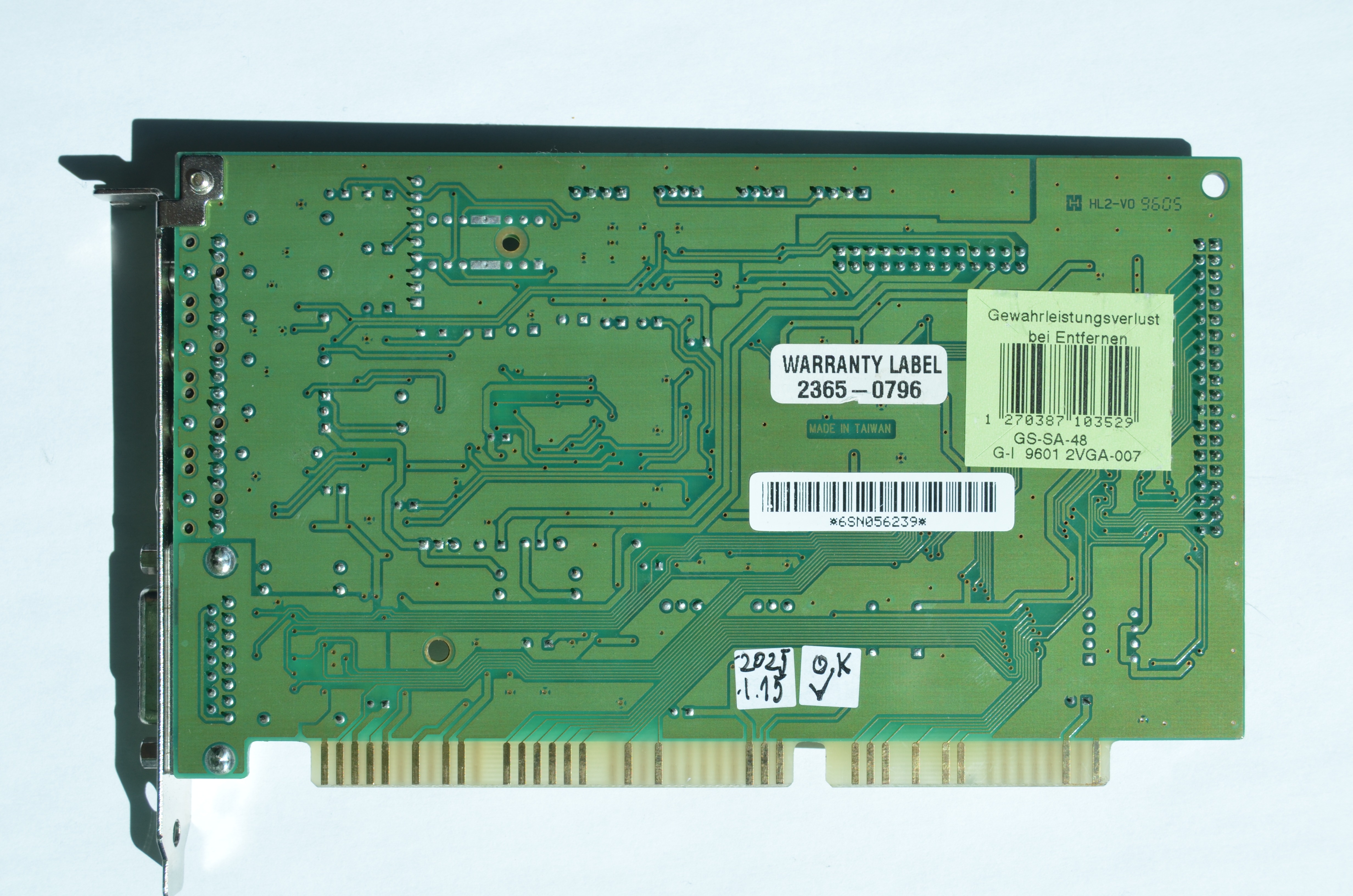

image1 Image 1 of 2 (kotelstudios)

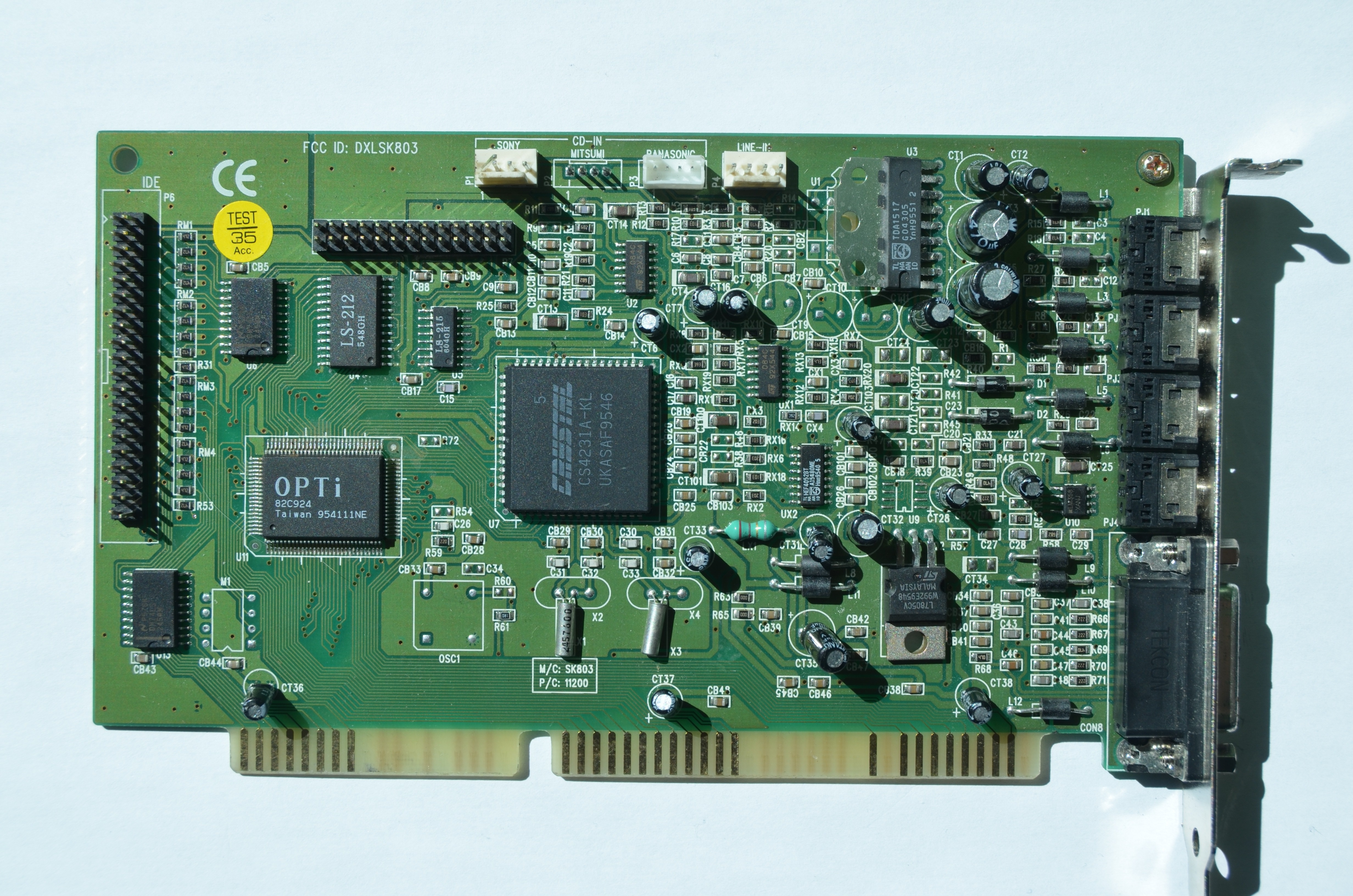

image2 Image 2 of 2 (kotelstudios)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
