EON / Lung Hwa 725N
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DXL9IL725N
dimDimensions
159mm (length) x 107mm (height)
chip Chips and specs
-> Audio
Media Vision MVD1216B (Jazz16) Media Vision MVA416 (Mixer) Media Vision MVA514 Yamaha YAC512 (2-Channel Floating DAC) Samsung KA2206 (2x2W Audio Power Amplifier) STMicroelectronics / Inmos TDA7284 (Record/Playback circuit with ALC) Yamaha YMF262 (OPL3)
portintI/O ports
1x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • DA-15
1x
  • 2x1 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-04T18:41:20Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
622.3KB
Filename
Version
OS support
Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
66.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

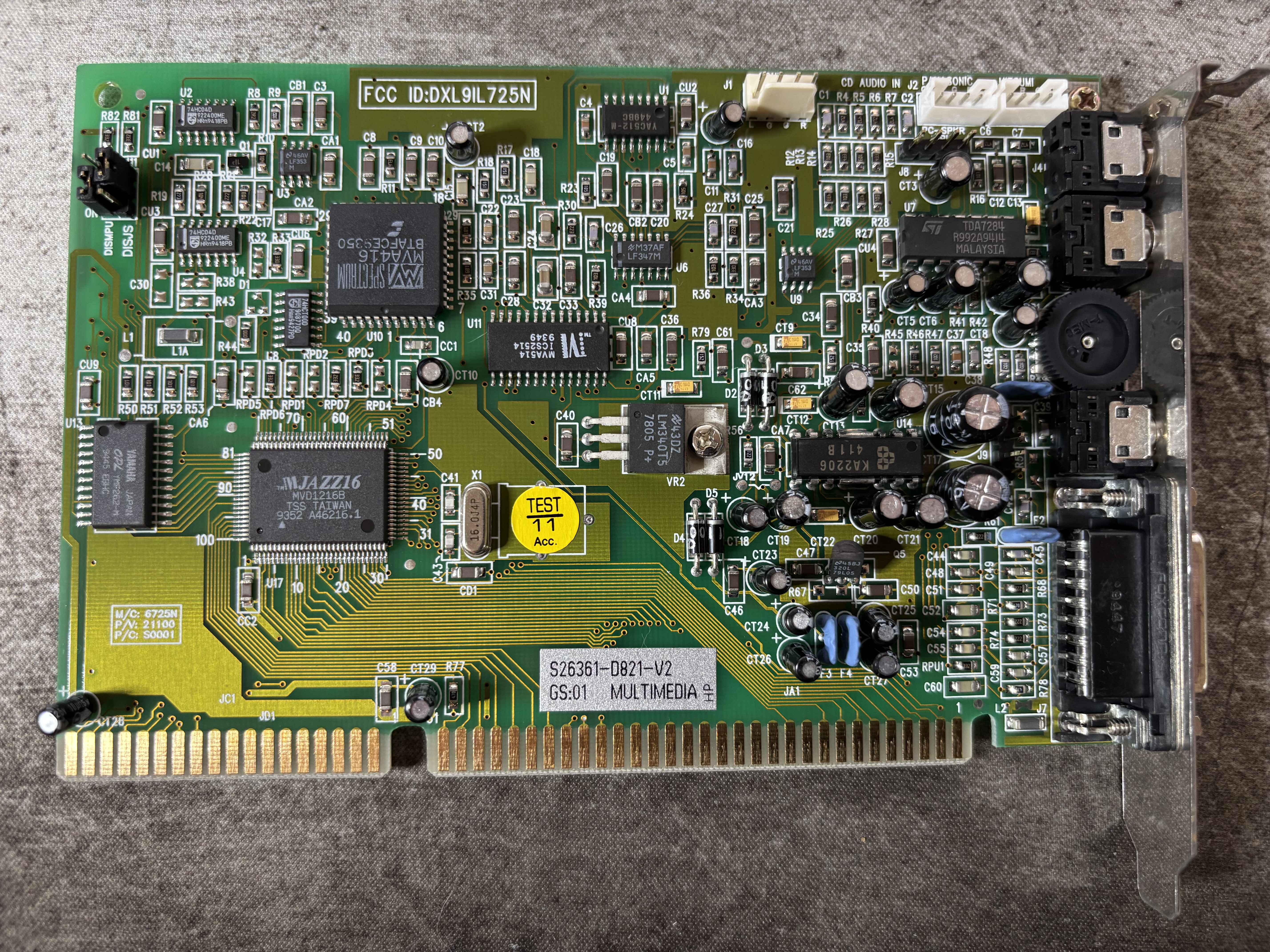

image1 Image 1 of 5 (CircusCat)

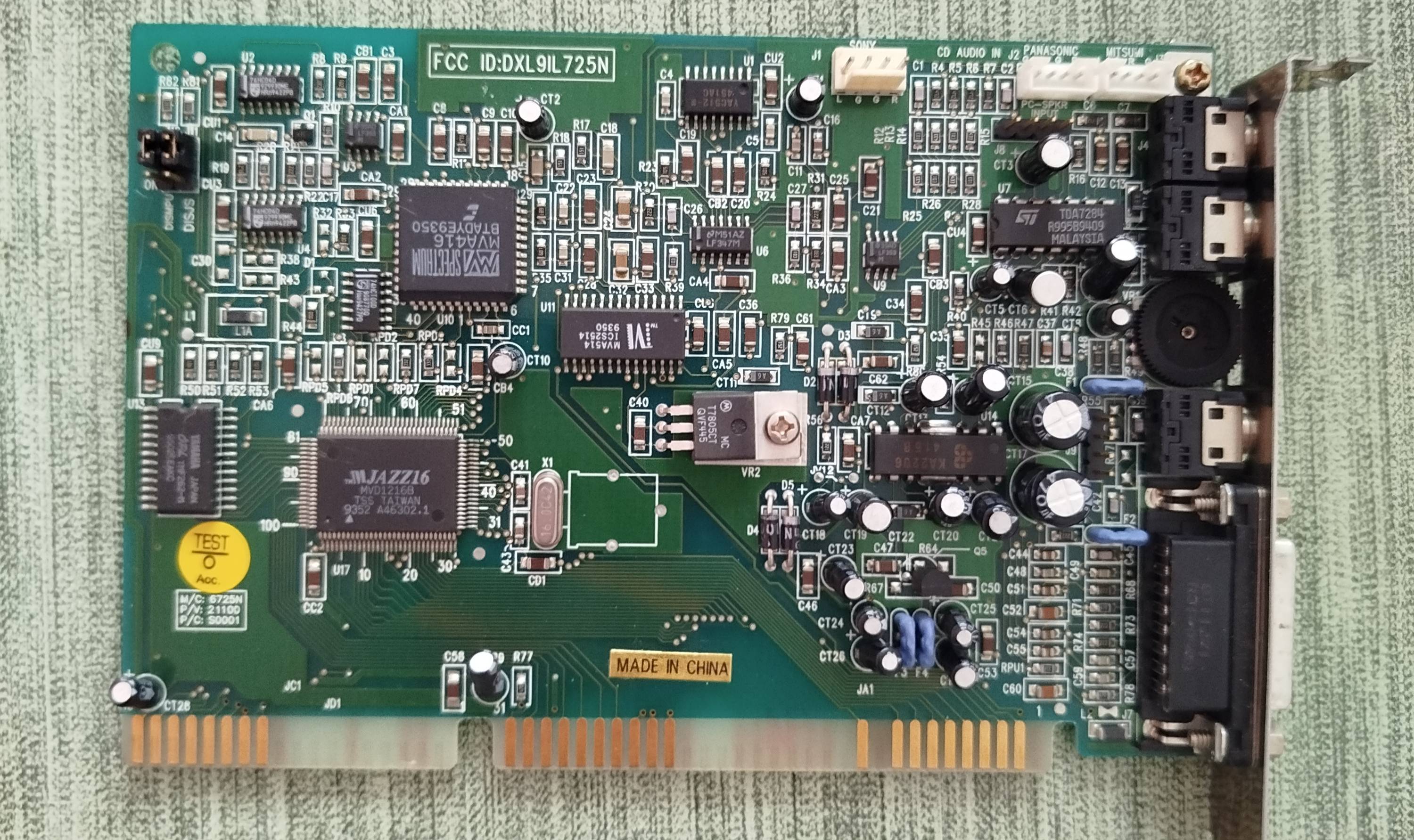

image2 Image 2 of 5 (hayko9954)

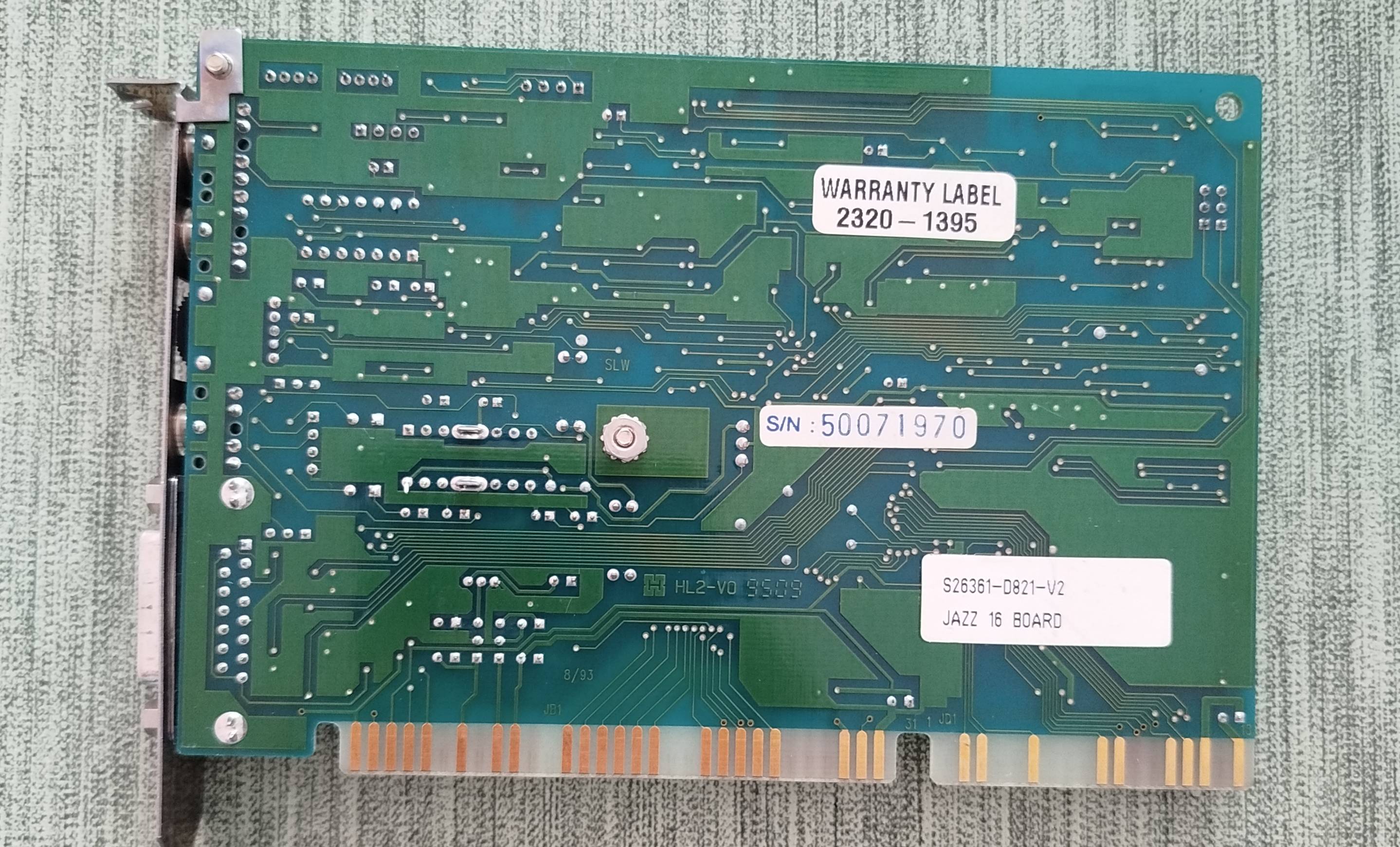

image3 Image 3 of 5 (CircusCat)

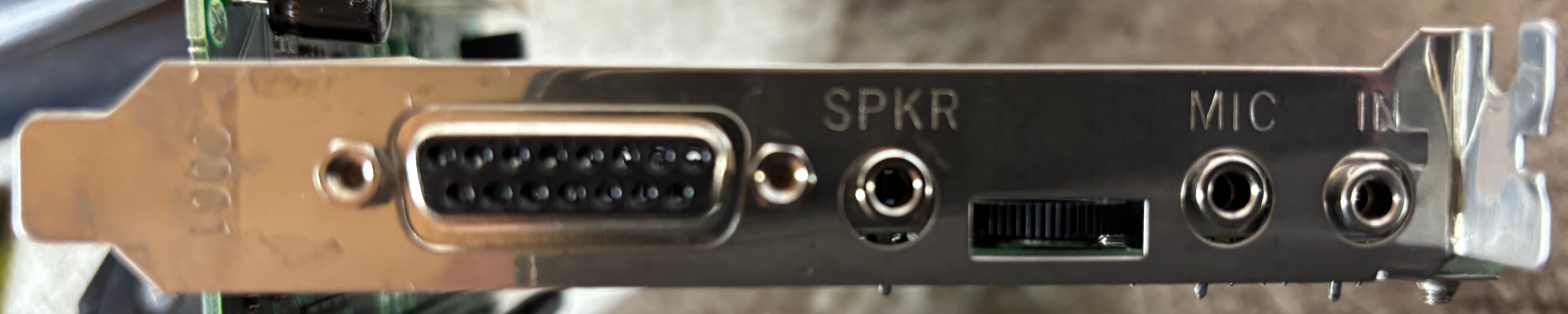

image4 Image 4 of 5 (hayko9954)

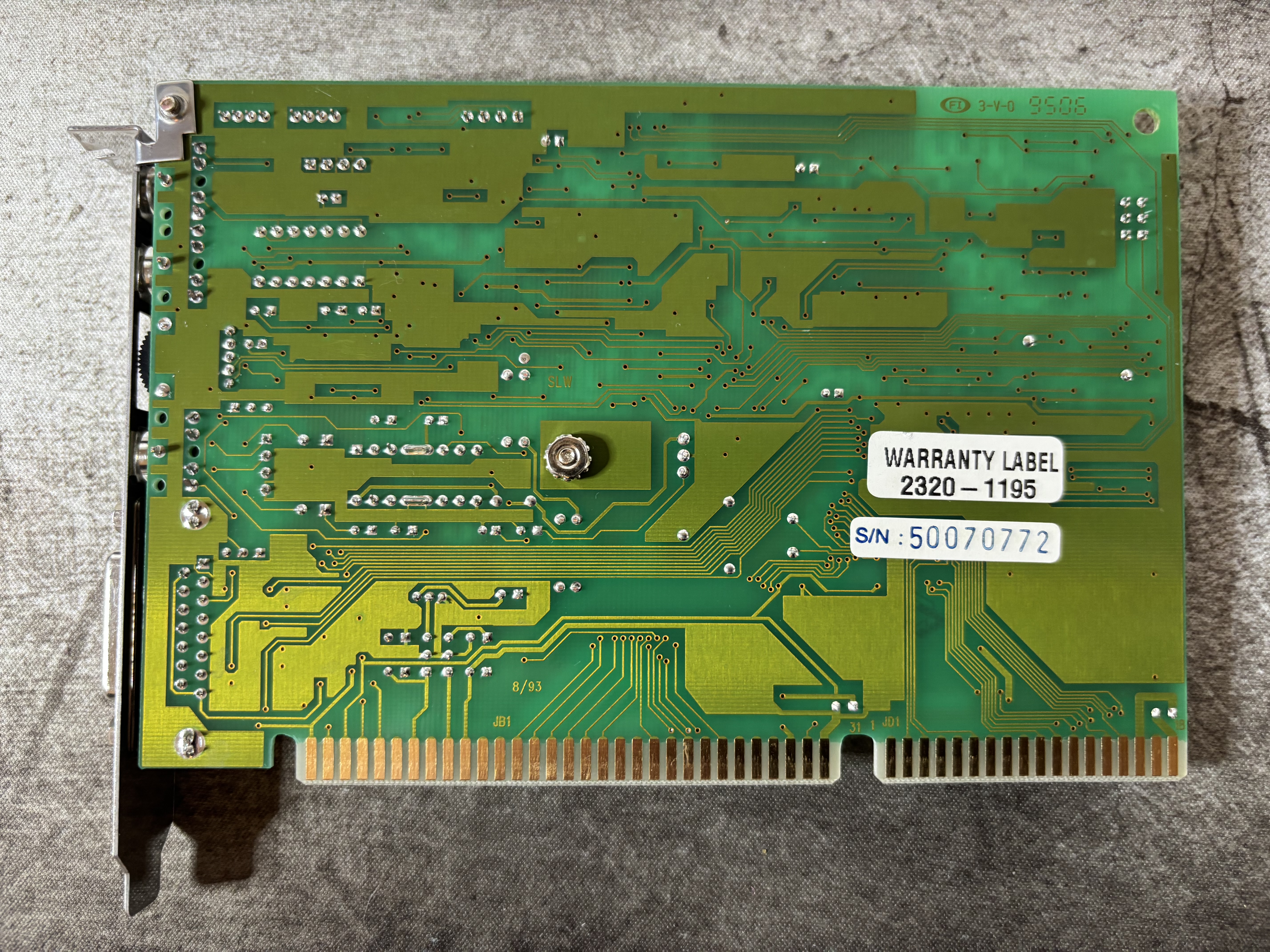

image5 Image 5 of 5 (hayko9954)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
