EON / Lung Hwa Lung Hwa 725E
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DXL9IL725E
chip Chips and specs
-> Audio
Media Vision MVD1216B (Jazz16) Media Vision MVA416 (Mixer) Yamaha YAC512 (2-Channel Floating DAC) Samsung KA2206 (2x2W Audio Power Amplifier) STMicroelectronics / Inmos TDA7284 (Record/Playback circuit with ALC) Yamaha YMF262 (OPL3)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Game/MIDI port, microphone in, speaker out, line in, audio in, CD-ROM interface connector
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-29T17:29:56Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
622.3KB
Filename
Version
OS support
Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
66.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

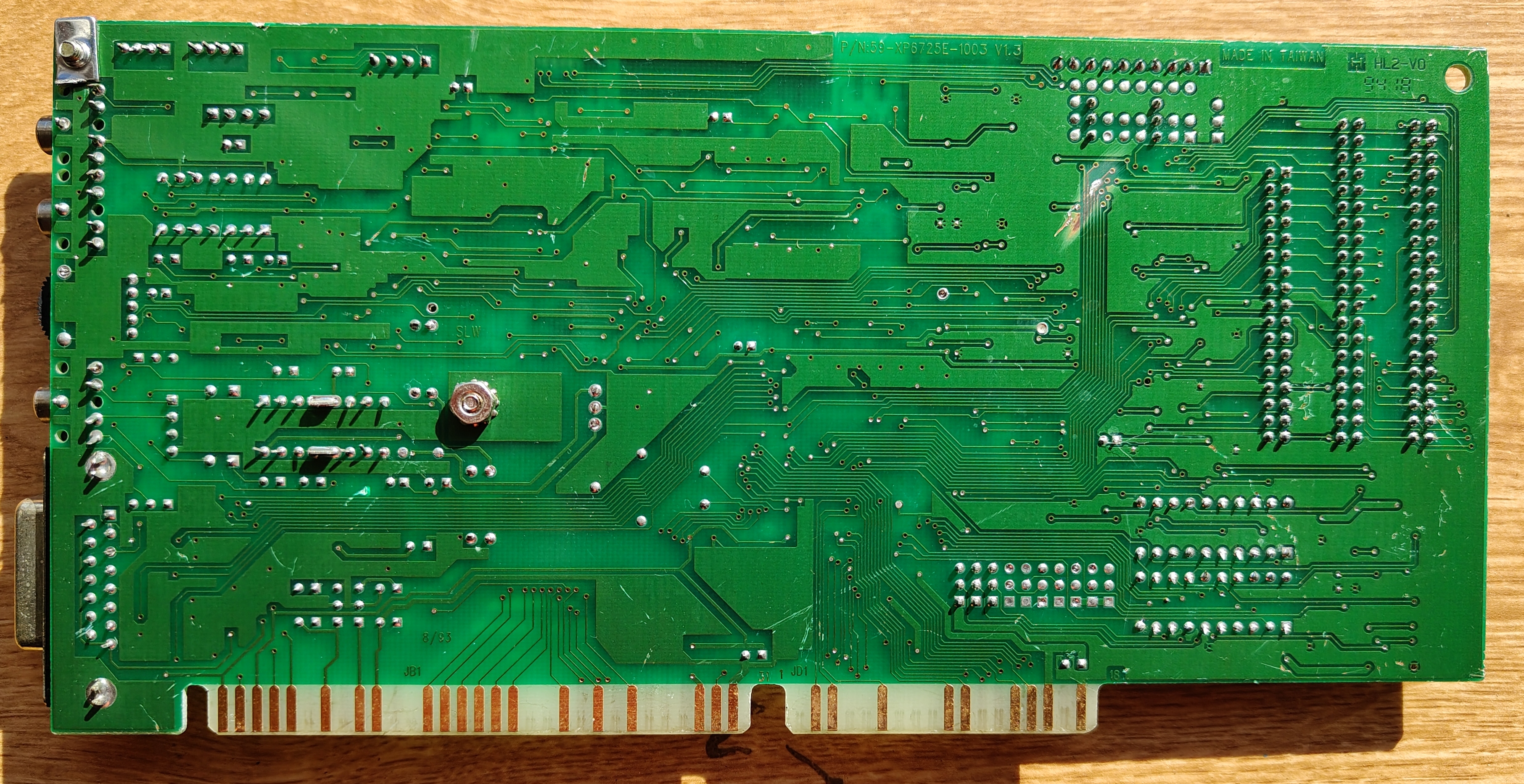

image1 Image 1 of 3 (Yargoro)

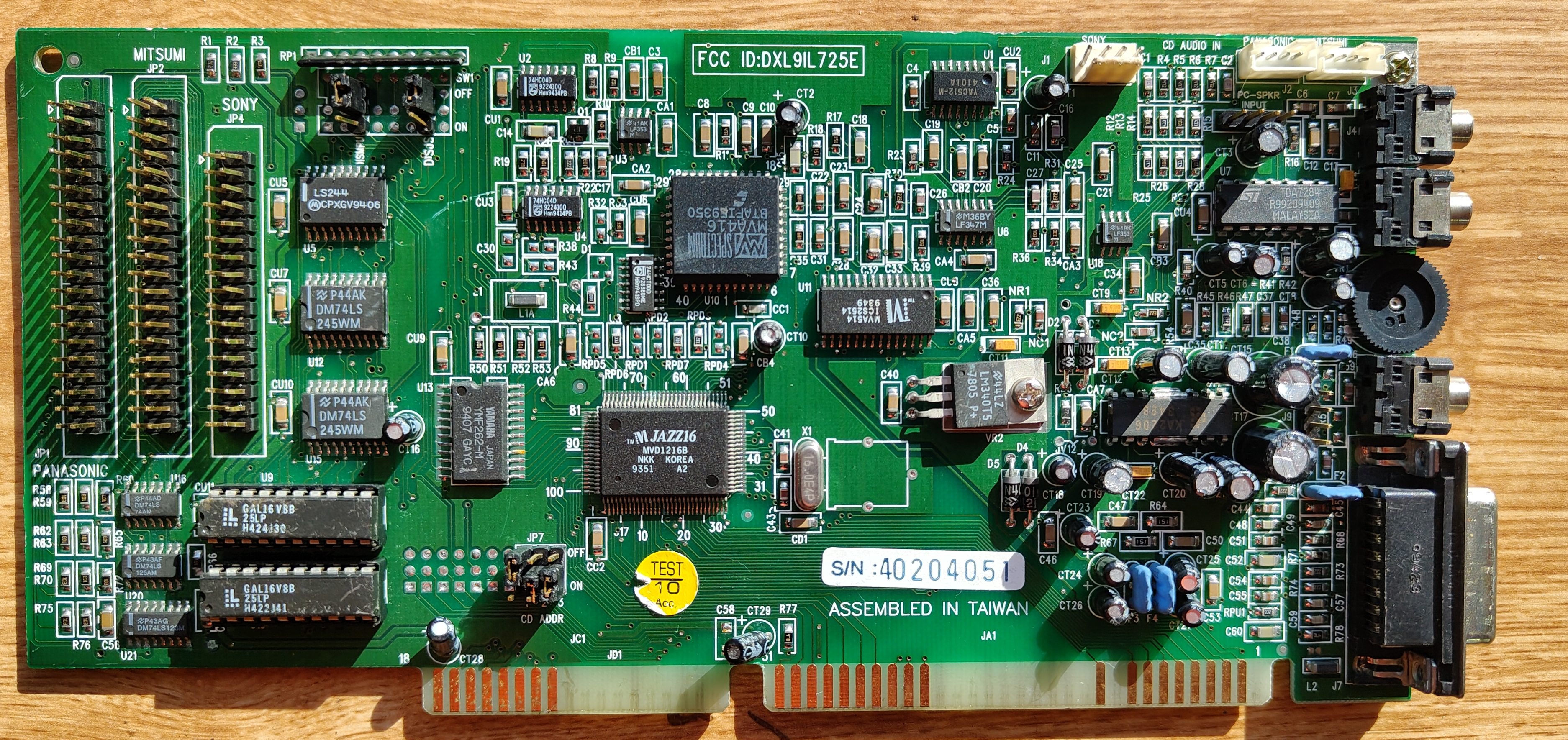

image2 Image 2 of 3 (kanecvr)

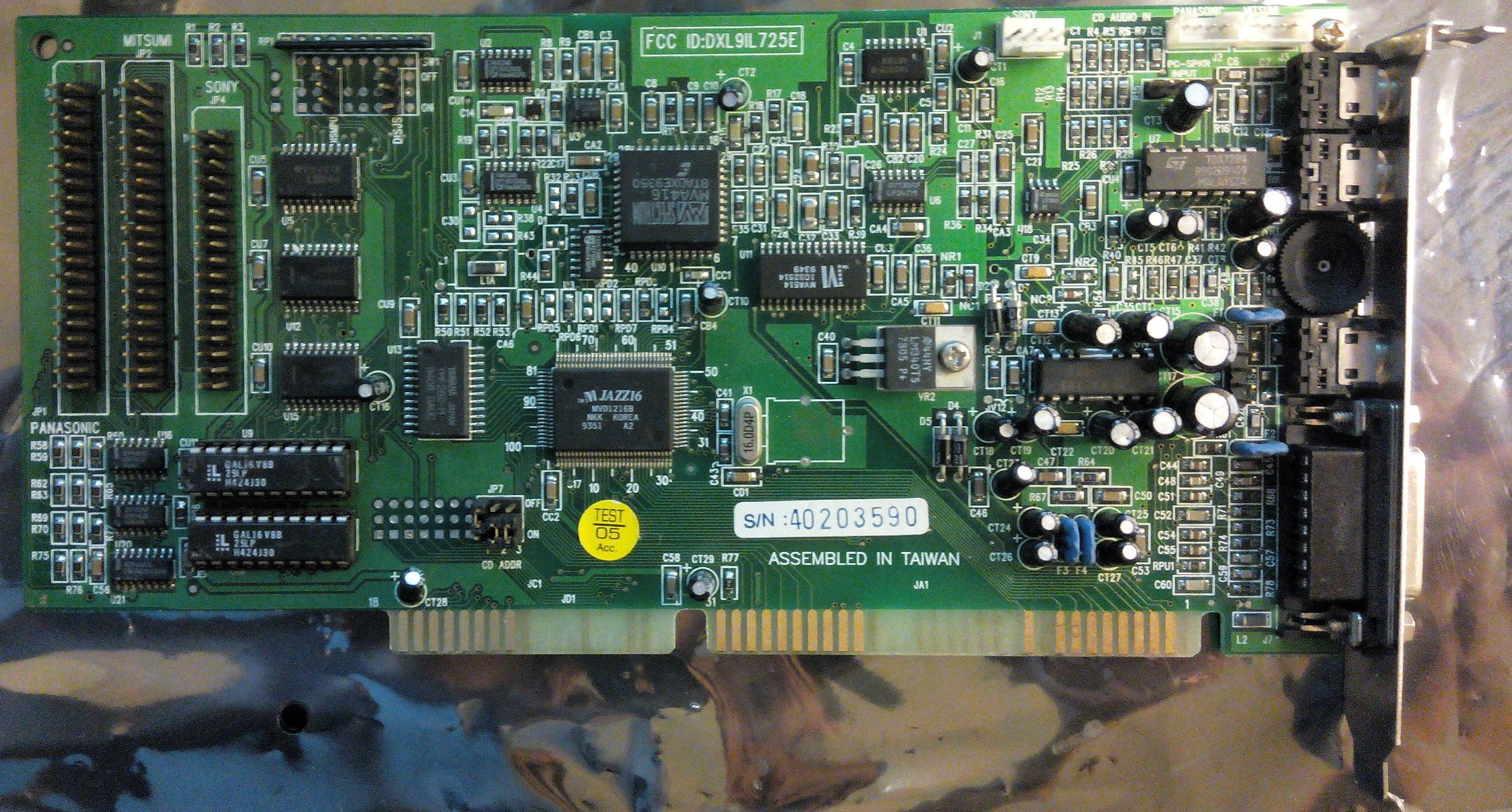

image3 Image 3 of 3 (Yargoro)
