Ensoniq SoundScape Elite
Logs
typeType
Sound IDE controller CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LF7SS2016
chip Chips and specs
-> Audio
Analog Devices AD1848 (SoundPort WSS) Ensoniq ES5507000101 (SEQUOIA) Ensoniq ES5506000102 (OTTOR2)
MTL
Chip Set OPUS
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Audio line in, Audio line out, CD-ROM audio connectors (2), Microphone, MIDI/game port
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
powerPower connectors
Empty
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some cards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the card. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

Last updated 2025-09-16T21:51:13Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

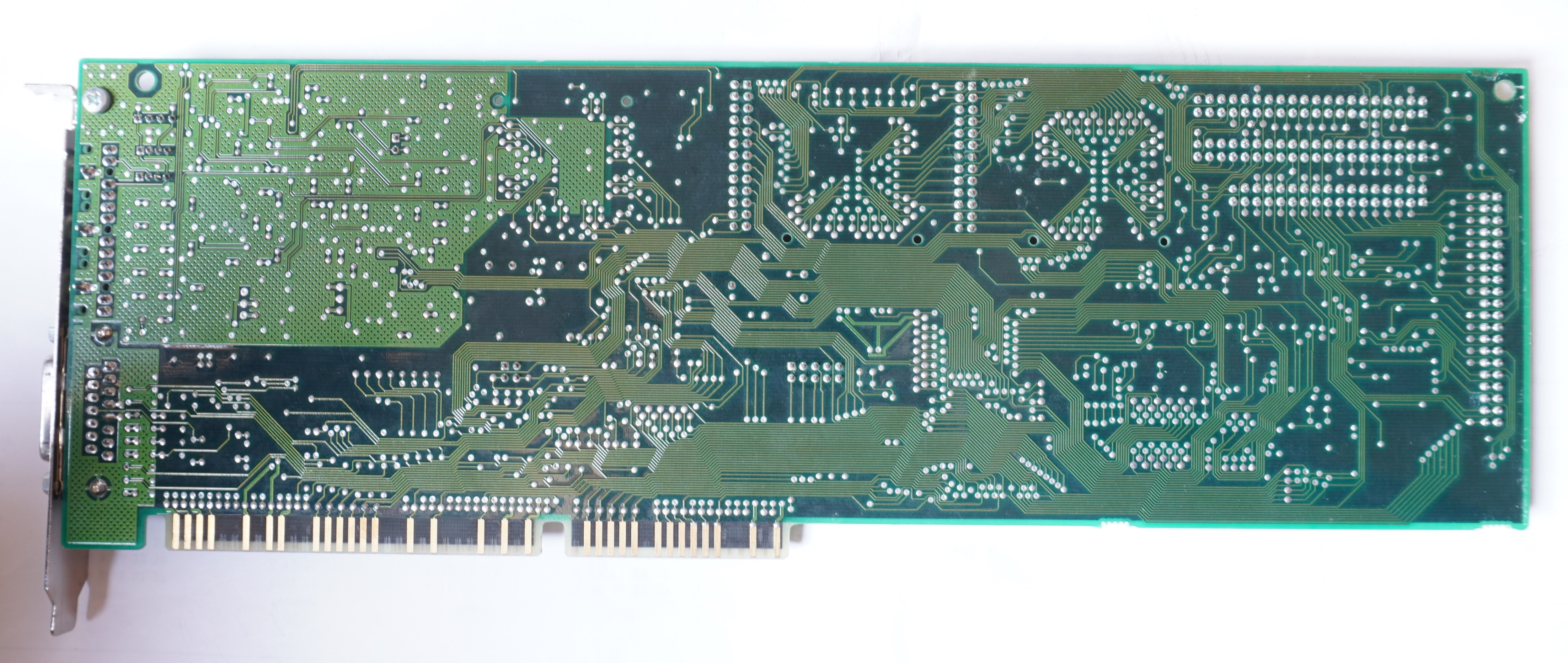

image1 Image 1 of 4 (Elke Wehmer)

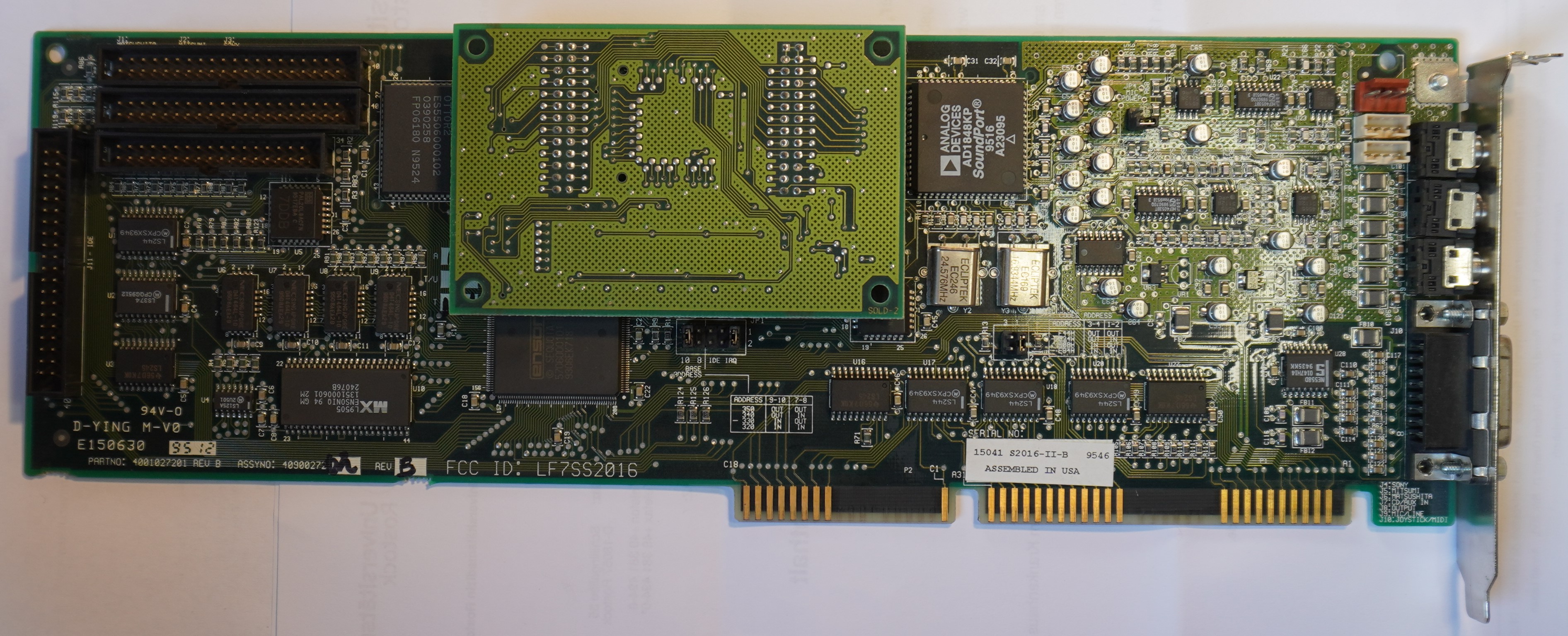

image2 Image 2 of 4 (Elke Wehmer)

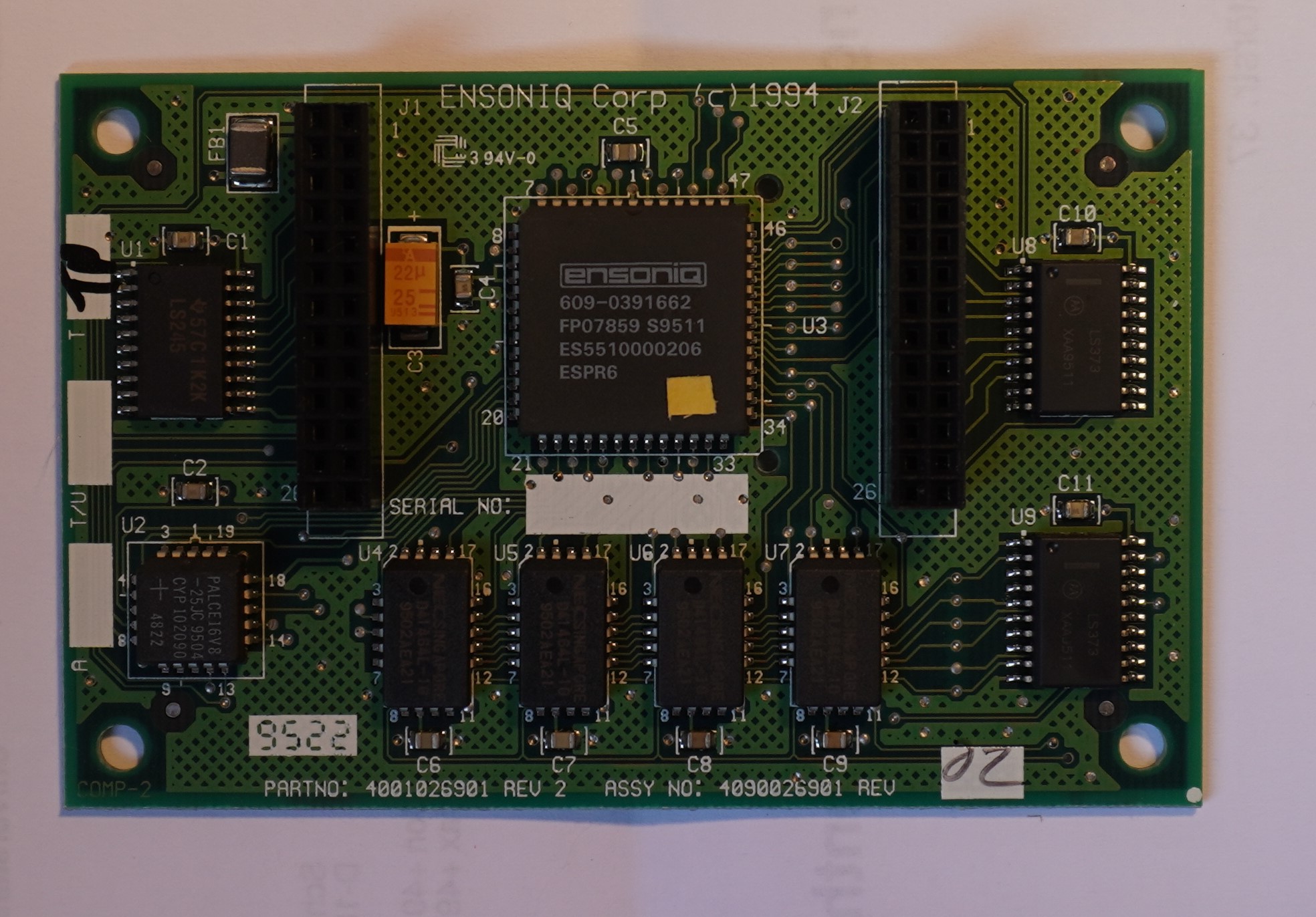

image3 Image 3 of 4 (Elke Wehmer)

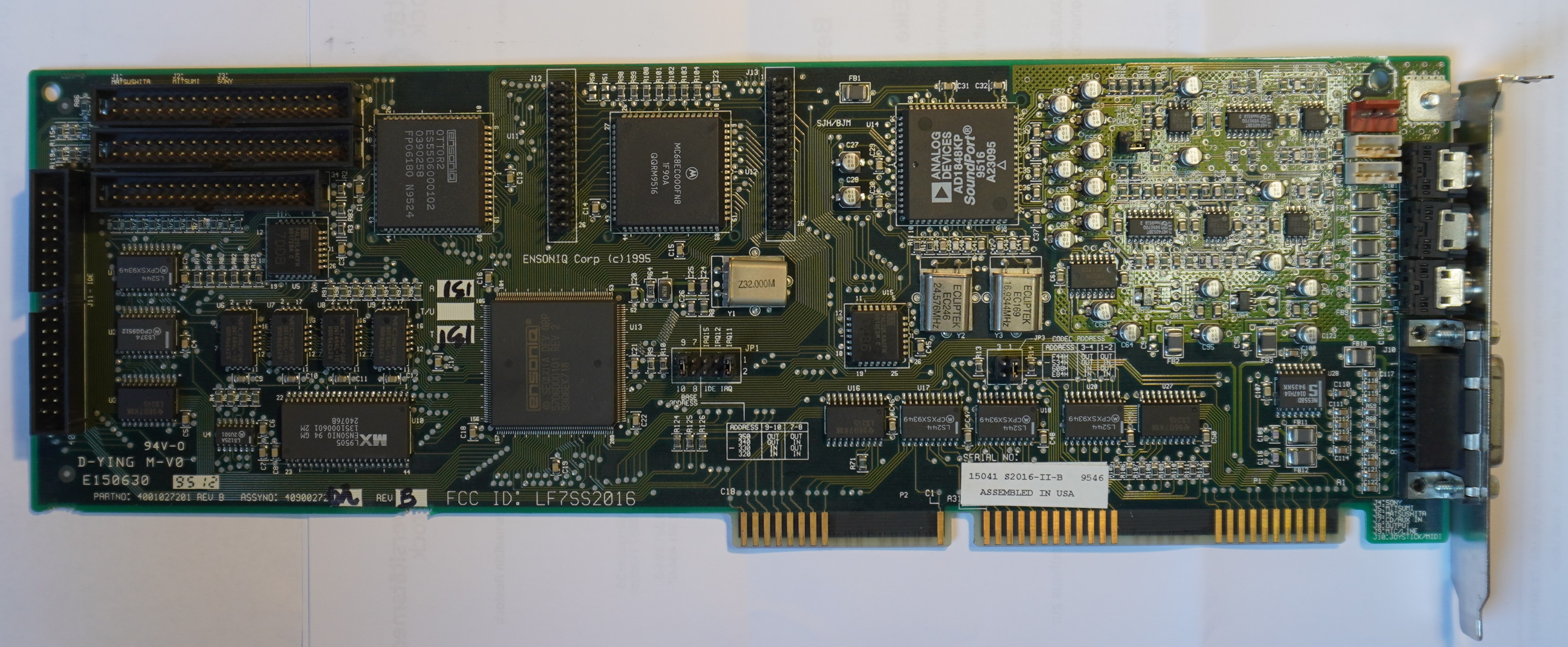

image4 Image 4 of 4 (Elke Wehmer)
