ELSA XHR GEMINI/2
Logs
Interface
Signaling
PCI IDEmpty
RAM types 30-pin SIMMDRAMVRAM
RAM size
4.5MB
Chips and specs
| MTL | |
|---|---|
| Category | Video |
| Memory Type | DRAM/VRAM (factory installed) |
| Data Bus Type | 16-bit ISA |
| Video Processor | Texas Instruments TMS34020 |
| Video Types Supported | MGA/CGA/XVGA |
| Maximum Onboard Memory | 512kB VRAM/4MB DRAM |
| Highest Resolution Supported | 1280 x 1024 |
Also known as
- ELSA GEMINI4.B
I/O ports
Power connectorsEmpty
Notes
Note: Graphics Subsystem for 3D-CAD Applications. Does not run as a standalone card. An additional VGA card is required. Applies to all graphics cards of the XHR series, such as XHR, XXHR, Orion, Alpha, Spectra, Omega, Gemini
Last updated 2025-11-21T15:33:00Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs

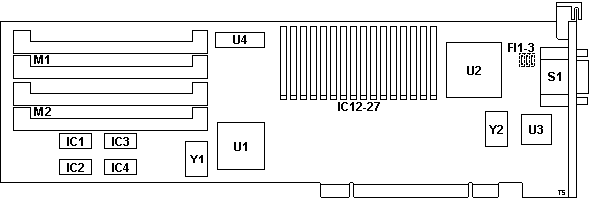

Image 1 of 3 (Tomas Slavotinek)

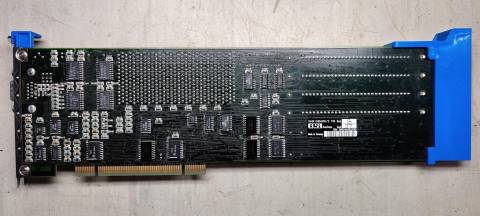

Image 2 of 3 (Christian Holzapfel)
Image 3 of 3 (Christian Holzapfel)
