ELSA XHR GEMINI
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM types
DRAMVRAM
ramRAM size
4.5MB
chip Chips and specs
-> Processor
Texas Instruments TMS34020
-> RAMDAC
Brooktree Bt471 Brooktree BT485
-> Video
ELSA EASY
MTL
Category Video
Memory Type DRAM/VRAM (factory installed)
Data Bus Type 16-bit ISA
Video Processor Texas Instruments TMS34020
Video Types Supported MGA/CGA/XVGA
Maximum Onboard Memory 512kB VRAM/4MB DRAM
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 4-pin Mini-DIN
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
notes Notes

Note: Graphics Subsystem for 3D-CAD Applications. Does not run as a standalone card. An additional VGA card is required. Applies to all graphics cards of the XHR series, such as XHR, XXHR, Orion, Alpha, Spectra, Omega, Gemini

Last updated 2025-11-21T16:02:20Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

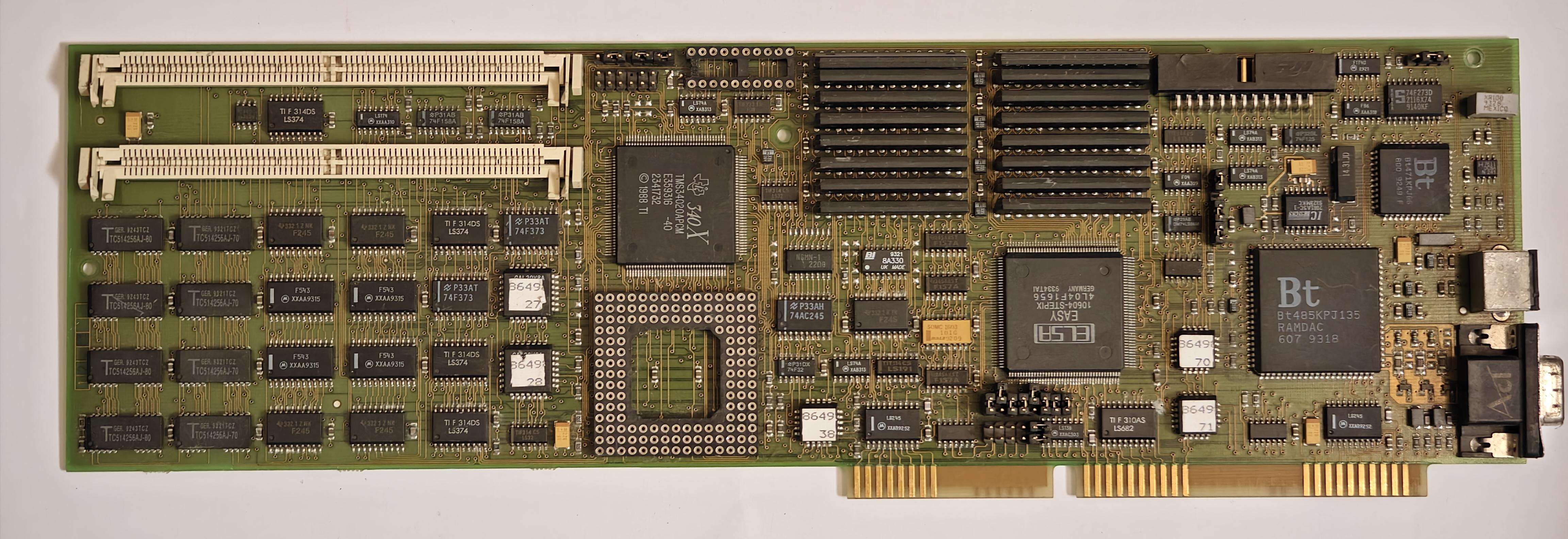

image1 Image 1 of 3 (Tiimo)

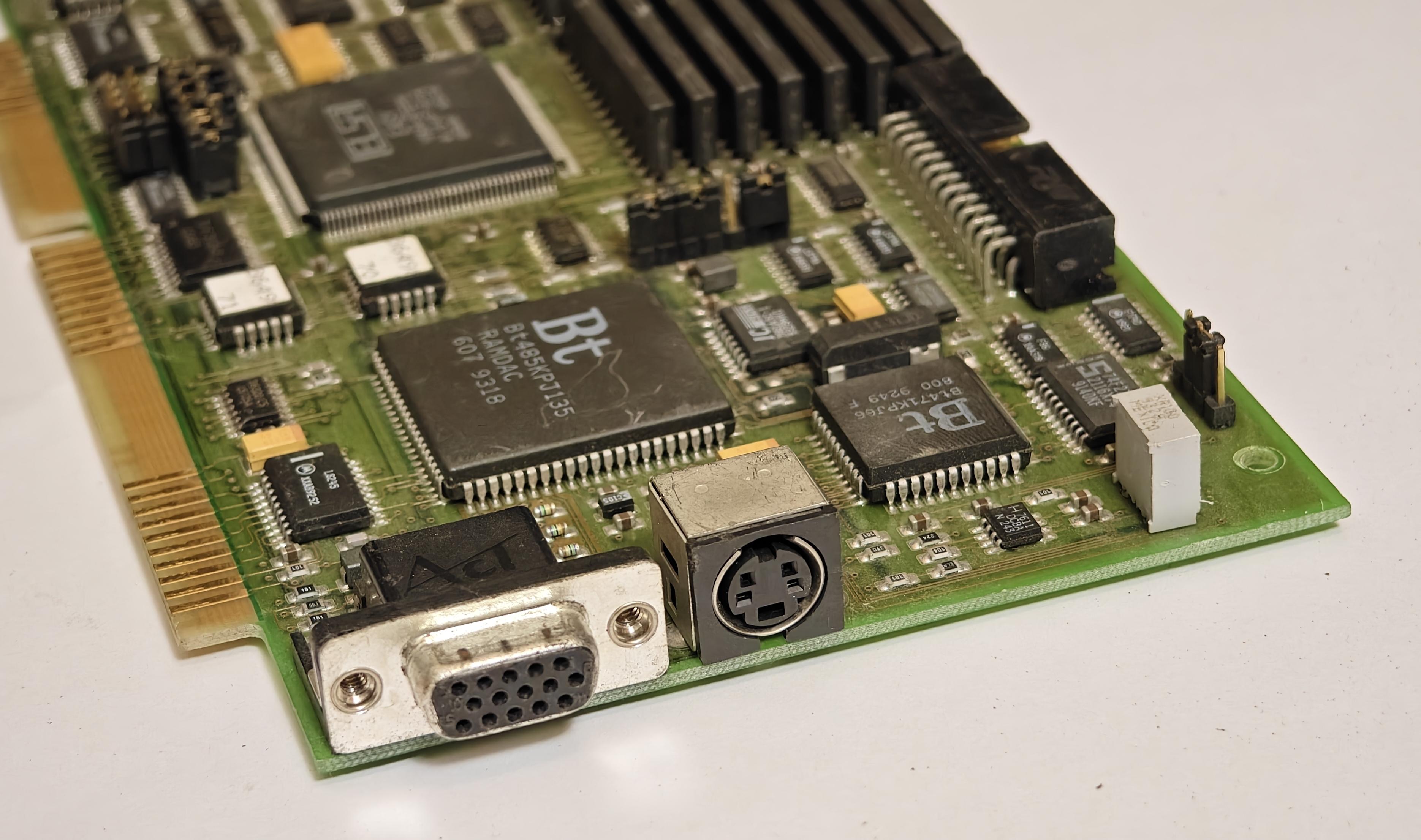

image2 Image 2 of 3 (Tiimo)

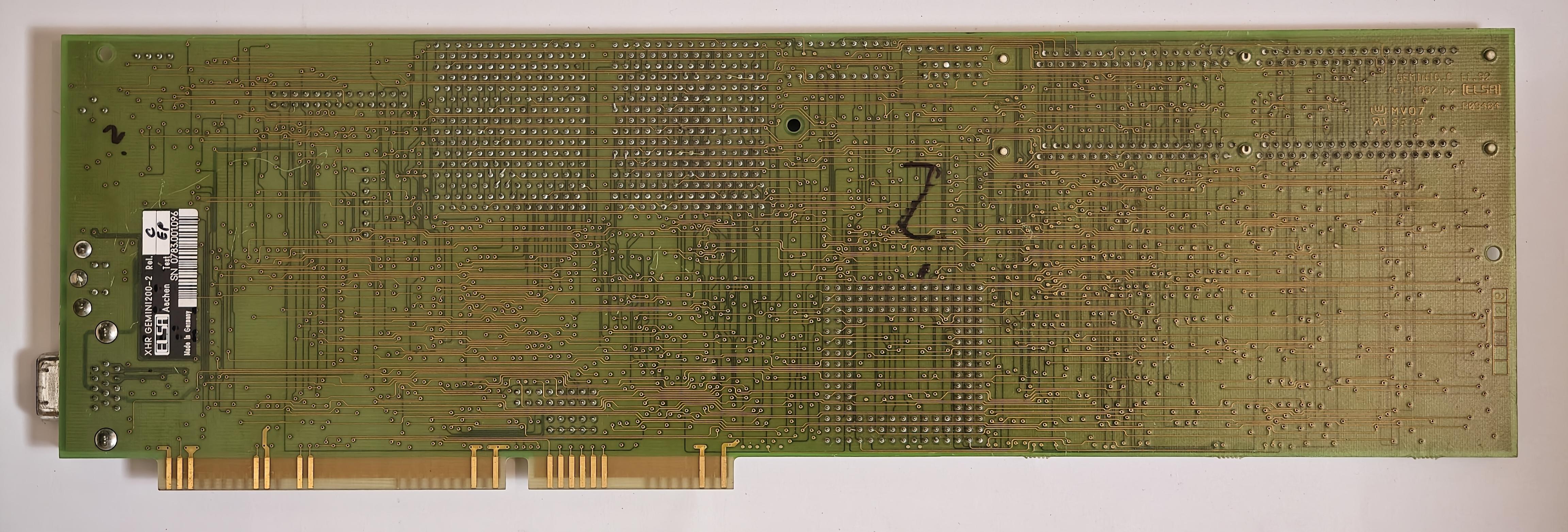

image3 Image 3 of 3 (Tiimo)
