ELSA Winner 2000 AVI/3D
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
883D
fccFCC ID
KJGW2000AVI3D
ramRAM type
SDRAM
ramRAM size
4MB2MB
chip Chips and specs
-> Video
S3 86C988 (ViRGE/VX)
tag Also known as
  • ELSA Winner 2000AVI/3D-2
  • ELSA Winner 2000AVI/3D-4
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • 2x3 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-06T05:39:26Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No card documents available

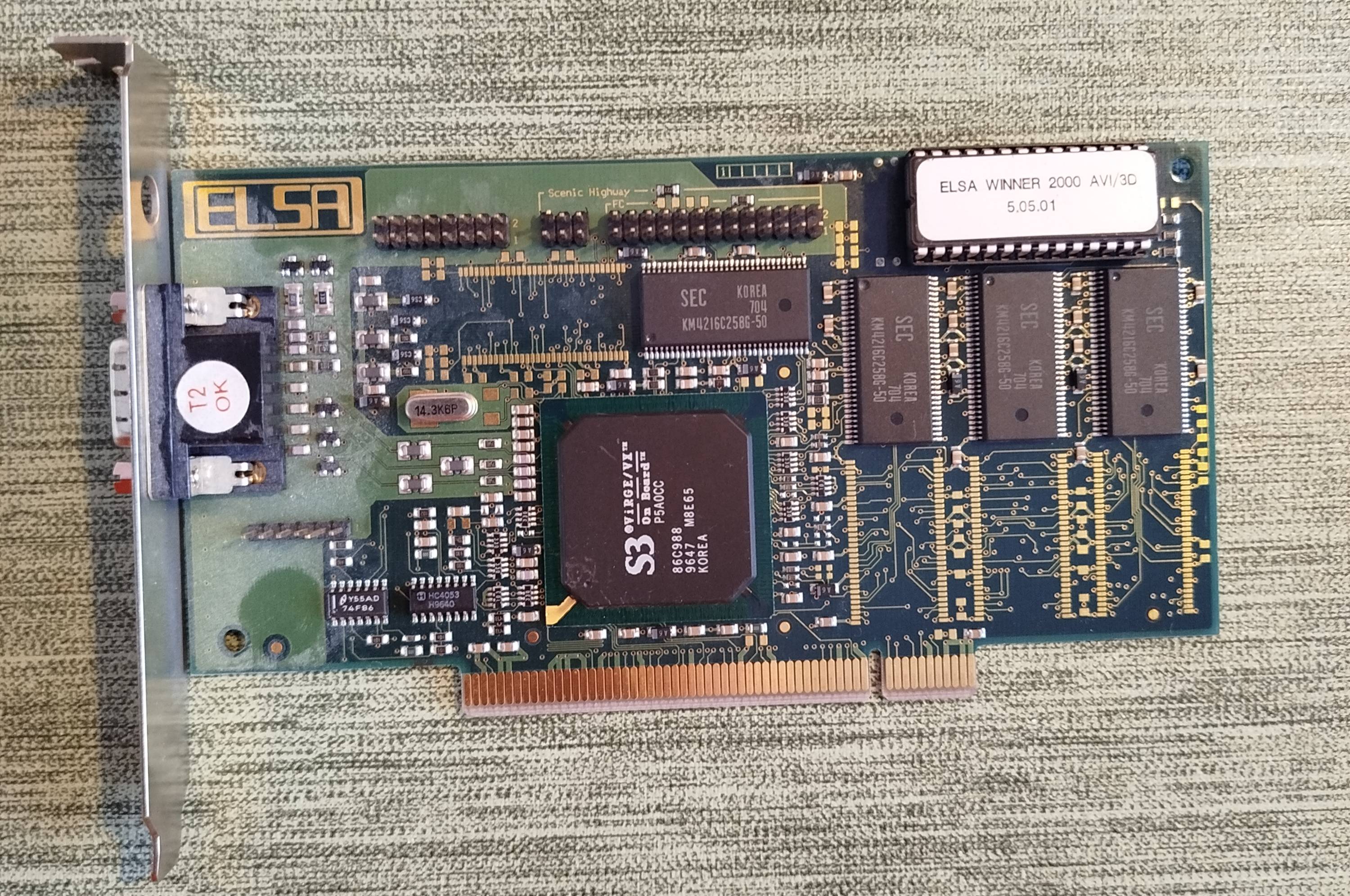

image1 Image 1 of 5 (Martes)

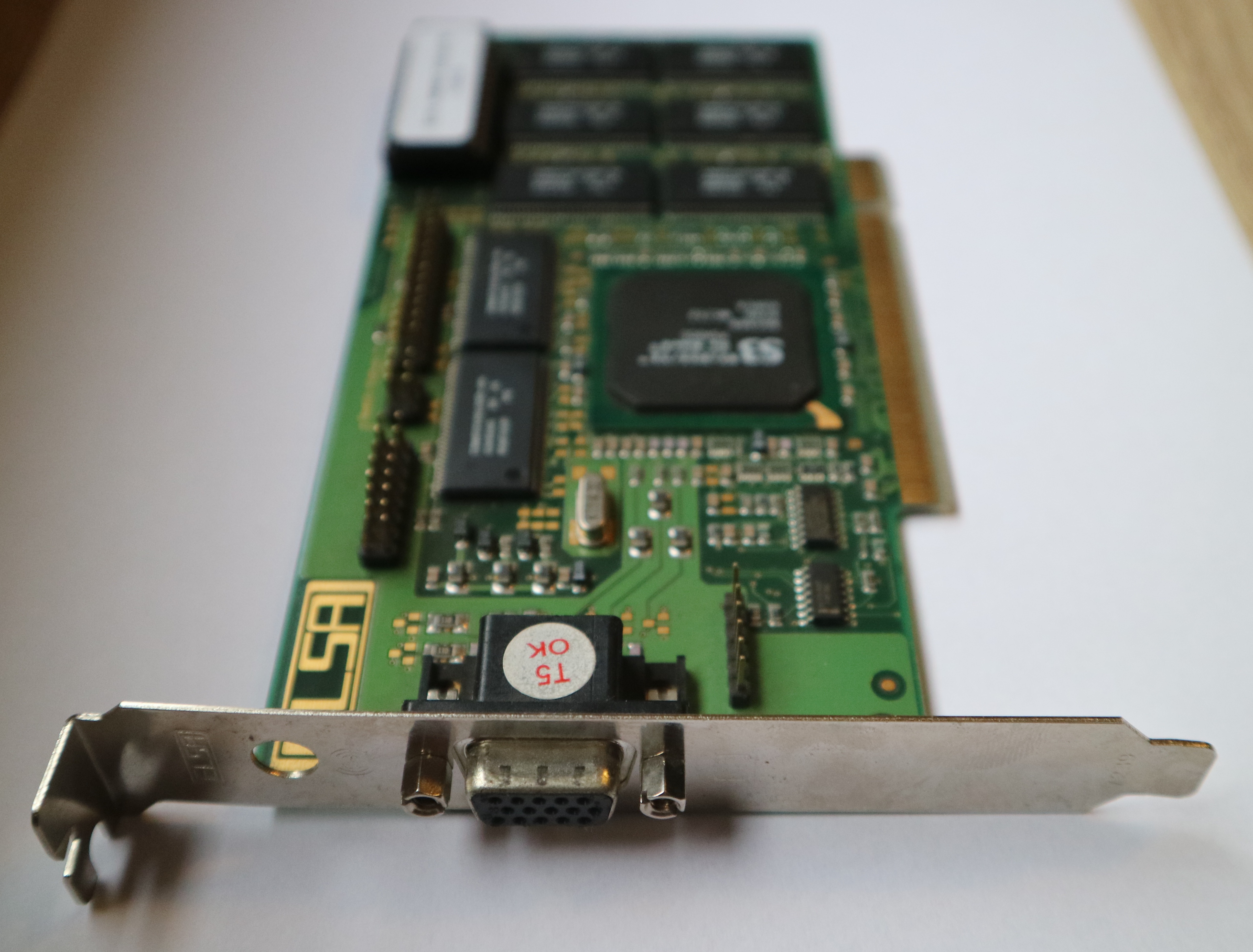

image2 Image 2 of 5 (CircusCat)

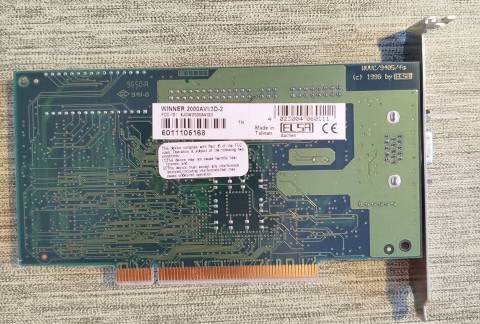

image3 Image 3 of 5 (Martes)

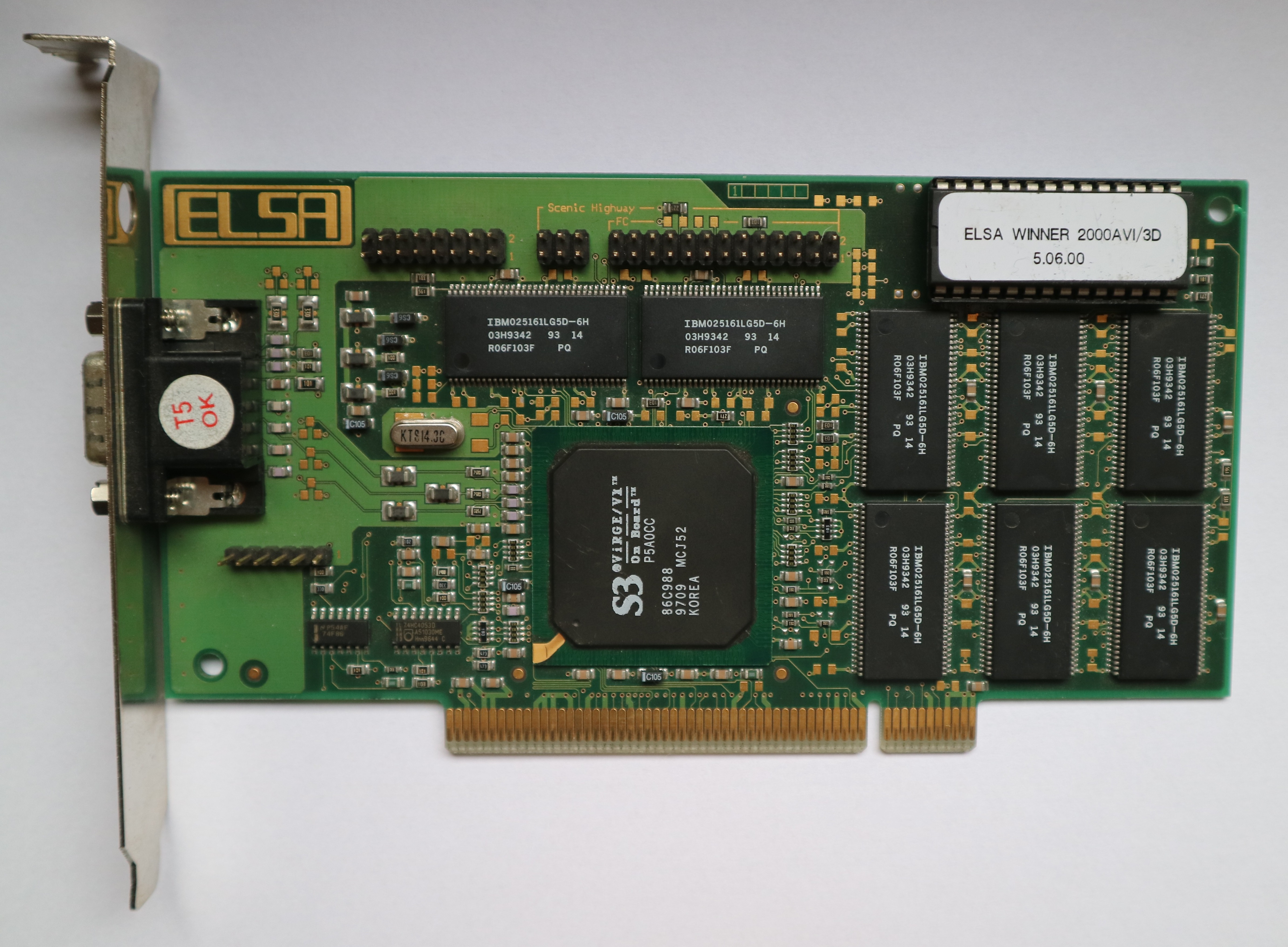

image4 Image 4 of 5 (CircusCat)

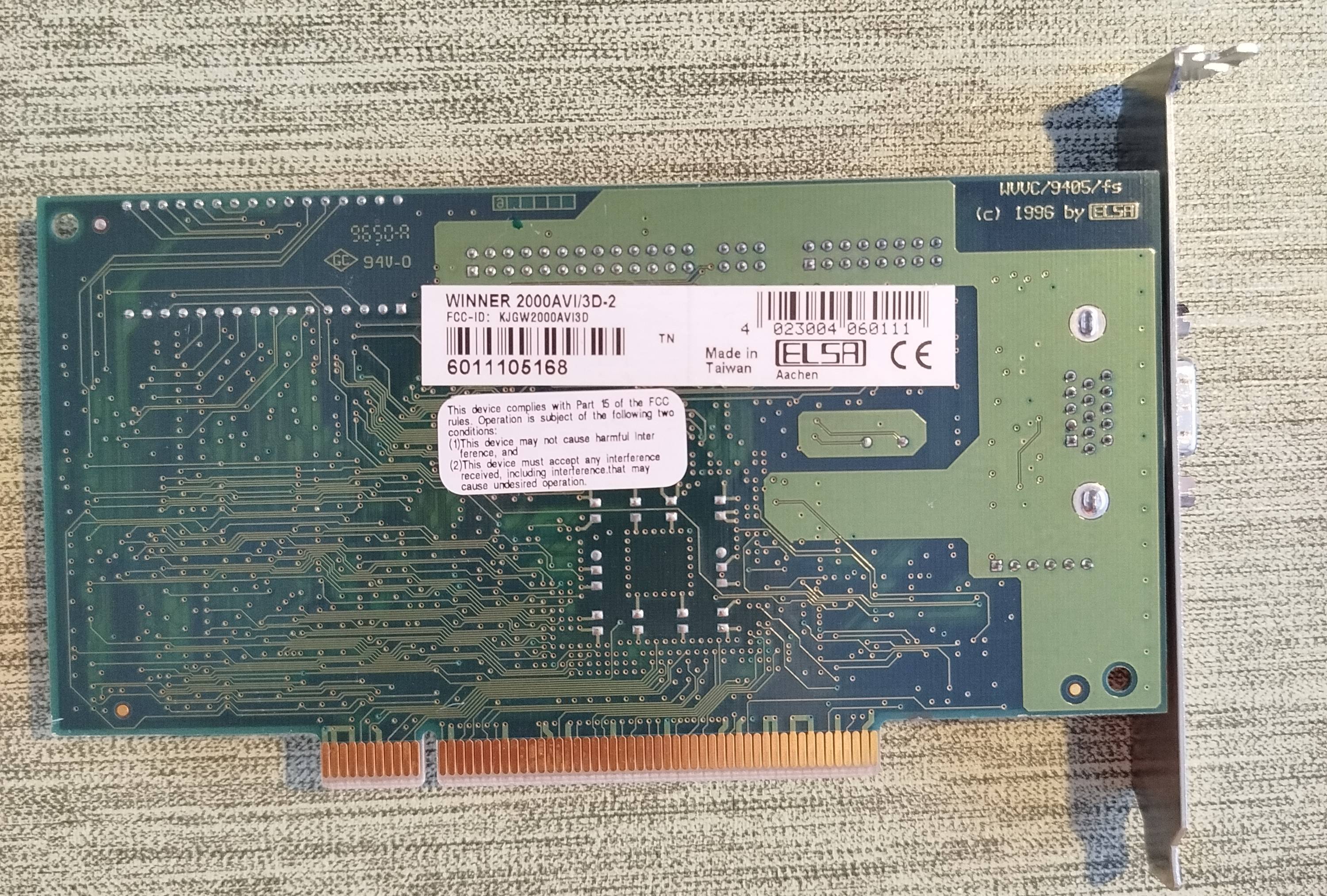

image5 Image 5 of 5 (Martes)
