ELSA WINNER 3000-L, WINNER 3000-M
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
883D
fccFCC ID
KJGW300L
ramRAM types
DRAMVRAM
ramRAM size
4MB2MB
chip Chips and specs
-> Video
S3 86C988 (ViRGE/VX)
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set S3, Inc.
Maximum Video Memory WINNER 3000-M 2MB DRAM, 2MB VRAMWINNER 3000-L 2MB DRAM, 4MB VRAM
Video Types Supported VGA
Highest Resolution Supported WINNER 3000-M 1600 x 1280,WINNER 3000-L 1920 x 1200
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • 2x3 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
notes Notes

Has both 2MB DRAM, 4MB VRAM

Last updated 2025-10-30T19:08:16Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

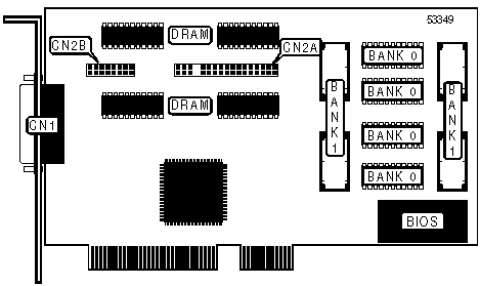

image1 Image 1 of 3 (Microhouse)

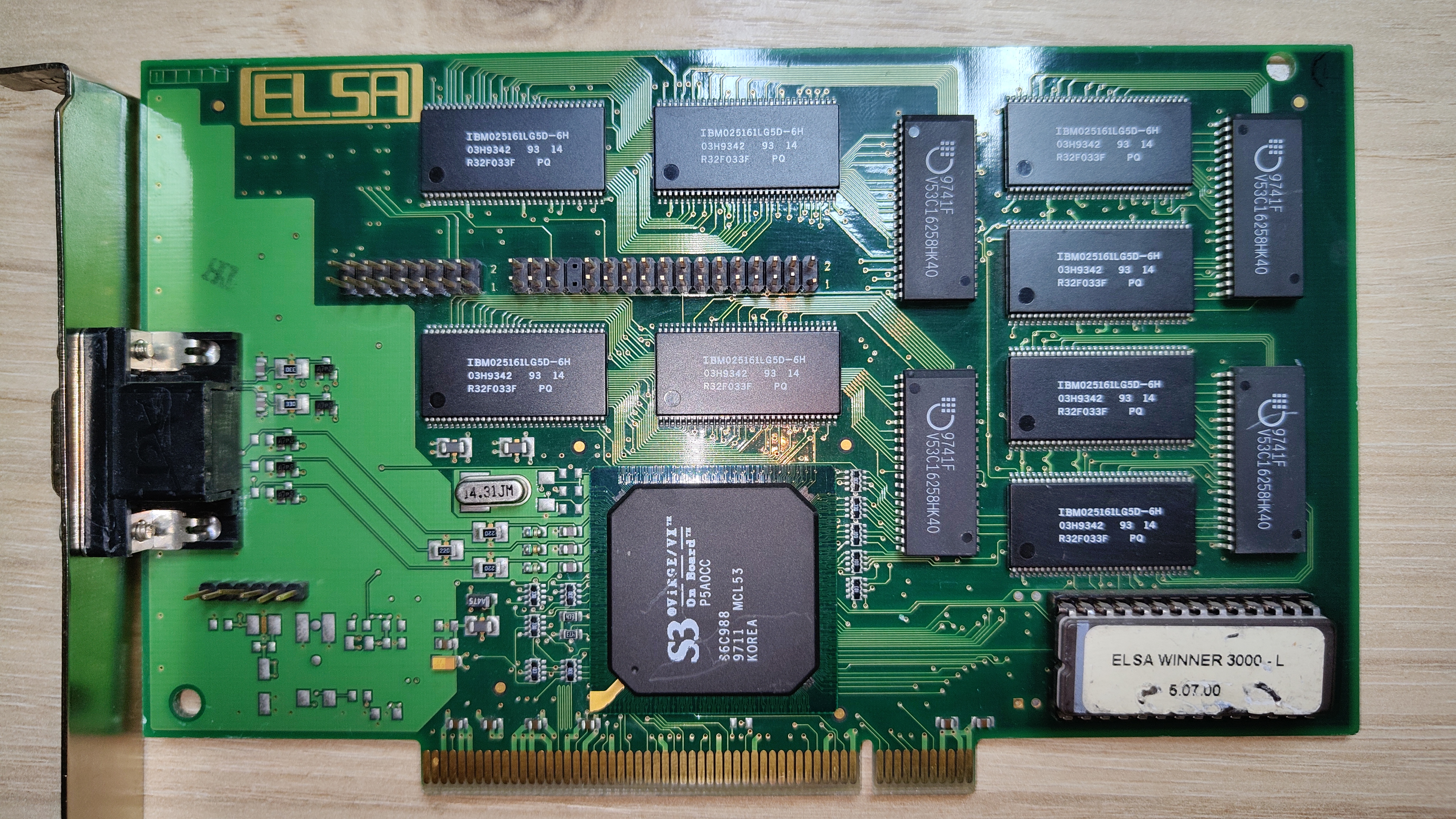

image2 Image 2 of 3 (Yargoro)
image3 Image 3 of 3 (Yargoro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
