ELSA Gladiac 511 TV-OUT
Logs
typeType
Video
interfaceInterface
signalSignaling
AGP 4x
datePCI ID
0110
ramRAM type
SDRAM
ramRAM size
64MB
chip Chips and specs
-> Video
Nvidia GeForce2 MX 400 (NV11B) Conexant Bt869KRF (Video Encoder w/ scaler)
  • Core clock: 200MHz
  • Memory clock: 166MHz
  • Memory bus width: 128Bit
Main specs
Foundry TSMC
Die size 64 mm²
Transistors 20 million
Architecture Celsius
Process node 180nm
Release date 25 July 2000
GPU features
ROPs 4
TMUs 4
OpenGL 1.2
DirectX 7.0
Pixel shaders 2
Vertex shaders 0

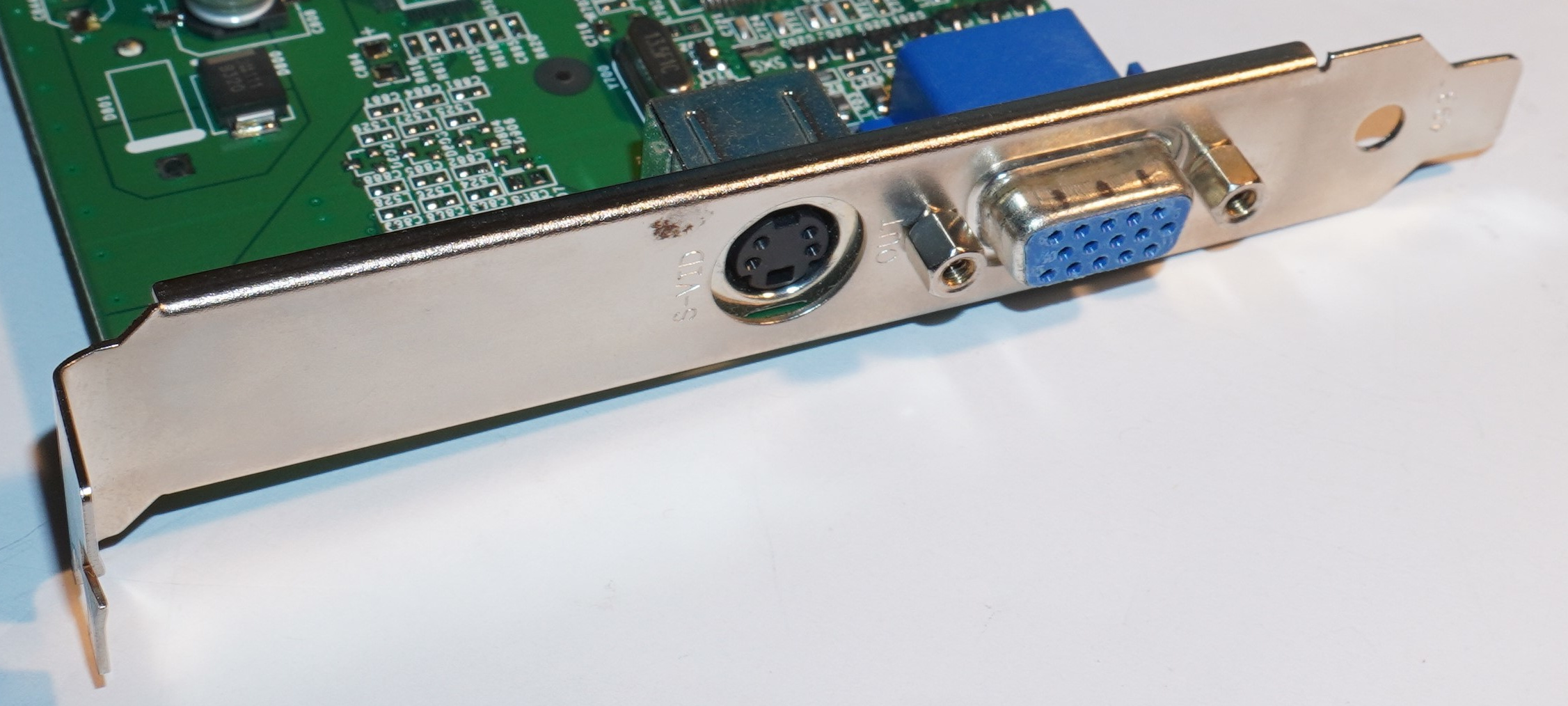

portintI/O ports
1x
  • 4-pin Mini-DIN
1x
  • DE-15
powerPower connectors
Empty
notes Notes

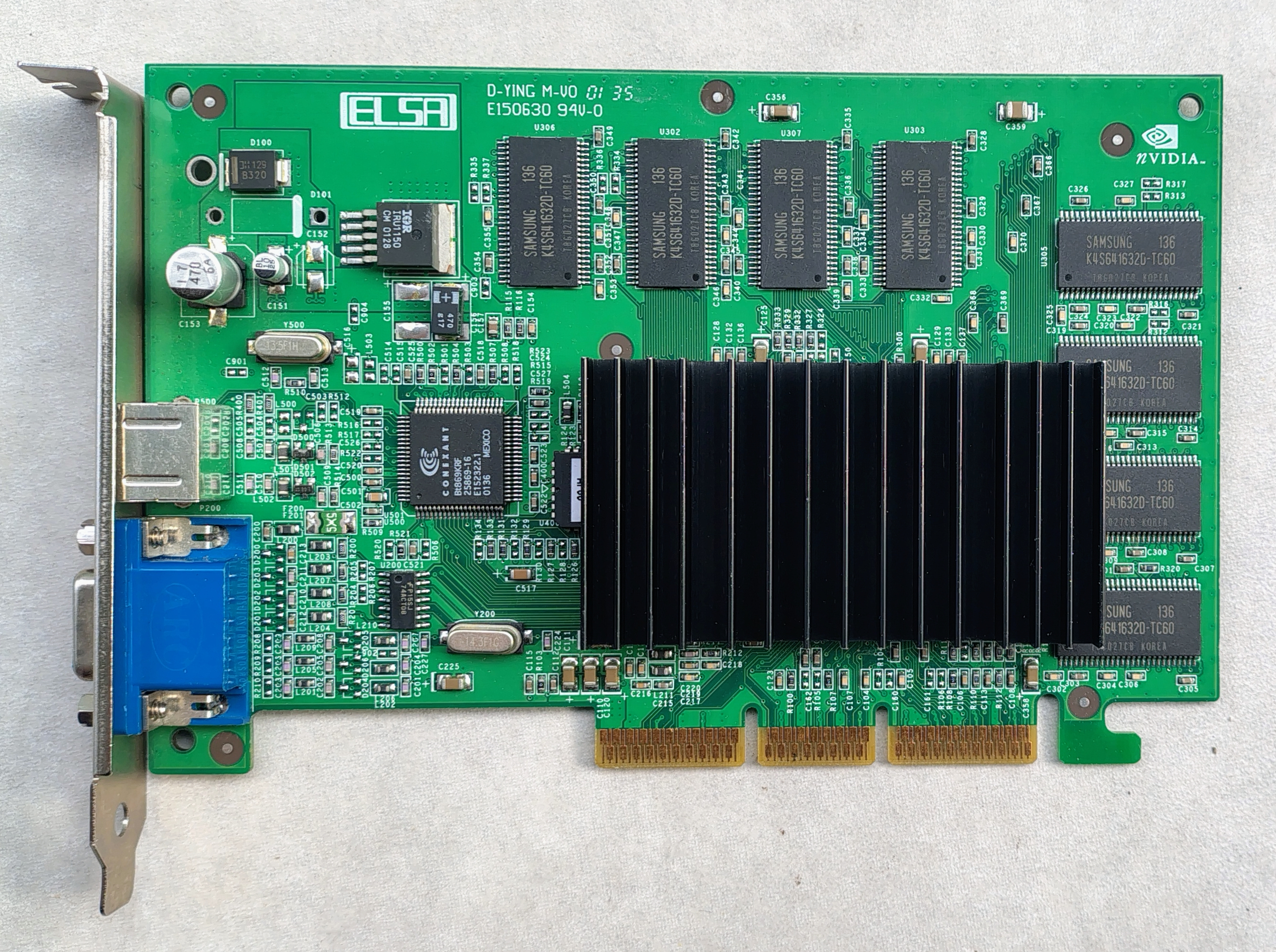

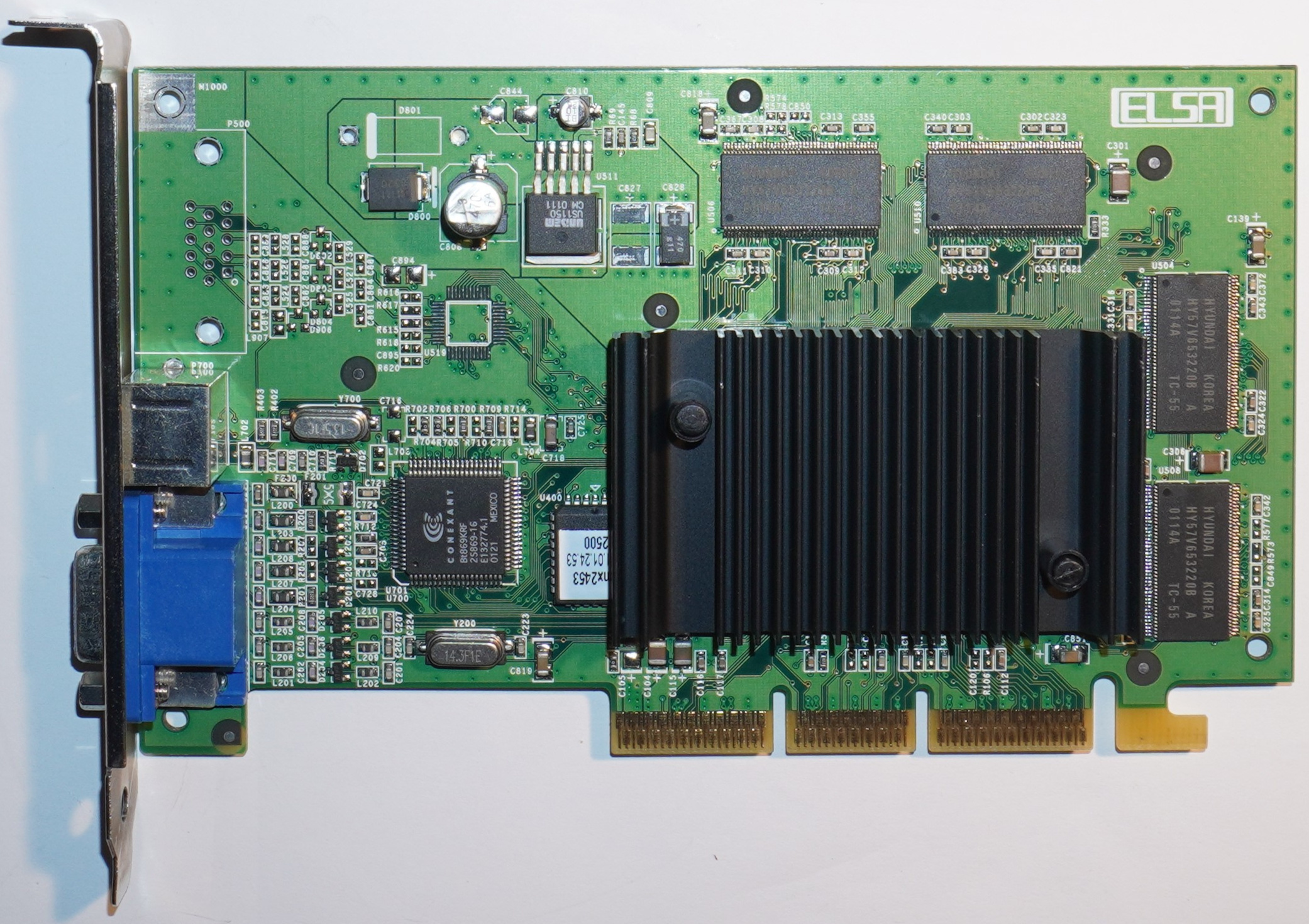

There were two revisions of this card. Either with 4xSDRAM 32-bit chips, or with 8xSDRAM 16-bit chips.

Last updated 2025-08-12T14:55:31Z
biosc No BIOS files available
drv 82 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
30.82
OS support
Windows 9x
Arch
x86
Size
8.4MB
Filename
Name
Version
45.23
OS support
Windows 9x
Arch
x86
Size
9.3MB
Filename
Name
Version
40.72
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Name
Version
28.84
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.3MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Name
Version
56.64
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
61.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
14.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
29.8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
28.7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
12.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
27.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
27.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
19.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
25.8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
20.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
14.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
16.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.5MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.5MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
4.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
5.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.1MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.2MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
9.6MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
6.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
25.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
20MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
13MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.8MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
15.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-09
File
Logs

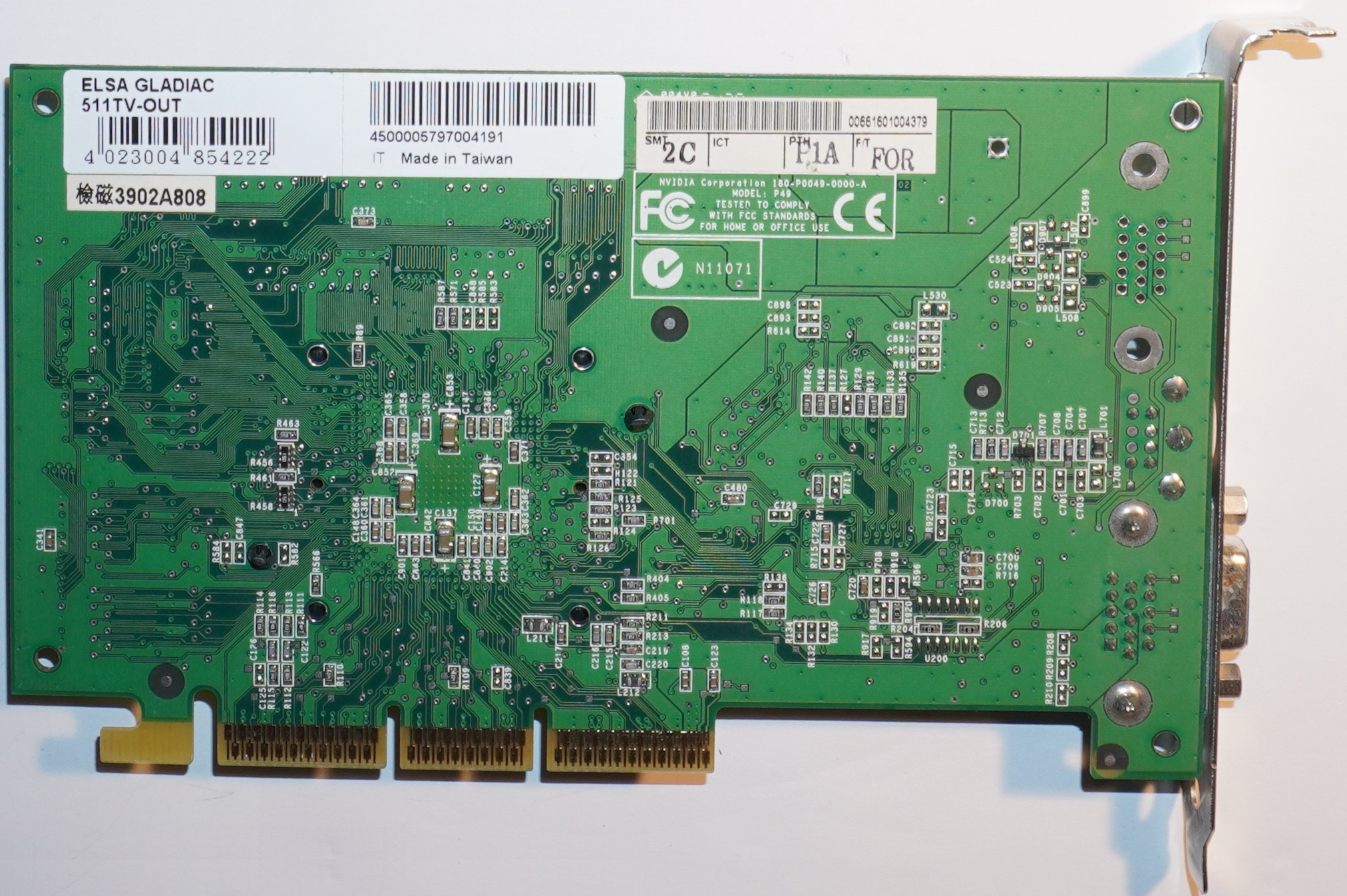

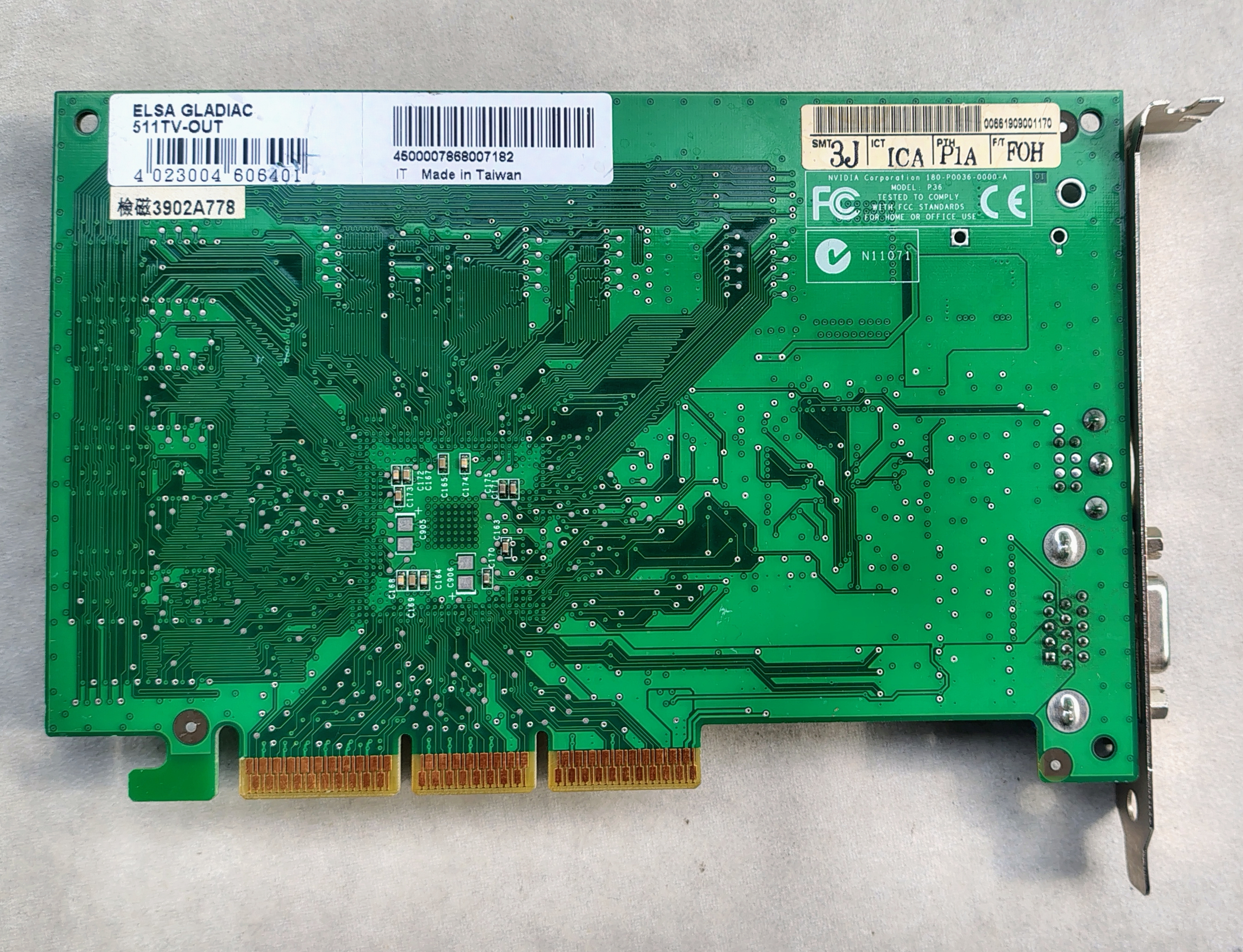

image1 Image 1 of 5 (Elke Wehmer)
image2 Image 2 of 5 (Necroware)
image3 Image 3 of 5 (Elke Wehmer)
image4 Image 4 of 5 (Necroware)
image5 Image 5 of 5 (Elke Wehmer)
