DTK UN1075G
Logs
typeType
Floppy controller IDE controller Parallel controller Serial controller
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
datePCI ID
Empty
fccFCC ID
F825K4PTI227W
chip Chips and specs
-> Signal transmitter/receiver
Winbond W83758F (I/O coupler)
-> Super I/O
Winbond W83757
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-01T17:04:30Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-11
File
Logs

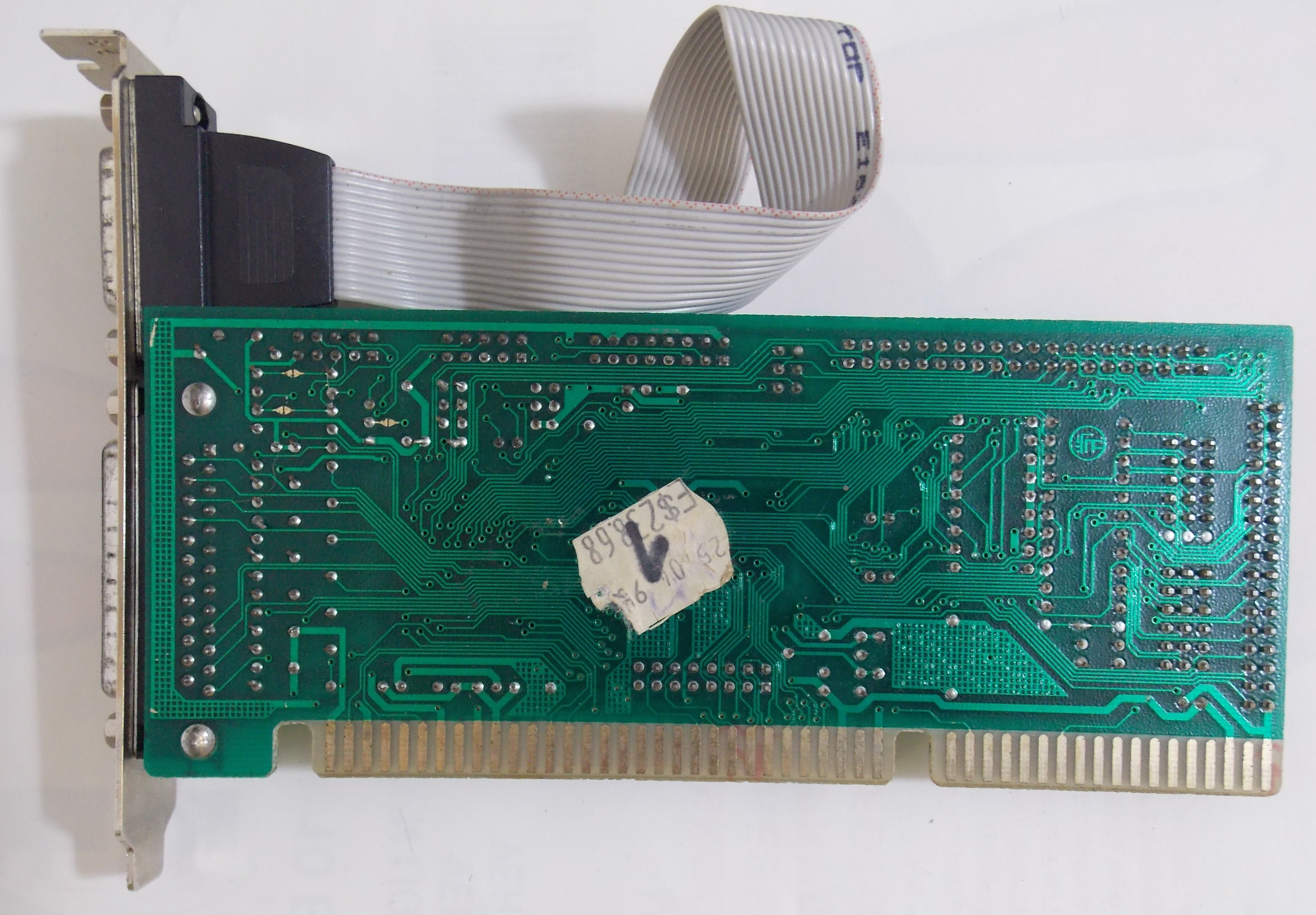

image1 Image 1 of 4 (deksor)

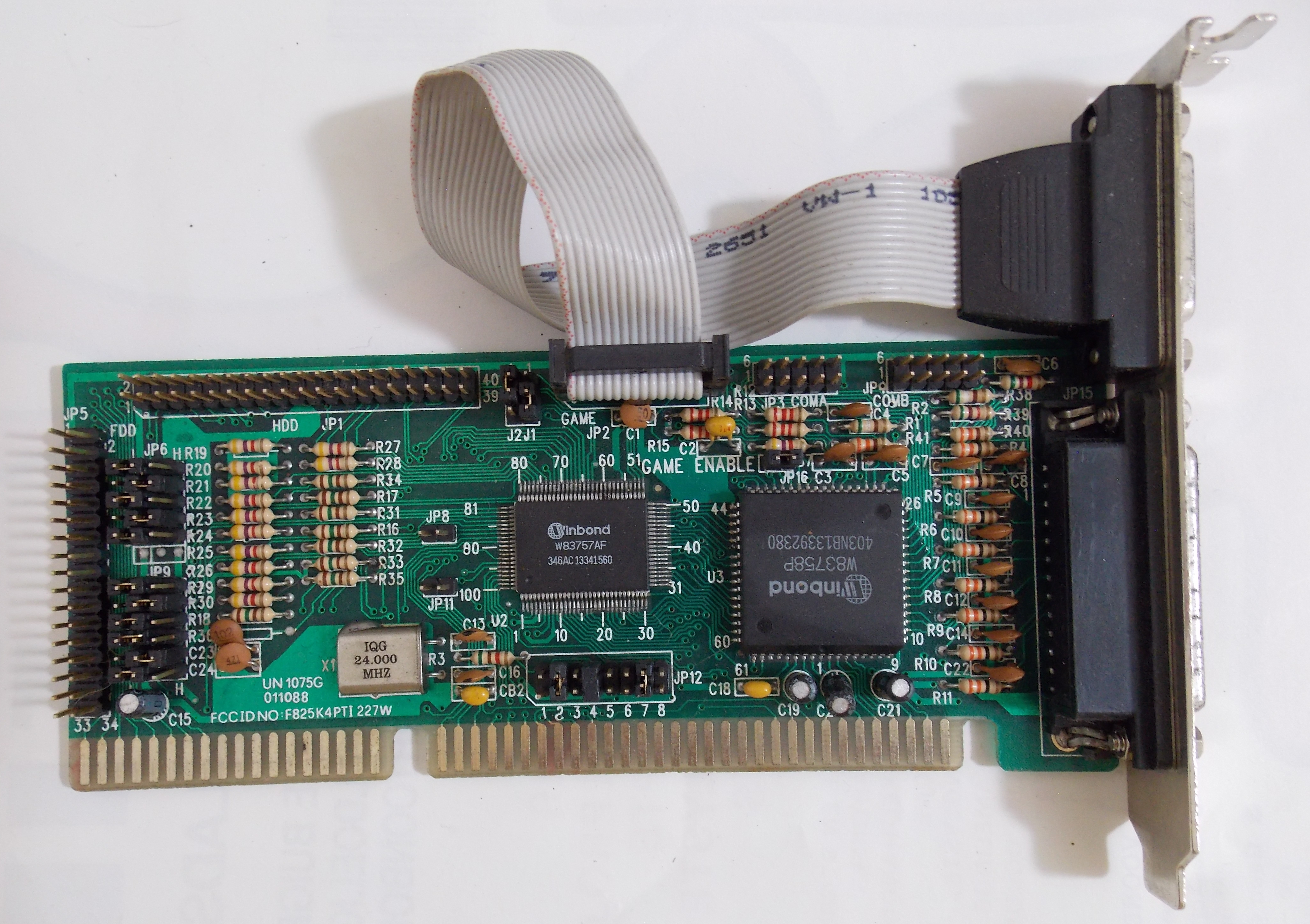

image2 Image 2 of 4 (Petros Savvas)

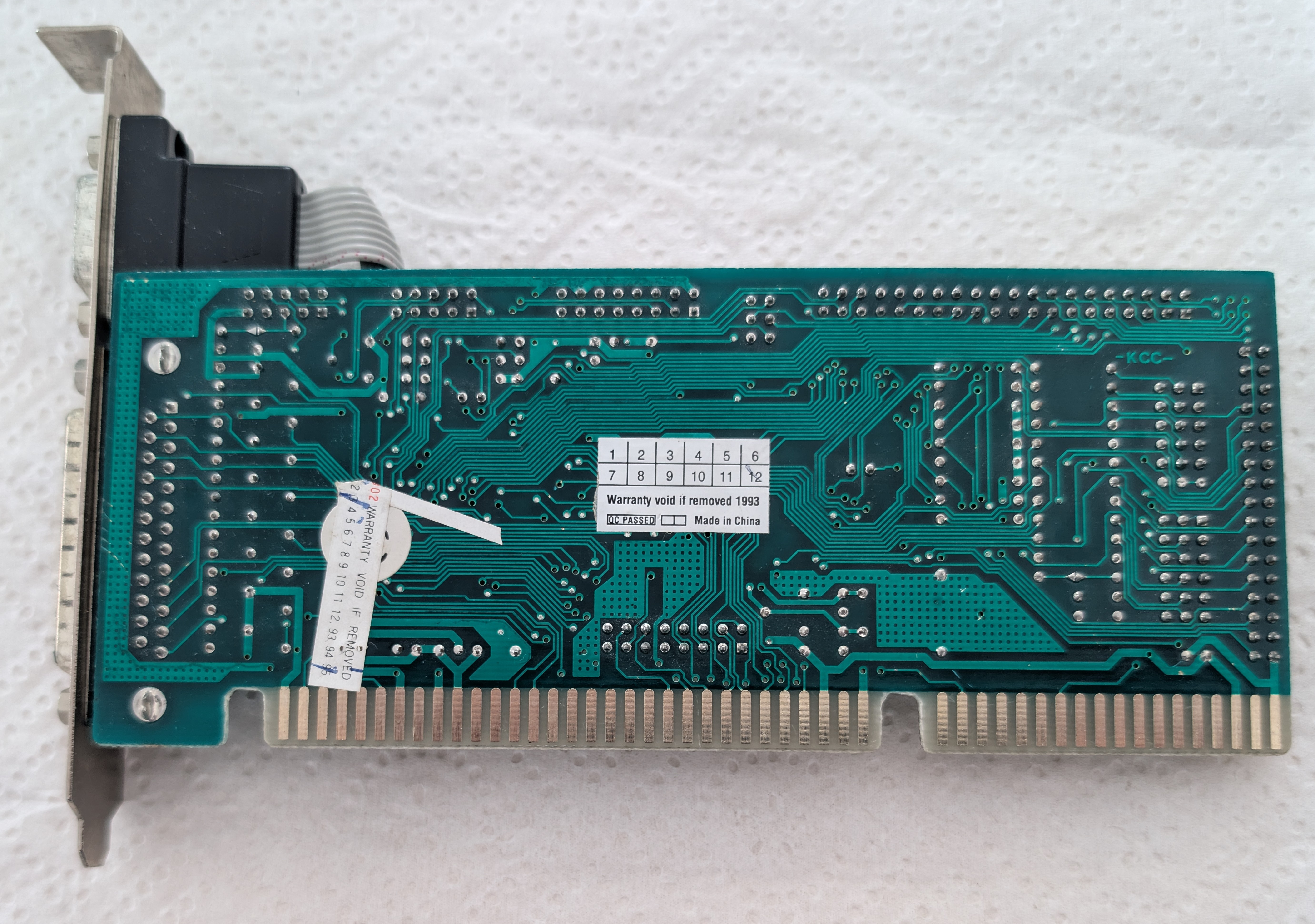

image3 Image 3 of 4 (deksor)

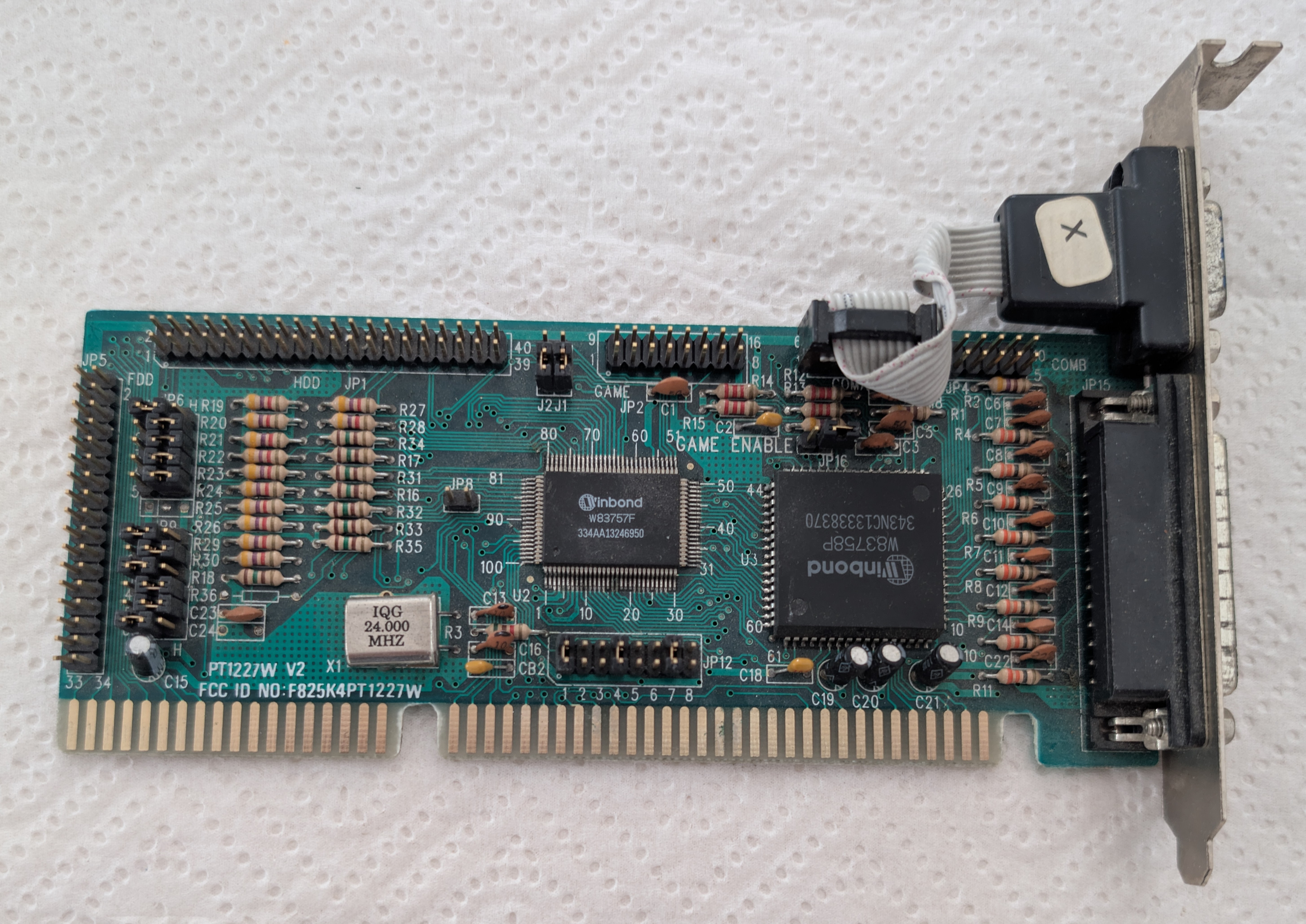

image4 Image 4 of 4 (Petros Savvas)
