DTK PTI-265W/260W
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
KDDPTI265W
chip Chips and specs
-> IDE ctrl.
Winbond W83759A (VL IDE controller)
-> Signal transmitter/receiver
Winbond W83758F (I/O coupler)
-> Super I/O
Winbond W83787F
MTL
Data Bus 32-bit VESA Local Bus
Card Size Full-length, half-height card
Card Type Hard drive controller card
Hard Drives supported Four EIDE drives
Floppy drives supported Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
2x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
Last updated 2024-12-26T20:41:20Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.10
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x Windows 3.1x
Arch
x86
Size
289.5KB
Filename
Name
Version
2.03
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Windows 3.1x Windows 9x Windows NT 3.1
Arch
x86
Size
238.5KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 1.x Windows 3.0 Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
232.2KB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 1.x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
201.9KB
Filename
Version
OS support
MS-DOS
Arch
x86
Size
66.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
1994-11
File
Logs
Chip
Release date
1995-04
File
Logs

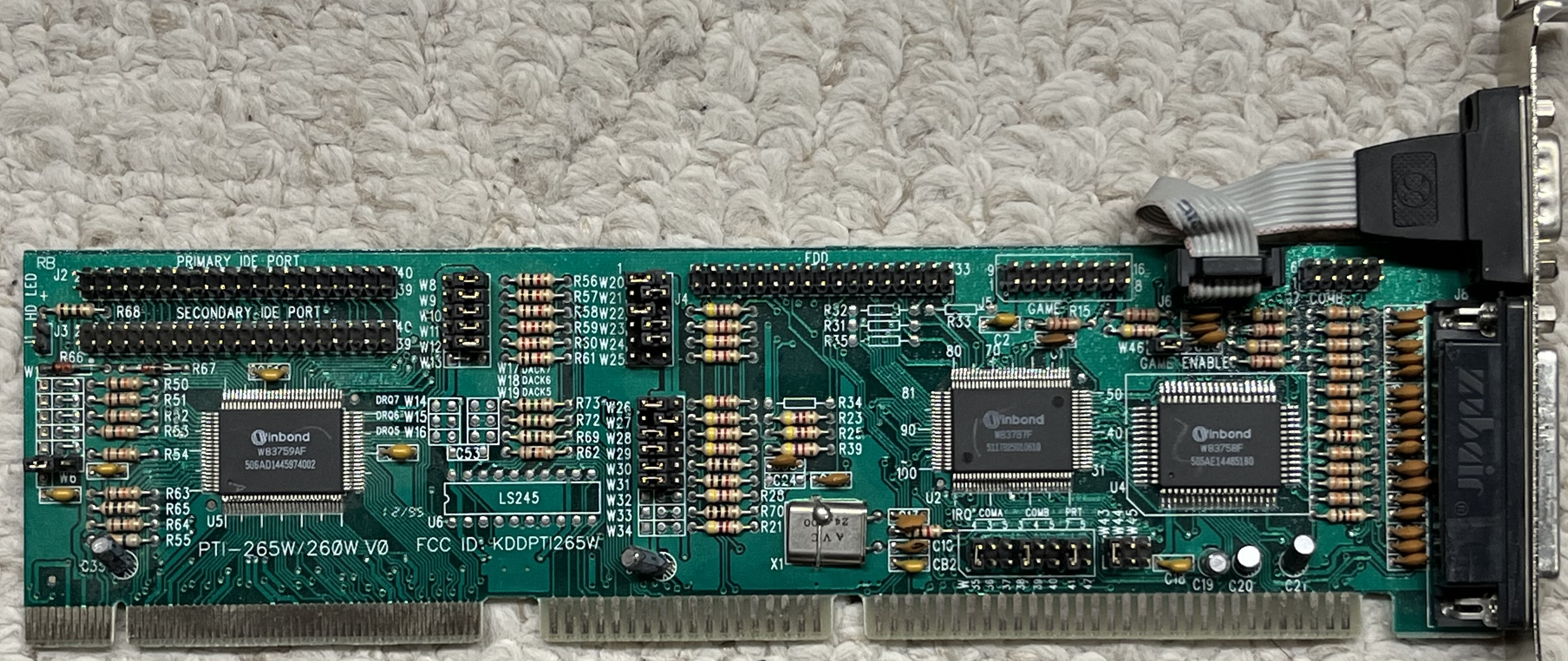

image1 Image 1 of 1 (Douglar)
