DPT PM2044UW
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
MTL
Size: Half length, full-height card
Data bus: 32-bit PCI
HadProblem
Hard drive supported: Fifteen SCSI-Wide, or eight SCSI-Wide with seven SCSI-2 Narrow SCSI-3 and Fast SCSI devices also supported
Floppy drives supported: Nones
tag Also known as
portintI/O ports
1x
  • 2x25 2.54mm pin header
2x
  • SCSI HD68
powerPower connectors
Empty
Last updated 2025-05-20T13:05:26Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs

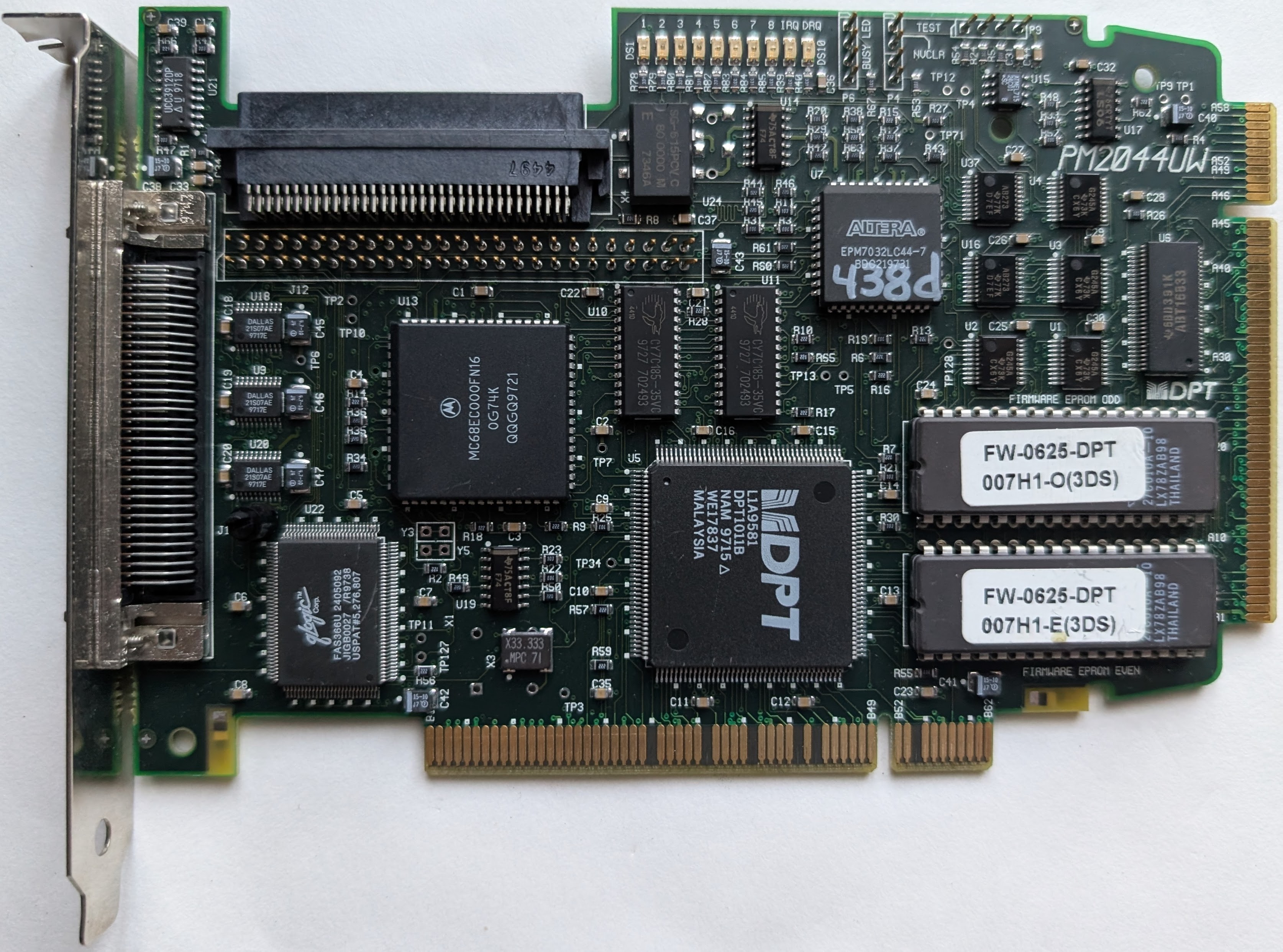

image1 Image 1 of 5 (Microhouse)

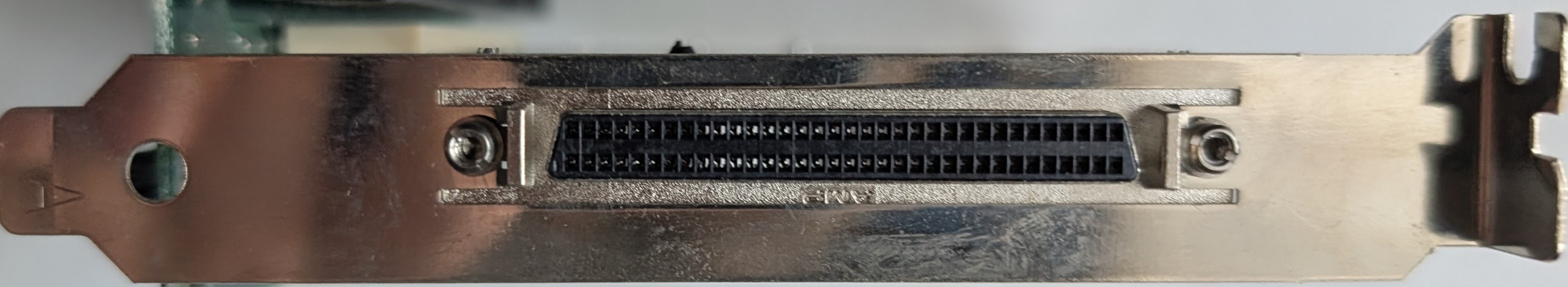

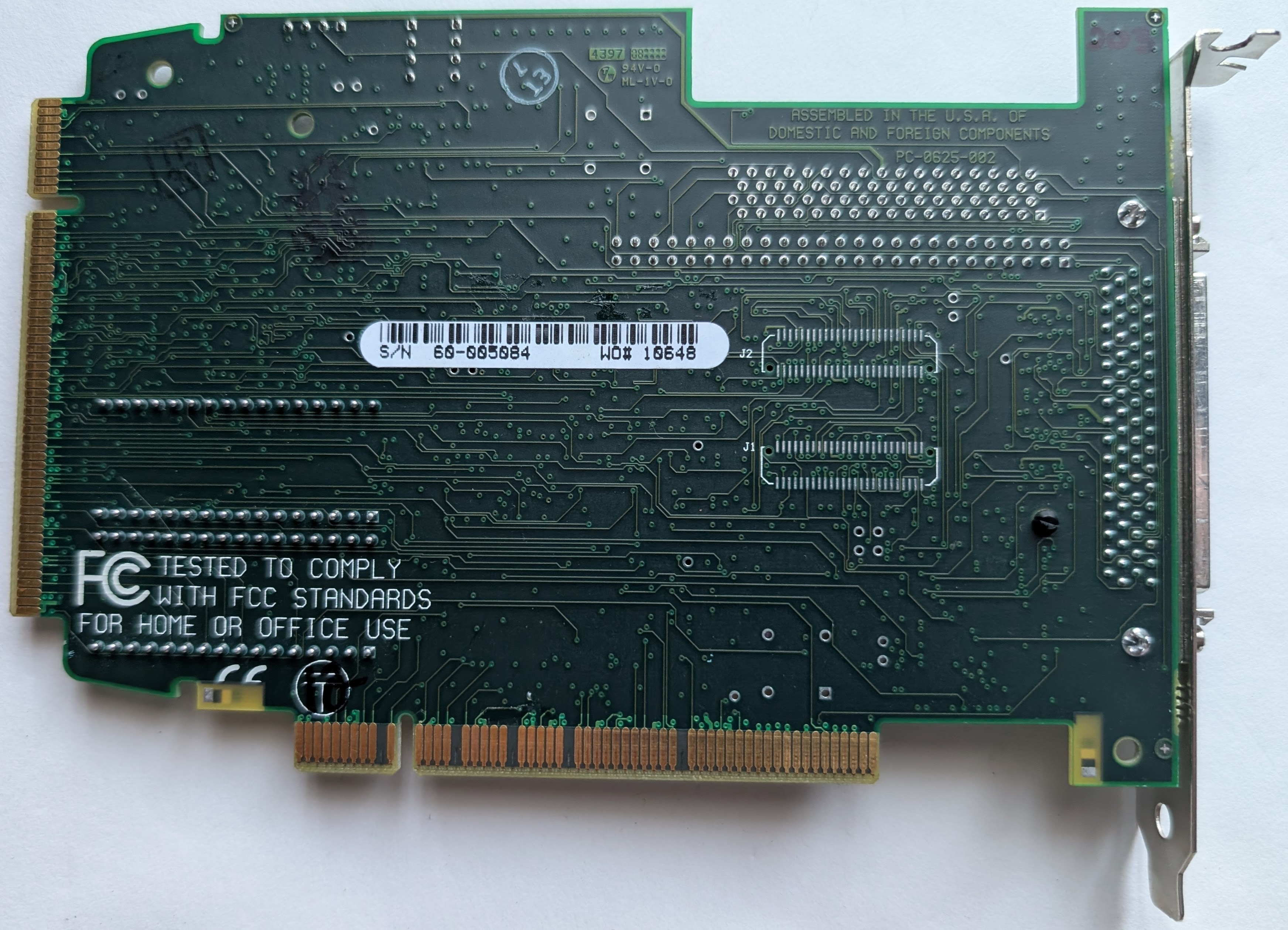

image2 Image 2 of 5 (davidg)

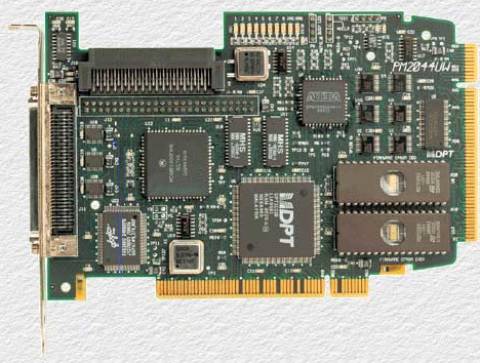

image3 Image 3 of 5 (DPT)
image4 Image 4 of 5 (davidg)
image5 Image 5 of 5 (davidg)
