Diamond VIPER PRO VIDEO
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
9100
ramRAM size
2MB
chip Chips and specs
-> RAMDAC
IBM 8190429 (Palette DAC)
-> Video
Weitek 9100-PFP (Power 9100) Weitek Power 9130
MTL
Category Video
Memory Type VRAM
Data Bus Type 32-bit VESA Local Bus
Video Processor Weitek P9100
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1600 x 1280
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-29T01:13:13Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000
Arch
x86
Size
69.6KB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Arch
x86
Size
653.5KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
142.8KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

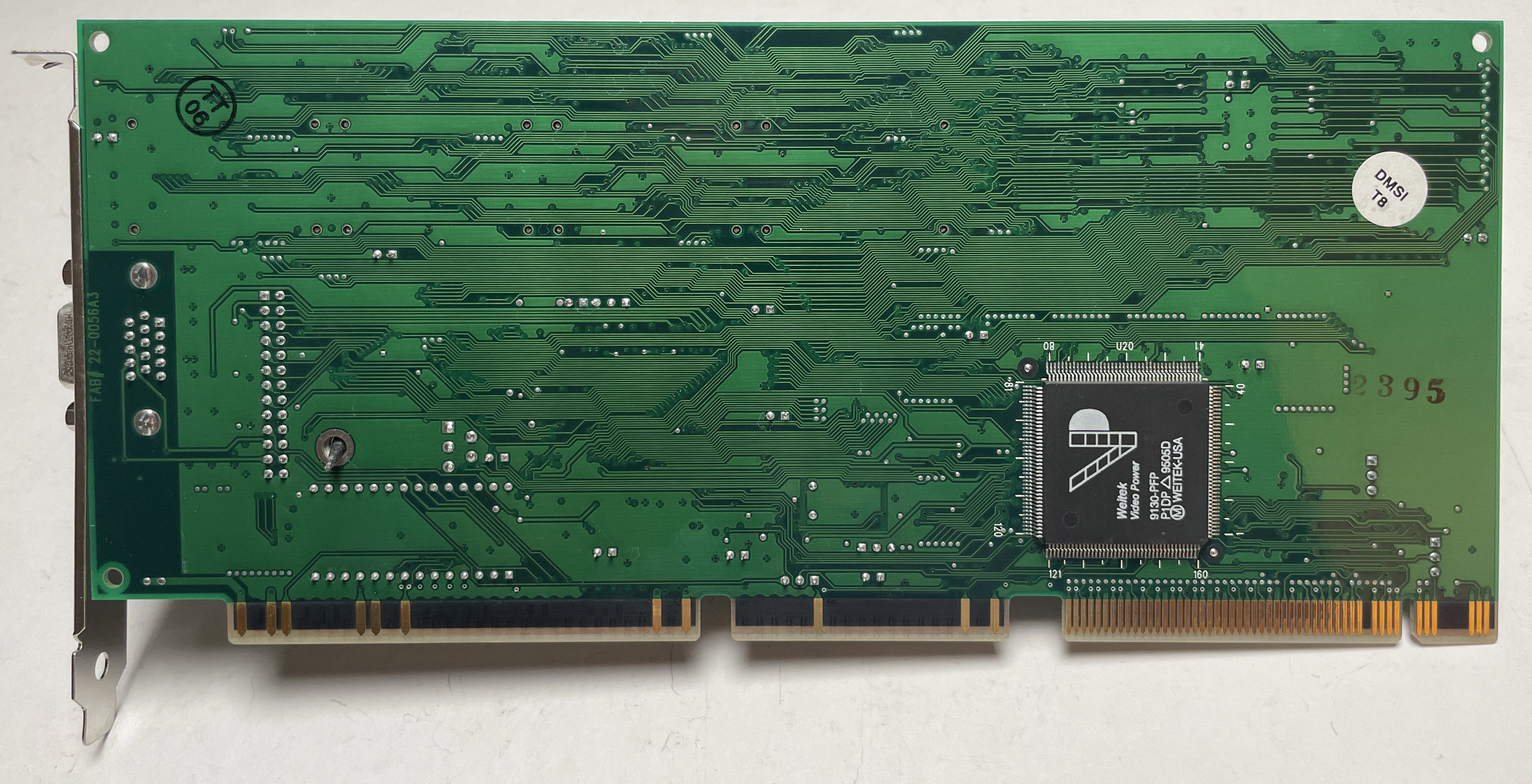

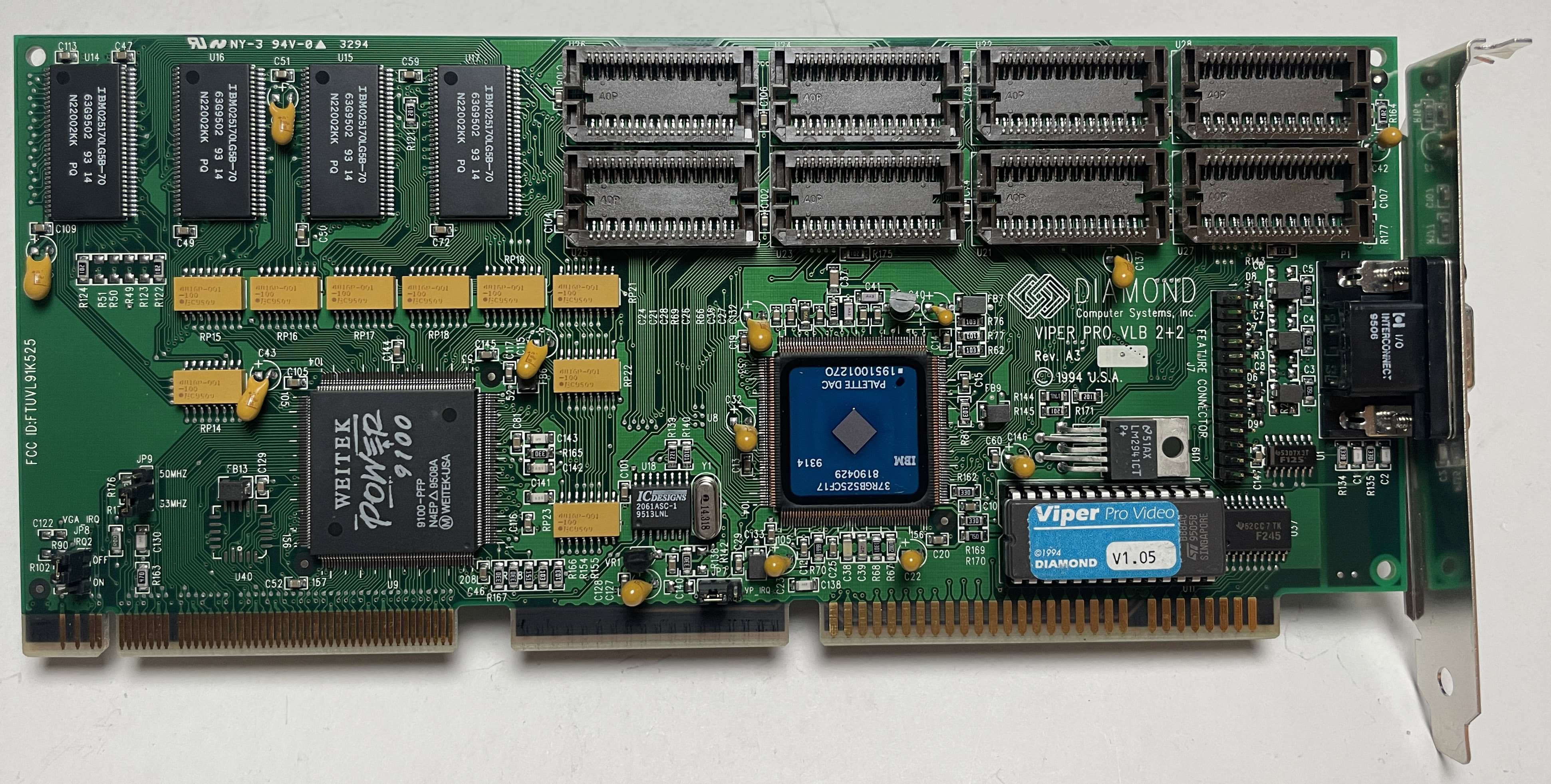

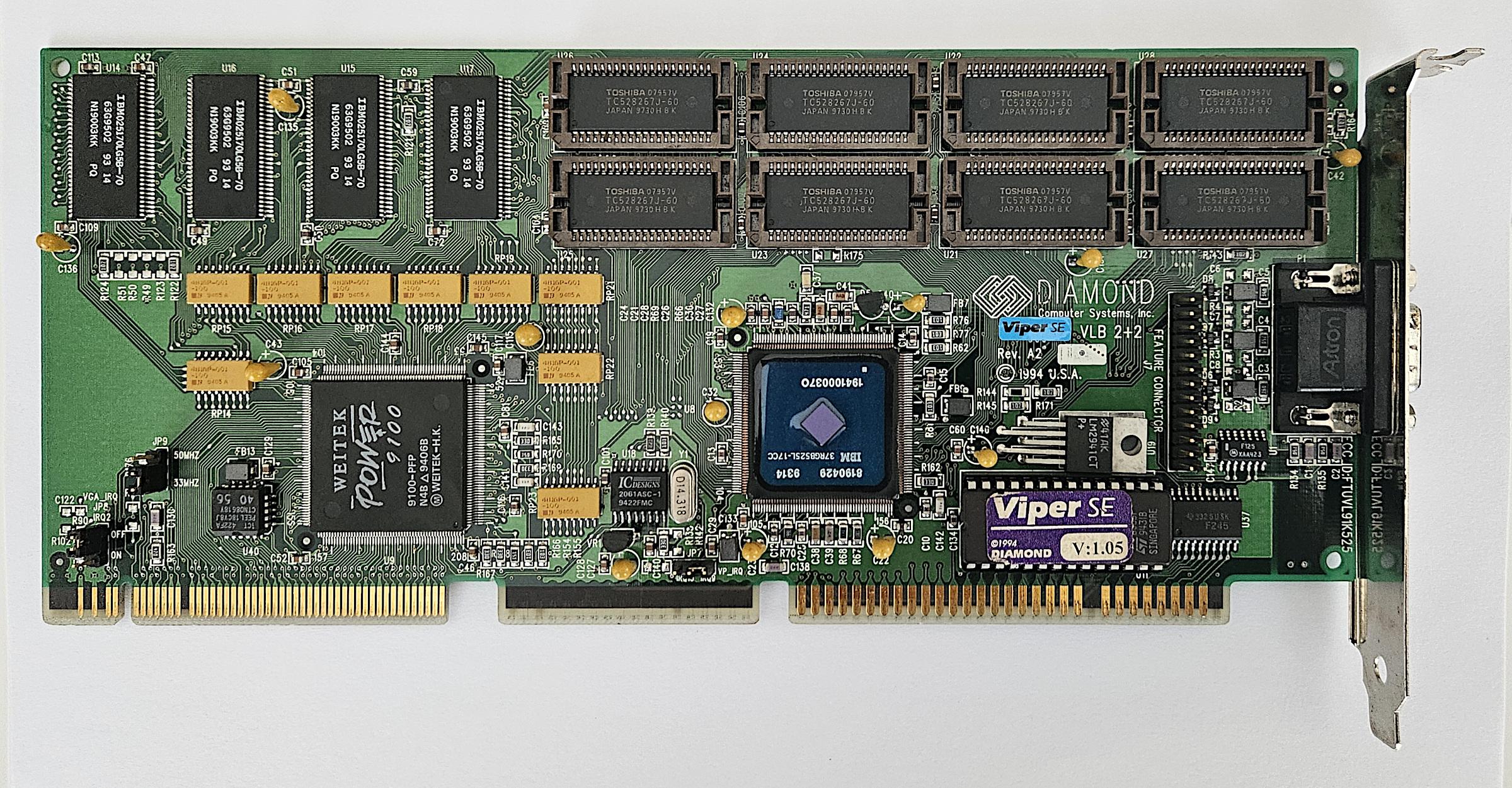

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (bwann)
image3 Image 3 of 4 (pshipkov)
image4 Image 4 of 4 (bwann)
