Diamond STEALTH 64 VLB
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
88D0 88D1 88D2 88D3
ramRAM type
VRAM
ramRAM size
4MB2MB
chip Chips and specs
-> RAMDAC
Brooktree BT485
-> Video
S3 86C964 (Vision964)
MTL
Category Video
Memory Type VRAM
Data Bus Type 32-bit VESA local bus
Video Processor S3
Video Types Supported XVGA
Maximum Onboard Memory 4096KB
Highest Resolution Supported 1600 x 1200
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-29T00:57:06Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Vers. 1.03
Note
S3 Vision 964 Stealth 64
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-01
File
Logs

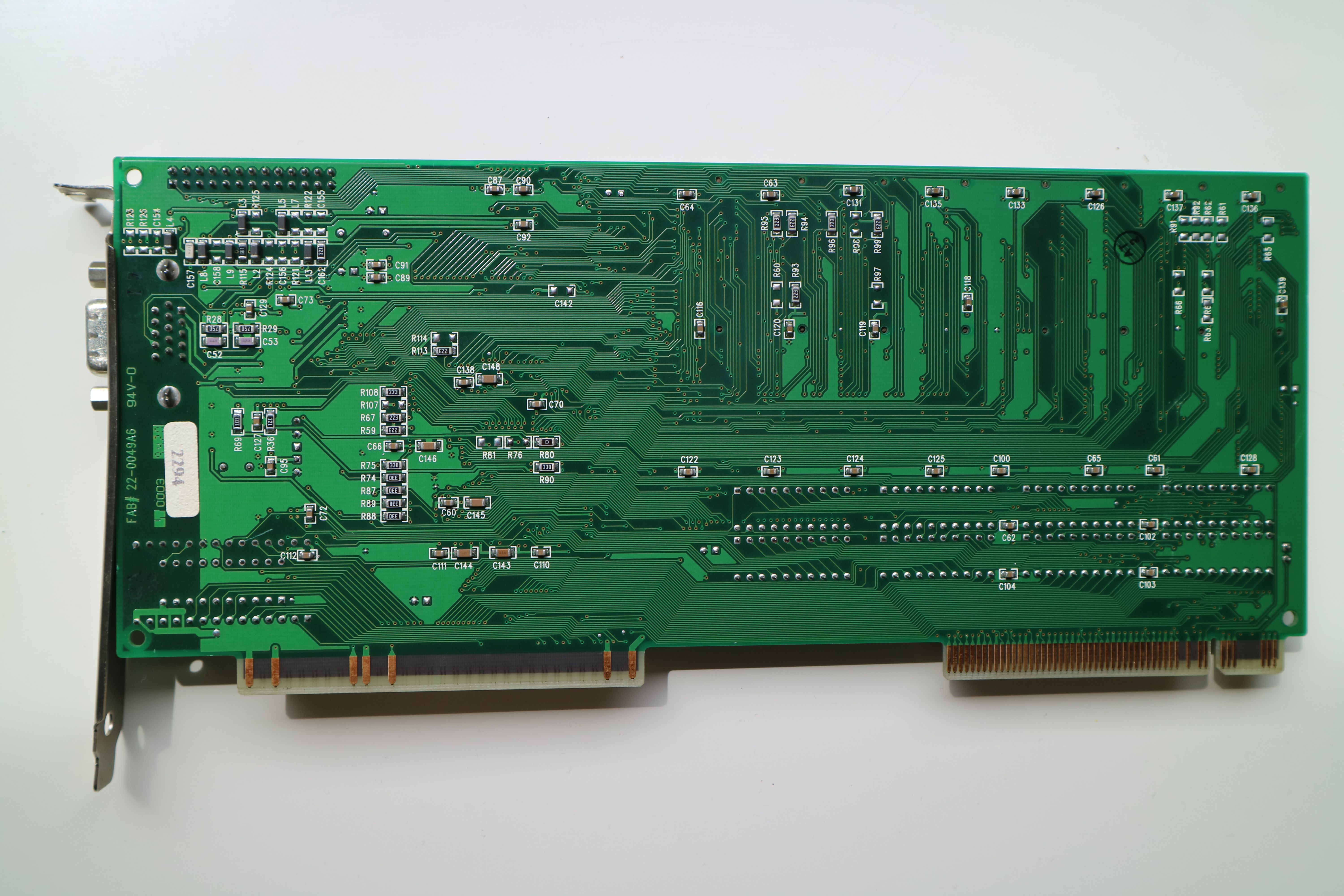

image1 Image 1 of 4 (Microhouse)

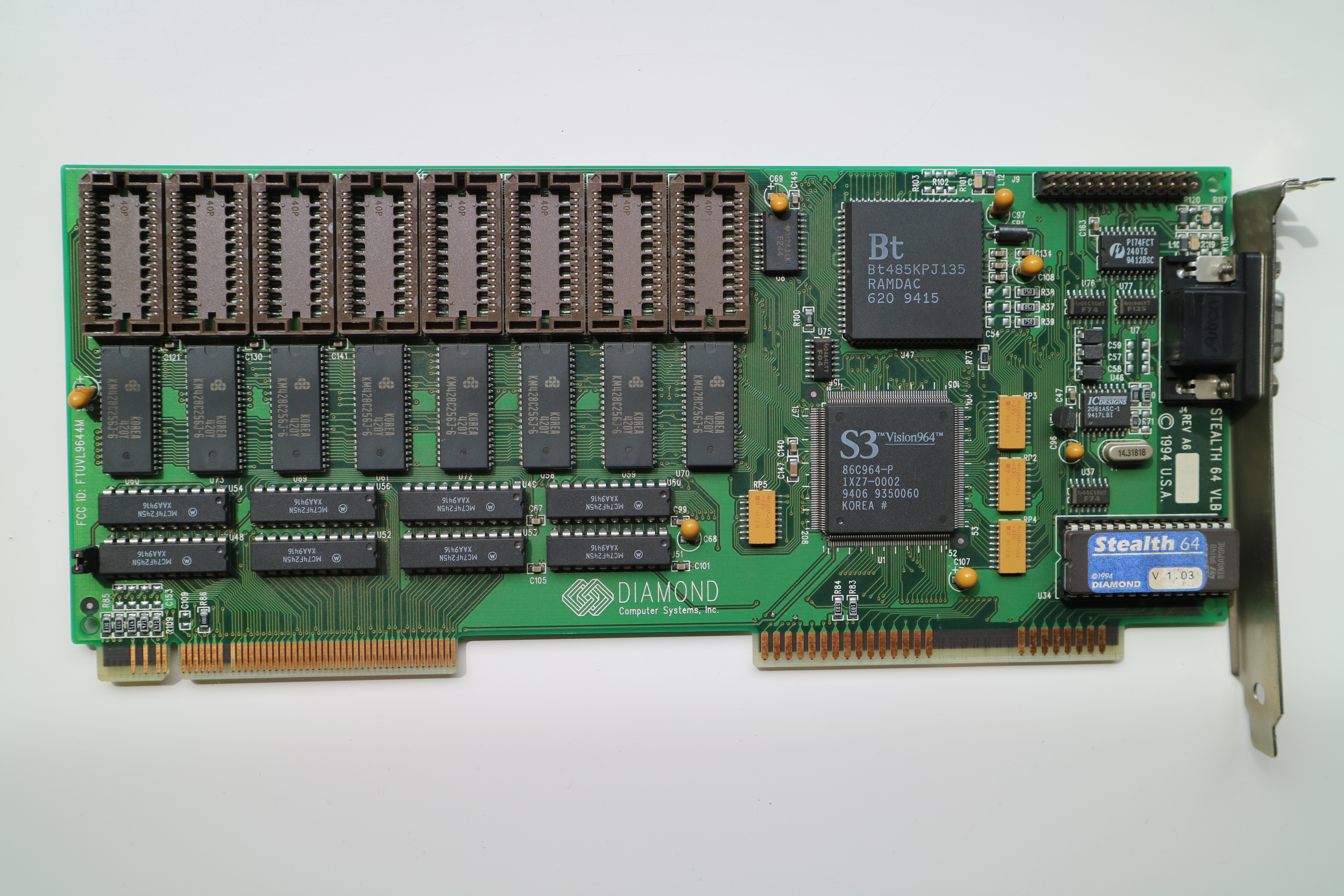

image2 Image 2 of 4 (Martes)

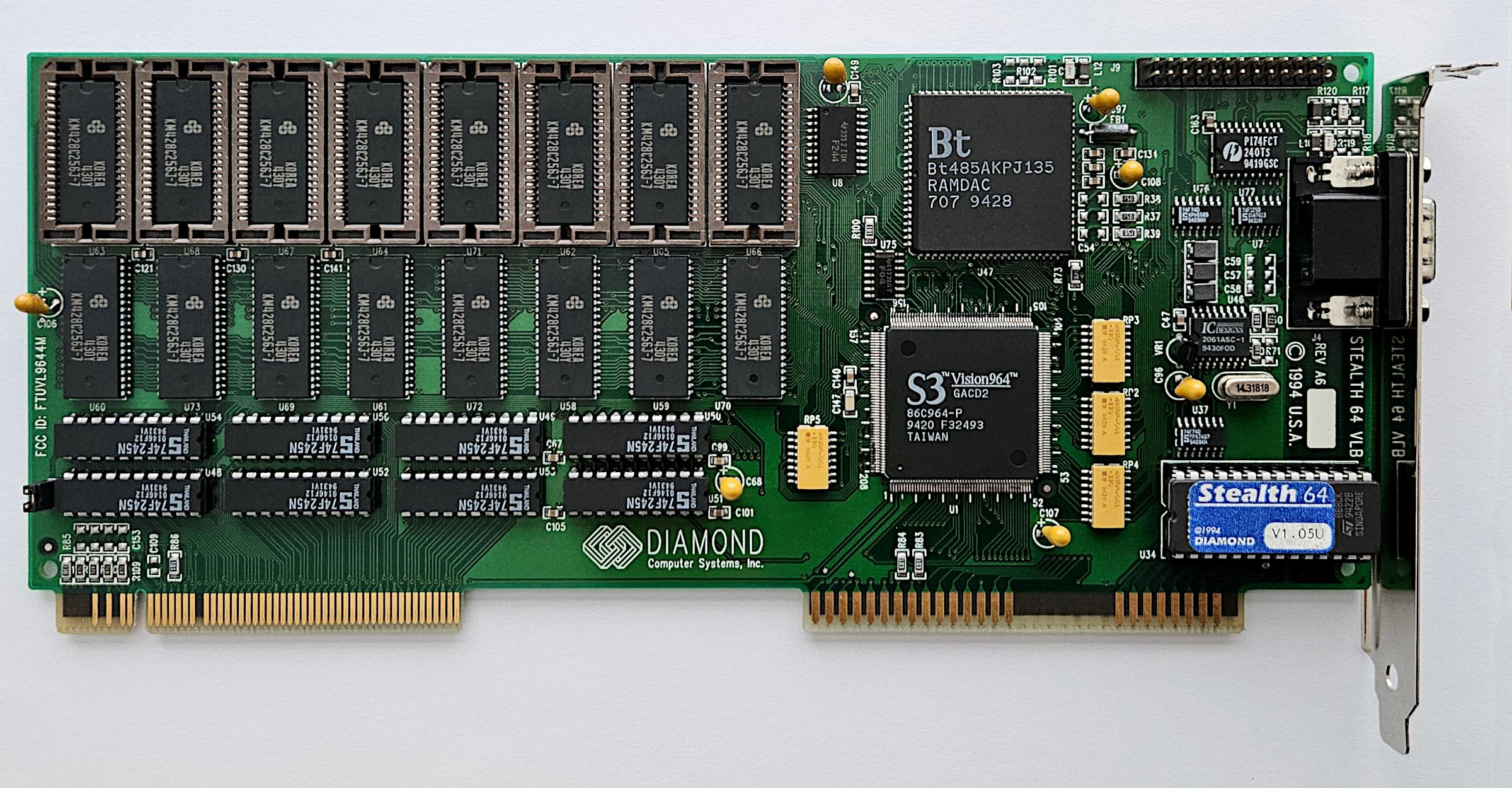

image3 Image 3 of 4 (pshipkov)
image4 Image 4 of 4 (Martes)
