Diamond Stealth 64 Video VRAM PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
88F0 88F1 88F2 88F3
fccFCC ID
FTUPCI9684M
ramRAM type
FPM
ramRAM size
4MB
chip Chips and specs
-> RAMDAC
Texas Instruments TVP3026 (Video Interface Palette)
-> Video
S3 86C968 (Vision968)
MTL
Category Video
Memory Type VRAM
Data Bus Type 32-bit VESA Local Bus
Video Types Supported XVGA
Maximum Onboard Memory 4MB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-28T22:22:45Z
bios 3 card BIOS files available
Version
Note
File
Logs
Version
2.07(09/13/95)
Note
File
Logs
Version
2.06 (07/14/95)
Note
File
Logs
Version
2.02 (04/14/95)
Note
File
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.02.268
OS support
Windows 9x
Arch
x86
Size
1.2MB
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
895KB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1996-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs

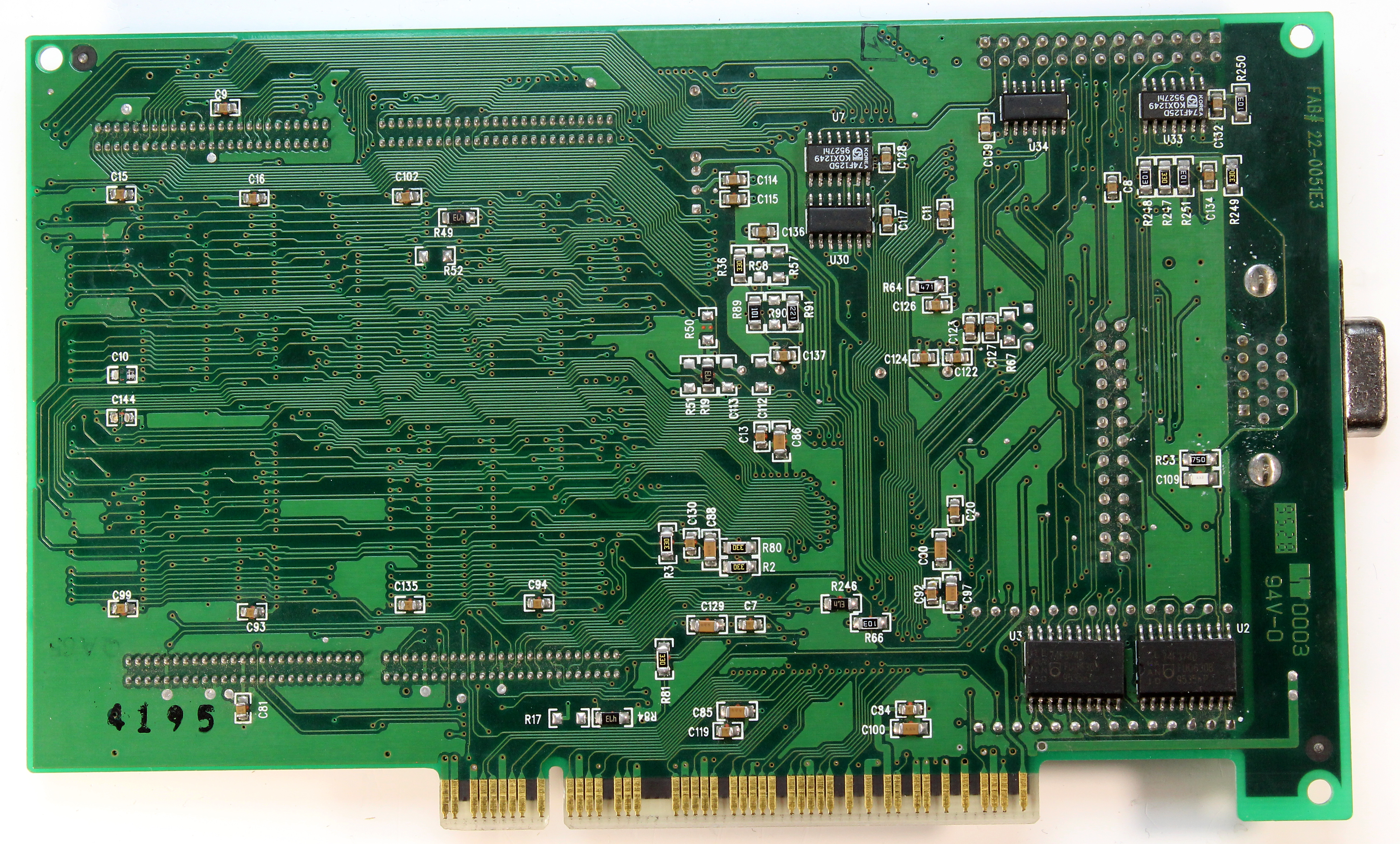

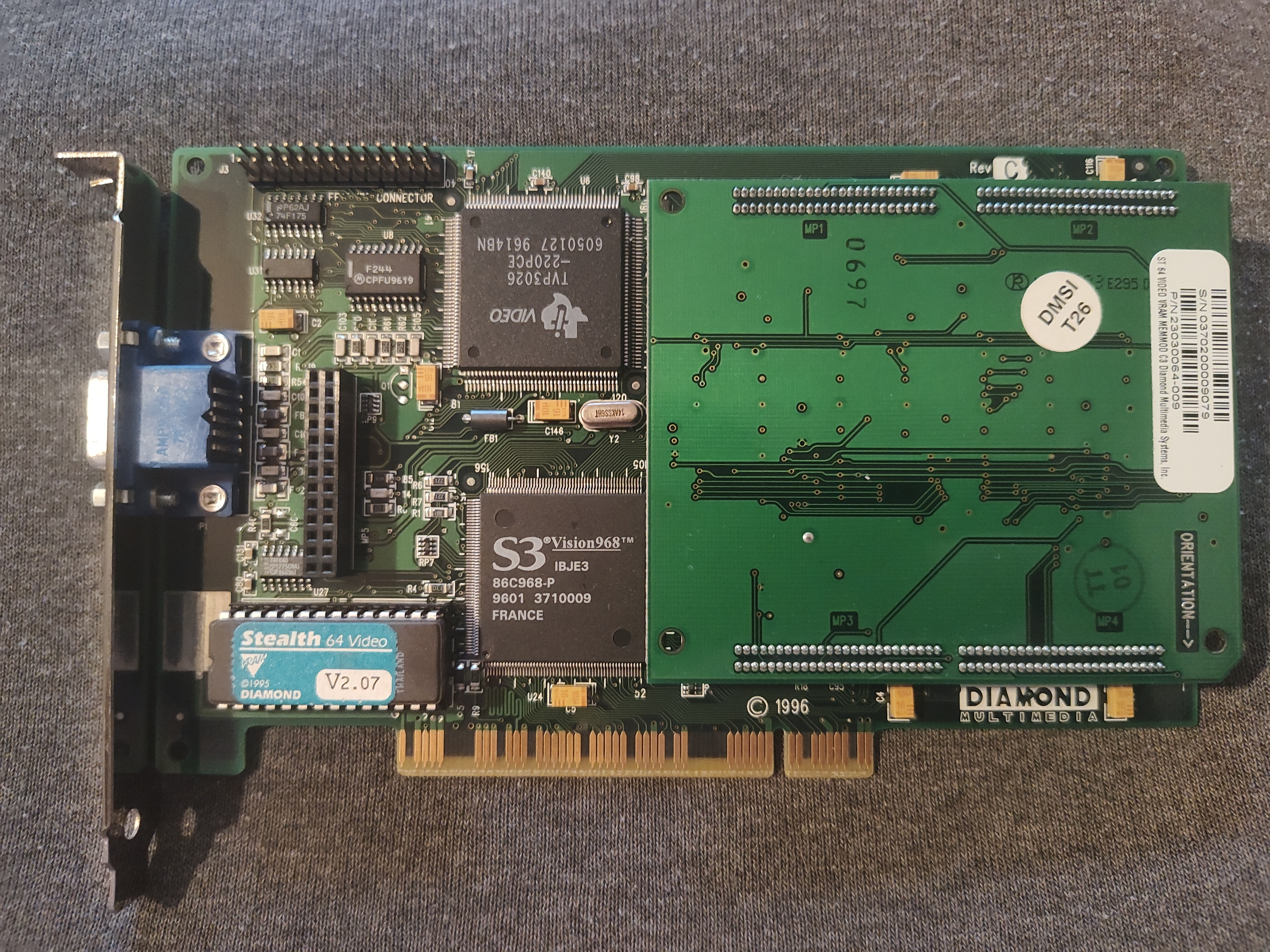

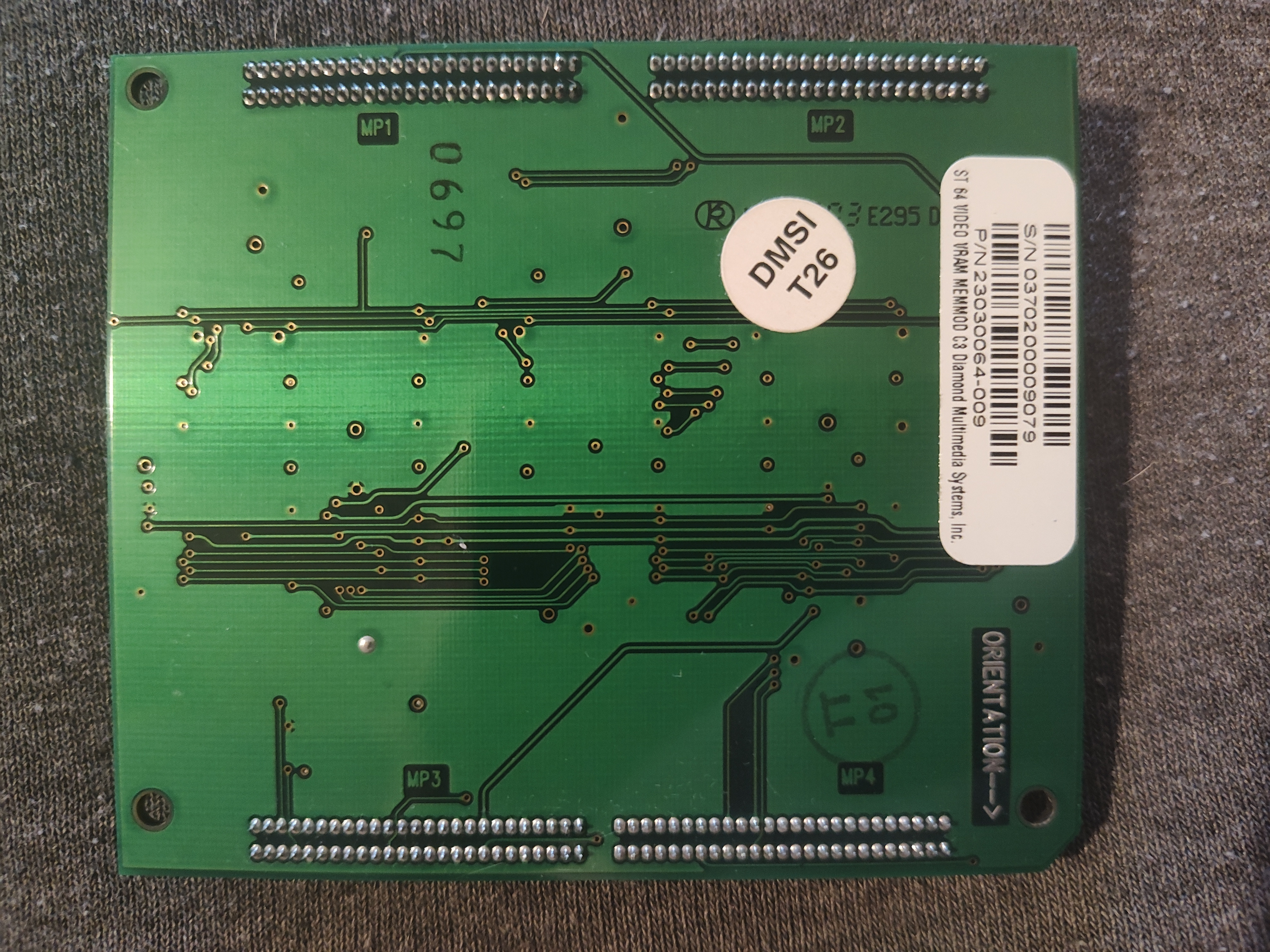

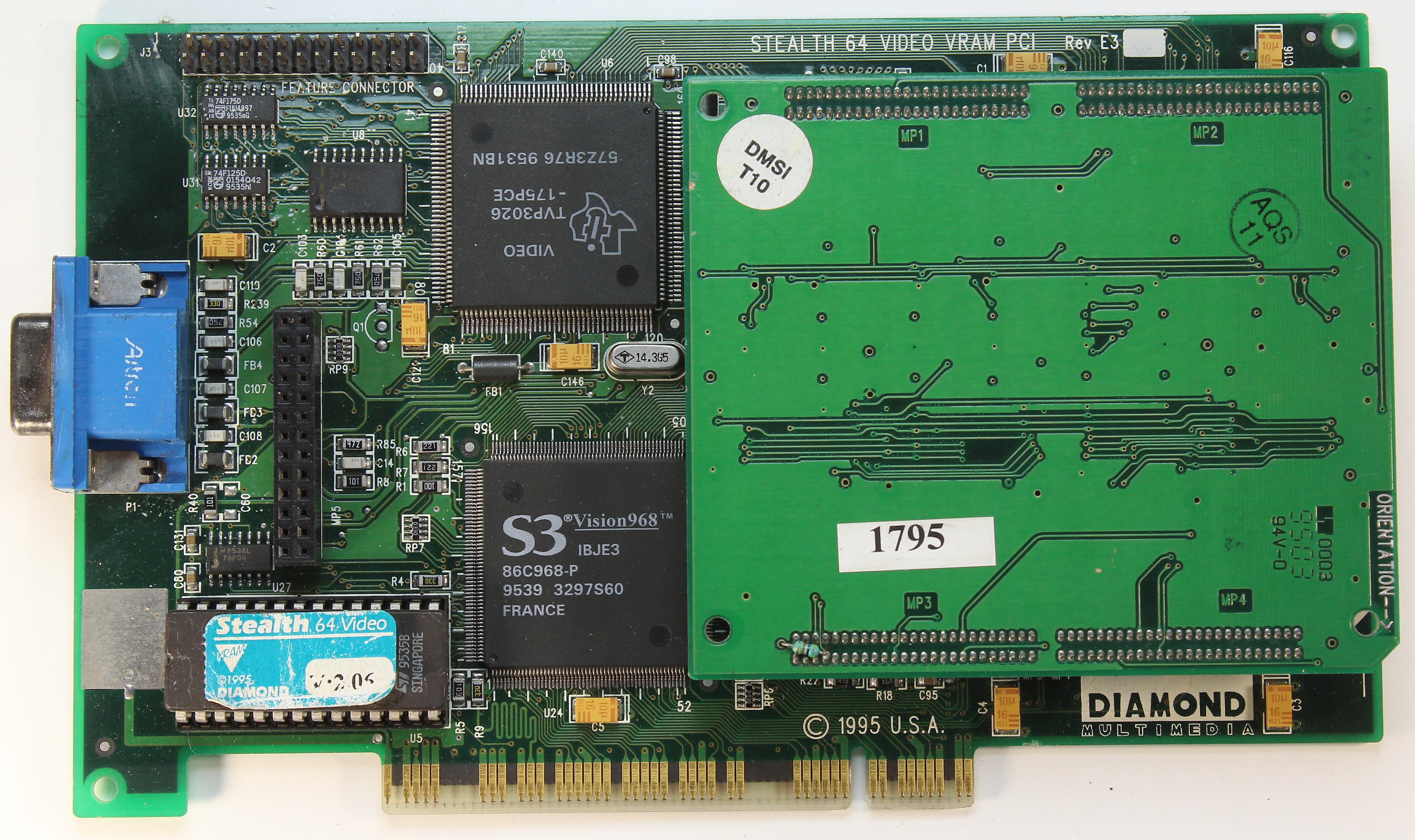

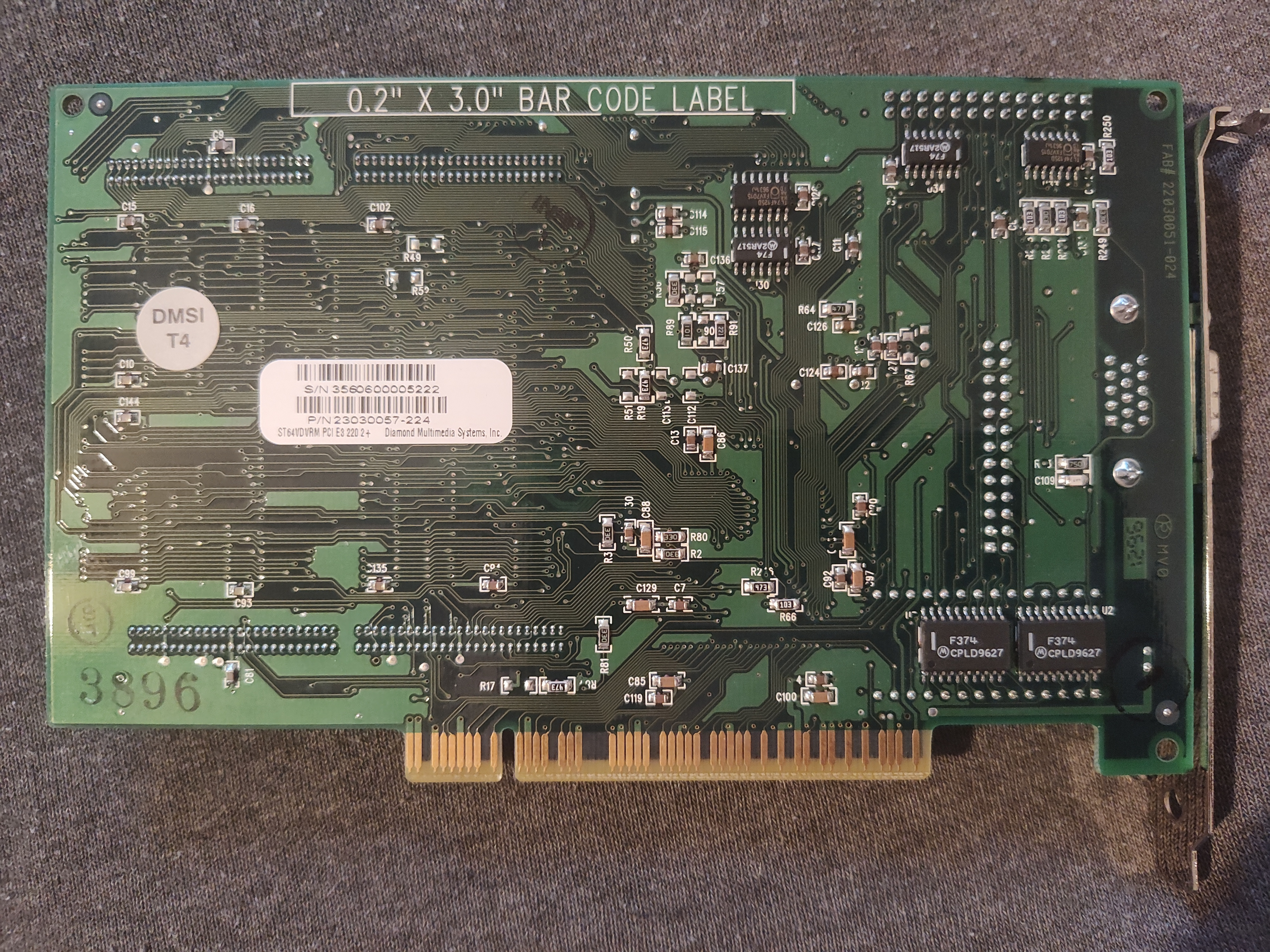

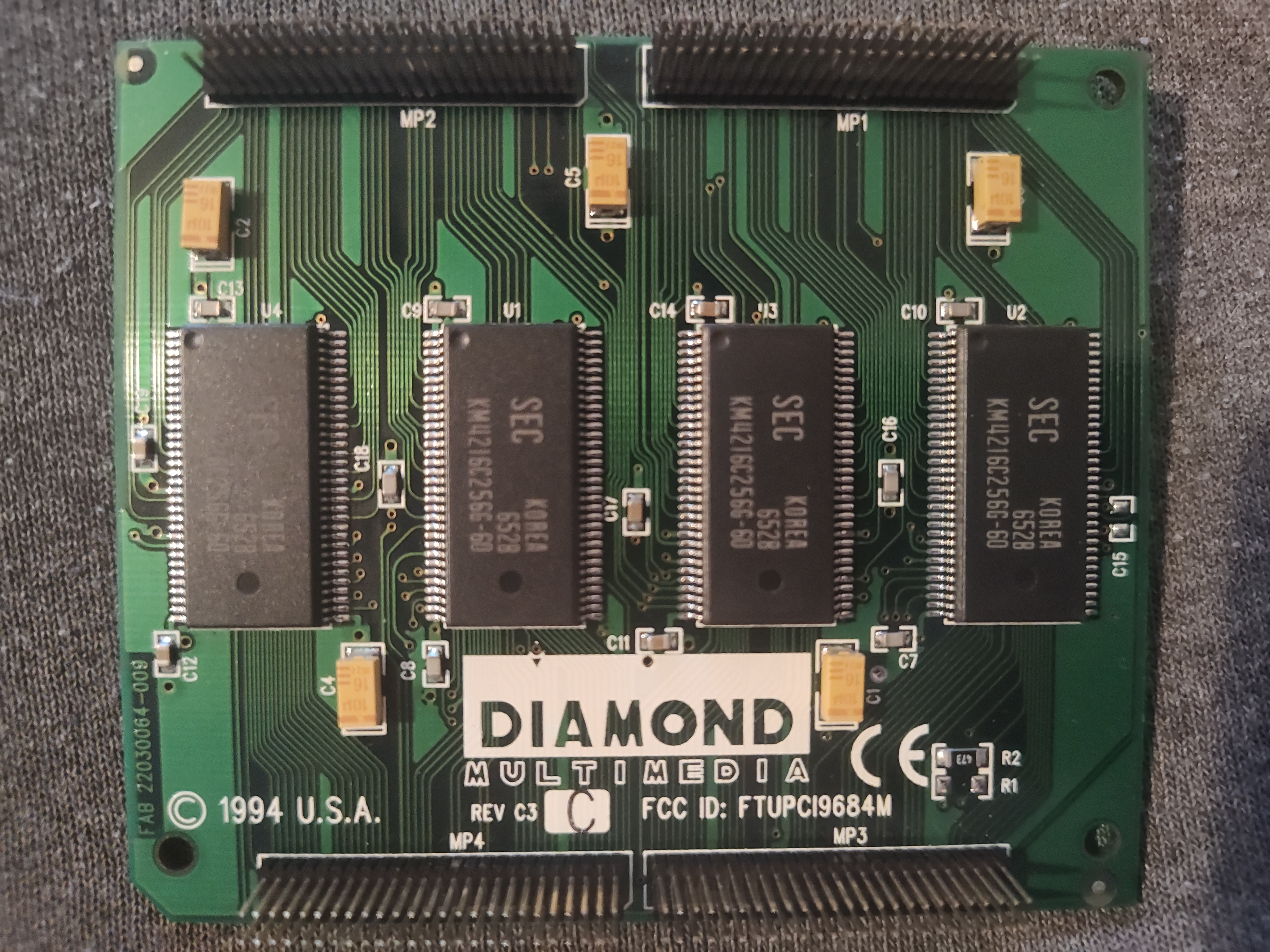

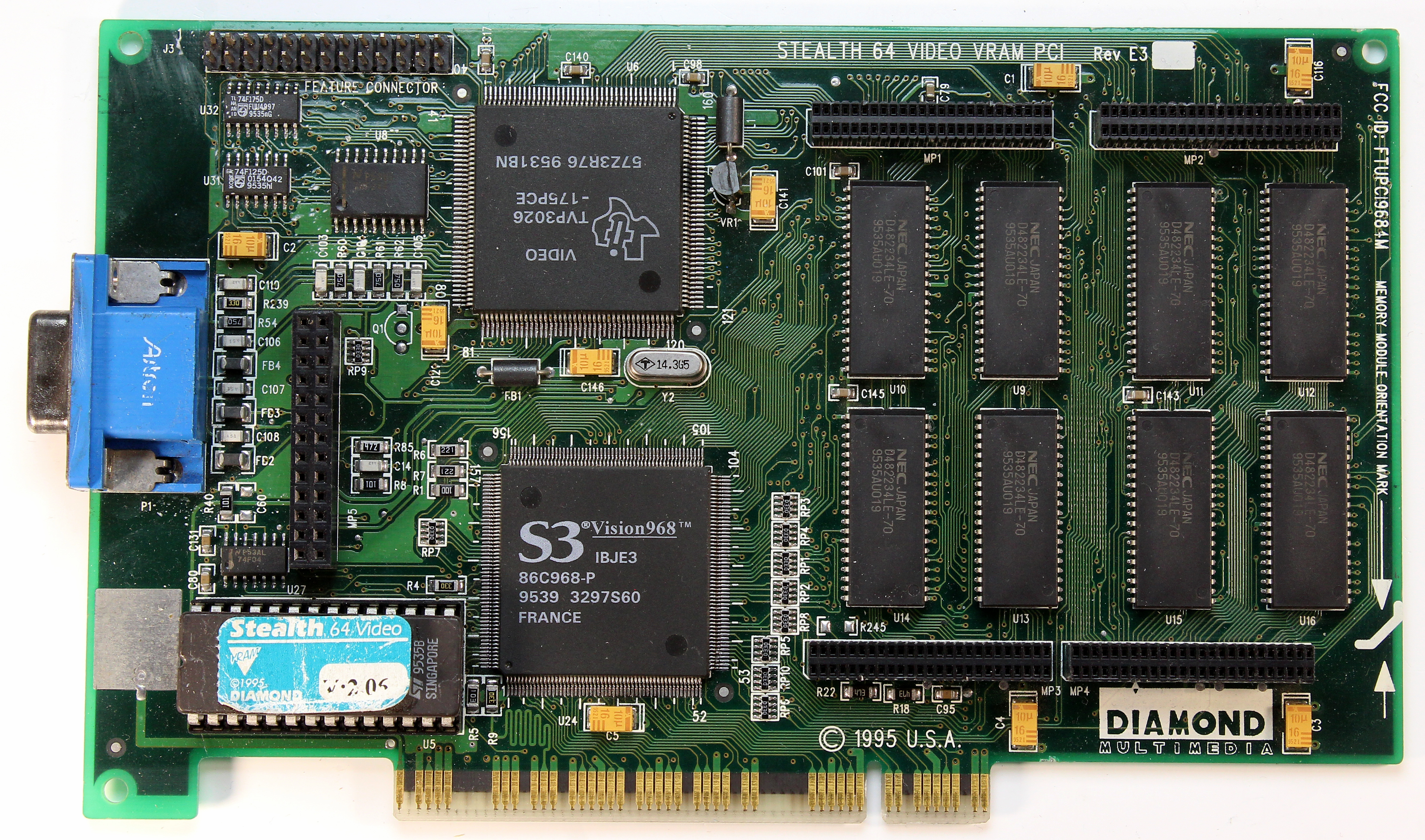

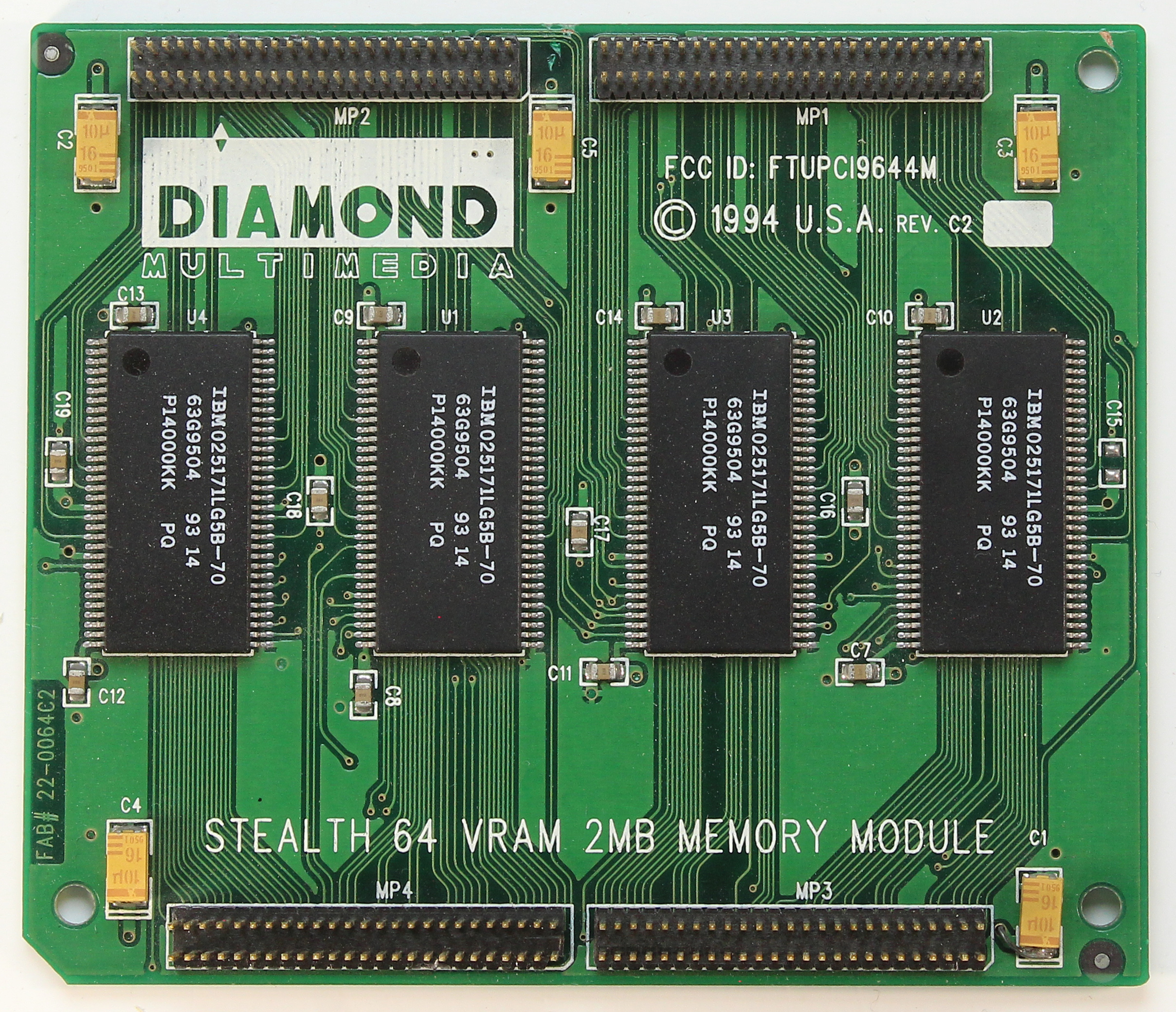

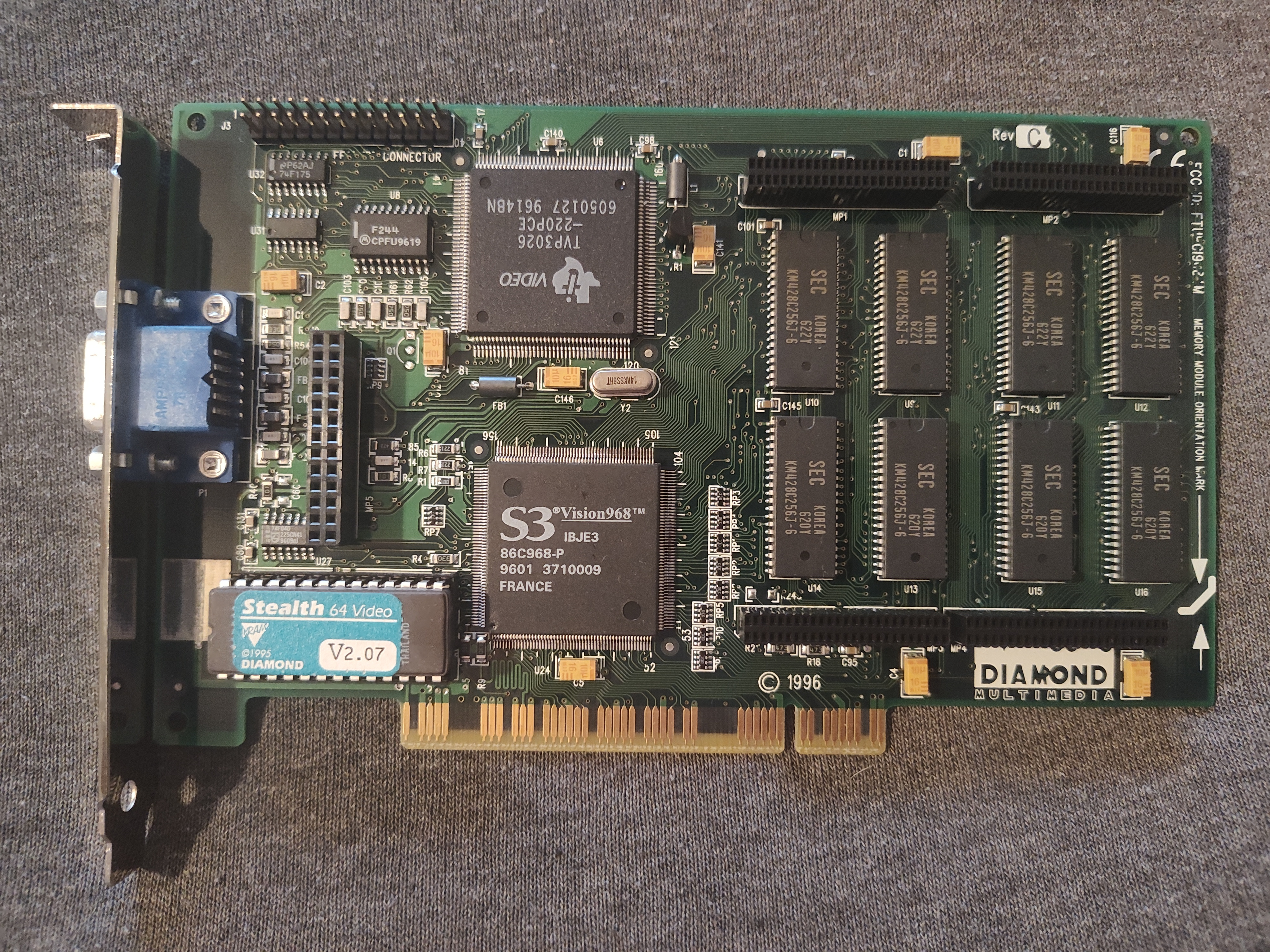

image1 Image 1 of 9 (limsup)
image2 Image 2 of 9 (limsup)
image3 Image 3 of 9 (Shelby)
image4 Image 4 of 9 (Shelby)
image5 Image 5 of 9 (limsup)
image6 Image 6 of 9 (Shelby)
image7 Image 7 of 9 (limsup)

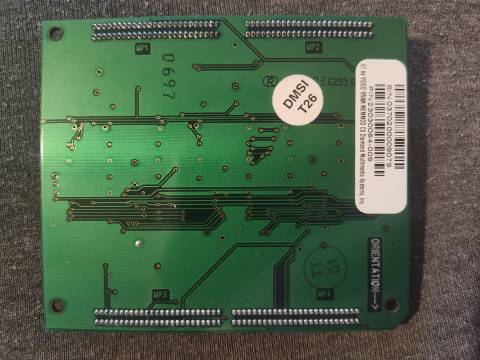

image8 Image 8 of 9 (Shelby)
image9 Image 9 of 9 (Shelby)
