Diamond STEALTH 64 DRAM VLB VER. 2
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
8811 8813 8810
fccFCC ID
FTUVL7642M
ramRAM size
2MB
chip Chips and specs
-> Video
S3 86C764X (Trio64)
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA Local Bus
Video Processor S3 Vision 864
Video Types Supported XVGA
Maximum Onboard Memory 2048KB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-22T01:37:41Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
2.09
Note
Diamond
File
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3B8
OS support
Windows 3.1x
Arch
x86
Size
994.8KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
56.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs
Chip
Release date
1996-02
File
Logs

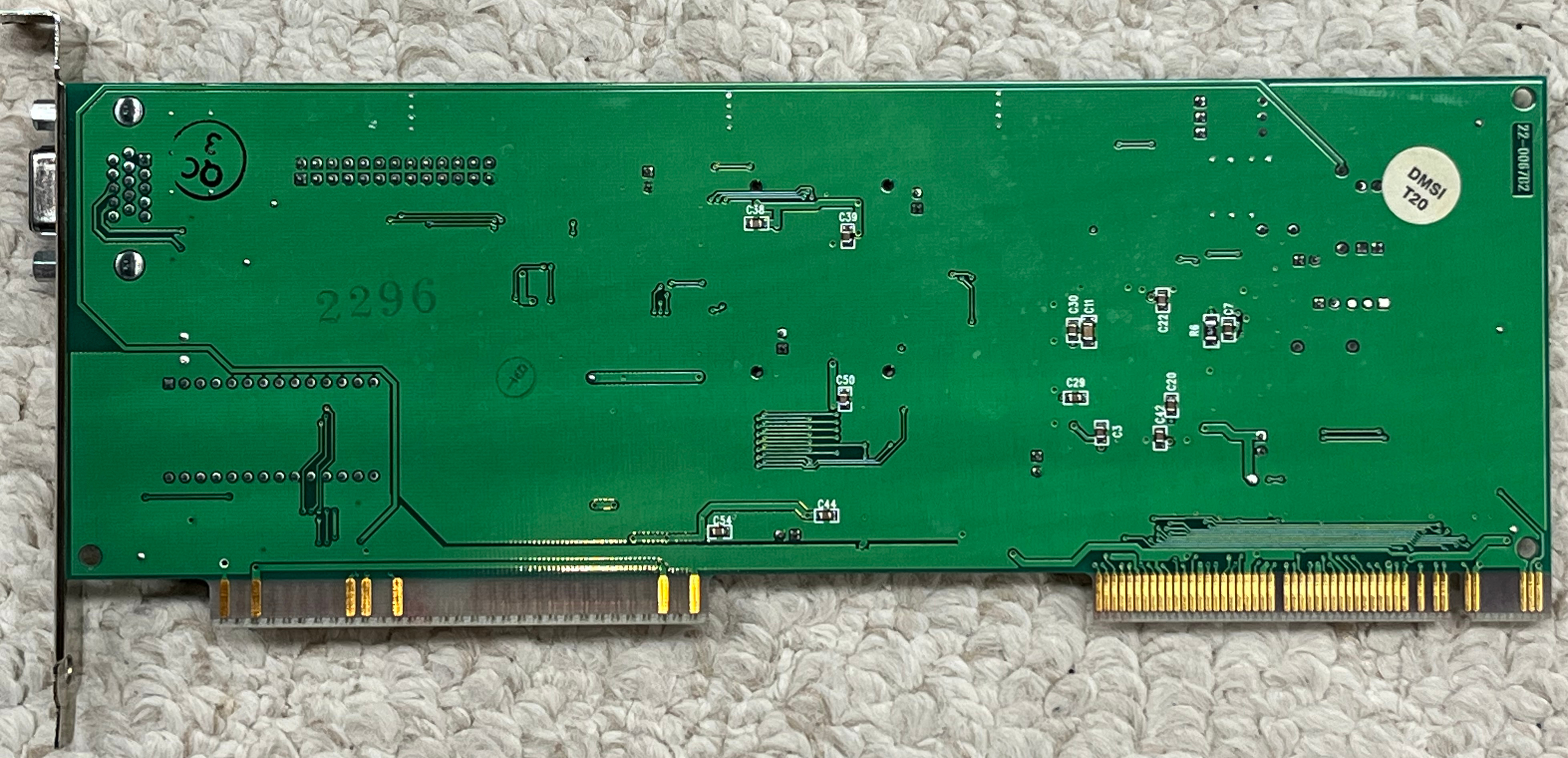

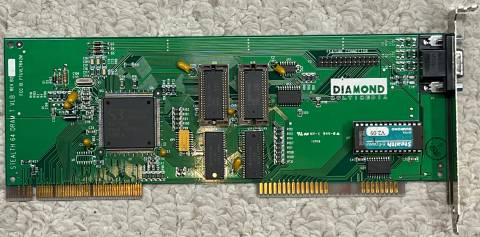

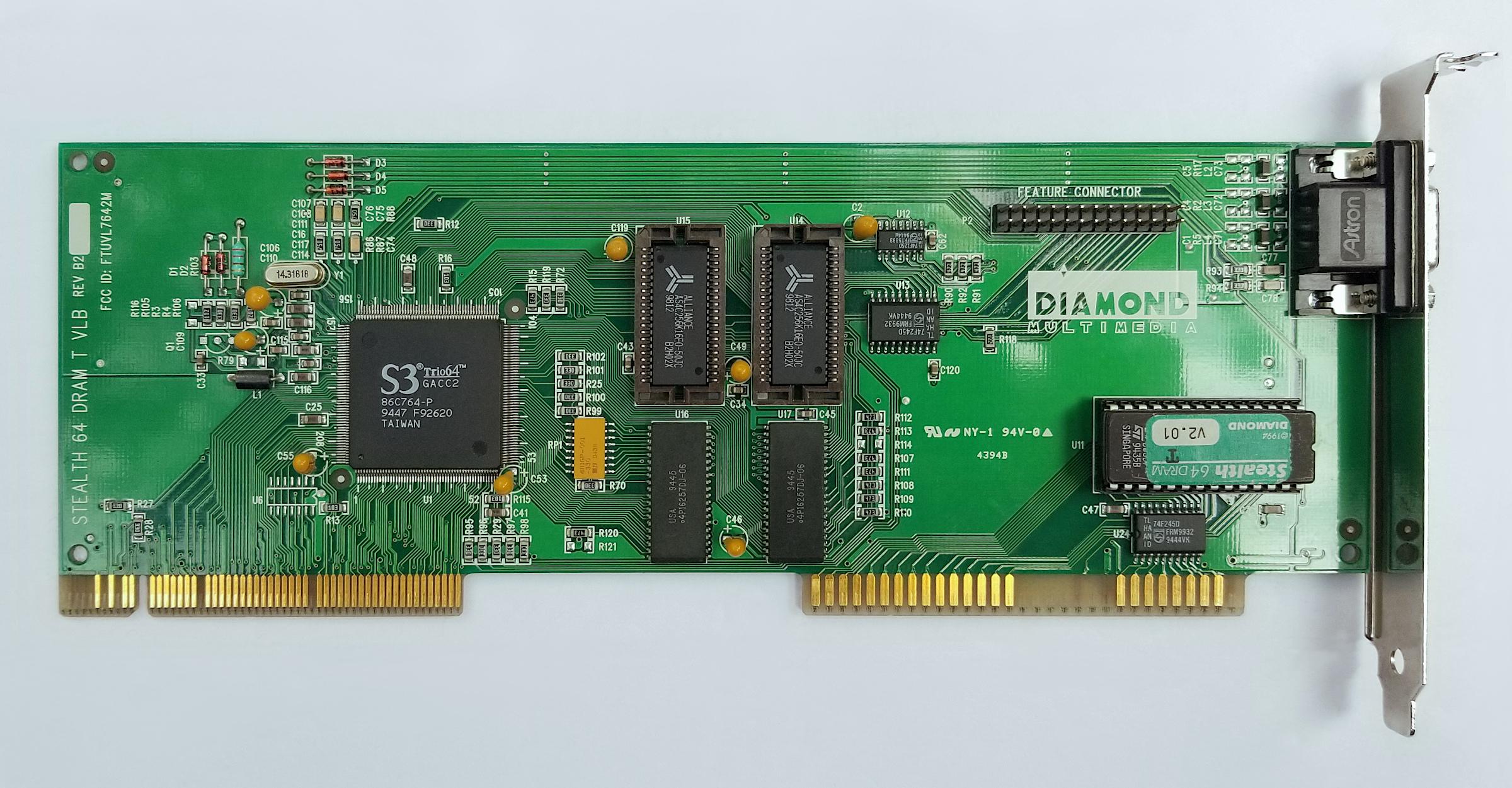

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (pshipkov)
image3 Image 3 of 4 (Douglar)
image4 Image 4 of 4 (Douglar)
