Diamond MultiMedia Pro 16 ISA
Interface
Signaling
PCI IDEmpty
FCC IDK2Y-PRO16
Chips and specs
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 16-bit ISA |
| Card Type | Sound card |
| I/O Options | Line in, microphone in, line out, speaker out, game/MIDI port, audio in - CD-ROM (3), CD-ROM interfaces (4), wavetable connector |
| Maximum Onboard Memory | None |
Also known as
- Diamond S0101 / 59-6781F-115D1
- Diamond 22-0031
- Media Chips PRO16
- TeleVideo (TVS) Telesound Pro-16
I/O ports
2x
- 3.5mm TRS jack
2x
- 3.5mm TRS jack
2x
- 1x4 2.54mm pin header
1x
- 1x4 2.50mm pin header
1x
- DA-15
1x
- 2x20 2.54mm pin header
1x
- 2x20 2.54mm pin header
1x
- 2x20 2.54mm pin header
1x
- 2x17 2.54mm pin header
1x
- 2x13 2.54mm pin header
Power connectorsEmpty
Last updated 2025-07-15T13:48:25Z
No BIOS files available
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.00.01 Beta
OS support
Windows 9x
Arch
x86
Size
81.2KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
Size
246.4KB
Filename
Name
Version
4.00.00
OS support
Windows 9x
Arch
x86
Size
878.2KB
Filename
Version
OS support
Arch
Size
Filename
No card documents available
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs

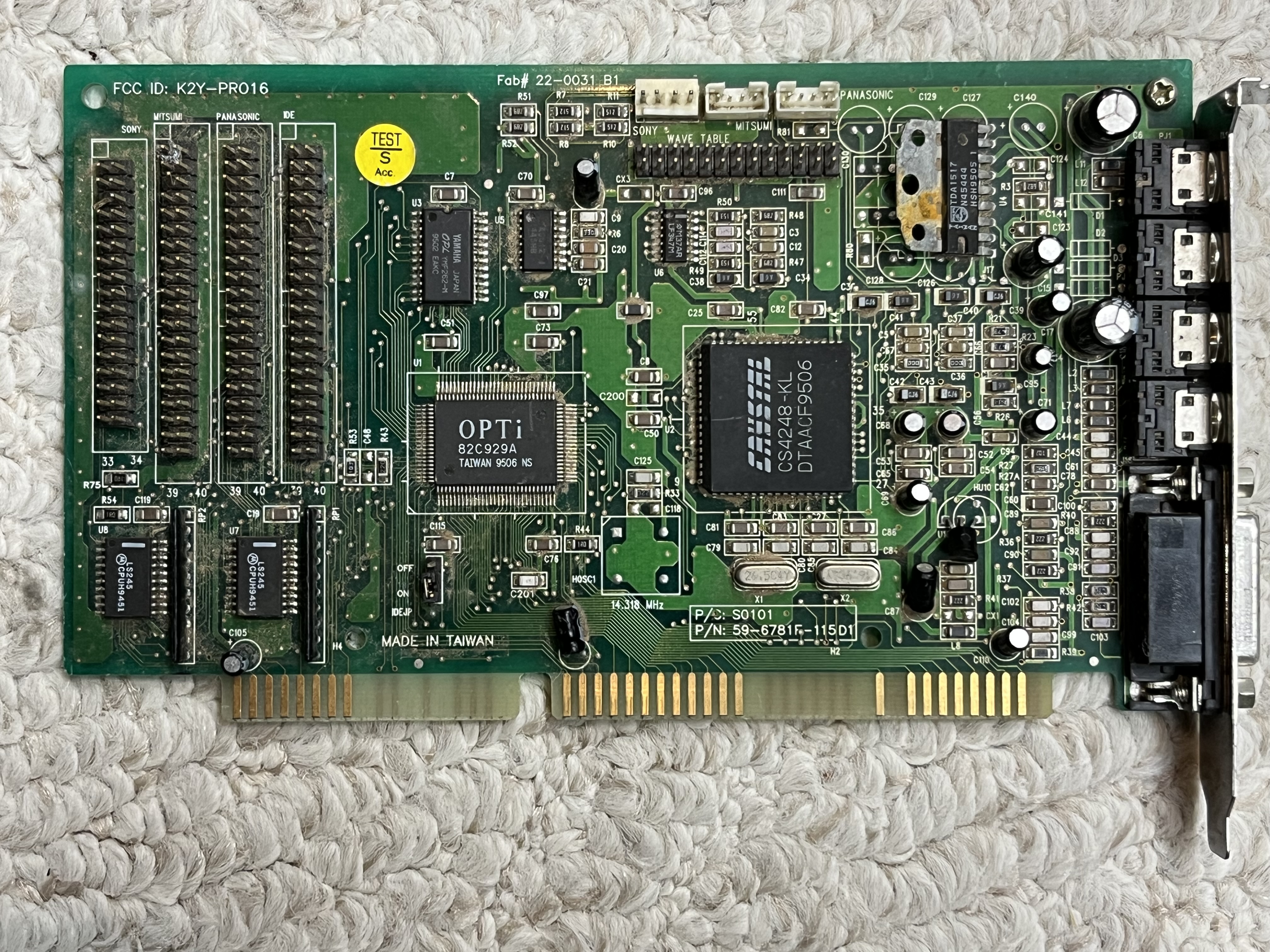

Image 1 of 5 (evasive)

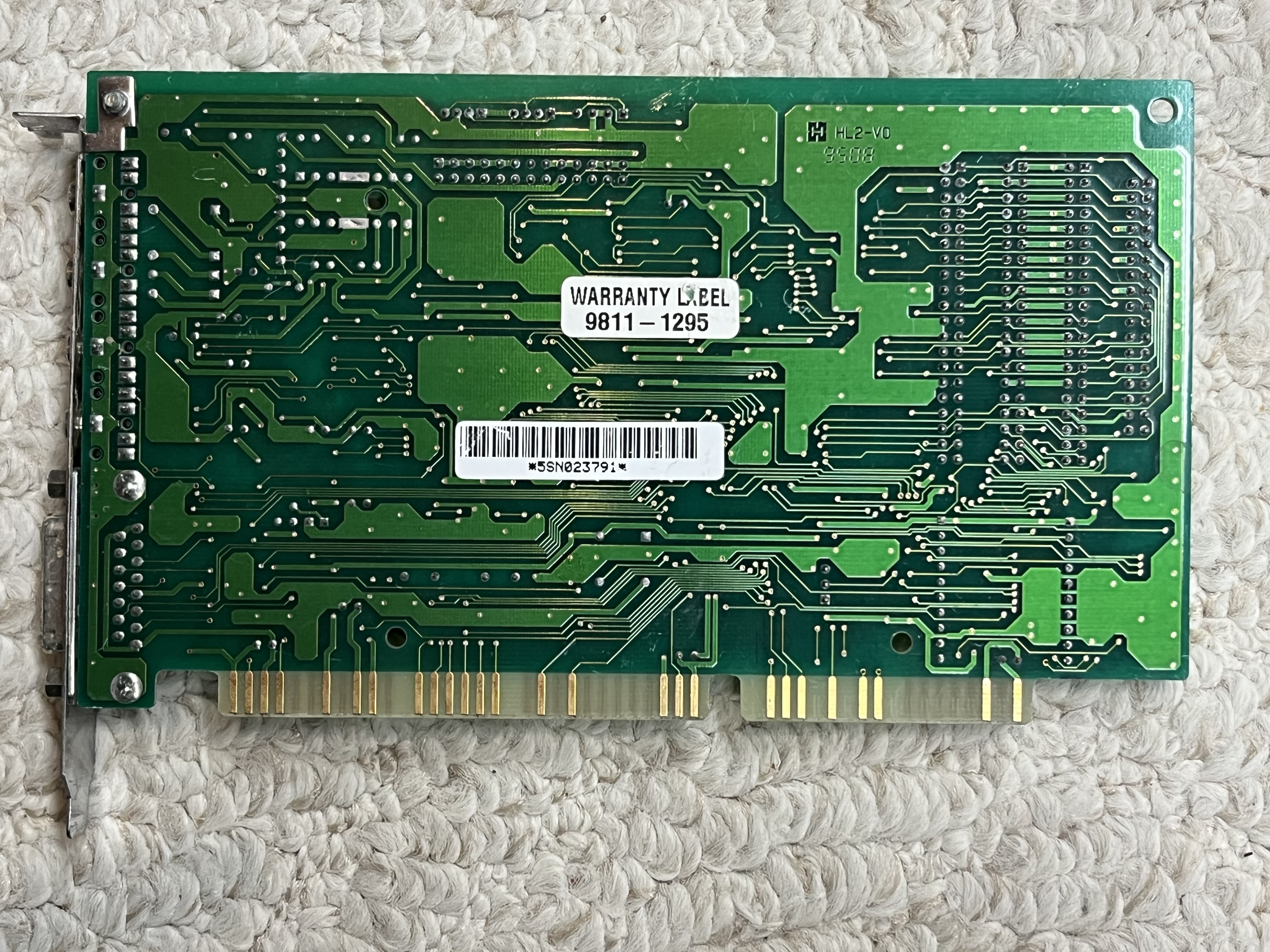

Image 2 of 5 (Virtual Computer Antiques)
Image 3 of 5 (Douglar)

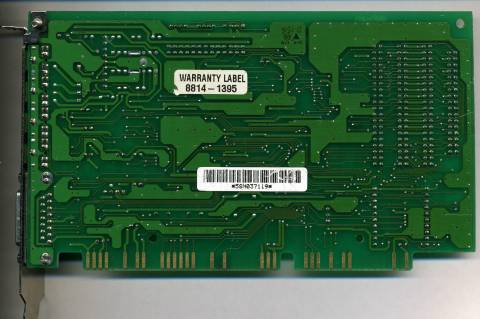

Image 4 of 5 (Virtual Computer Antiques)

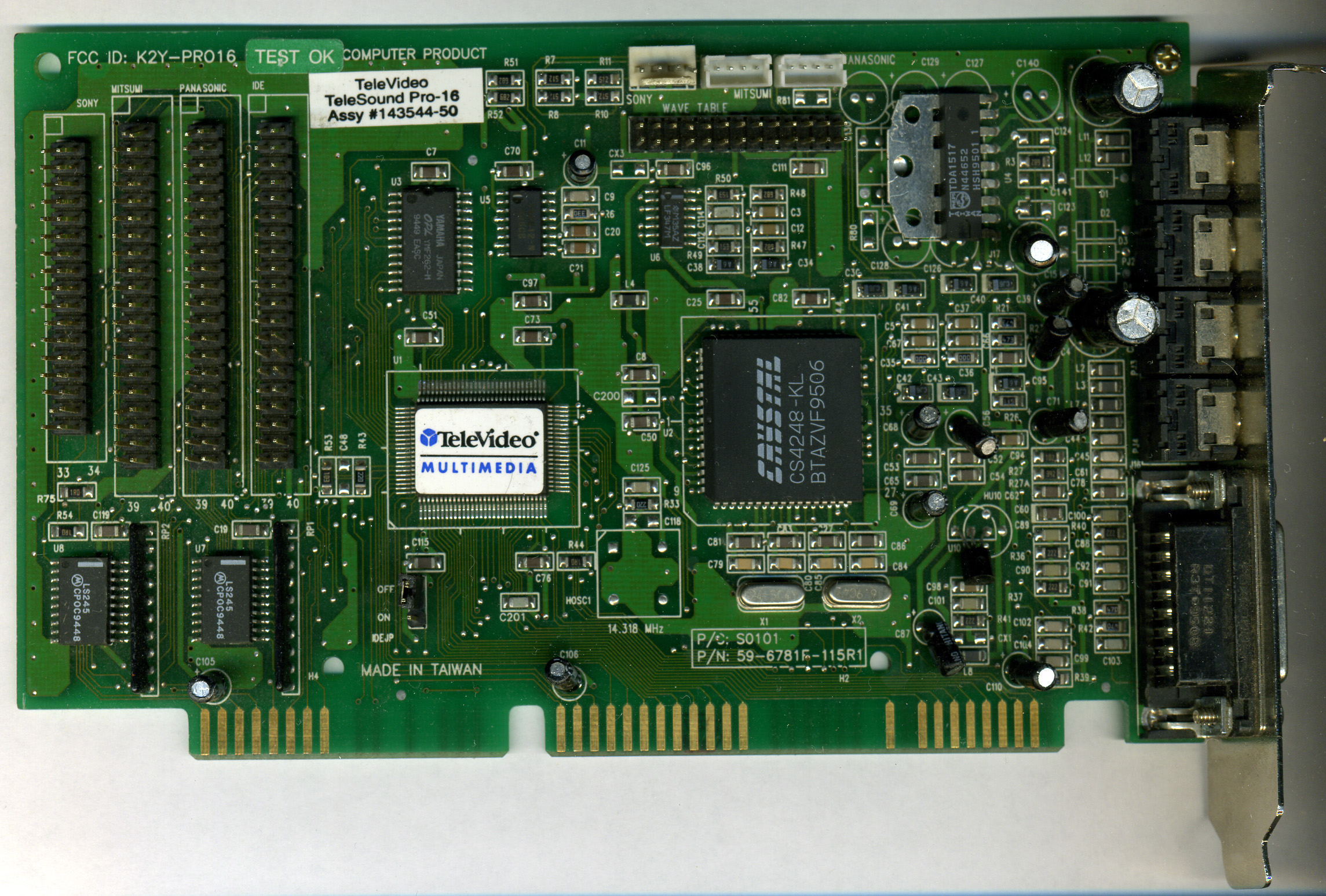

Image 5 of 5 (Douglar)
