Diamond Edge 3D 3400
Logs
typeType
Sound Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0008 0009
fccFCC ID
FTUPCINV1
ramRAM size
4MB2MB
dimDimensions
108 mm (width) x 190mm (length)
chip Chips and specs
-> Audio
Analog Devices AD1845 (Windows Sound System Codec)
-> Human Interface
Nvidia I67113 (SGP)
-> RAMDAC
Nvidia A225G (DAC64)
-> Video
Nvidia A22AC (NV1)
MTL
Video Chip Set NVI/STG 2000
Video Types Supported XVGA
Highest Resolution Supported 1600 x 1200
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x

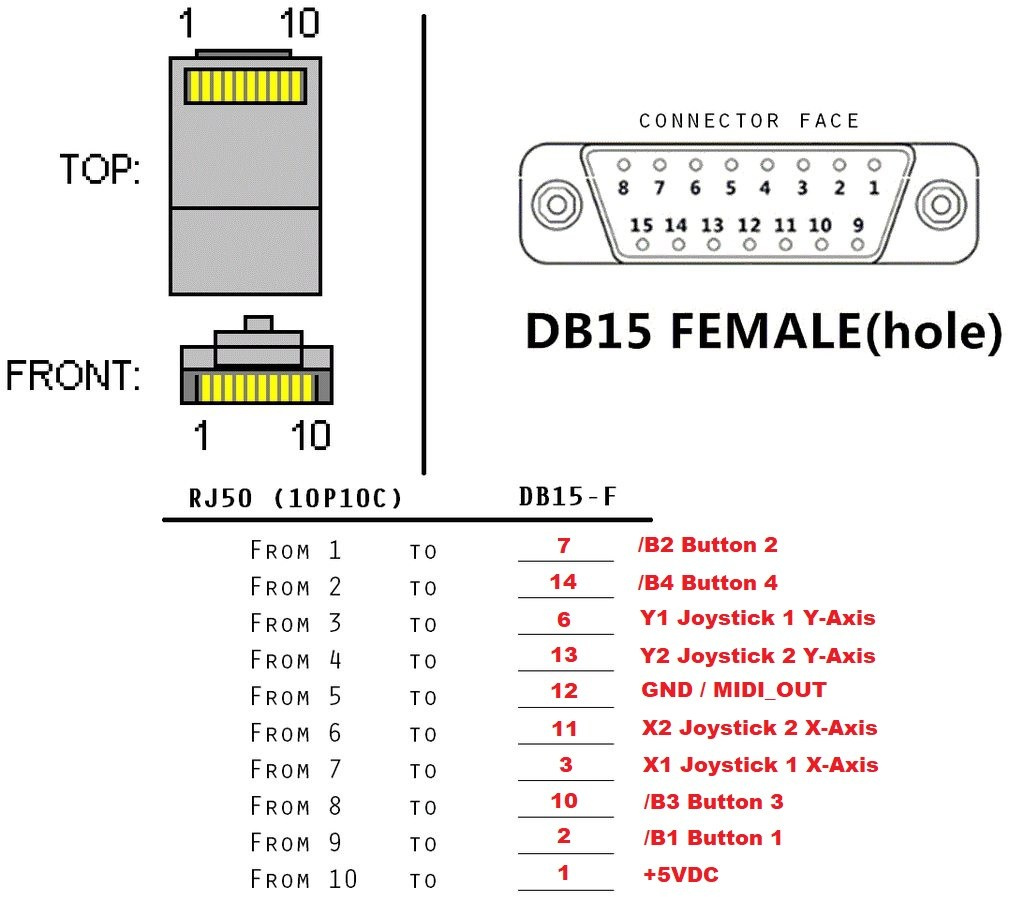

  • RJ50, Game port, MIDI
2x
  • 2x5 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-06-15T03:56:39Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
Arch
x86
Size
2MB
Filename
Name
Version
1.03
OS support
OS/2 Warp 3.x
Arch
x86
Size
177.4KB
Filename
Name
Version
1.00
OS support
Empty
Arch
x86
Size
217.6KB
Filename
Name
Version
2.12
OS support
Windows 9x
Arch
x86
Size
2.6MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997
File
Logs
image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (keropi)

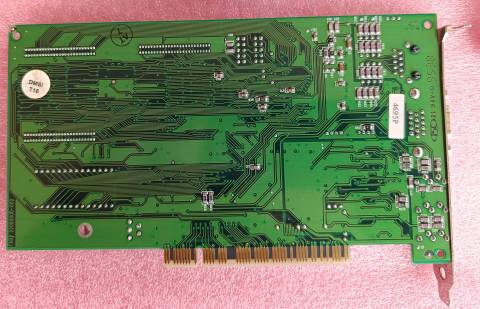

image3 Image 3 of 6 (keropi)
image4 Image 4 of 6 (keropi)

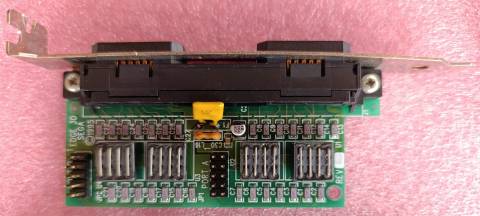

image5 Image 5 of 6 (keropi)
image6 Image 6 of 6 (wiretap)
