DIALOGIC CORPORATION GAMMAFAX CP-4/SC
Logs
Interface
Signaling
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Chipset | Rockwell 14.4EFX |
| Data Bus | 16-bit ISA |
| Card Size | Full height, full length |
| Card Type | Fax, telephony |
| Fax Class | N/A |
| Processor | 80C188 (4) |
| I/O Options | AEB bus, PEB/SCbus connector |
| Fax Modulation | ITU-T V.17, V.27ter, V.29, V.33 |
| Processor Speed | 16MHz |
| Maximum Fax Rate | 14.4Kbps x 4 |
| Maximum Onboard Memory | 2MB DRAM (512KB per channel) |
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:26Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

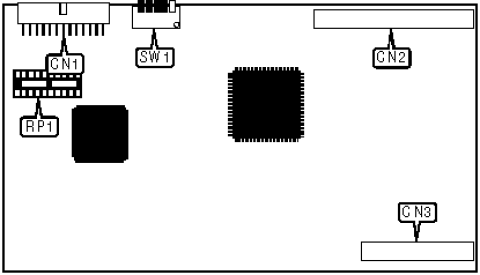

Image 1 of 2 (Microhouse)

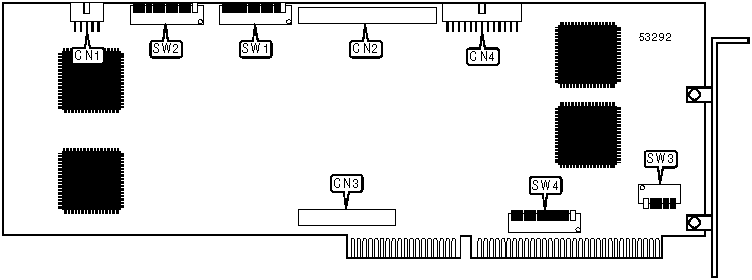

Image 2 of 2 (Microhouse)
