DIALOGIC CORPORATION GAMMAFAX CP-12/SC
Logs
Interface
Signaling
PCI IDEmpty
Chips and specs
| MTL | |
|---|---|
| Chipset | SC2000 |
| Data Bus | 16-bit ISA |
| Card Size | Full height, three-quarters length |
| Card Type | Fax, telephony |
| Fax Class | N/A |
| Processor | 80C188 (12) |
| I/O Options | PEB/SCBus connector |
| Modem Chipset | Rockwell R144 EFXL |
| Fax Modulation | ITU-T V.17, V.27ter, V.29, V.33 |
| Processor Speed | 20MHz |
| Maximum Fax Rate | 14.4Kbps x 12 |
| Maximum Onboard Memory | 6MB DRAM/6MB EPROM (512KB each per channel) |
I/O portsEmpty
Power connectorsEmpty
Last updated 2024-03-23T19:36:26Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs

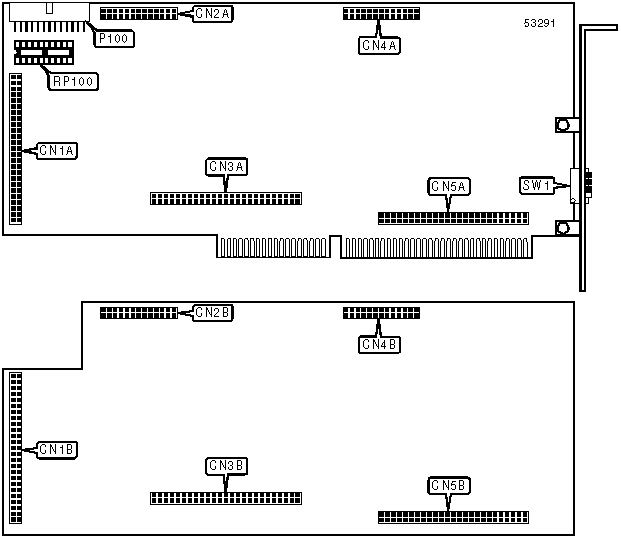

Image 1 of 1 (Microhouse)
