DFI VG-5500
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
E5Y6L9VG-5500
chip Chips and specs
-> RAMDAC
Samsung KDA0476 (CMOS RAMDAC)
-> Video
Tseng Labs (TLI) ET4000AX
MTL
Category Video
Memory Type DRAM
Data Bus Type 16-bit ISA
Video Processor ET4000
Video Types Supported XVGA
Maximum Onboard Memory 1024KB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-02T18:38:22Z
biosc No BIOS files available
drv 14 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1992-01-15
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
504.9KB
Filename
Name
Version
1991-10-29
OS support
Windows 3.1x
Arch
x86
Size
397.5KB
Filename
Name
Version
1991-12-06
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
399.3KB
Filename
Name
Version
4.0.953
OS support
Windows 9x
Arch
x86
Size
18.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
545.2KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
543KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
621.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
989.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

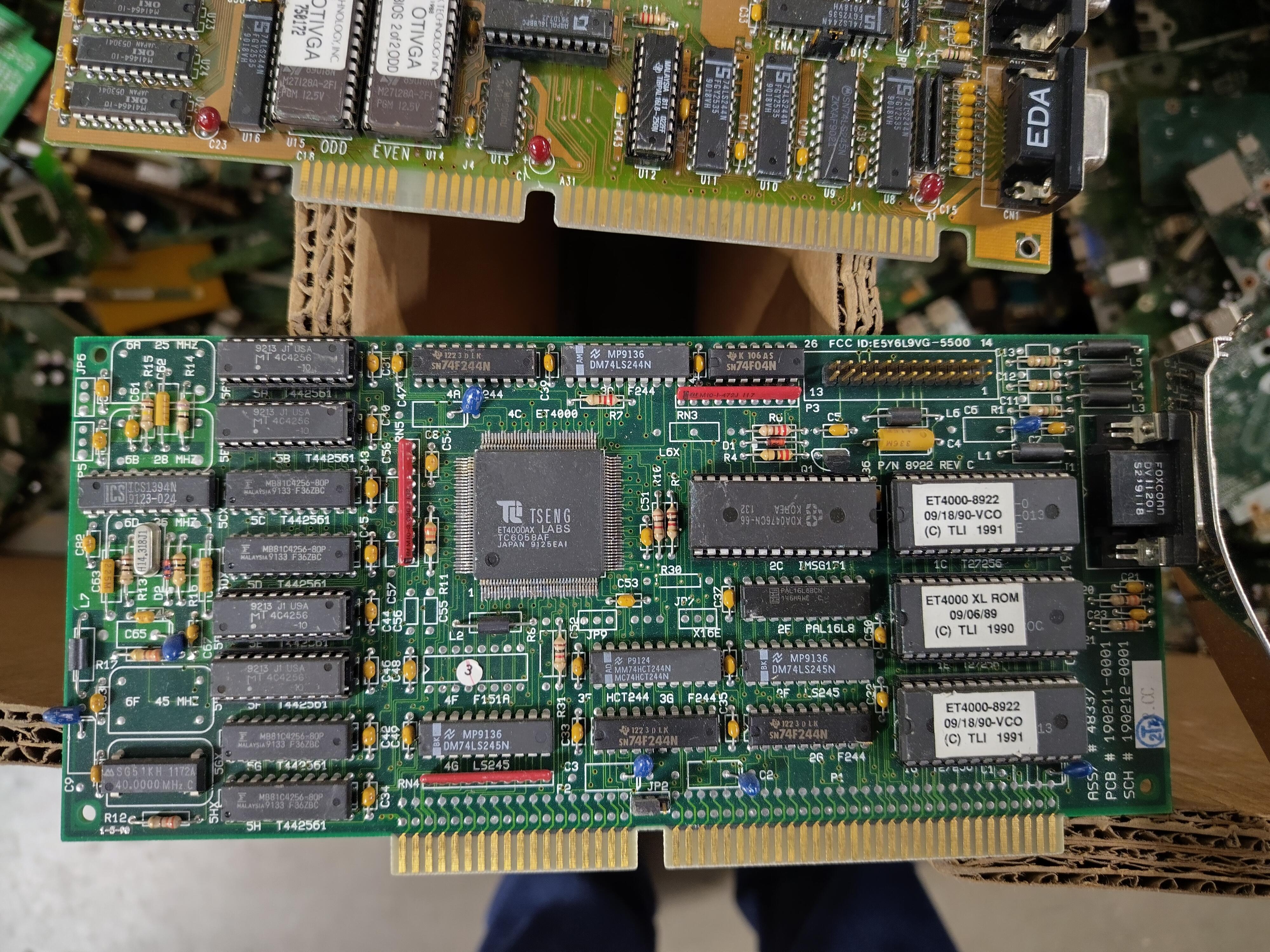

image1 Image 1 of 2 (Ed Lies)

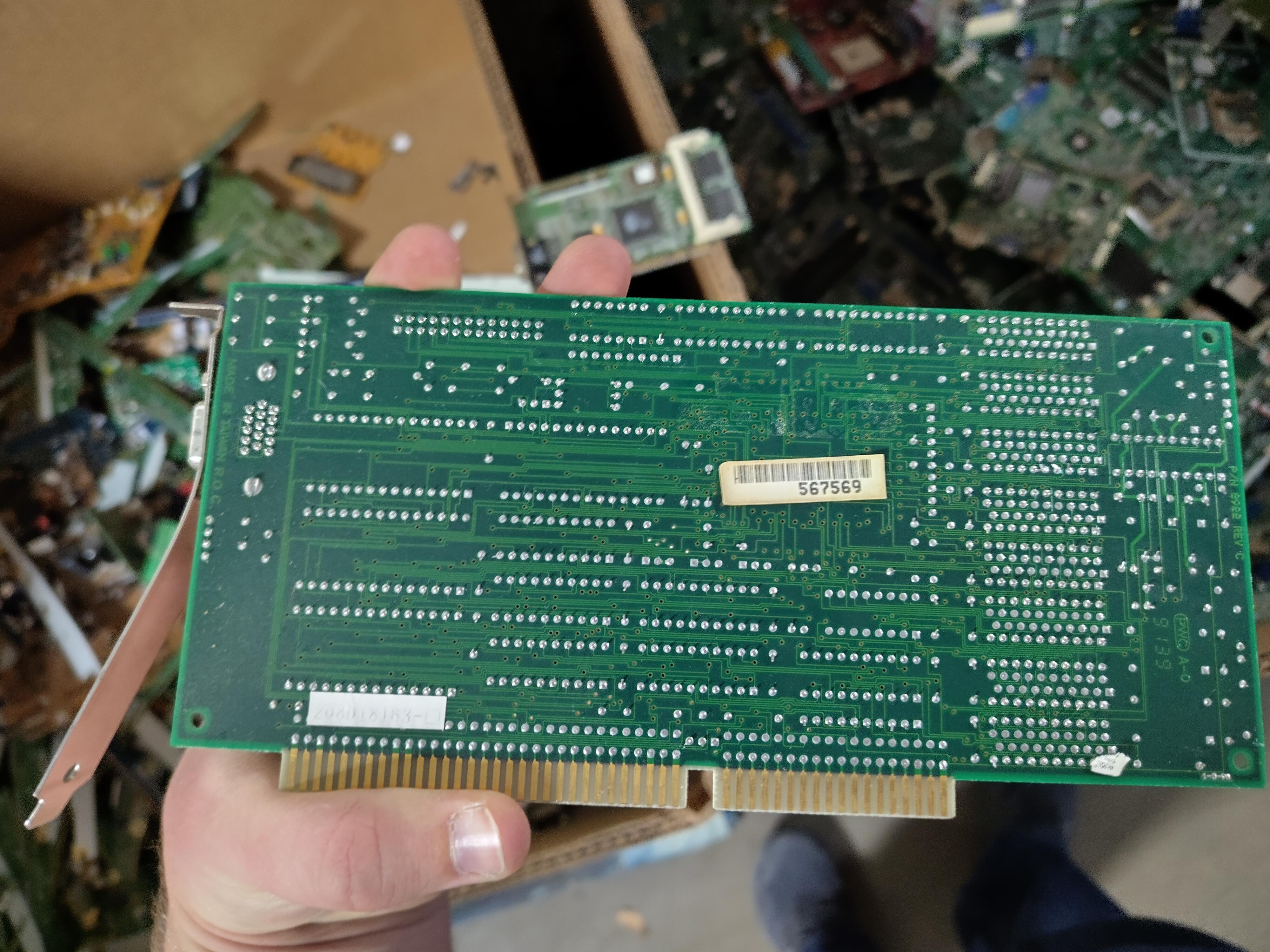

image2 Image 2 of 2 (Ed Lies)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
