DFI MIO-400AF
Logs
typeType
Floppy controller Multi I/O IDE controller Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM size
64KB
chip Chips and specs
-> Floppy ctrl.
National Semiconductor DP8473 (Floppy Controller)
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> UART ctrl.
(multiple brand) 16450 (High-speed UART)
-> Video
DFI DFI-2010A
MTL
Size: Three/quarter-length, full-height card
DATA BUS: 16-BIT, ISA
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DE-9
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2024-12-26T19:31:55Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-08
File
Logs
image1 Image 1 of 4 (Microhouse)

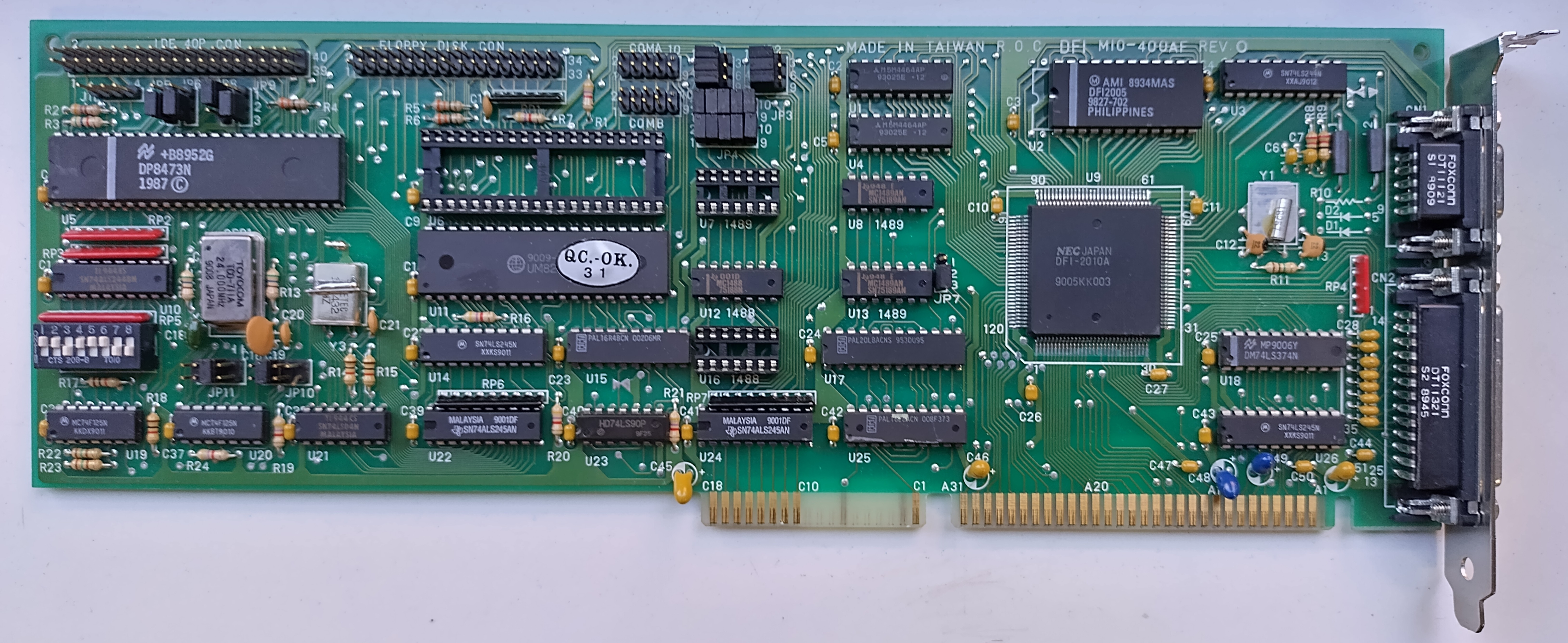

image2 Image 2 of 4 (Dyoda)

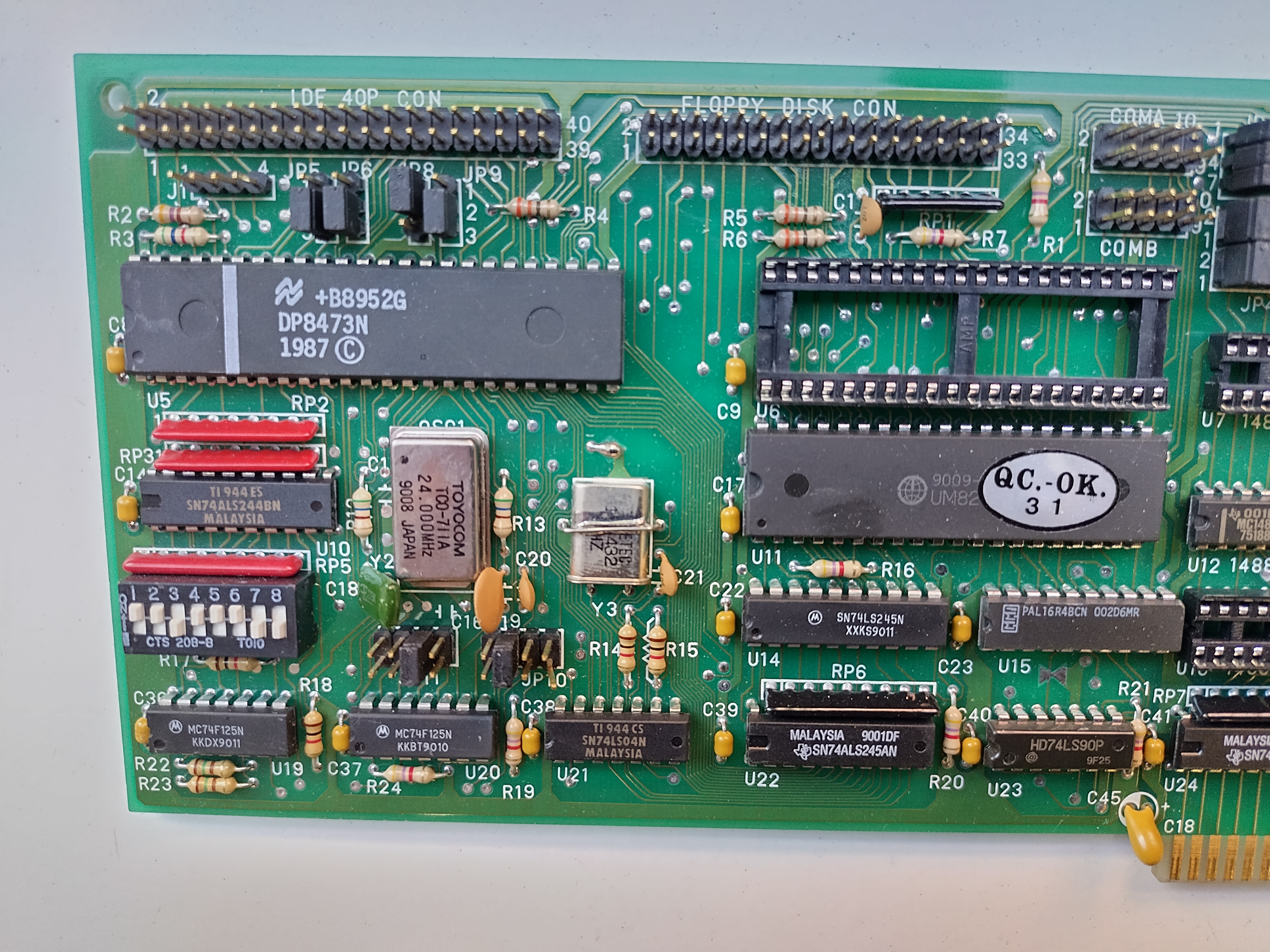

image3 Image 3 of 4 (Dyoda)

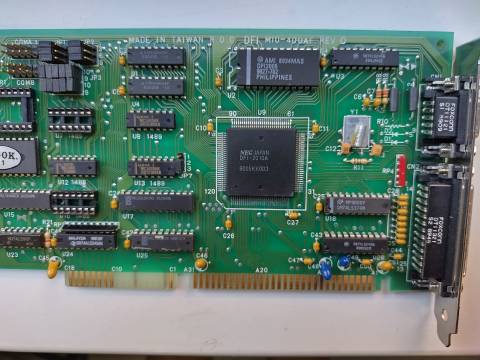

image4 Image 4 of 4 (Dyoda)
