DFI DIO-500
Logs
typeType
Multi I/O
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
E5Y6L9DIO500
chip Chips and specs
-> UART ctrl.
(multiple brand) 16450 (High-speed UART)
MTL
Card Type Multi I/O
I/O Options Game port, parallel port, serial ports (2)
Maximum DRAM N/A
Chipset/Controller Microcomp Industries
portintI/O ports
1x
  • 2x8 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-22T20:07:50Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-08
File
Logs

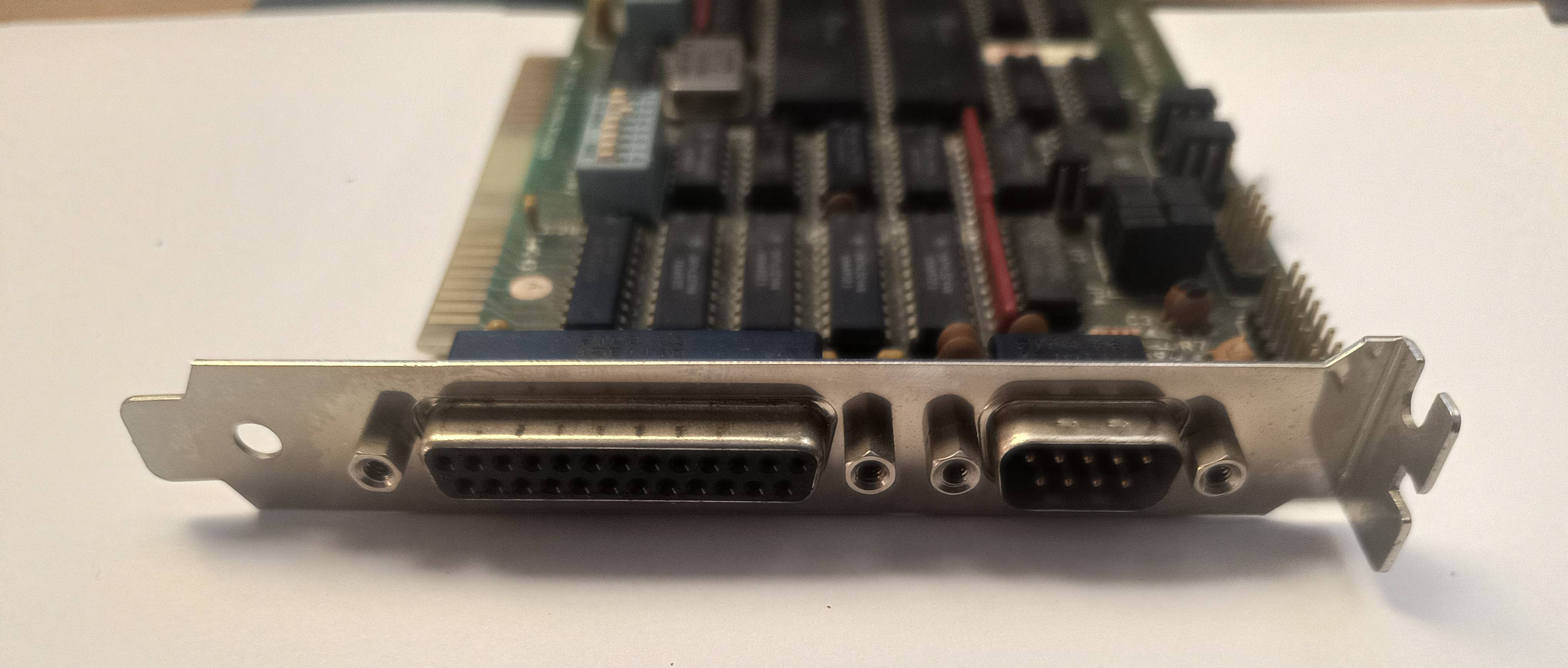

image1 Image 1 of 4 (Microhouse)

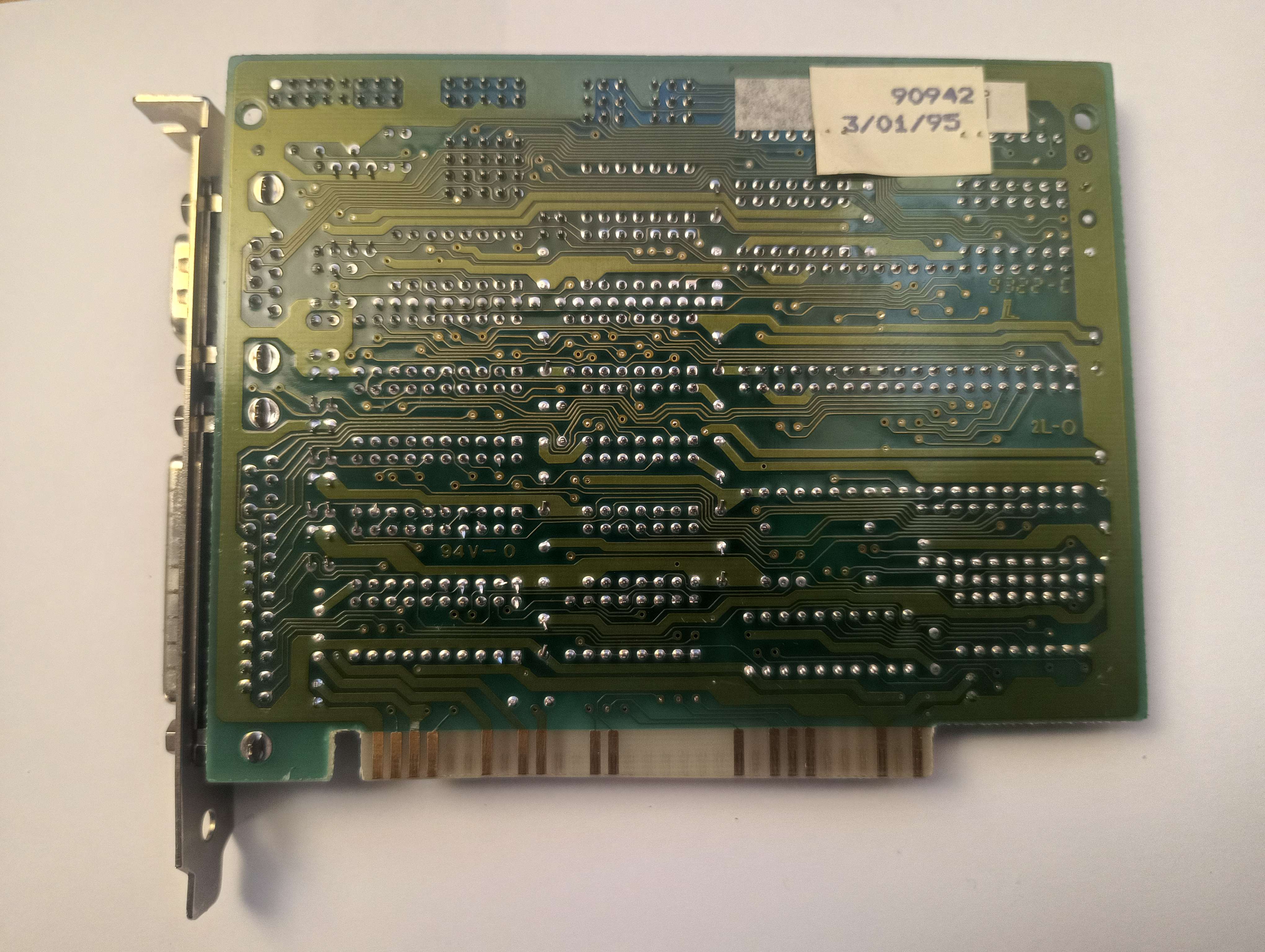

image2 Image 2 of 4 (Shadowdestroyer777)

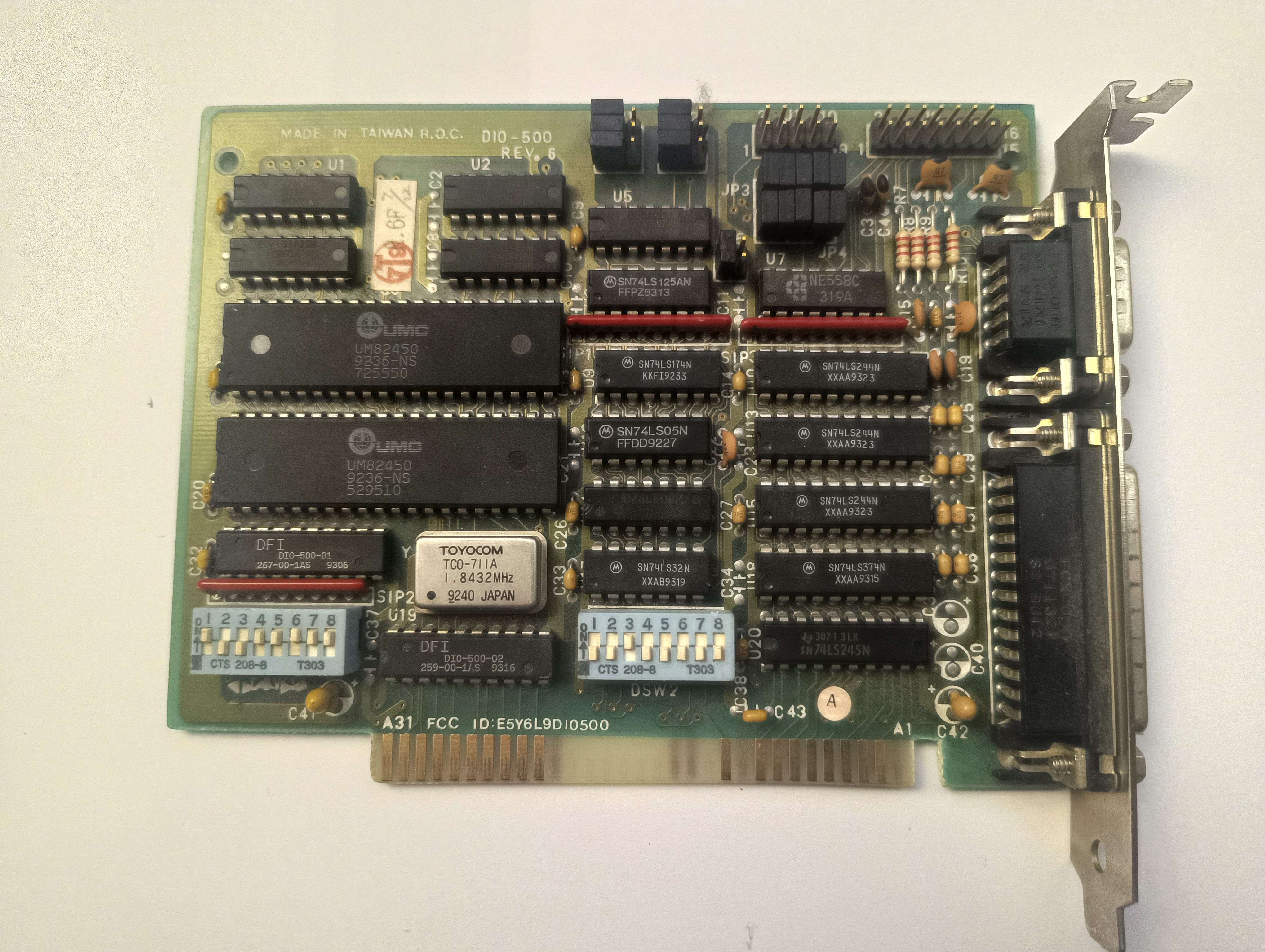

image3 Image 3 of 4 (Shadowdestroyer777)
image4 Image 4 of 4 (Shadowdestroyer777)
