Delock NM9735 REV C (89003)
Logs
typeType
Parallel controller Serial controller
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
9835
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) 75185 / 75232 (RS-232 Driver/Receiver)
-> Super I/O
Moschip MCS9835 (PCI Dual UART with Printer Port)
tag Also known as
portintI/O ports
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-10-01T19:34:15Z
biosc No BIOS files available
drv No drivers available

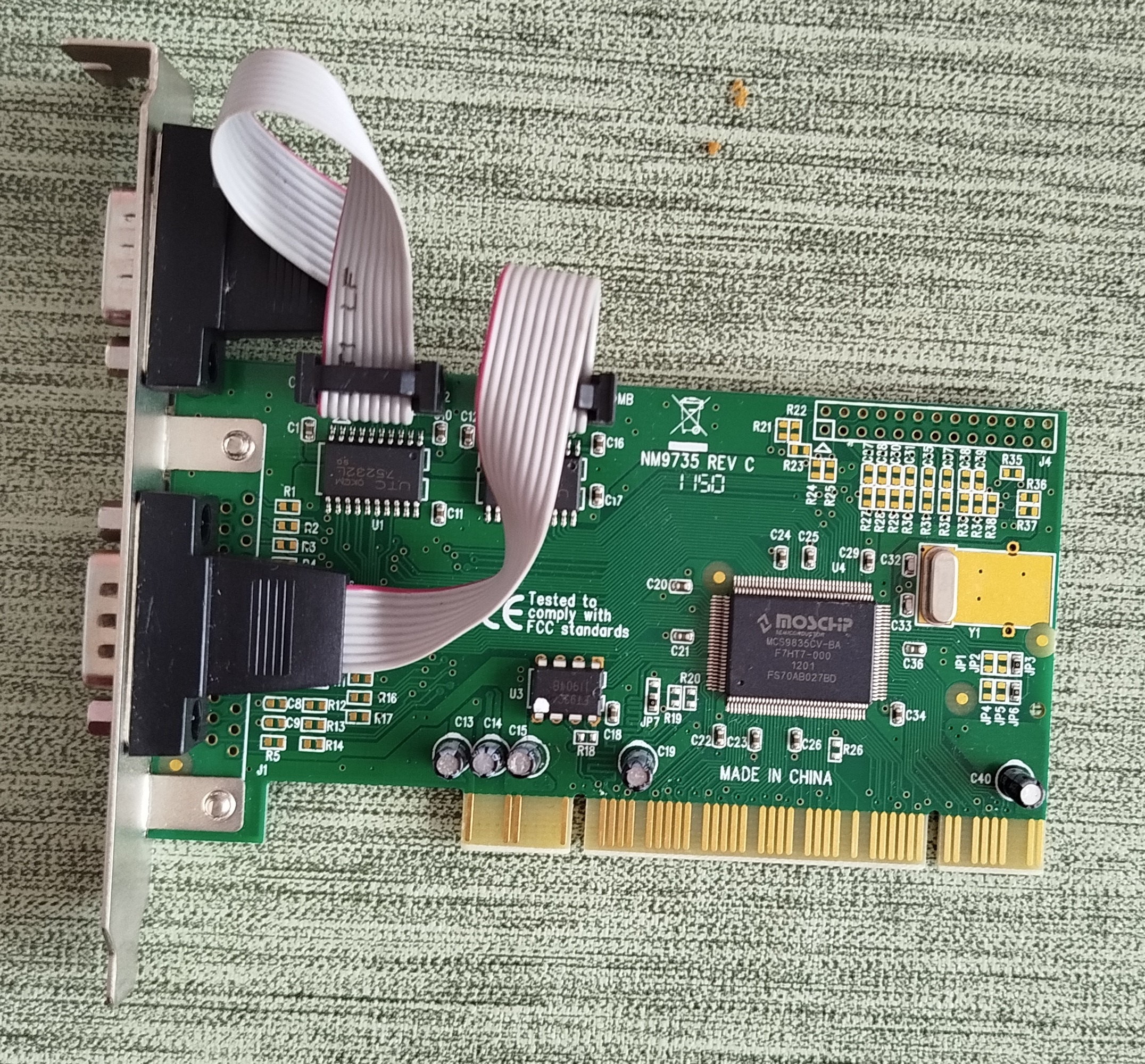

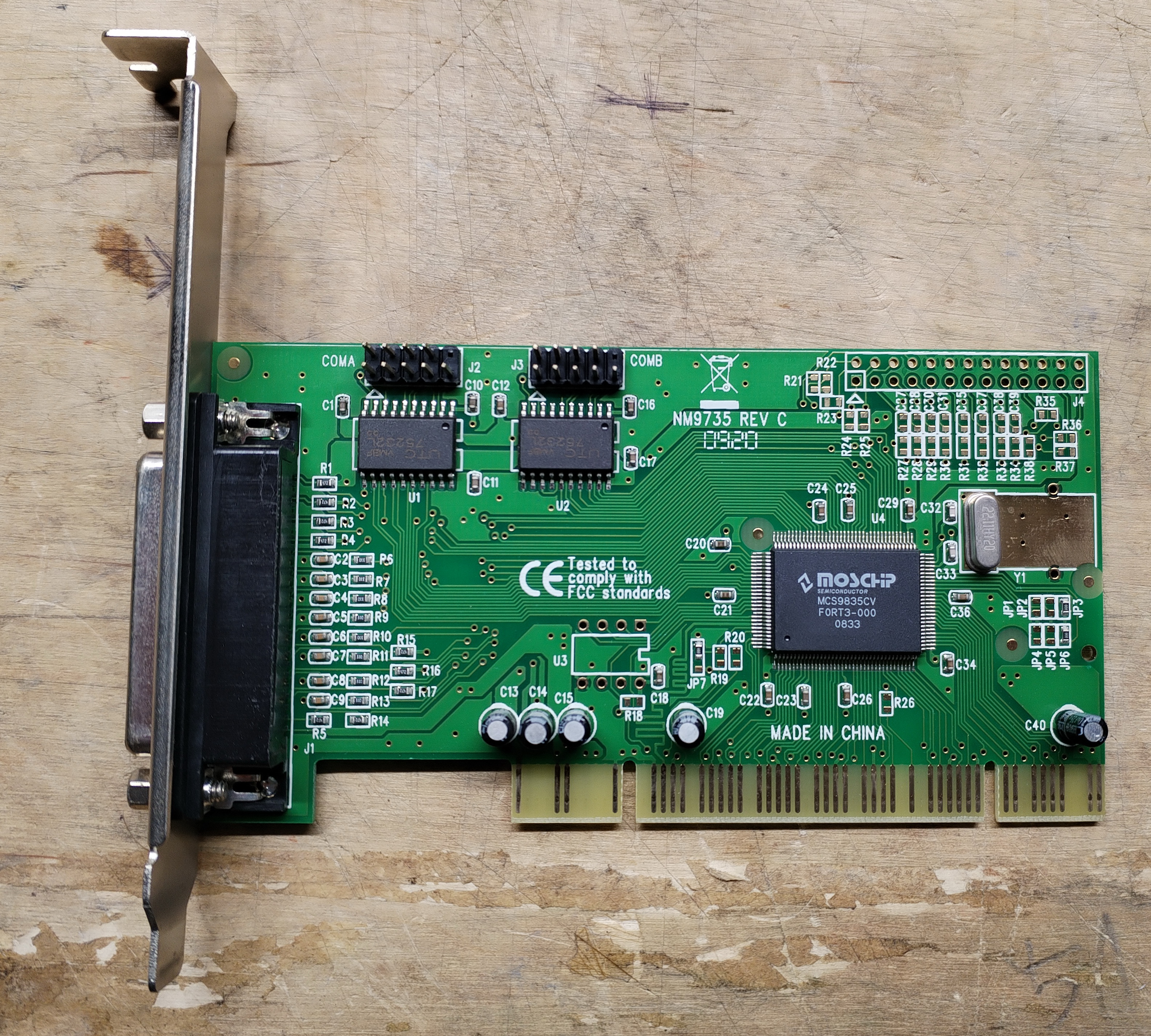

image1 Image 1 of 5 (Gál Dániel)

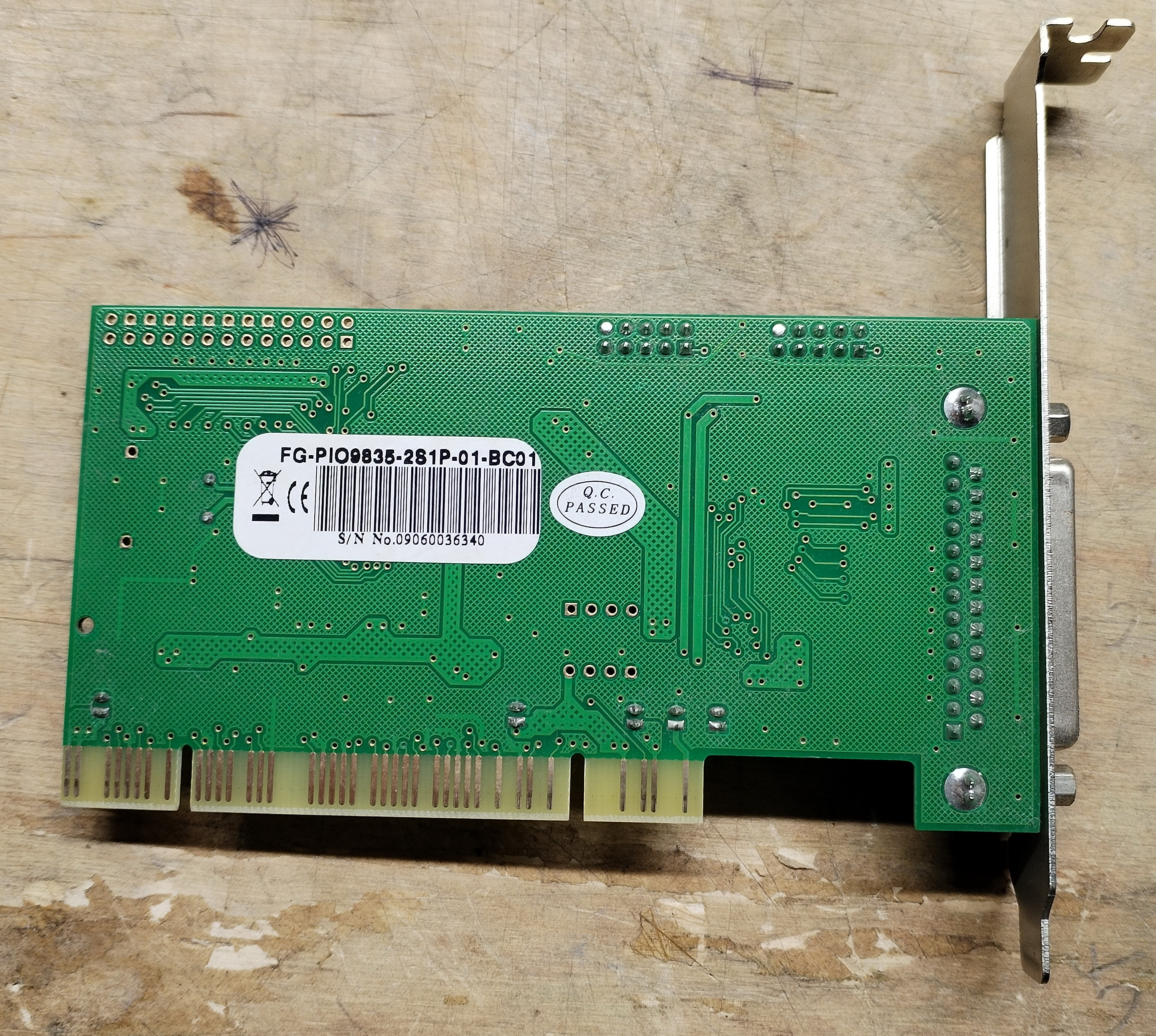

image2 Image 2 of 5 (CircusCat)
image3 Image 3 of 5 (Gál Dániel)

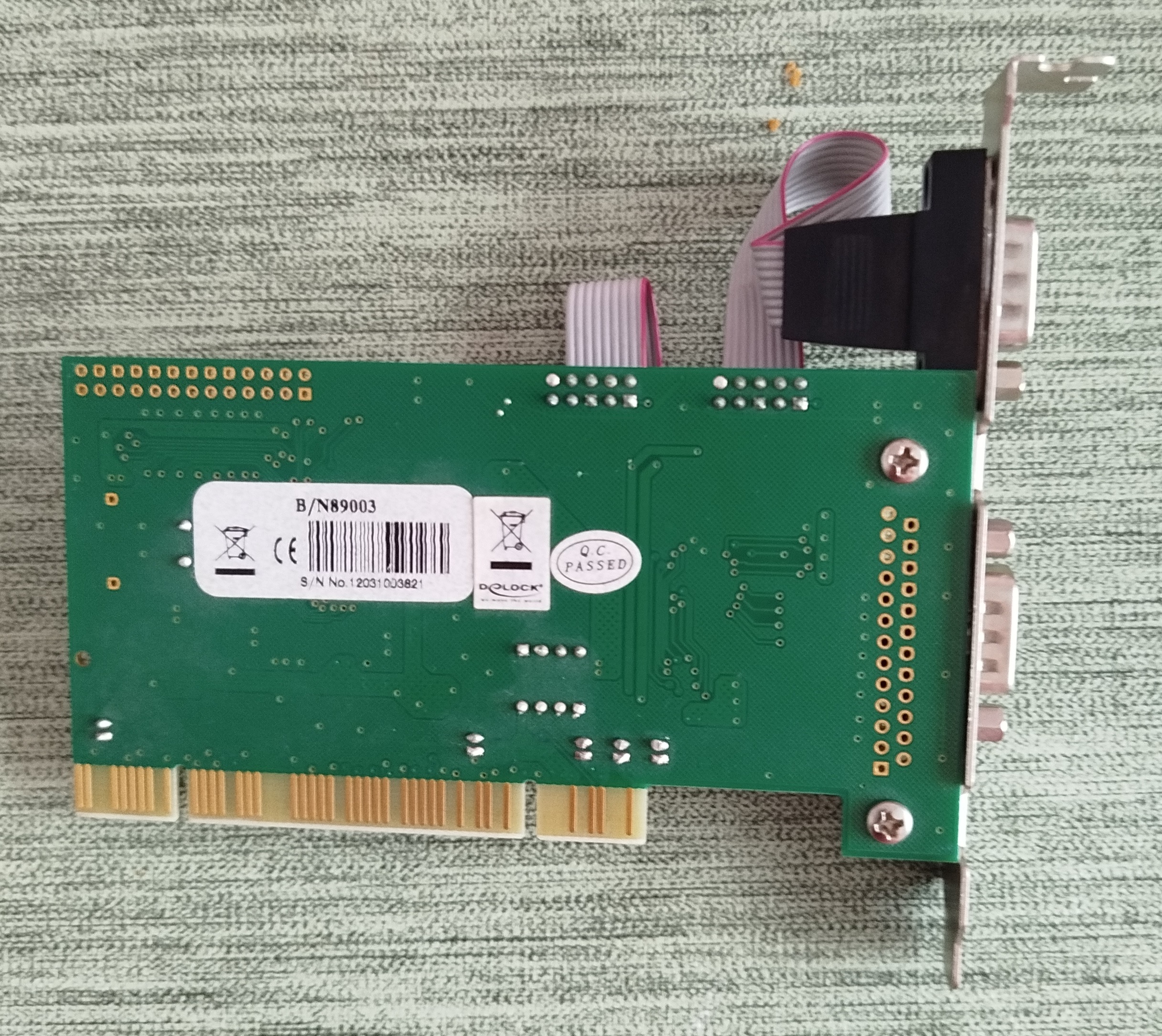

image4 Image 4 of 5 (CircusCat)

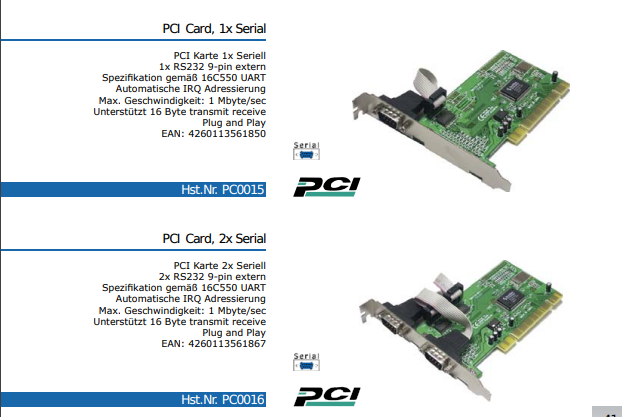

image5 Image 5 of 5 (Logilink)
