DataExpert MED1600
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
K2Y-AUDIO16C
chip Chips and specs
-> Audio
OPTi 82C928 (MAD16) Philips TDA1517 (2x6W Audio Power Amplifier) Analog Devices AD1848 (SoundPort WSS) Yamaha YAC512 (2-Channel Floating DAC) Yamaha YMF262 (OPL3)
MTL
Chip Set Opti
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Card Type Sound card
I/O Options CD-ROM interface (3), daughter board connector, audio in - CD-ROM (2), speaker out, line out, line in, microphone in, game/MIDI port
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • 1x3 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T21:41:26Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.01
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.4MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

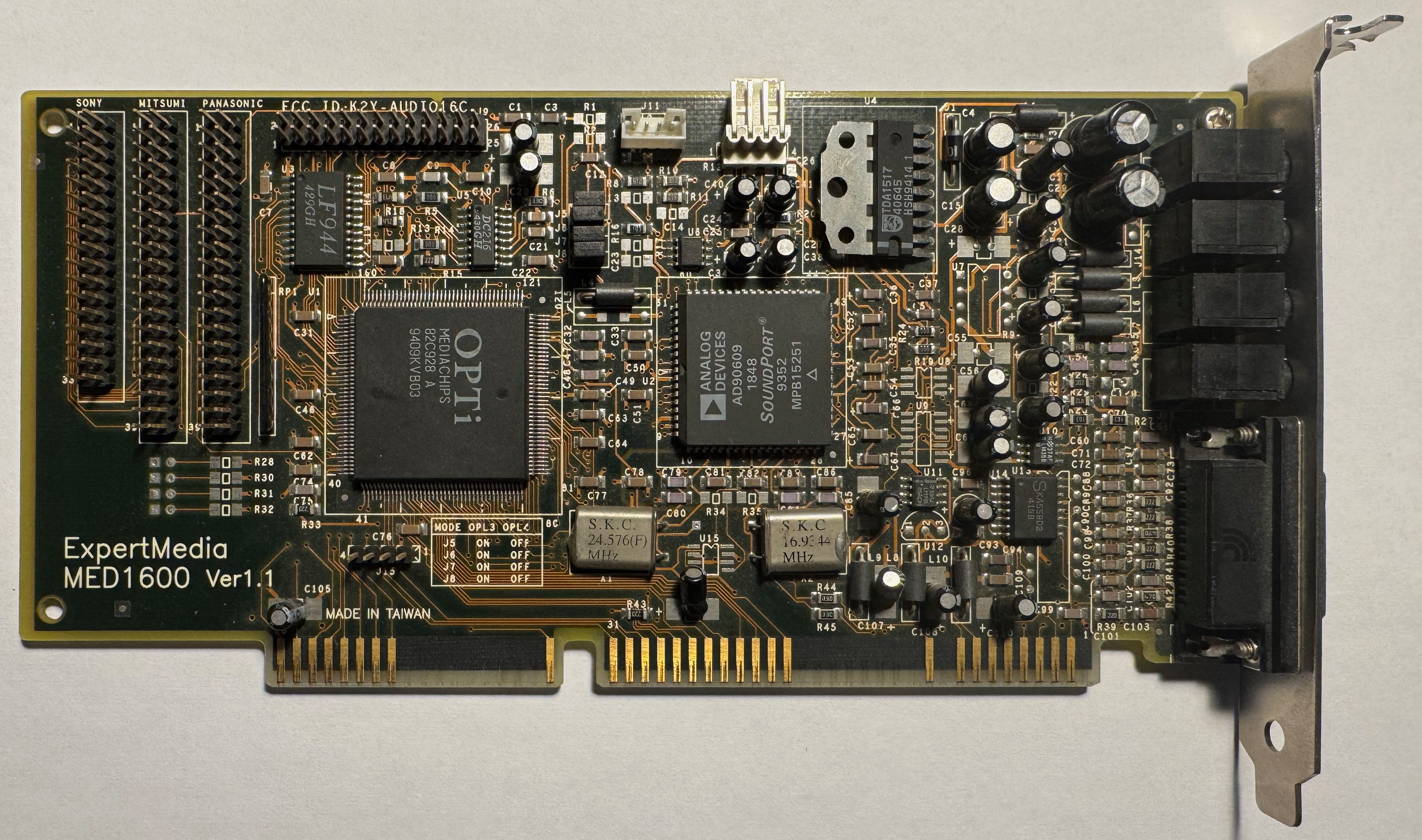

image1 Image 1 of 4 (Microhouse)

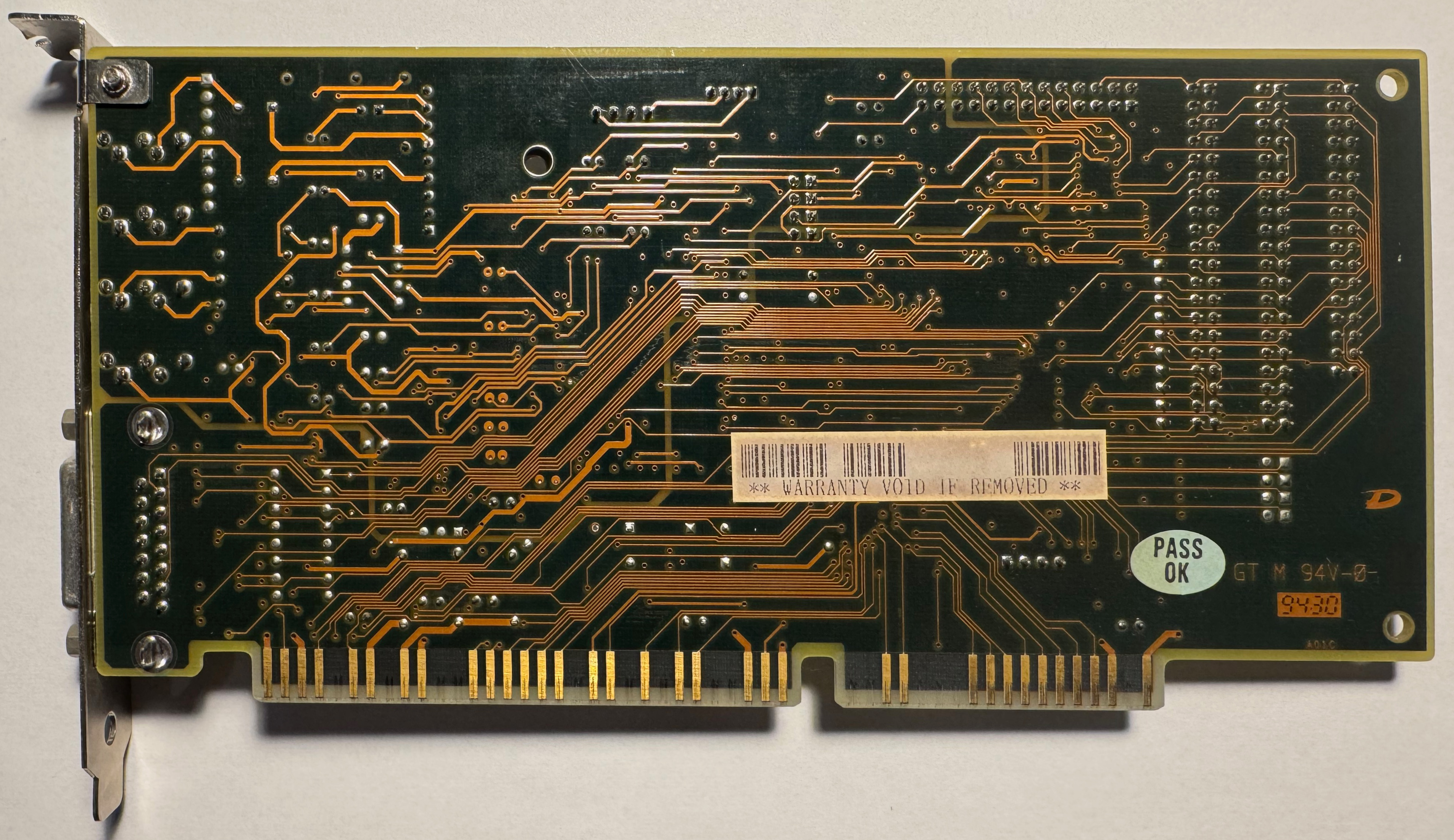

image2 Image 2 of 4 (injectmeneer)

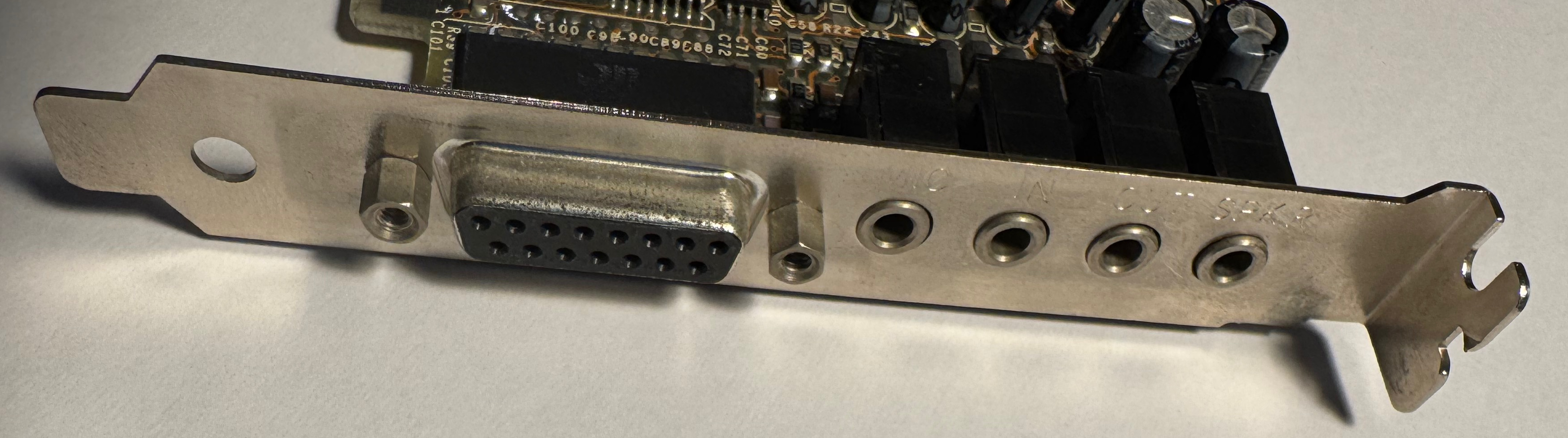

image3 Image 3 of 4 (injectmeneer)

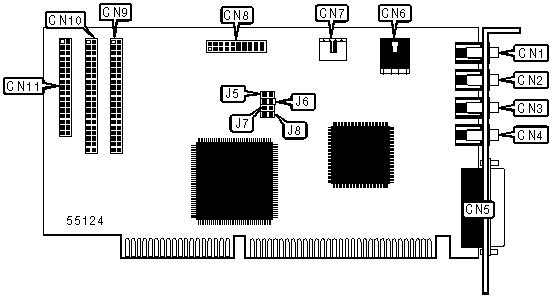

image4 Image 4 of 4 (injectmeneer)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
