DataExpert ExpertColor CP765
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8811 8905 8906 8907 8908 8909 890A 890B 890C 890D 890E 890F
fccFCC ID
LUT-CP765
ramRAM type
EDO
ramRAM size
1MB2MB
dimDimensions
130 mm (width) x 80mm (length)
chip Chips and specs
-> Video
S3 86C765 (Trio64V+)
  • Bus: PCI, VLB
  • Release date: 1995
  • Release price: US $249
Memory
Bus width 64bit
Memory type FPM, EDO
Max memory size 4MB (PCI) / 2MB (VLB)
Effective Memory Clock 60 MHz
Video chip
Core clock ??? MHz
Core width 64bit
RAMDAC speed 135 MHz
Features
Video Acceleration MPEG-1 (VCD)
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2024-11-15T08:57:04Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
1.03-08N (09/03/96)
Note
File
Logs
Version
1.03-06 (06/01/96)
Note
File
Logs
Version
1.02-02 (12/20/95)
Note
File
Logs
Version
1.02-02 (09/16/96)
Note
File
Logs
Version
1.01-06 (09/29/95)
Note
File
Logs
Version
1.01-05 (09/29/95)
Note
File
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.70.04
OS support
Windows 3.1x
Arch
x86
Size
606.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs
Chip
Release date
1995-07
File
Logs

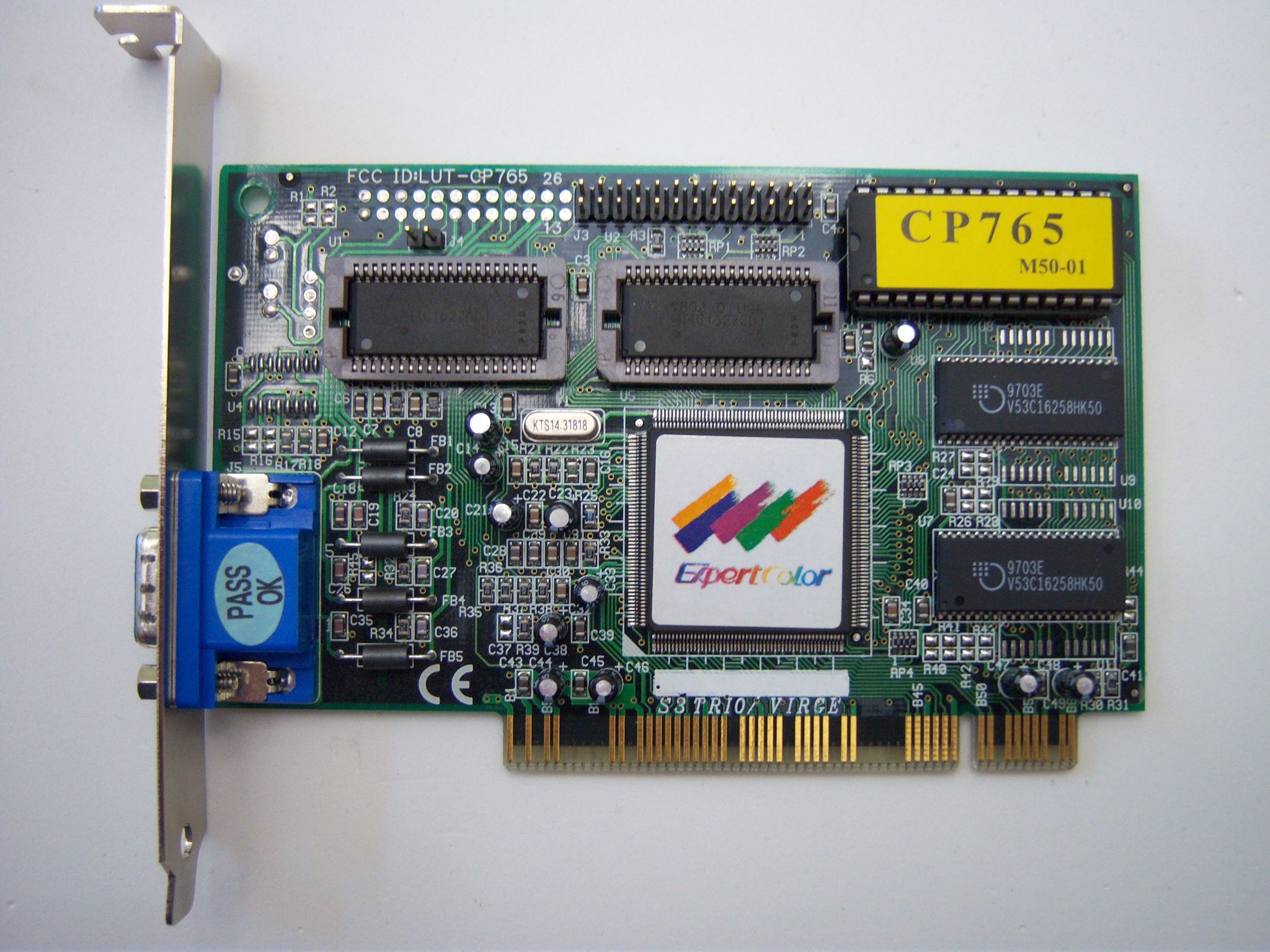

image1 Image 1 of 2 (M.Jo)

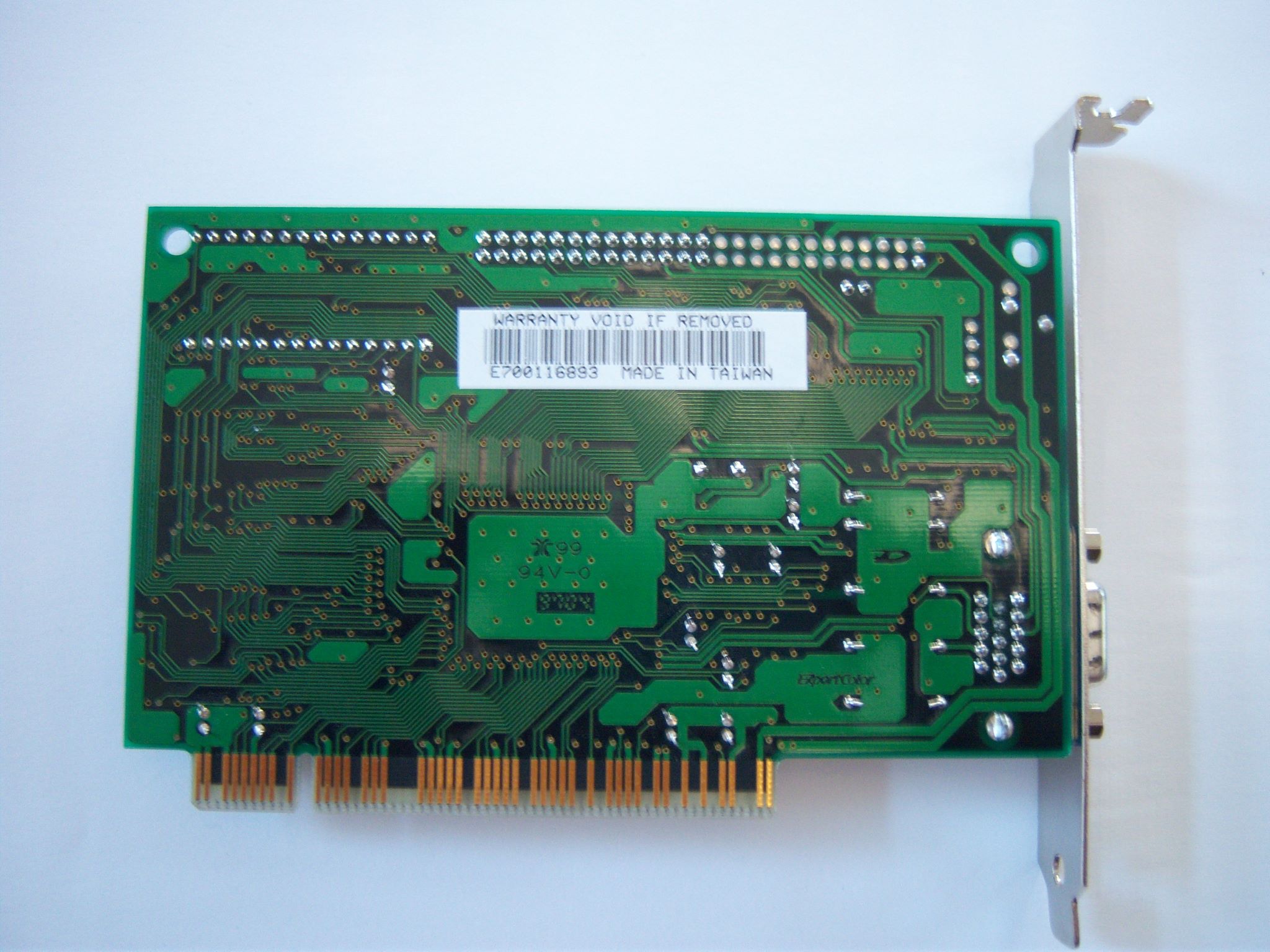

image2 Image 2 of 2 (M.Jo)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
