CrystaLake Crystal-Clear Wavetable
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LFLCCW100
chip Chips and specs
-> Audio
OPTi 82C928 (MAD16) Crystal CS4231A (Multimedia Audio Codec) Yamaha YAC512 (2-Channel Floating DAC) Samsung KA2206 (2x2W Audio Power Amplifier) Crystal CS9203 (Advanced Music Synthesizer) Yamaha YMF262 (OPL3)
-> ROM
Crystal CS4110 (General MIDI sample ROM)
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T21:52:34Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.01
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.4MB
Filename

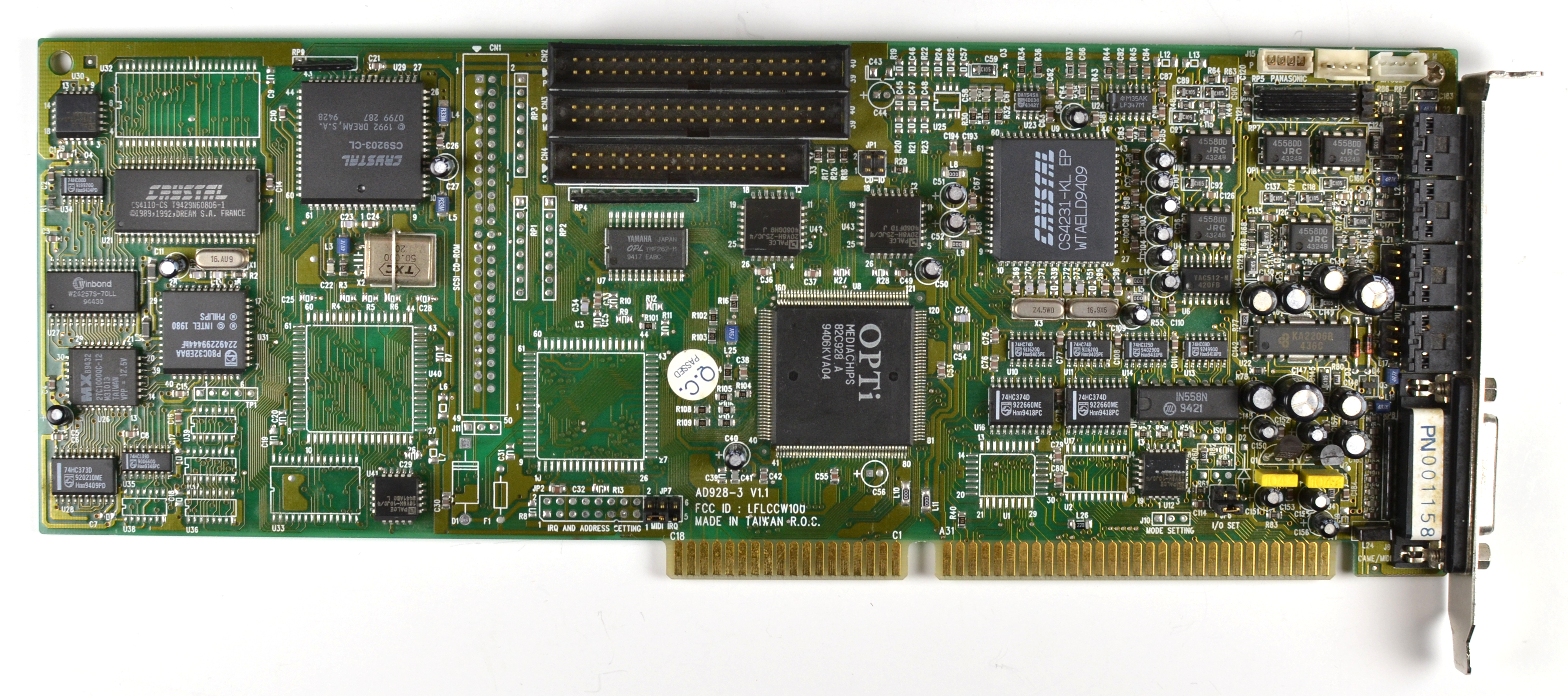

image1 Image 1 of 3 (PancakePuppy)

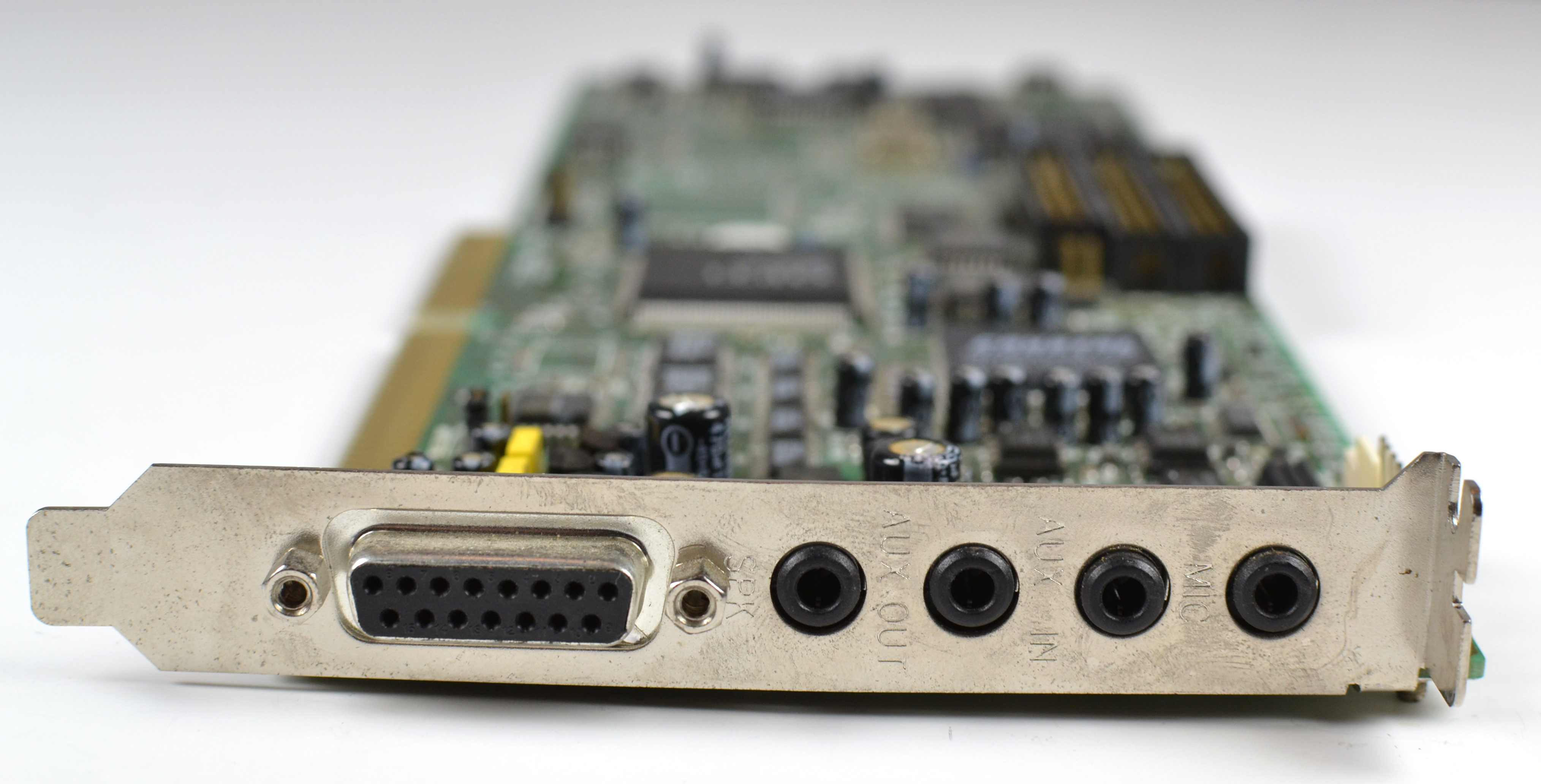

image2 Image 2 of 3 (PancakePuppy)
image3 Image 3 of 3 (PancakePuppy)
