Creative Video Spigot for Windows (CT6030)
Logs
typeType
Video capture Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IBACT-VSW1
chip Chips and specs
-> Clock Synth / PLL
Philips SAA7197 (Clock Generator for video system)
-> Video
Philips TDA8708 (Video analog input interface) Philips SAA7191 (Colour Decoder, Square Pixel)
tag Also known as
portintI/O ports
1x
  • RCA Jack
1x
  • 4-pin Mini-DIN
powerPower connectors
Empty
Last updated 2025-05-30T21:16:21Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.2
OS support
Windows 3.1x Windows 9x
Arch
x86
Size
971KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1996-08
File
Logs
Chip
Release date
1996-08
File
Logs
Chip
Release date
1996-11-26
File
Logs

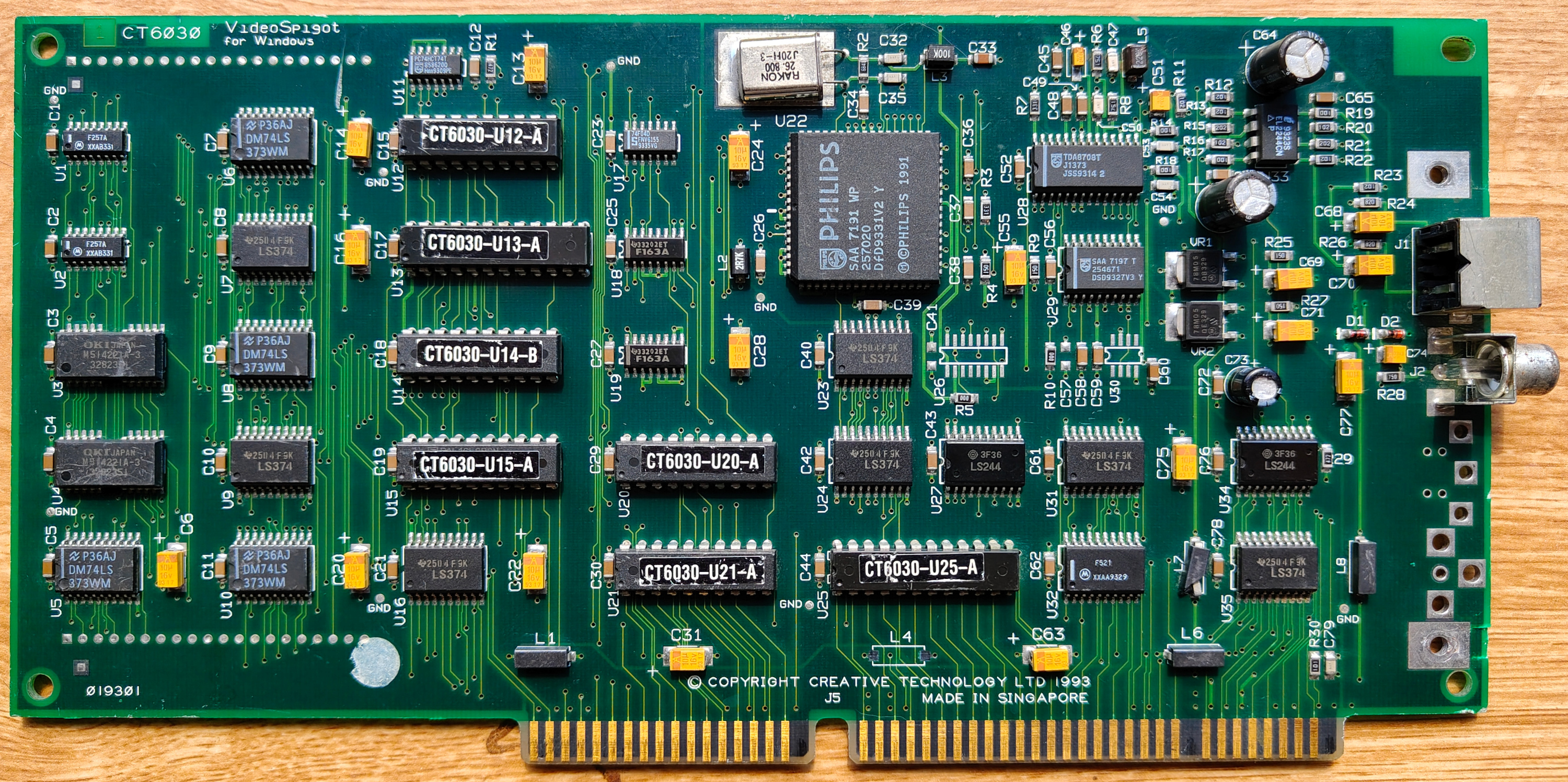

image1 Image 1 of 2 (Yargoro)

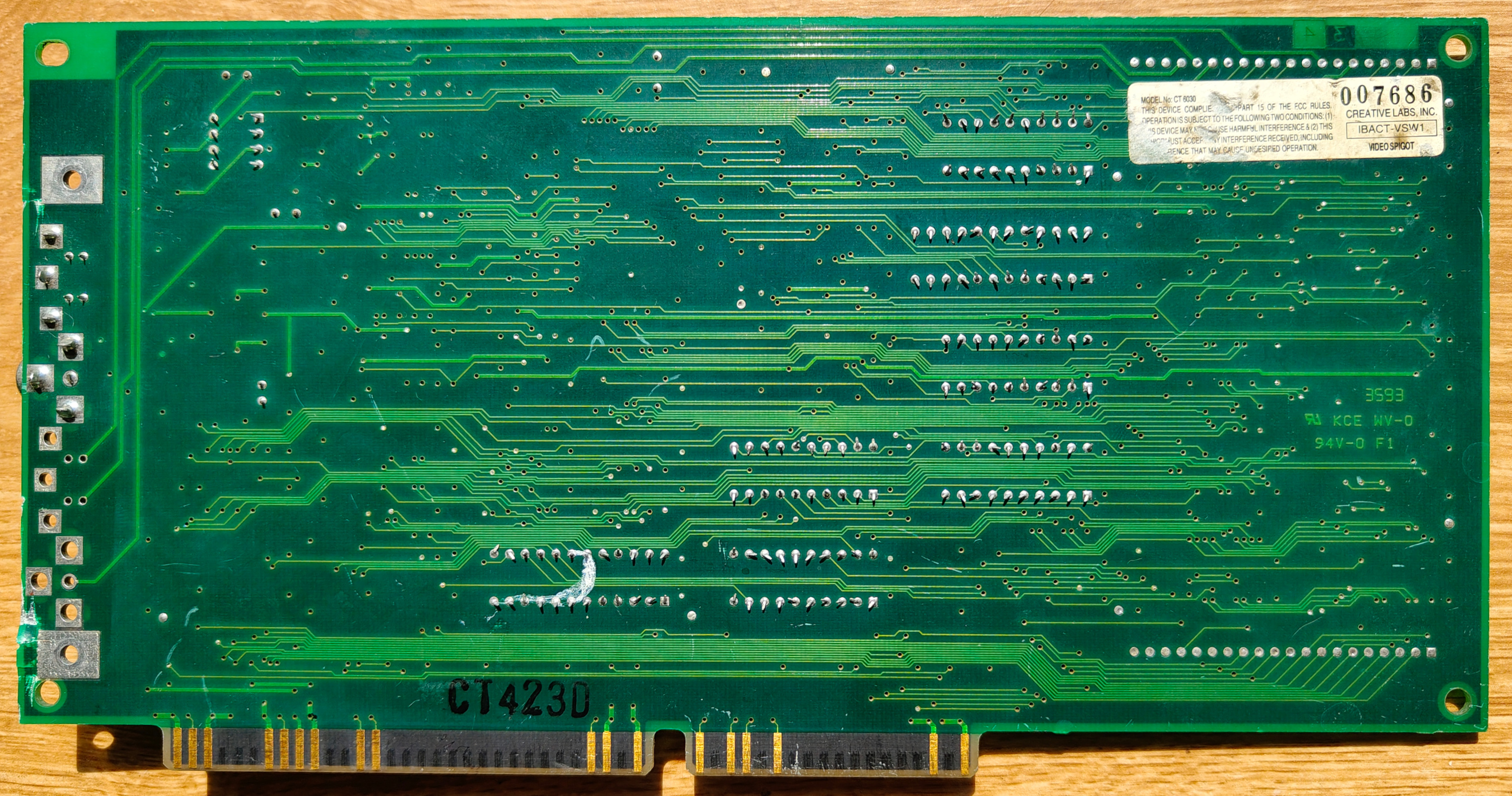

image2 Image 2 of 2 (Yargoro)
