Creative SoundBlaster AWE64 Gold (CT4540)
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
EDO
ramRAM size
28MB1MB
chip Chips and specs
-> Audio
Creative CT1745A (Stereo mixer) AKM (Asahi Kasei) AK4503 (Stereo ADC/DAC) Creative CT8903-MCQ (Audio processor) Creative CT8907-OAQ (FM synthesizer)
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
MTL
Chip Set Creative Technology
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Card Type Sound card
I/O Options Game/MIDI port, line out, speaker out, microphone in, line in, PC speaker connector, Audio in CD-ROM (2), memory upgrade connector, feature connector
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x1 2.54mm pin header
1x
  • 1x2 2.54mm pin header
1x
  • RCA Jack
powerPower connectors
Empty
Last updated 2025-06-01T16:30:10Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
doc No card documents available

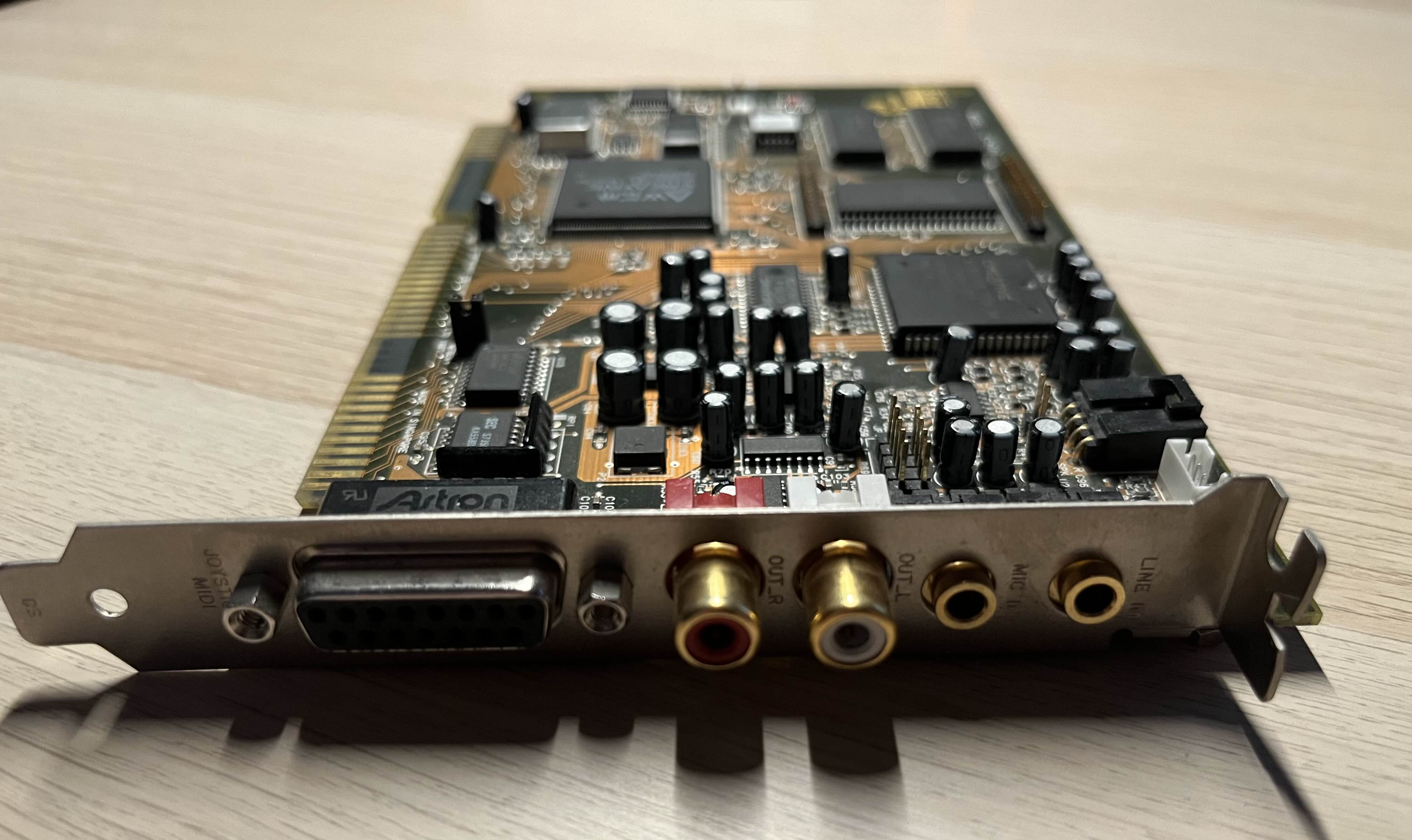

image1 Image 1 of 3 (cha0shacker)

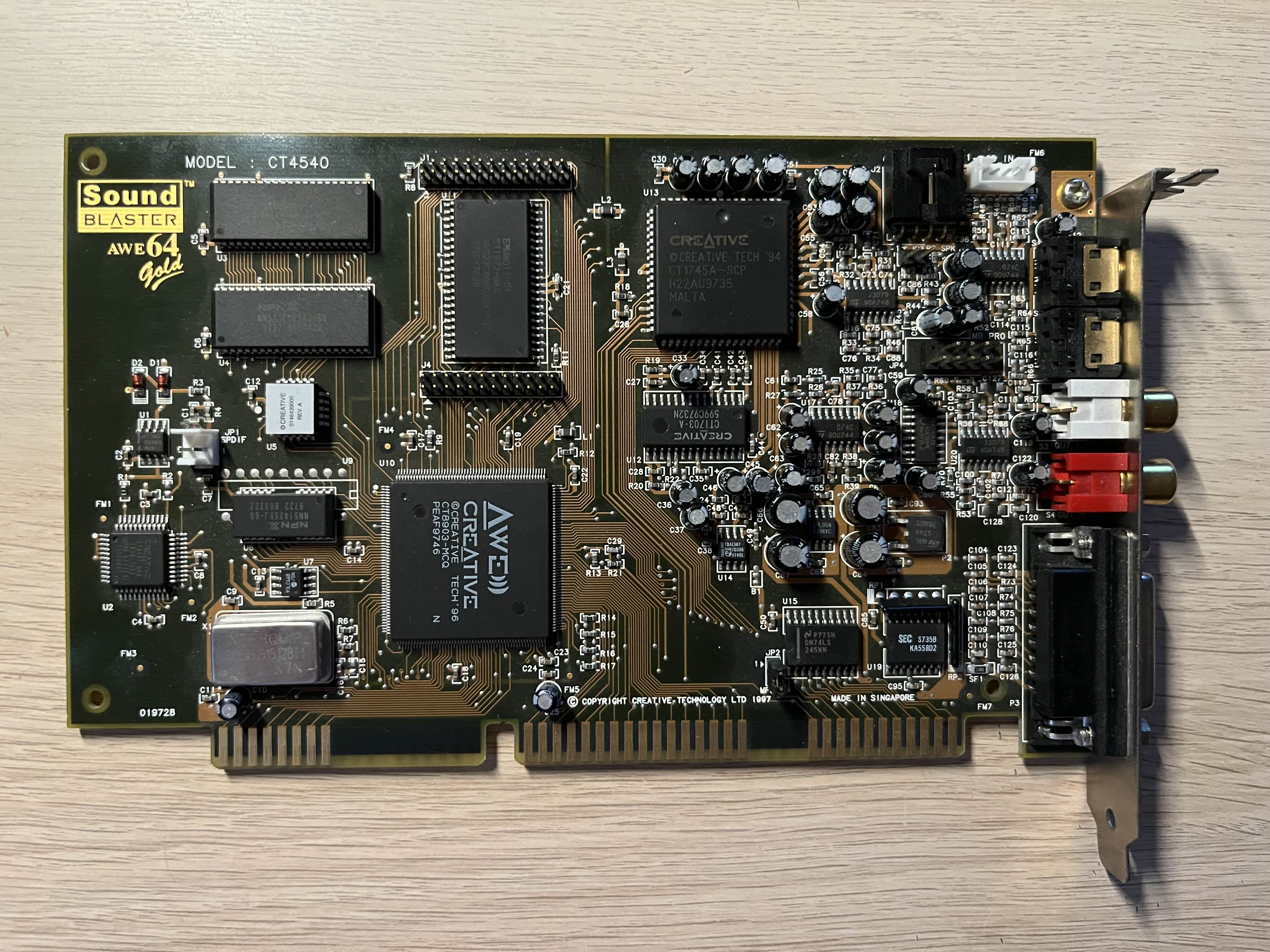

image2 Image 2 of 3 (cha0shacker)

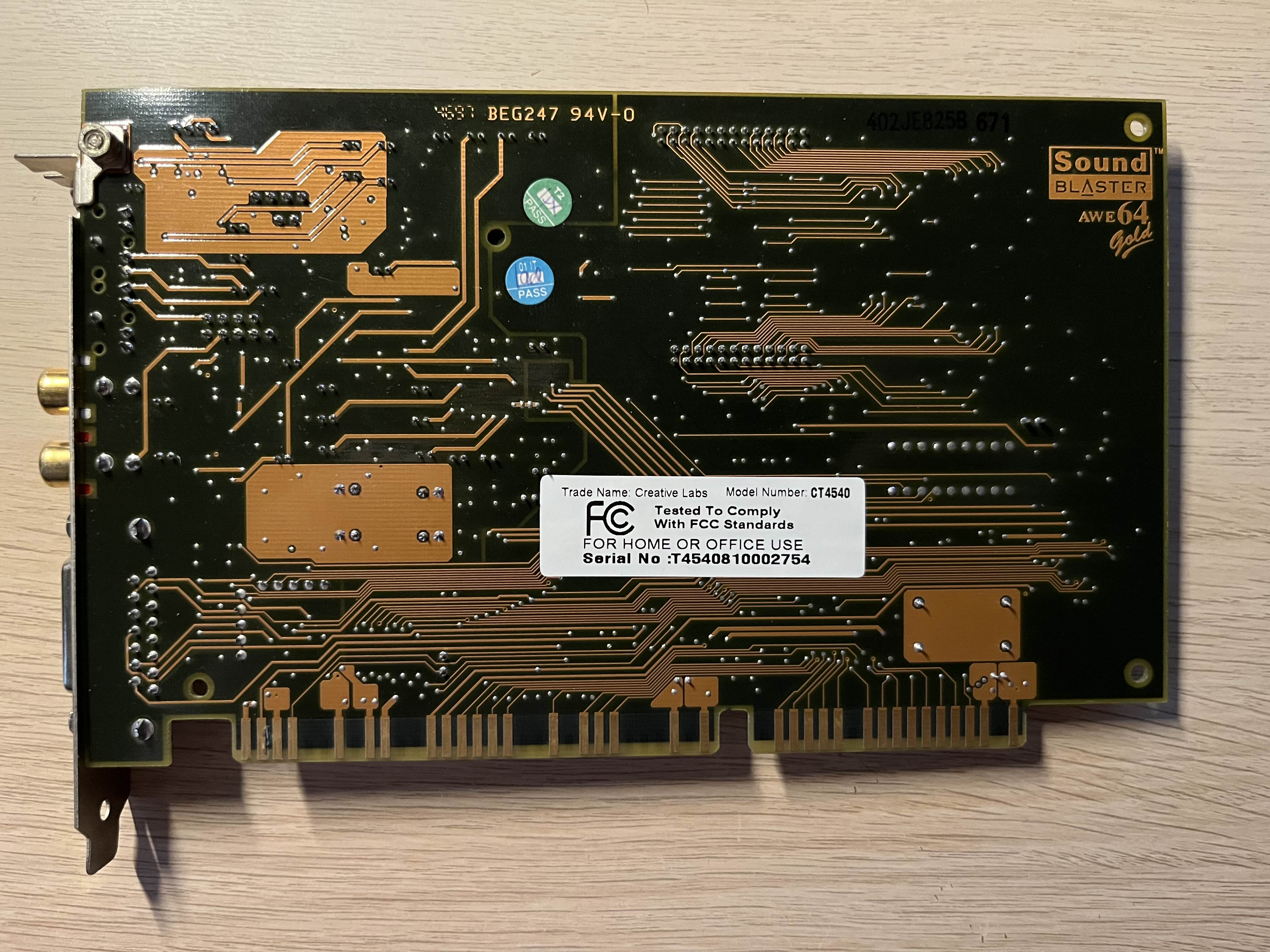

image3 Image 3 of 3 (cha0shacker)
