Creative SoundBlaster AWE64 Gold (CT4390)
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
EDO
ramRAM size
28MB4MB
chip Chips and specs
-> Audio
Creative CT1745A (Stereo mixer) AKM (Asahi Kasei) AK4503 (Stereo ADC/DAC) Creative CT8903-DAQ (Audio processor) Creative CT8908-0AT (FM synthesizer)
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x1 2.54mm pin header
1x
  • 1x2 2.54mm pin header
1x
  • RCA Jack
powerPower connectors
Empty
Last updated 2025-06-21T15:33:11Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

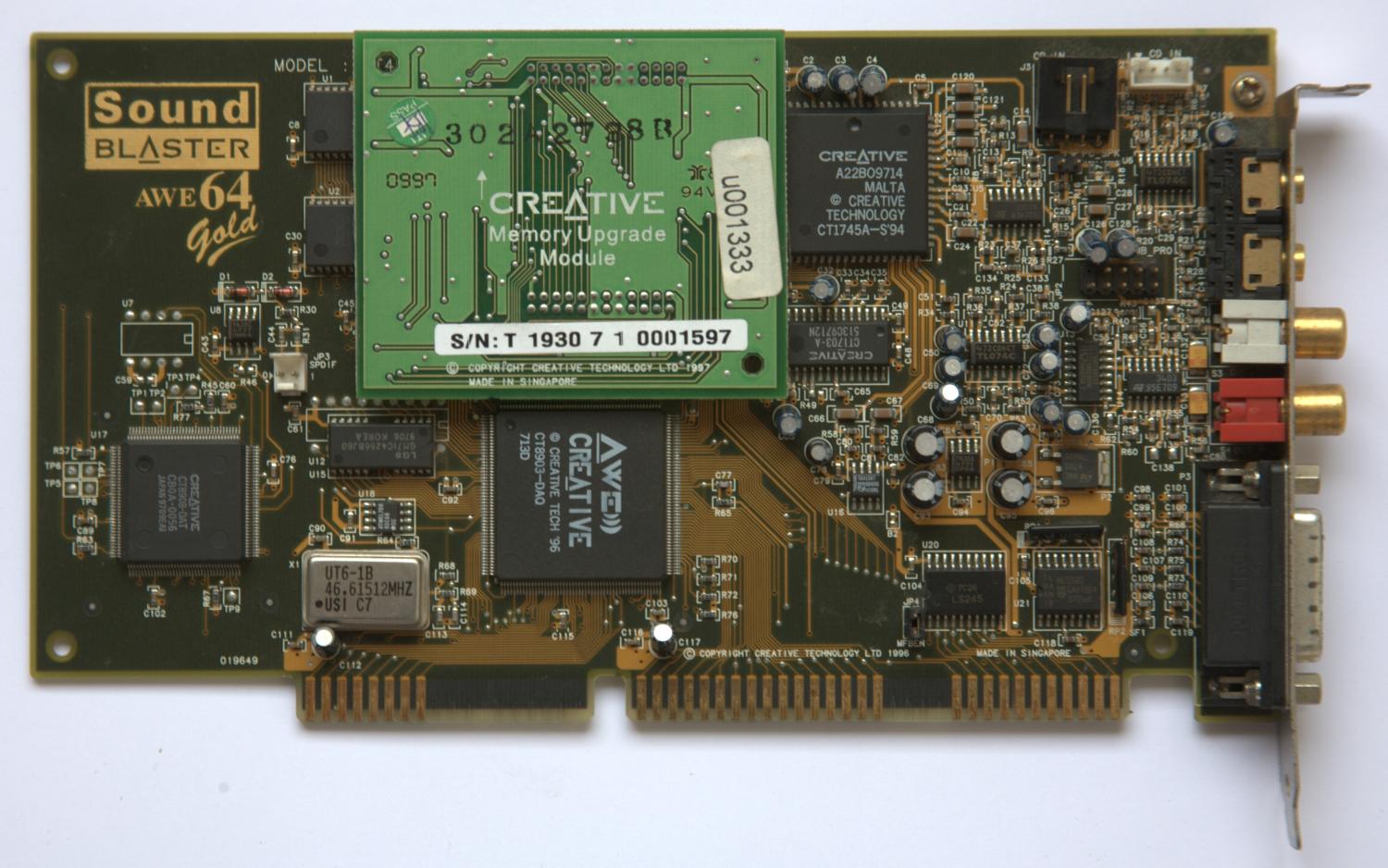

image1 Image 1 of 3 (Microhouse)

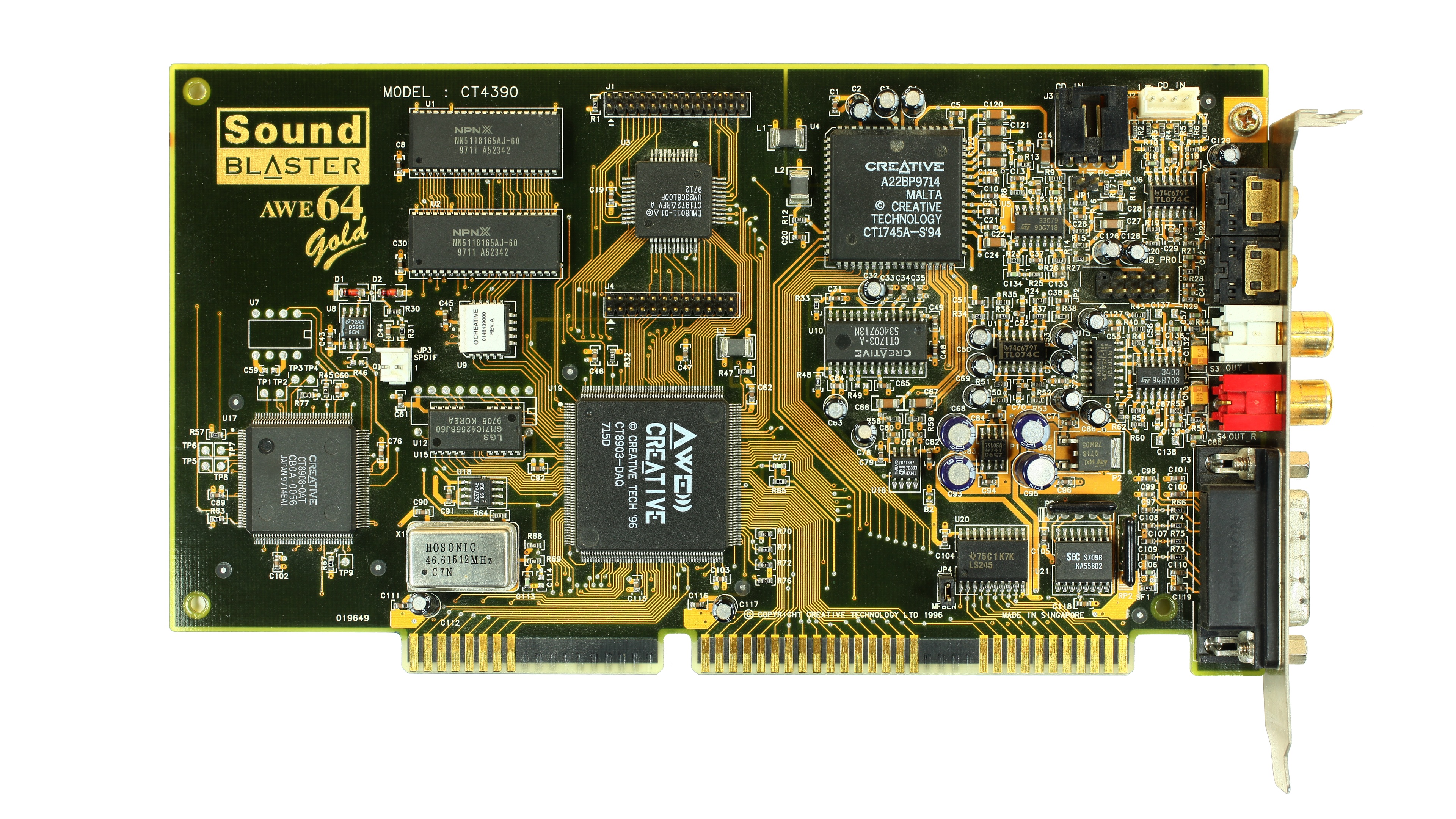

image2 Image 2 of 3 (Hattix)
image3 Image 3 of 3 (Stephan W.)
