Creative SOUNDBLASTER AWE32 VALUE IDE (CT3910)
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Creative CT1745A (Stereo mixer) Creative CT1747 (Bus interface w/OPL3) AKM (Asahi Kasei) AK4503 (Stereo ADC/DAC) Creative EMU8000 Creative CT1741 (DSP)
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
MTL
Chip Set Creative Technology
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Line in connector, microphone in connector, line out connector, speaker out connector, game/MIDI port, CD-ROM audio in connector, CD-ROM interface, PC internal speaker
Maximum Onboard Memory None
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
notes Notes

Sticker says FCC ID:IBACT-SB16IDE which is however another model.

Last updated 2025-08-06T17:03:20Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)

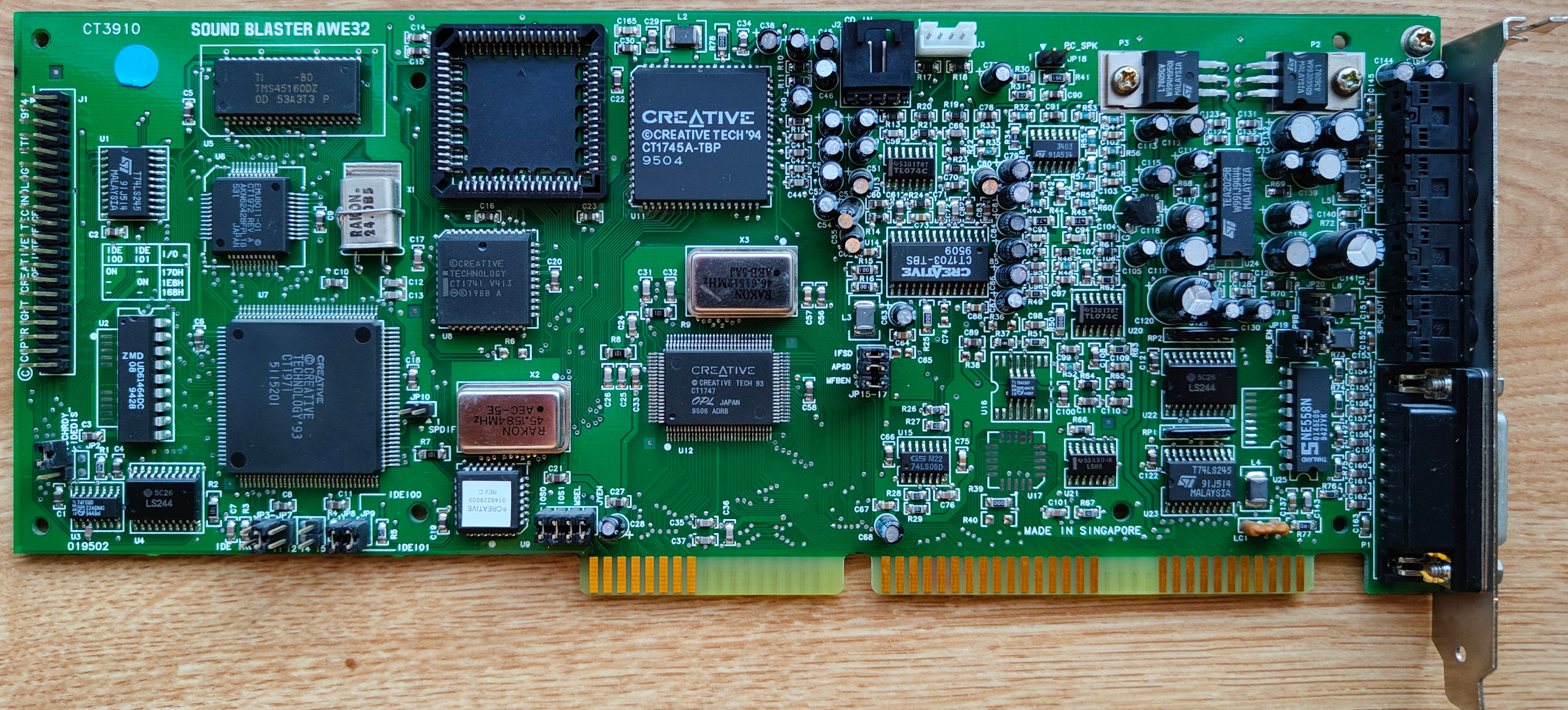

image2 Image 2 of 3 (Yargoro)

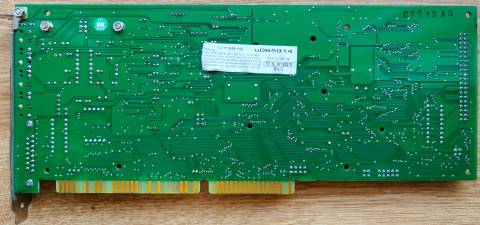

image3 Image 3 of 3 (Yargoro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
