Creative SOUNDBLASTER AWE32 IDE PnP (CT3620)
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IBACT-SB32PNP49
chip Chips and specs
-> Audio
Creative CT1749 Creative CT1745A (Stereo mixer) Creative EMU8000
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
MTL
Chip Set Creative Technology
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM interface, microphone connector, line in connector, line out connector, speaker out connector, game/MIDI port, PC internal speaker, CD-ROM audio in connectors (2), feature connector
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-06T16:08:17Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

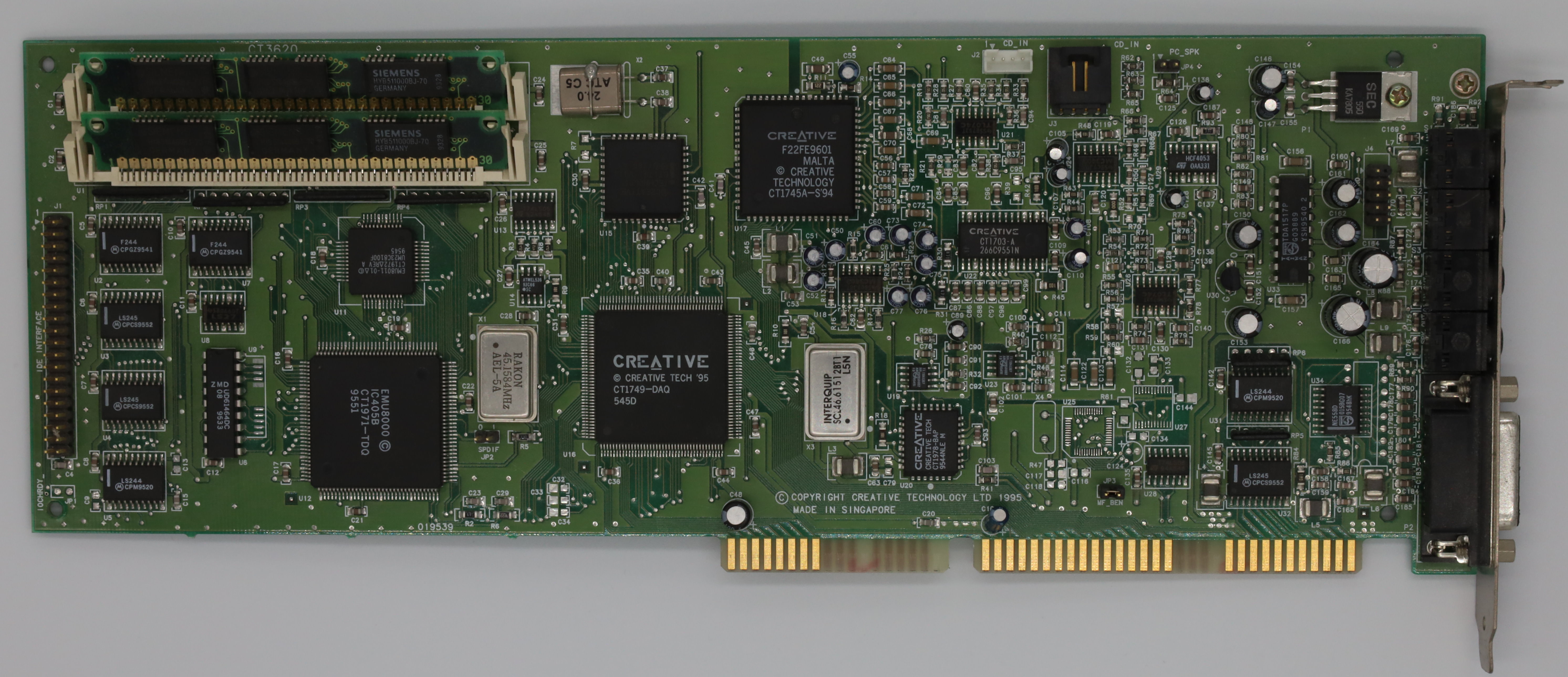

image1 Image 1 of 3 (Carsten Braeuer)

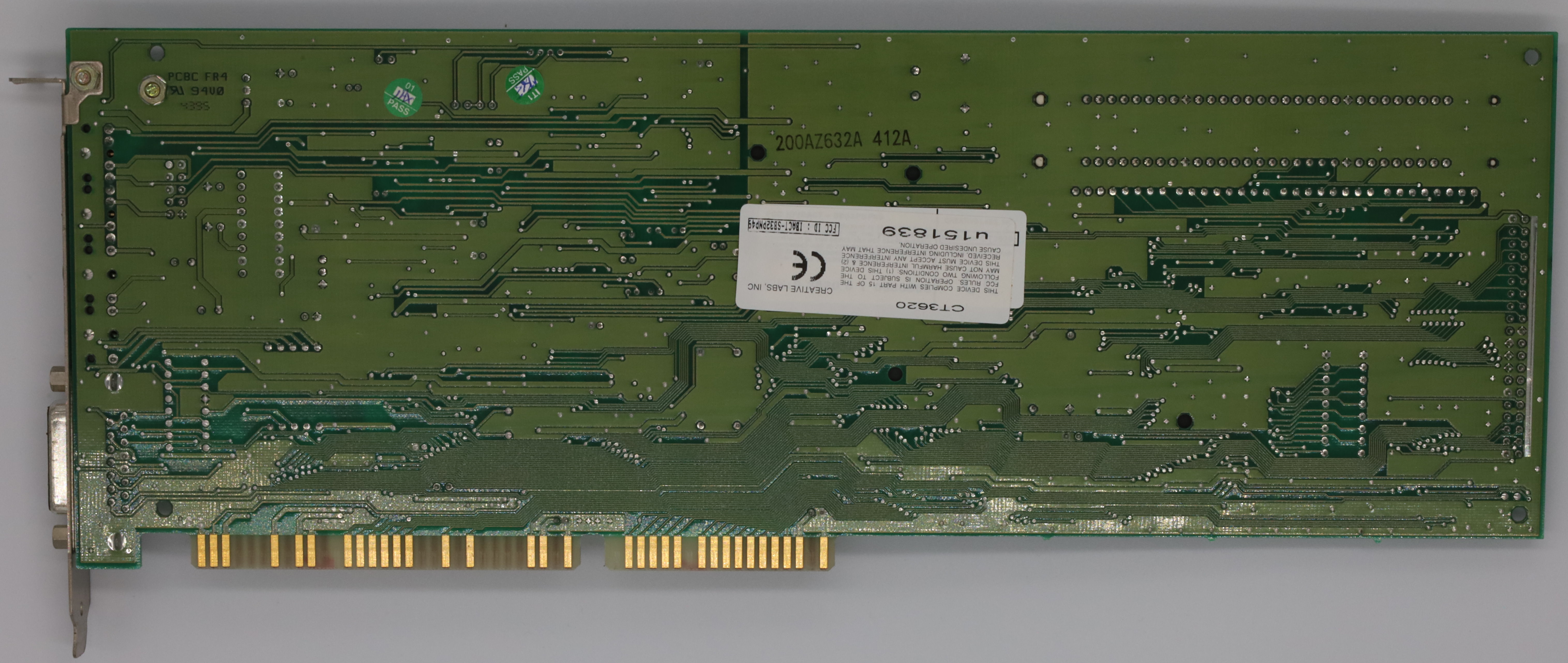

image2 Image 2 of 3 (Carsten Braeuer)

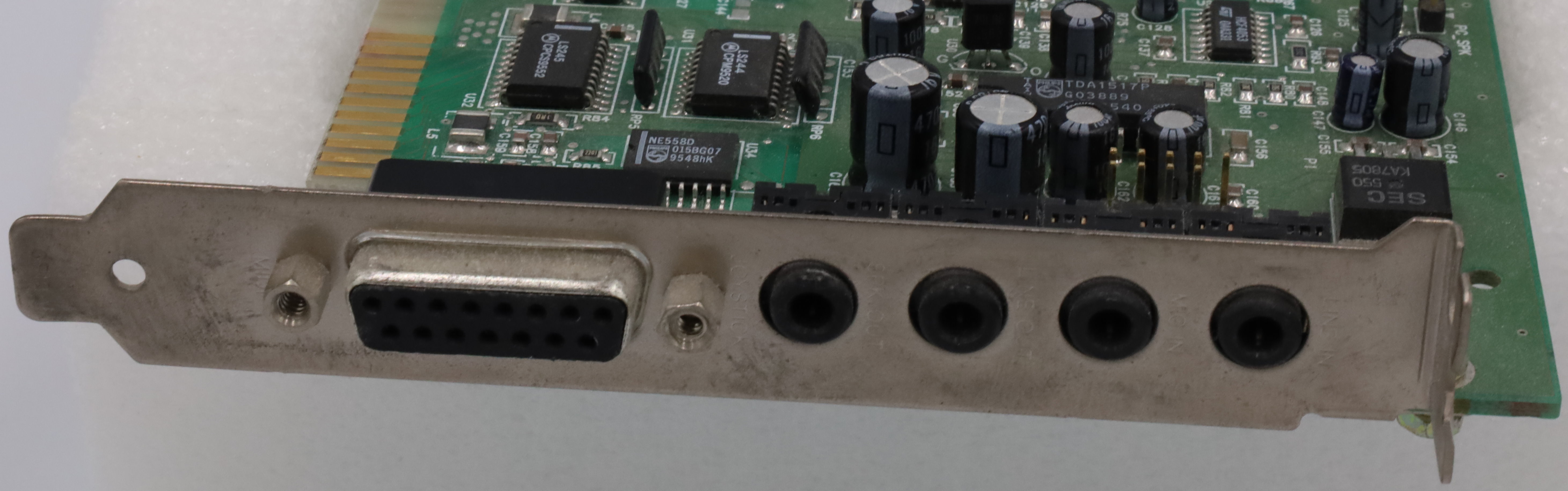

image3 Image 3 of 3 (Carsten Braeuer)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
