Creative SoundBlaster 32 Value (CT4380)
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IBACT-SB32VAL45
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier) Creative CT1745A (Stereo mixer) AKM (Asahi Kasei) AK4503 (Stereo ADC/DAC) Creative CT8903-DAQ (Audio processor)
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
MTL
Chip Set Creative Technology
Data Bus 16-bit ISA
Card Size Three-quarter length, full-height card
Card Type Sound card
I/O Options Game/MIDI port, IDE interface, line in/out, microphone jack, PC speaker connector, speaker/line out, PC speaker connector, Audio in - CD-ROM (2)
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-30T11:20:49Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs

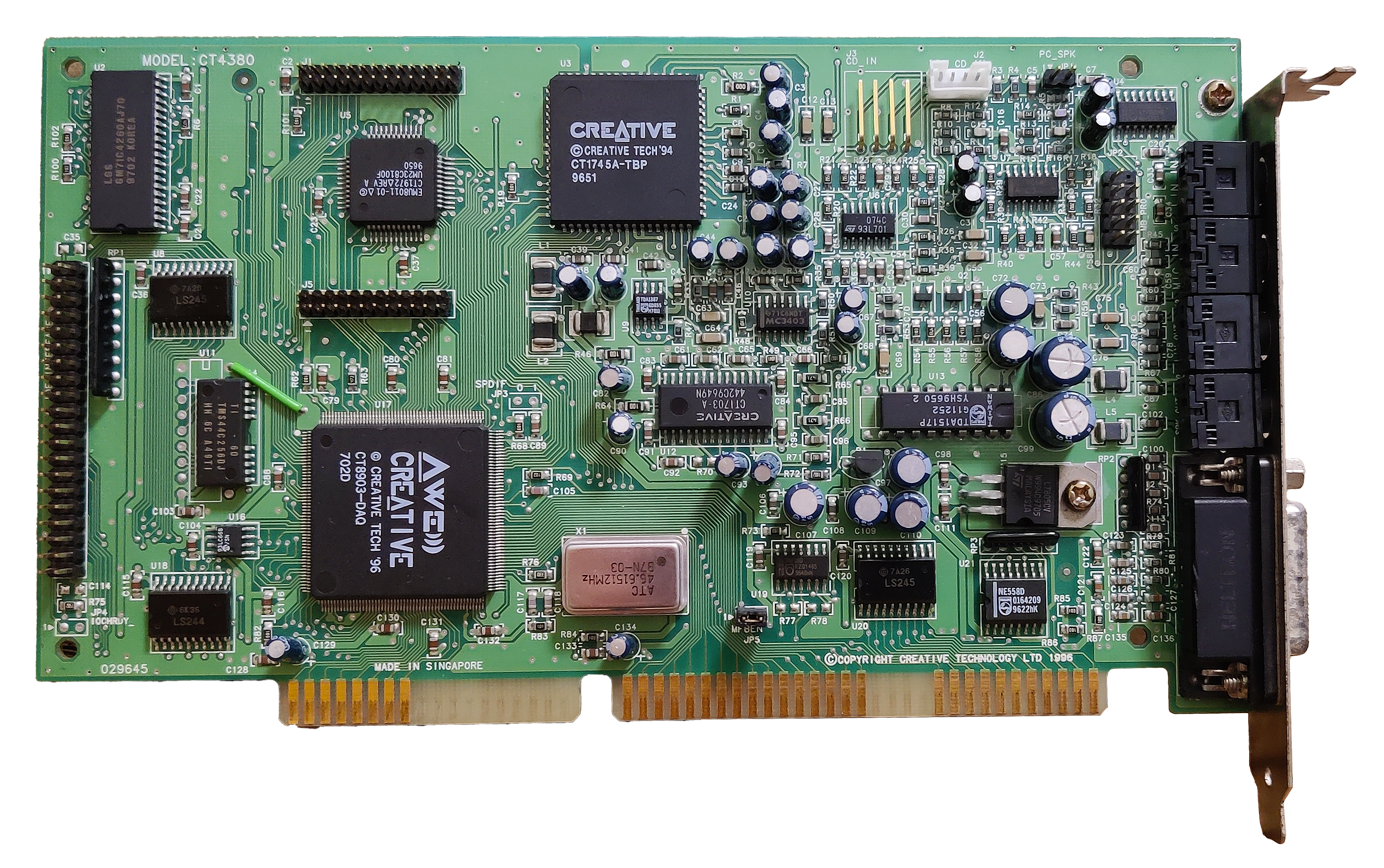

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Bits und Bolts)
image3 Image 3 of 5 (Virtual Computer Antiques)

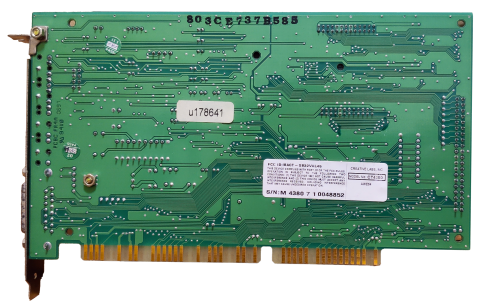

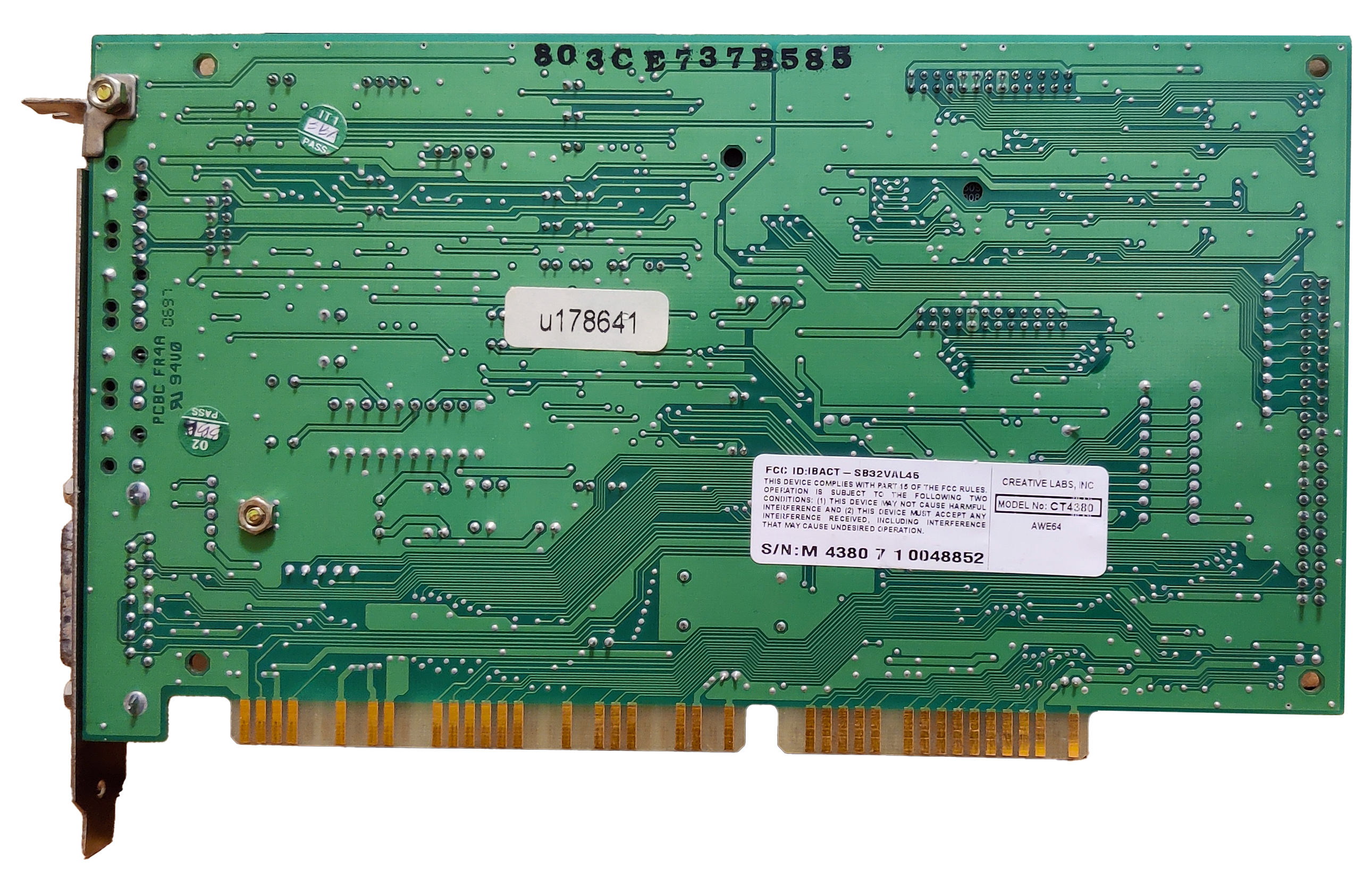

image4 Image 4 of 5 (Bits und Bolts)
image5 Image 5 of 5 (Virtual Computer Antiques)
