Creative Sound Blaster X-Fi XtremeGamer Fatal1ty Pro PCI (SB0460) (010529)
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0005
chip Chips and specs
-> Audio
Creative CA20K1 (E-MU 20K1) Crystal CS4382-KQZ (8-channel DAC) Wolfson Microelectronics (WM) WM8775SEDS (24-bit 96kHz 4CH ADC)
portintI/O ports
1x
1x10 2.54mm pin header
1x
  • 3.5mm TRS jack
3x
  • 3.5mm TRS jack
1x
  • DA-26
1x
  • 2x20 2.54mm pin header
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
notes Notes

There are multiple version with different layouts and same Part Numbers

Last updated 2025-05-26T20:25:01Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.30.0004
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
48.9MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-06
File
Logs

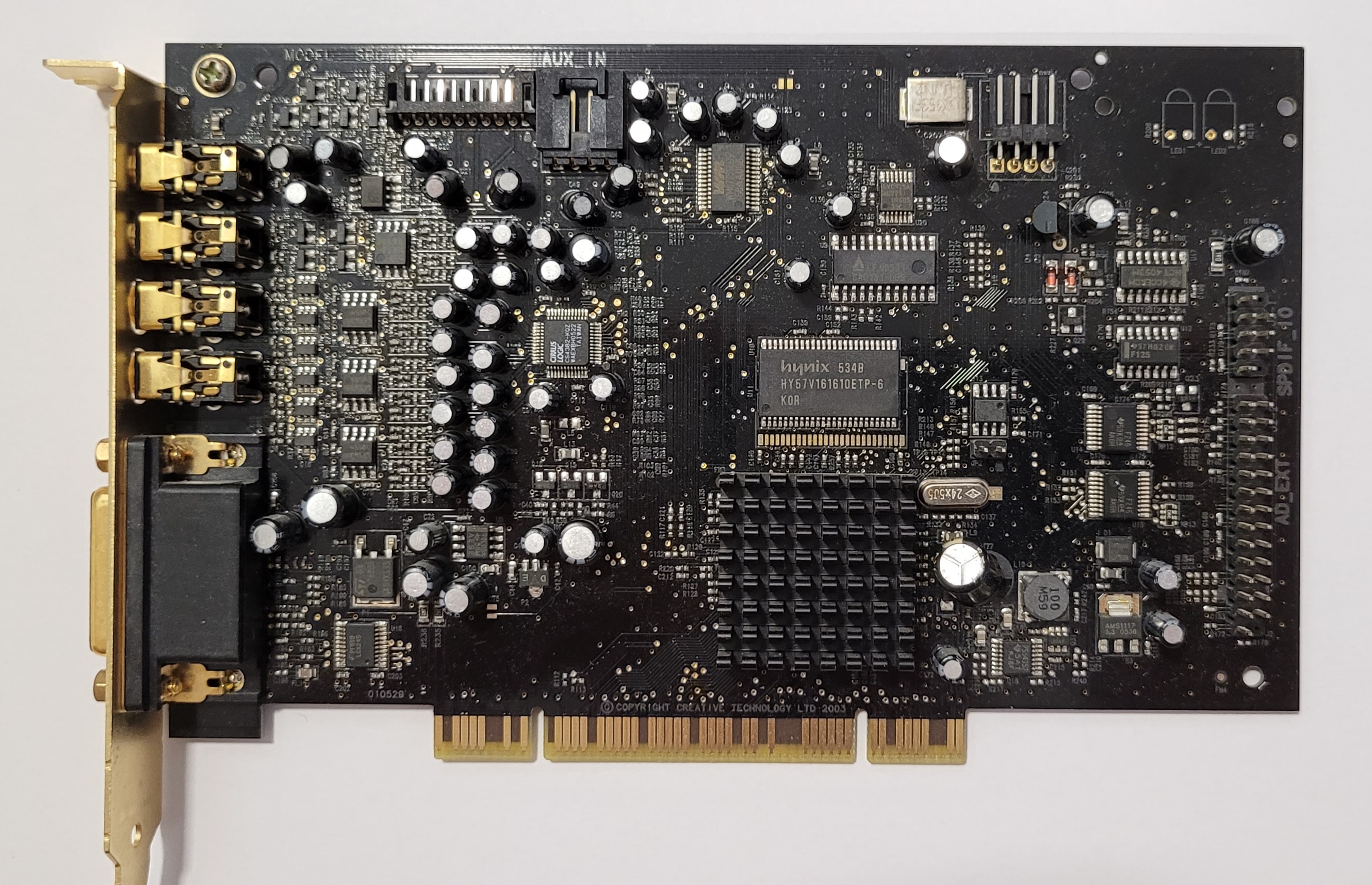

image1 Image 1 of 7 (Wolt1x)

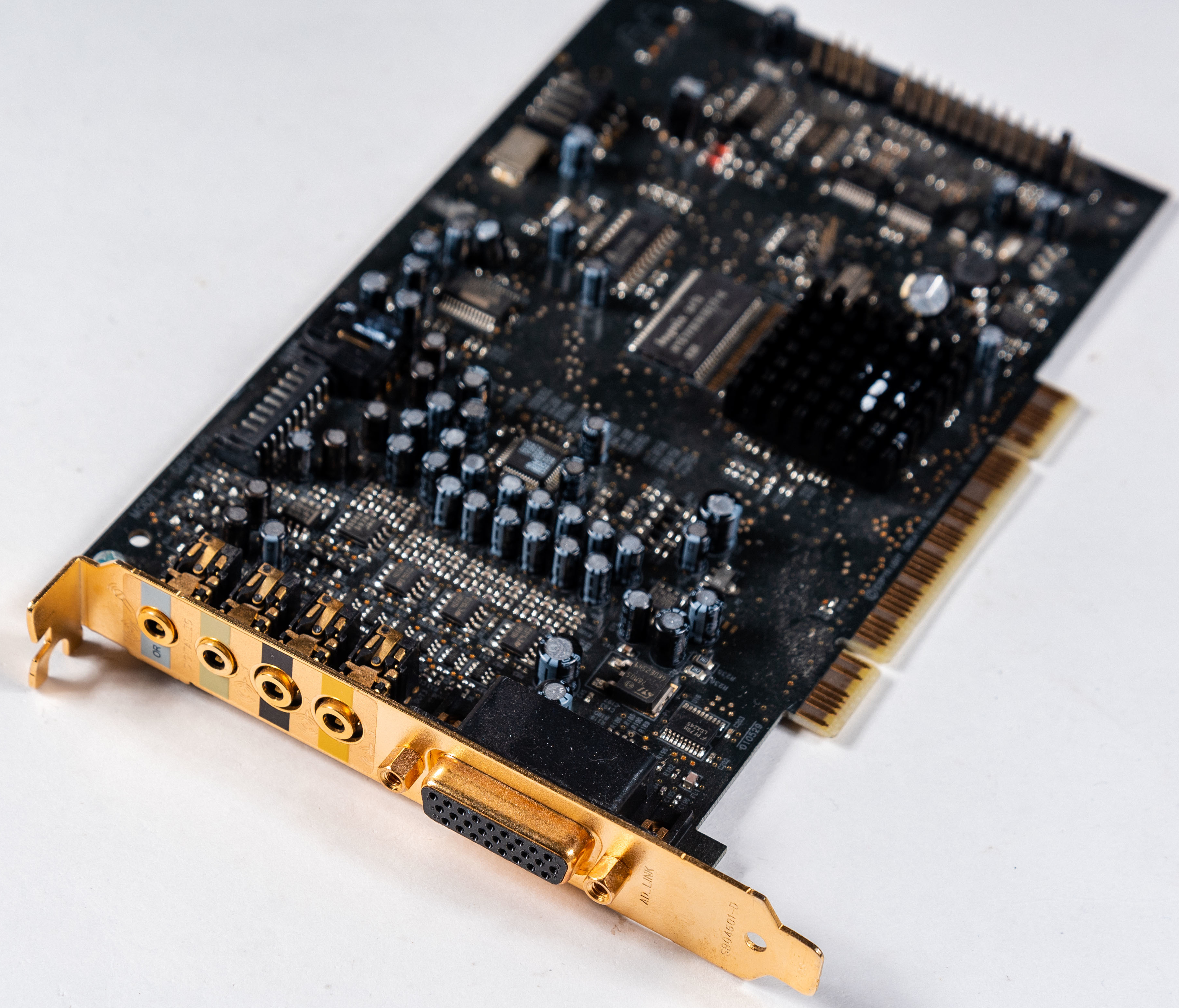

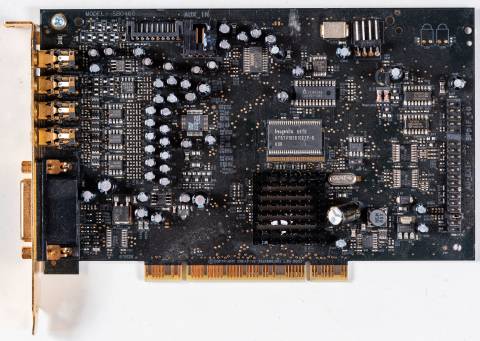

image2 Image 2 of 7 (Motherboard Continuum)

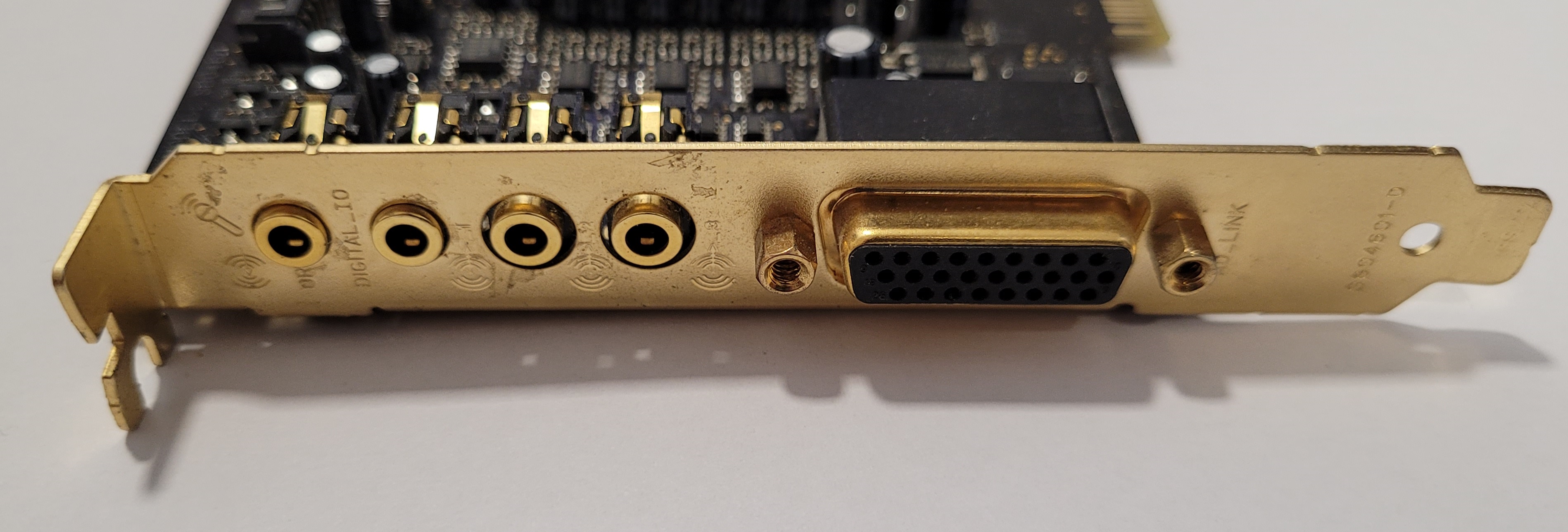

image3 Image 3 of 7 (Wolt1x)

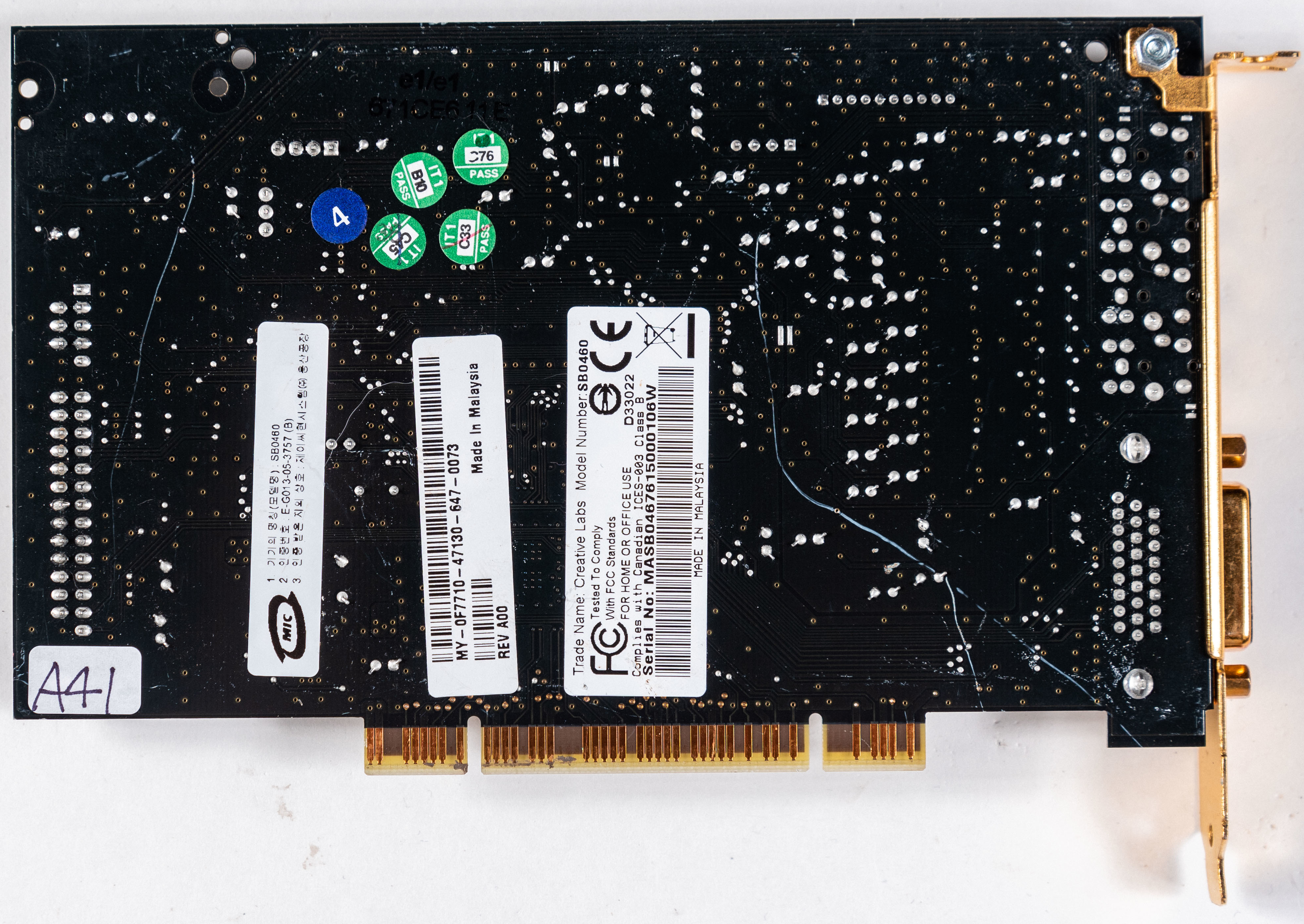

image4 Image 4 of 7 (Motherboard Continuum)
image5 Image 5 of 7 (Motherboard Continuum)

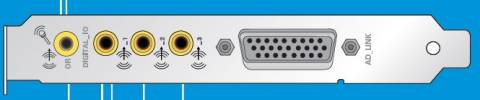

image6 Image 6 of 7 (Creative)

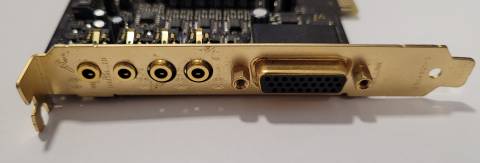

image7 Image 7 of 7 (Wolt1x)
