Creative Sound Blaster Live! (CT4620)
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0020 7002
dimDimensions
107 mm (width) x 132mm (length)
chip Chips and specs
-> Audio
Creative EMU10K1-ECF (SB Live!)
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 1x4 2.54mm pin header
1x
  • 1x2 2.54mm pin header
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
Last updated 2024-07-30T02:23:12Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
Size
483.4KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
Size
5.4MB
Filename
doc No card documents available

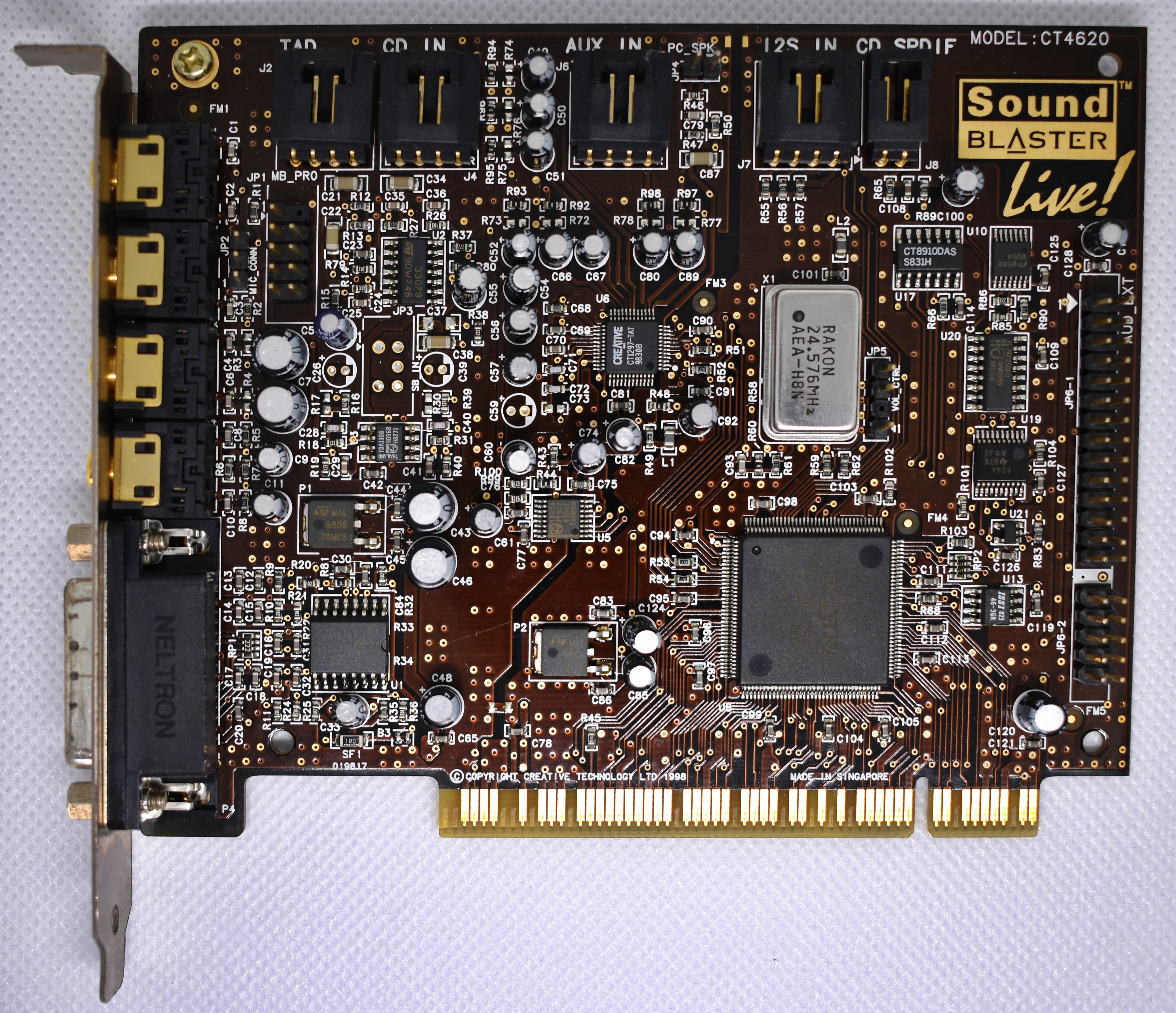

image1 Image 1 of 3 (limsup)

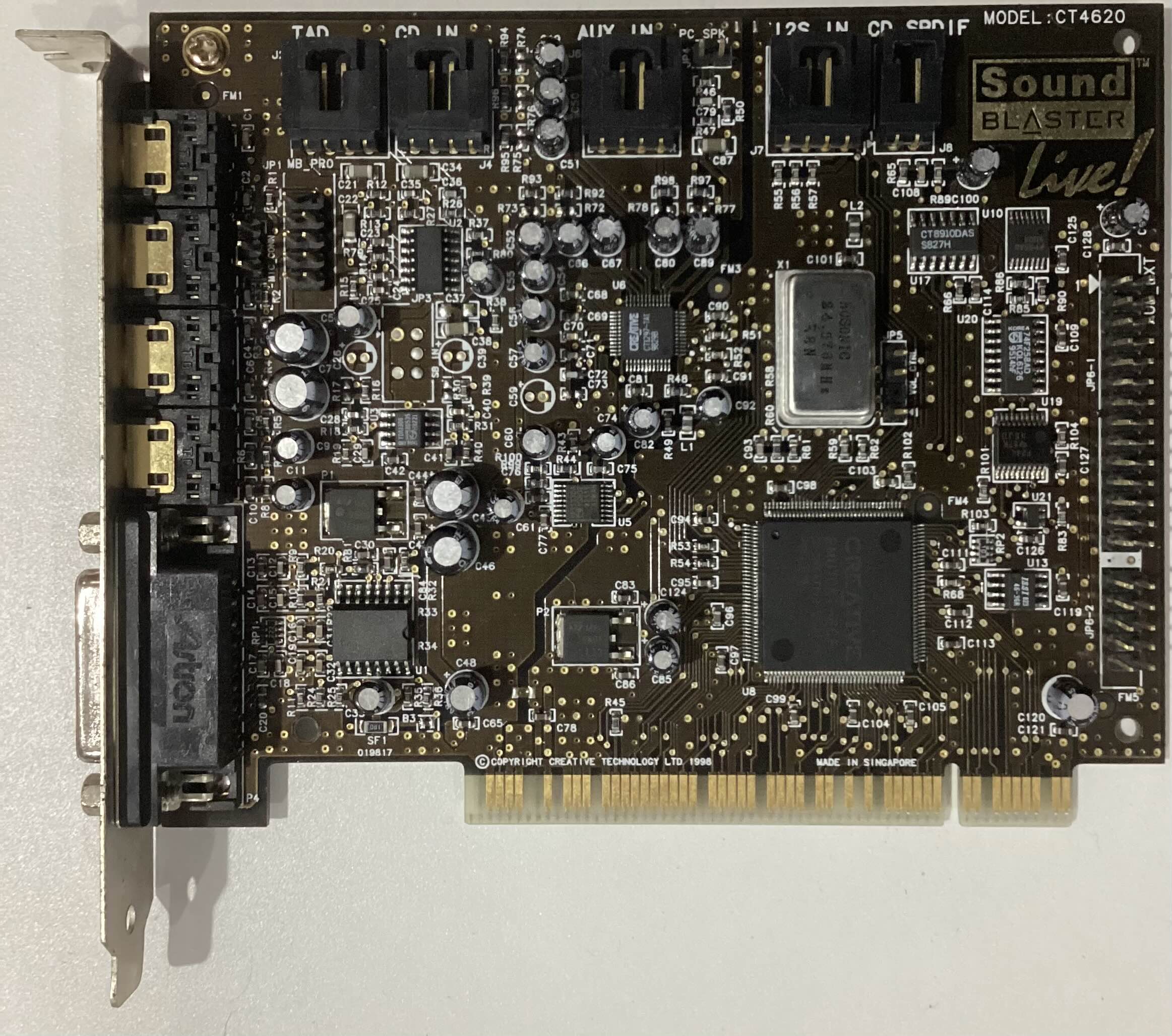

image2 Image 2 of 3 (Mr cacodemon)

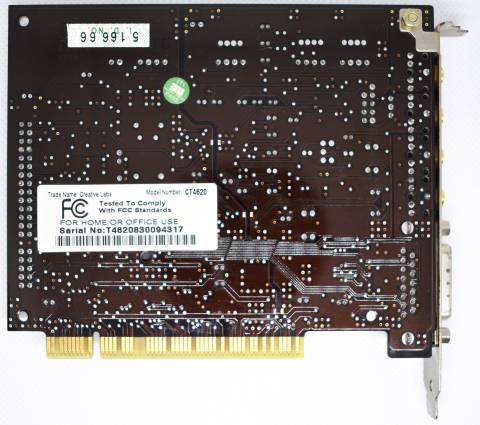

image3 Image 3 of 3 (limsup)
