Creative Sound Blaster AWE32 (CT2760)
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IBACT-SBAWS
ramRAM types
30-pin SIMMFPM
ramRAM size
28MB
chip Chips and specs
-> Audio
Creative CT1745A (Stereo mixer) Creative CT1748A (CSP/ASP) Creative CT1747 (Bus interface w/OPL3) Creative EMU8000 AKM (Asahi Kasei) AK4501 (Stereo ADC/DAC) STMicroelectronics / Inmos TEA2025 (Audio Amplifier)
-> Miscellaneous
Mitsumi CR623803 (CD-ROM ctrl.)
-> Processor
Intel 8052 (Microcontroller)
-> ROM
Creative EMU8011 (Wavetable Sample ROM)
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 1x2 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-16T07:48:46Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
Revision 16
OS support
Windows 9x
Arch
x86
Size
312KB
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
13.3MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2014
File
Logs

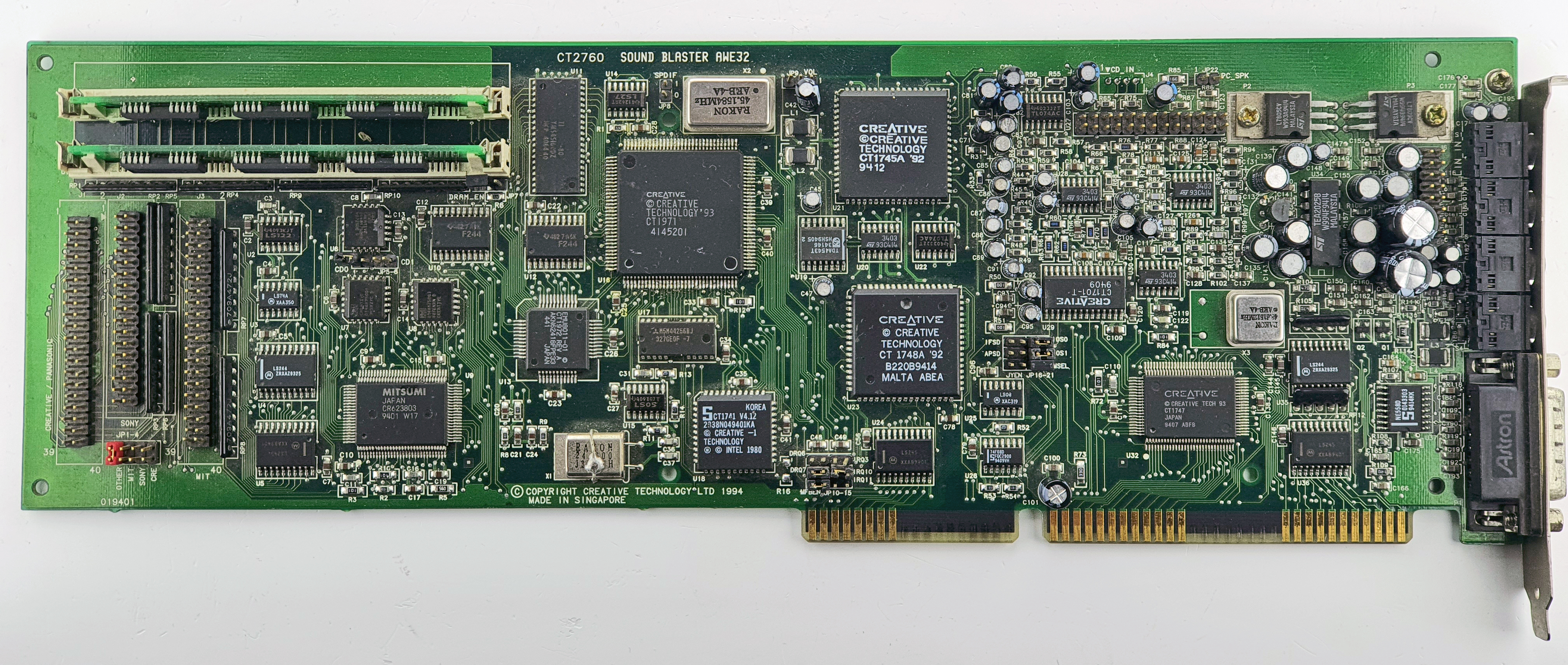

image1 Image 1 of 5 (Microhouse)

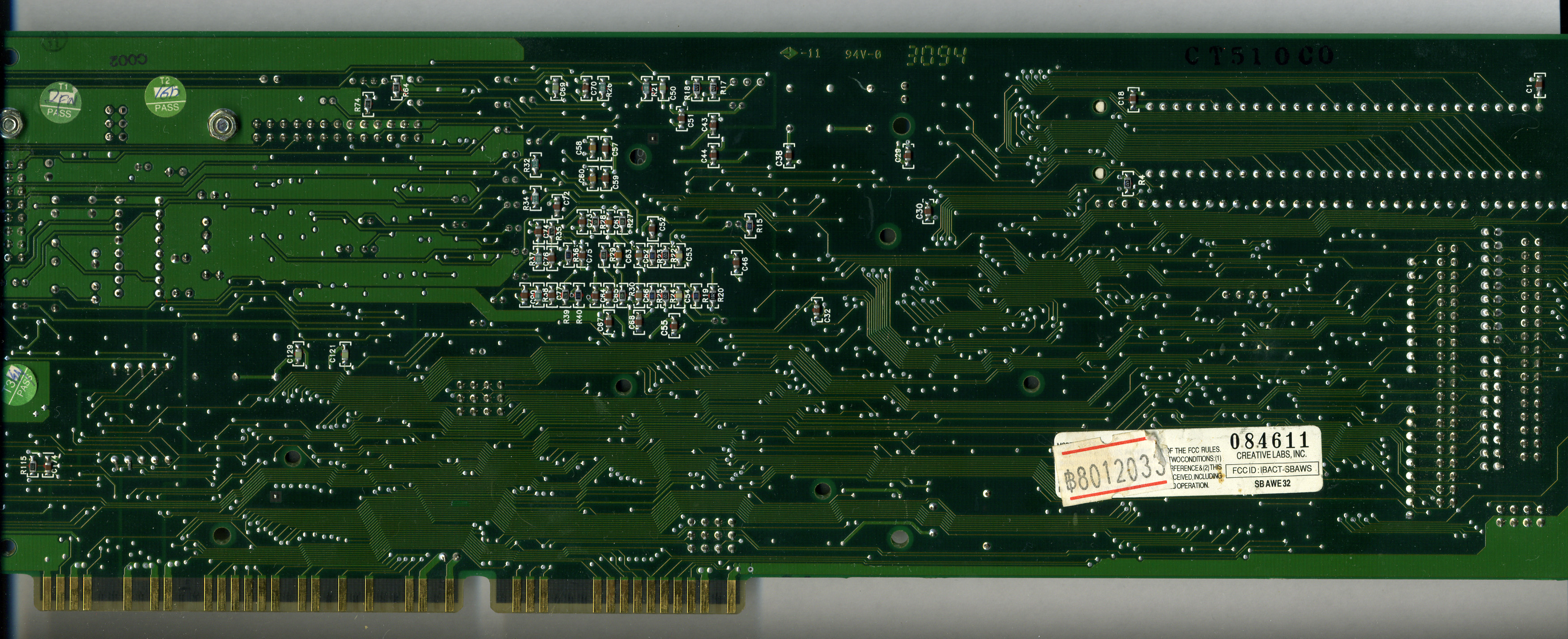

image2 Image 2 of 5 (computerguy096)

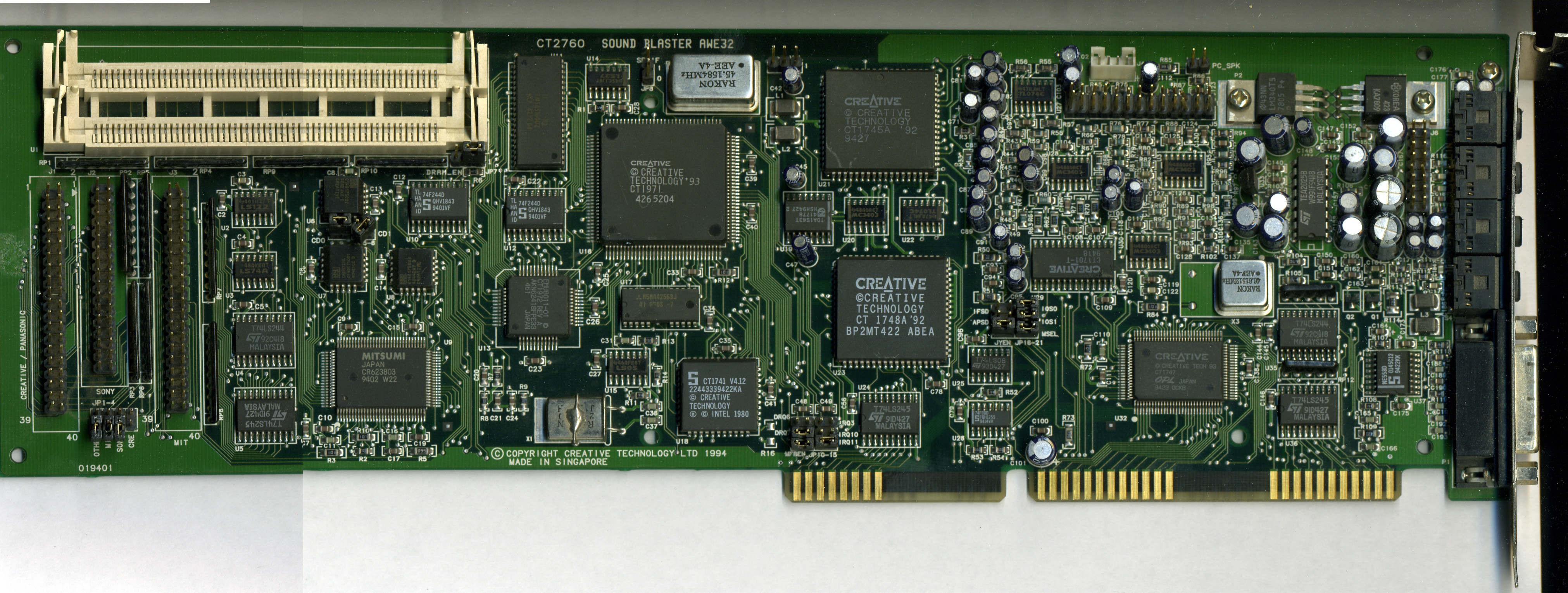

image3 Image 3 of 5 (Virtual Computer Antiques)

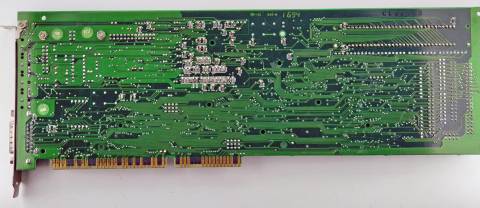

image4 Image 4 of 5 (computerguy096)
image5 Image 5 of 5 (Virtual Computer Antiques)
