Creative Sound Blaster 16 Value PnP (CT4180)
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Creative CT2505 (Vibra 16C) Philips TDA1517 (2x6W Audio Power Amplifier) Texas Instruments TPA1517 (2x6W Audio Power Amplifier)
MTL
Chip Set Creative Labs
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM audio interface, game port
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x1 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-18T20:47:57Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
1.8MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
2007-02
File
Logs

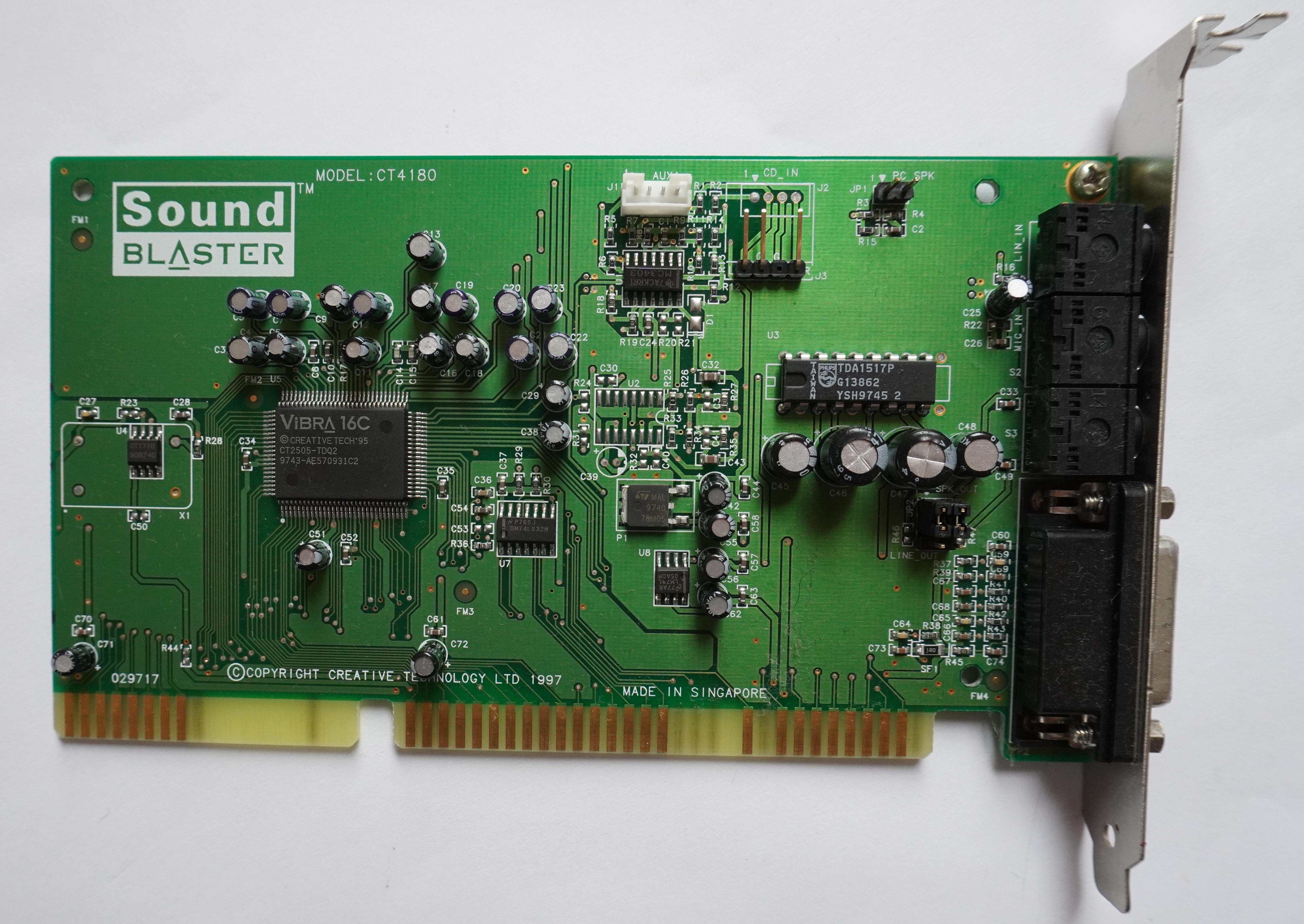

image1 Image 1 of 7 (Hias1000)

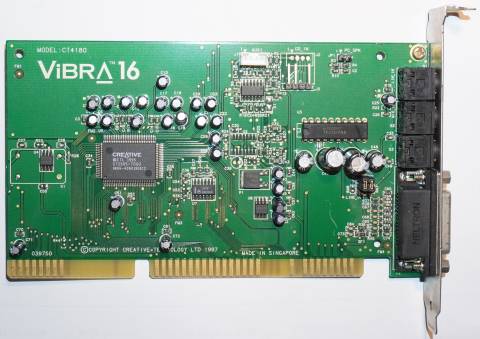

image2 Image 2 of 7 (Elke Wehmer)
image3 Image 3 of 7 (Elke Wehmer)

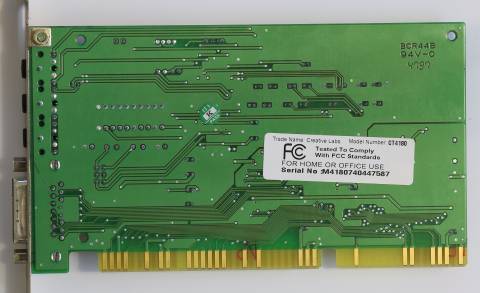

image4 Image 4 of 7 (Hias1000)

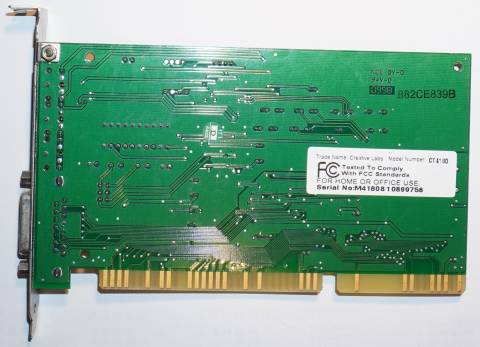

image5 Image 5 of 7 (Elke Wehmer)

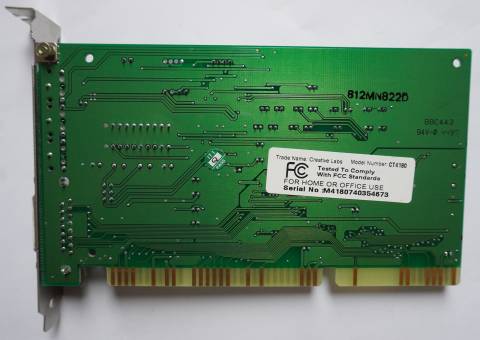

image6 Image 6 of 7 (Elke Wehmer)
image7 Image 7 of 7 (Elke Wehmer)
